K7SF7D6301V3Surf N300 Wireless N Router

User Manual F7D6301 8820-00697 WIRELESS N ROUTER SURF N300 Table Of COnTenTs Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 What’s in the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Advanced Tools & Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 The Belkin Router Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Manual Setup Using Your Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Adding Computers to Your Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Getting to Know Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Technical Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Troubleshooting, support, and Warranty . . . . . . . . . . . . . . . . . . .15 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Belkin International, Inc ., Limited 2-Year Product Warranty . . . . . . . . .23 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 1 GeTTInG sTaRTeD What’s in the box Surf N300 Wireless N Router Ethernet cable (attached to router) Power supply (attached to router) Network information card (attached to router) Belkin Setup CD with User Manual Initial setup Where to Place Your Router For the best results, place the Router next to your modem in an open location away from large metal objects and magnets such as those found in speakers . Raising the Router above floor level can improve the strength of your wireless signal . 2 GeTTInG sTaRTeD 3 modem 1 2 how to set It Up 3 GeTTInG sTaRTeD 1 . Connect your Router’s Ethernet cable to your modem’s Ethernet port (on the back of your modem) . This port might be labeled differently on your particular modem . If you are adding a Router for the first time, this port may be connected to your computer by an Ethernet cable . It is OK to disconnect your computer and plug the Router into the modem instead . 2 . Plug the Router’s power supply into a wall outlet . 3 . Put the CD into your computer . If the CD doesn’t open automatically, please browse to your CD drive and double-click on the Belkin Setup CD icon . 4 . Click the Setup icon on the CD menu . Setup 4 GeTTInG sTaRTeD 5 . After a brief installation, the setup software will ask you for the network name and password from the network information card that is attached to your Router . Store the card under the base of your Router for future reference . 5 GeTTInG sTaRTeD 6 . A progress screen will appear while additional software is installed . This may take a few minutes to complete . Once finished, a “Success” message will appear indicating that you are connected to the Internet via your new Belkin Router . During setup you may be asked for additional information . You may need to enter a username and password provided by your ISP . This username and password is likely to be found on materials that came from your ISP when you signed up for ser vice . If necessar y, you may need to contact your ISP to retrieve your username and password . If you have a static IP address, you may need to enter additional information also provided by your ISP . If your computer doesn’t have a wireless adapter, or the setup software is unable to control it, you may be asked to connect your computer to the Router with a network cable . 6 GeTTInG sTaRTeD advanced Tools & settings After the initial setup is complete, you have the option to change settings like your network name, security type, and password . To make these changes and others, click on the Advanced Tools icon at the CD Setup menu and select one of the following settings that you would like to change: network name & security – Personalize your network name (SSID), password, and strength of wireless security . Internet service Provider & login settings – Have you moved or changed Internet Service Providers? If you’d like to change these settings without running through the setup process again, this is the place . 7 GeTTInG sTaRTeD The belkin Router Manager Belkin.2234 Router Settings User Manual Check for Updates Options Exit The Belkin Router Manager appears in your system tray (Windows) or menu bar (Mac) . Its icon indicates the current status of your Router and also allows you to access your Router’s settings to make changes . It also provides quick access to software that came bundled with your Router . To access the Router settings, click on the icon and select from the menu that appears . The status of your Router is shown by the Belkin Router Manager icon, which closely mimics the light on the front of the Router . Green: You are connected to your Belkin Router and it is connected to the Internet . amber: You are connected to your Belkin Router, but it is not connected to the Internet . 8 GeTTInG sTaRTeD In your browser, type “http://router” (you do not need to type in anything else such as “www”) . Then press the Enter key . If you’re still having trouble running the manual setup option, type “192 .168 .2 .1” in your browser (you do not…

Text truncated - open the document above for the full version.

Belkin International, Inc. Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: K7SF7D6301V3, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Signature Name: Daniel Wesey Title: EMC Regulatory Compliance Engineer Tel: +1-310-751-2816 E-mail: [email protected] Date: 2010-9-13

RF_160, Issue 02 Declaration of Authorization We Name: Belkin International, Inc. Address: 12045 East Waterfront Drive City: Playa Vista Country: USA Declare that: Name Representative of agent: Spring.Zhou Agent Company name: Compliance Certification Services(Kunshan) Inc. Address: No. 10 Weiye Rd., Innovation Park,Eco&Tec,Development Zone, City: Kunshan Country China is authorized to apply for Certification of the following product(s): Product description: Surf N300 Wireless N Router Type designation: F7D2301 v3,F7D6301 v3.................................................... Trademark: BELKIN.................................................... on our behalf. Date: 2010-9-13................................ City: Playa Vista ................................ Name: Daniel Wesey................................ (2) Function: EMC Regulatory Compliance Engineer............................... Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

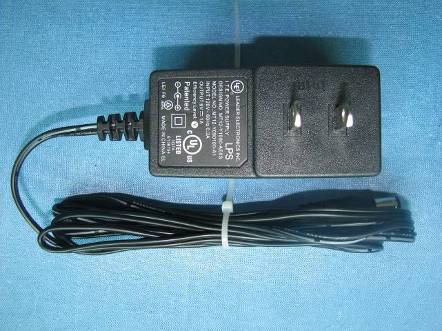

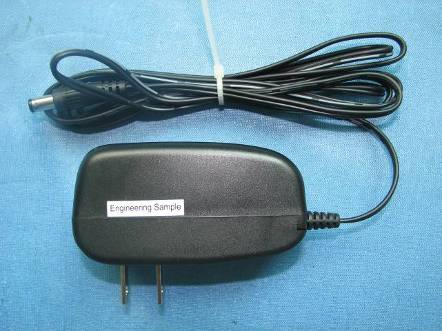

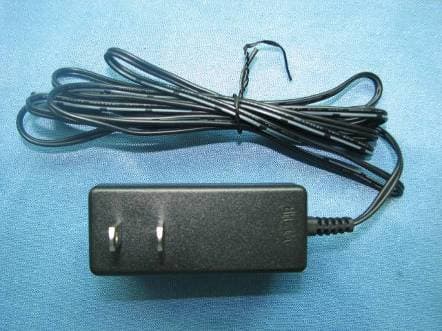

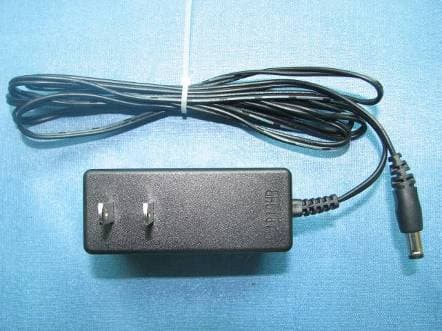

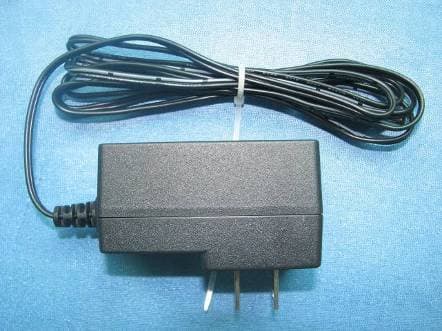

Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01-RP FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01-RP FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01-RP FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01-RP FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 Adapter 1. Model name: AD810F11 Manufacturer: PIE Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01-RP FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 2. Model name:DSA-9PFB-09 FUS Manufacturer: DVE Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01-RP FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 3. Model name:DSA-12G-12 AUS Manufacturer: DVE Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01-RP FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 4. Model name:MT12-Y090100-A1 Manufacturer: LEI Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01-RP FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 5. Model name:SYS1381-0909-W2 Manufacturer: Sunny

LABEL LOCATION

Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01 FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01 FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 Bluetooth Module Pifi Antenna 1 Pifi Antenna 2 Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01 FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 PCB Antenna PCB Antenna 2 PCB Antenna 1

Compliance Certification Services Inc. Report No.: KS100614A01-RC IC: 3623A-F7D6301V3 Date of Issue: August 12, 2010 ELECTROMAGNETIC COMPATIBILITY CRITERIA FOR INTENTIONAL RADIATORS § 15.247(b), A8.5 Peak Power Output and RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @2.412GHz ~ 2.462GHz；2.422GHz ~ 2.452GHz; highest conducted power = 18.94dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 3.12 dBi. total gain 6.13dBi Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR2 or R = √PG / 4πS where, S = Power Density (1 mW/cm2) P = Power Input to antenna (78.34mW) G = Antenna Gain (4.10 numeric) R = (78.34*4.10/ 4*3.14*1.0) 1/2 = (321.20 / 12.56) 1/2 = 5.06cm separation required in order to comply with the limit of 1 mW/cm2 for Uncontrolled Exposure.

Compliance Certification Services Inc. Report No.: KS100614A01-RP FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 Page 1 Total Page: 113 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Surf N300 Wireless N Router Model No.: F7D2301 v3,F7D6301 v3 Trade Name: BELKIN FCC ID: K7SF7D6301V3 Test Report Number: KS100614A01-RP Issued for Belkin International Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094, USA Issued by: Compliance Certification Services Inc. Kun shan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 Issued Date: Aug 12, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: KS100614A01-RP FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 Page 2 Rev. 00 Revision History Rev. IssueDate Revisions Effect Page Revised By 00 August 12, 2010 Initial Issue ALL Miro Chueh Compliance Certification Services Inc. Report No.: KS100614A01-RP FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ...........................................................................................4 2. EUT DESCRIPTION................................................................................................................5 3. TEST METHODOLOGY..........................................................................................................6 3.1 EUT CONFIGURATION..............................................................................................................6 3.2 EUT EXERCISE........................................................................................................................6 3.3 GENERAL TEST PROCEDURES..................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ................................................7 3.5 DESCRIPTION OF TEST MODES.................................................................................................8 4. INSTRUMENT CALIBRATION .............................................................................................10 4.1 MEASURING INSTRUMENT CALIBRATION.............................................................................10 5. FACILITIES AND ACCREDITATIONS .................................................................................11 5.1 FACILITIES............................................................................................................................11 5.2 EQUIPMENT..........................................................................................................................11 5.3 LABORATORY ACCREDITATIONS AND LISTING.........................................................................11 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................12 6. SETUP OF EQUIPMENT UNDER TEST ..............................................................................13 6.1 SETUP CONFIGURATION OF EUT.............................................................................................13 6.2 SUPPORT EQUIPMENT ....................................................................................................13 7. FCC PART 15.247 REQUIREMENTS ..................................................................................14 7.1 6DB BANDWIDTH...................................................................................................................14 7.2 PEAK POWER........................................................................................................................29 7.3 AVERAGE POWER.................................................................................................................32 7.4 PEAK POWER SPECTRAL DENSITY..........................................................................................35 7.5 SPURIOUS EMISSIONS .....................................................................................................50 7.5.1 CONDUCTED MEASUREMENT.............................................................................................50 7.5.2 RADIATED EMISSIONS..................................................................................................75 7.6 POWERLINE CONDUCTED EMISSIONS...................................................................................108 8 APPENDIX 1 RADIO FREQUENCY EXPOSURE .................................................................111 Compliance Certification Services Inc. Report No.: KS100614A01-RP FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Product name: Surf N300 Wireless N Router Model Number: F7D2301 v3,F7D6301 v3 Trade Name: BELKIN FCC ID: K7SF7D6301V3 Device Category: Production unit Date of Test: July 28,2010 Applicant: Belkin International Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094, USA Manufacturer: Belkin International Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094, USA APPLICABLE STANDARDS STANDARD STANDARD FCC 47 CFR Part 15 Subpart C No non-compliance noted Deviation from Applicable Standard None We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in c…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01 FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01 FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 RADIATED EMISSION TEST Compliance Certification Services (Kunshan) Inc. Report No.: KS100614A01 FCC ID: K7SF7D6301V3 Date of Issue: August 12, 2010 ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP
