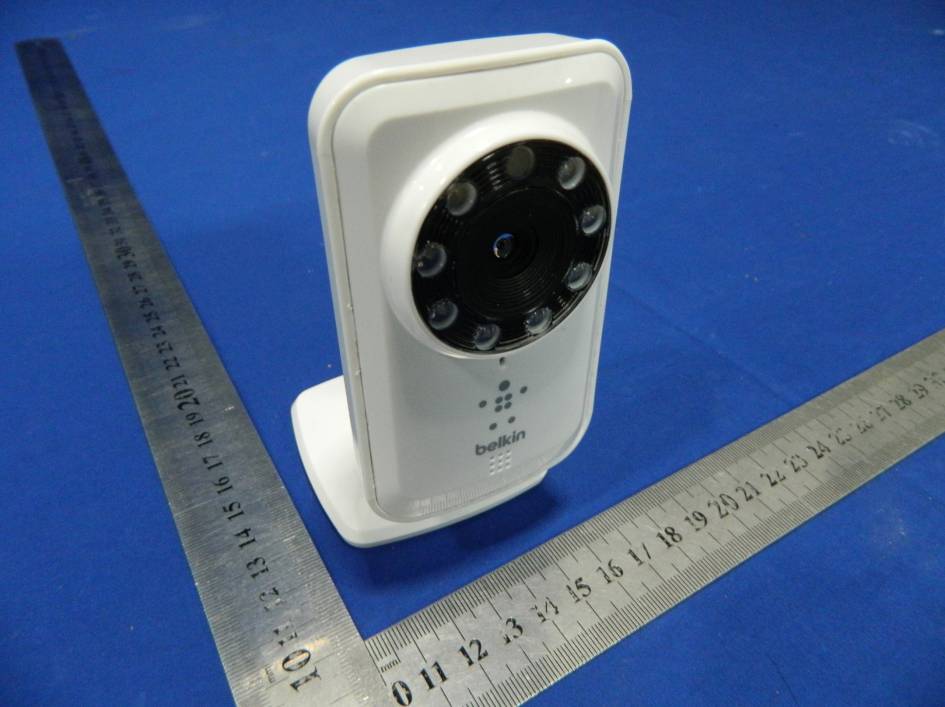

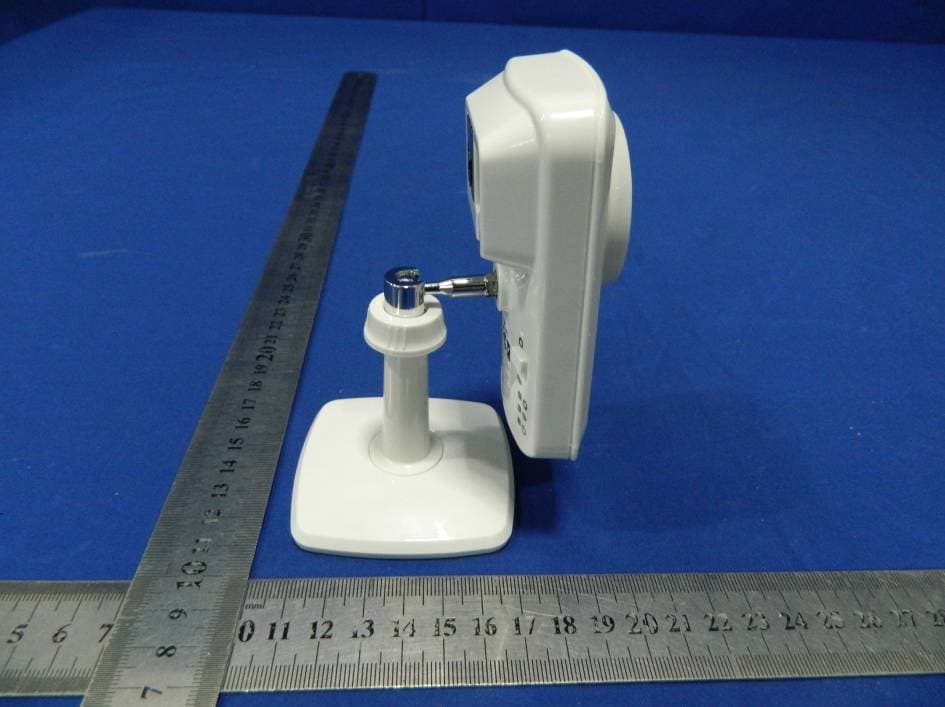

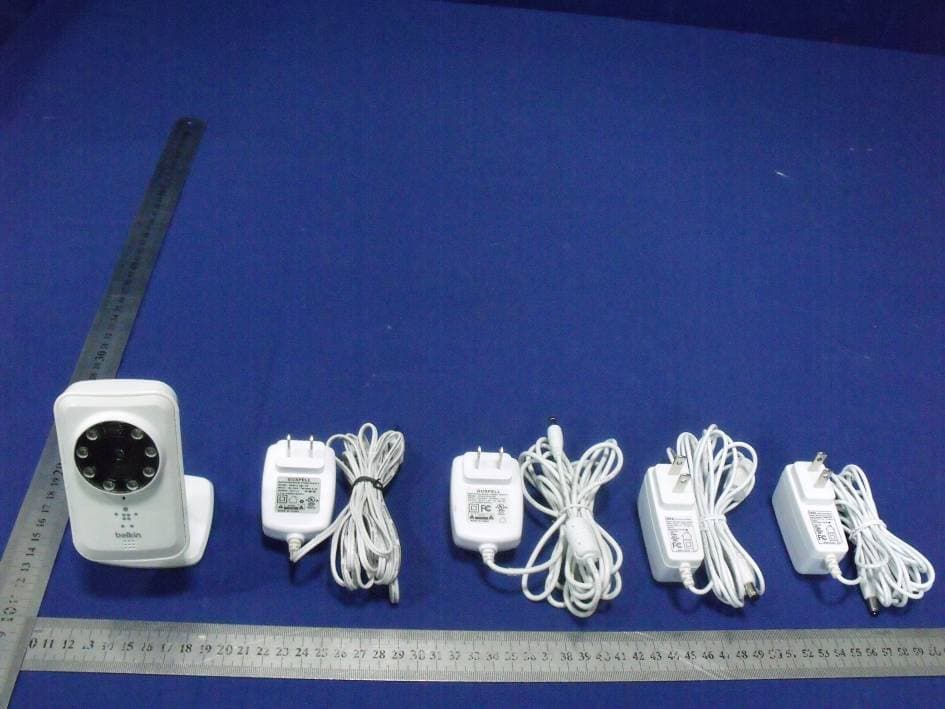

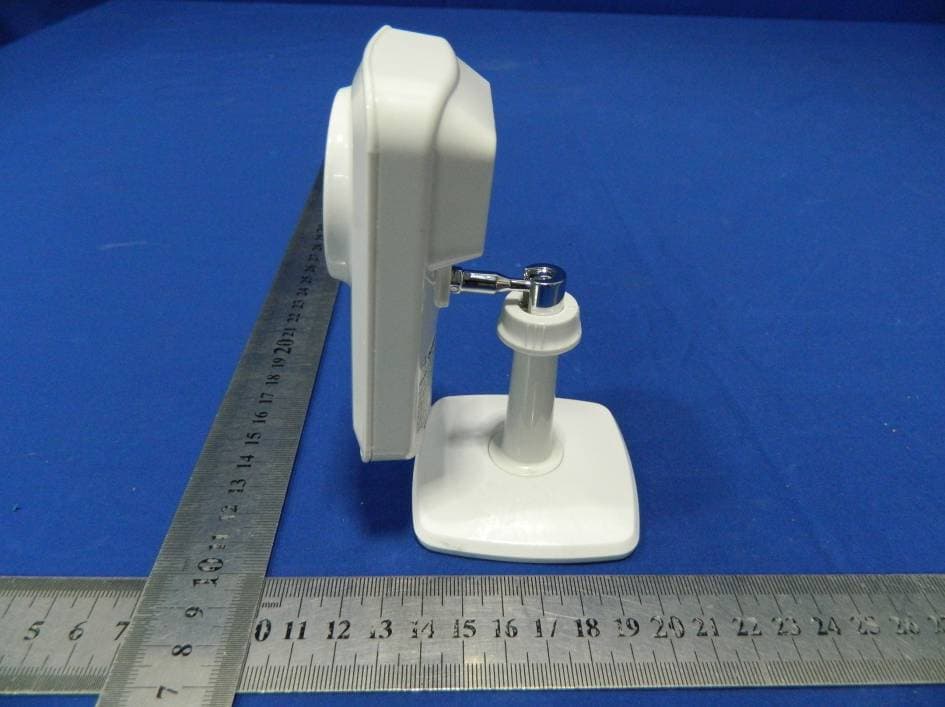

K7SF7D7601V1NetCam

NetCam Wi-Fi® Camera with Night Vision USER MANUAL 8820-01175 Rev. B00 F7D7601v1 Ok mk 8/22/12 TABLE OF CONTENTS Getting Started What’s in the Box Initial Setup Set Up Your Camera Wirelessly Through Your Mobile Devices Getting to Know Your Wi-Fi Camera Front Panel Back Panel Technical Details Software Features and Specifications Hardware Features and Specifications System Requirements Resetting the Camera Troubleshooting, Support, and Warranty Troubleshooting Technical Support Belkin International, Inc., Limited 2-Year Product Warranty Regulatory Information FCC Statement Getting Started Congratulations on buying a Belkin NetCam. This device will enable you to easily check in on your home and your loved ones when you are away. What’s in the Box NetCam Power Supply Quick Installation Guide Mounting Kit Initial Setup To get started, you will need: • Your wireless router, its network name (SSID), and password. • An Android device (Version 2.2 or later) or an iPhone, iPad, or iPod touch (iOS Version 4.1 or later) Set Up Your Camera Wirelessly Through Your Mobile Devices 1. Plug the NetCam into a power outlet Add chart 2. Switch the NetCam to Setup Mode by flipping up the switch on the back of the camera 3. Download the NetCam App from the App Store or Google Play Add app logo 4. Set Up on iPhone, iPad, or iPod touch 4.1 Connect your mobile device to NetCam Wi-Fi signal Go to “Settings > Wi-Fi” on your iPhone/iPad/iPod touch and connect to the camera’s Wi-Fi signal. <use image from QIG, Backside third image from left> 4.2 Launch the NetCam App Once your device establishes a connection with the camera, launch the NetCam App. You should see a pop-up message like the one below. Click “Yes” to set up your camera. 4.3 Camera Setup Click “Continue” to begin setup. 4.4 Camera Preview The camera will show you a preview after successfully connecting to your device. Click “Connect Camera to Internet.” 4.5 Connect to Internet Choose your Wi-Fi network to connect to the Internet. You may also choose to connect to your network via Ethernet cable (not included) by clicking “Ethernet.” 4.6 Connect to Internet Enter your Wi-Fi password if you have a security-enabled network. Please wait for the camera to establish connection with the Internet. 4.7 Create an Account If this is your first time setting up your camera, you will need to create an account. 4.8 Use Existing Account If you have an existing account, select “Use Existing” and then enter your account information. Click “Sign in.” 4.9 Set Up Camera Info Create the camera name and its description. Click “Continue.” It will take a few seconds to register the camera with the server. 4.10 Setup Complete Please flip the setup switch down on the back of the NetCam. Click “Finish” to complete the setup. Congratulations! 5. Set Up on Android Devices 5.1 Connect your device to NetCam Wi-Fi signal Go to “Settings > Wireless” and “Network > Wi-Fi settings” and connect to the camera Wi-Fi signal. 5.2 Launch NetCam App Once your device establishes a connection with the camera, launch the NetCam App. You should see a pop-up message like the one below. Click “Yes” to set up your camera. 5.3 Camera Setup Click “Continue” to begin setup. 5.4 Camera Preview The camera will show you a preview after successfully connecting to your device. Click “Connect camera to Internet.” 5.5 Connect to the Internet Choose your Wi-Fi network to connect to the Internet. You may also choose to connect to your network via Ethernet cable (not included) by clicking “Ethernet.” 5.6 Connect to Internet Enter your Wi-Fi password if you have a security-enabled network. Please wait for the camera to establish an Internet connection. 5.7 Create an Account If this is your first time setting up your camera, you will need to create an account. 5.8 Use Existing Account If you have an existing account, select “Use Existing” and then enter your account information. Click “Sign in.” 5.9 Set Up Camera Info Create the camera name and its description. Click “Continue.” It will take a few seconds to register the camera with the server. 5.10 Setup Complete Please flip the setup switch down on the back of the NetCam. Click “Finish” to complete the setup. Congratulations! 6. Mounting Your Camera (optional) Unscrew camera post from the base and remove weight. Attach screws to wall and hang plate onto screws. Align base with plate and screw on camera post. Getting to Know Your Wi-Fi Camera Front Panel A: Brightness sensor B: Camera sensor C: IR LED D: Microphone Back Panel (add right picture here)<why are these out of order in the picture?> o LED indicators A:Setup Green: Setup mode on Orange: Setup mode initializing Light Off: Setup mode off B:Network Green: Connected to server Orange: Connected to local area network only Flashing Orange: Not connected to any network Flashing Green: Connected to network, ready to setup C:Power Green: Power On D: RJ45 port Can be used for wired setup and for a wired connection with the router while using the NetCam. E: Camera holder You can adjust the NetCam’s position by adjusting the holder. F: Reset button Reset System: Press and hold for 1 second to reset the system. Factory Default: Press and hold for 20 seconds to restore factory default settings. G: Setup switch Flip up to switch to setup mode. Flip down to switch to camera mode. Technical Details Software Features and Specifications A B C D A B C D E F G App on iOS or Android • Camera setup • Live camera viewing • Save snapshot and video from the live stream • Live one‐way audio • Camera settings o Enable/disable email alert o Camera sharing o Set camera status (online, offline, private) o Video stream (Frame rate, video resolution,quality) • General settings o Reset password o Sign in automatically • Invite friends to view your camera Web App • Live camera viewing • Live audio on selected PC web browsers (Internet Explorer®, Firefox®, and Google Chrome™) • Camera settings • Camera firmware upgrade • Delete camera • Invite…

Text truncated - open the document above for the full version.

BELKIN INTERNATIONAL, INC. 12045 East Waterfront Drive, Playa Vista, CA90094, USA Date: September 19, 2012 We, BELKIN INTERNATIONAL, INC. declare that this EUT (FCC ID: K7SF7D7601V1) doesn’t have Ad Hoc Mode function on “non-US/Canada frequencies”. In addition, the frequency selection feature is disabled by firmware for devices marketed to the US/Canada. For DTS part of this device, only channels 11 will used in North America. Country code selection is disabled. EUT just have DTS. Should you have any questions or comments regarding this matter? Please have my best attention. Sincerely yours, Contact Person: Daniel Wesey/EMC Regulatory Compliance Engineer Company: BELKIN INTERNATIONAL, INC. E-mail: [email protected] Phone: (310) 751-2816 Fax: none Address 12045 East Waterfront Drive, Playa Vista, CA90094, USA

Confidentiality Request Letter Page 1 of 2 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 Confidentiality Request Letter Page 2 of 2 BELKIN INTERNATIONAL, INC. (2012-9-19) To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality Request for FCC ID: K7SF7D7601V1 We hereby request confidential treatment of information accompanying this application as outlined below: - Block diagram - Operation description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Contact Person: Daniel Wesey/EMC Regulatory Compliance Engineer Company: BELKIN INTERNATIONAL, INC. E-mail: [email protected] Phone: (310) 751-2816 Fax: none Address 12045 East Waterfront Drive, Playa Vista, CA90094, USA

size:34x28mm serial number to be added by vendor (black ink) BACK WHITE BLACK SCALE 1:1 DESIGNER: [AH] DO NOT MAKE CHANGES WITHOUT PERMISSION FROM BELKIN IDG. ALL DIMENSIONS IN MM. DATE: 2012-08-08REVISION: 001 COLOR STANDARDS USED: REVISION NOTES: 001: preliminary IDS-XXXXXX IPcam F7D7601 ID LABEL 352xxVB11xxxxx LABEL MATERIAL: MYLAR - MATTE PP FINISH

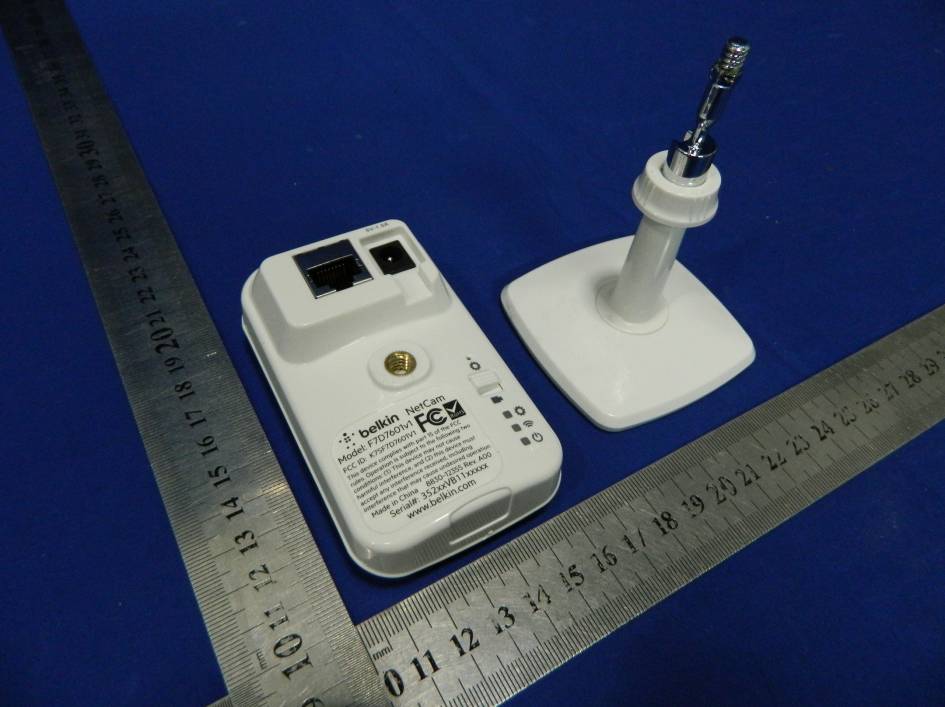

Label Location Proposed Label Location on EUT

FCC ID: K7SF7D7601V1 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Power density limited 1mW: Antenna gain: 1.3 dBi 11b Channel Channel Frequency (MHz) Output Peak power (dBm) Output Peak power (mW) Antenna Gain (dBi) Numeric Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 1 2412.00 21.50 141.25 1.35 0.0379 1.0 6 2437.00 20.70 117.49 1.35 0.0316 1.0 11 2462.00 20.73 118.30 1.35 0.0318 1.0 11g Channel Channel Frequency (MHz) Output Peak power (dBm) Output Peak power (mW) Antenna Gain (dBi) Numeric Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 1 2412.00 19.50 89.13 1.35 0.0239 1.0 6 2437.00 20.45 110.92 1.35 0.0298 1.0 11 2462.00 19.65 92.26 1.35 0.0248 1.0 11n HT20 Channel Channel Frequency (MHz) Output Peak power (dBm) Output Peak power (mW) Antenna Gain (dBi) Numeric Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 1 2412.00 19.10 81.28 1.35 0.0218 1.0 6 2437.00 18.25 66.83 1.35 0.0179 1.0 11 2462.00 18.30 67.61 1.35 0.0182 1.0 11n HT40 Channel Channel Frequency (MHz) Output Peak power (dBm) Output Peak power (mW) Antenna Gain (dBi) Numeric Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 3 2422.00 18.16 65.46 1.35 0.0176 1.0 6 2437.00 18.08 64.27 1.35 0.0173 1.0 9 2452.00 18.30 67.61 1.35 0.0182 1.0 Contact Person: Daniel Wesey/EMC Regulatory Compliance Engineer Company: BELKIN INTERNATIONAL, INC. E-mail: [email protected] Phone: (310) 751-2816 Fax: none Address 12045 East Waterfront Drive, Playa Vista, CA90094, USA

SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 1 of 209 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF NetCam MODEL No.: F7D7601V1 FCC ID: K7SF7D7601V1 Trade mark: Belkin REPORT NO: ES120825178E ISSUE DATE: September 19, 2012 Prepared for BELKIN INTERNATIONAL, INC. 12045 East Waterfront Drive, Playa Vista, CA90094, USA Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 3 of 209 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................................................ 5 1.1 PRODUCT DESCRIPTION.................................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT(S)................................................................................................................. 5 1.3 TEST METHODOLOGY....................................................................................................................................... 6 1.4 SPECIAL ACCESSORIES...................................................................................................................................... 6 1.5 EQUIPMENT MODIFICATIONS............................................................................................................................ 6 1.6 TEST FACILITY.................................................................................................................................................. 6 2. SYSTEM TEST CONFIGURATION ................................................................................................................... 7 2.1 EUT CONFIGURATION....................................................................................................................................... 7 2.2 EUT EXERCISE................................................................................................................................................. 7 2.3 TEST PROCEDURE............................................................................................................................................. 7 2.4 CONFIGURATION OF TESTED SYSTEM............................................................................................................... 7 3. DESCRIPTION OF TEST MODES ..................................................................................................................... 9 4. SUMMARY OF TEST RESULTS....................................................................................................................... 10 5. CONDUCTED EMISSIONS TEST .................................................................................................................... 11 5.1 MEASUREMENT PROCEDURE.......................................................................................................................... 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 11 5.3 MEASUREMENT EQUIPMENT USED................................................................................................................. 11 5.4 CONDUCTED EMISSION LIMIT......................................................................................................................... 11 5.5 MEASUREMENT RESULT.................................................................................................................................. 12 5.6 CONDUCTED MEASUREMENT PHOTO.............................................................................................................. 20 6. RADIATED EMISSION TEST ........................................................................................................................... 21 6.1 MEASUREMENT PROCEDURE.......................................................................................................................... 21 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 21 6.3 MEASUREMENT EQUIPMENT USED................................................................................................................. 22 6.4 RADIATED EMISSION LIMIT............................................................................................................................. 22 6.5 MEASUREMENT RESULT.................................................................................................................................. 24 6.6 RADIATED MEASUREMENT PHOTOS.............................................................................................................. 171 7. OCCUPIED BANDWIDTH TEST ................................................................................................................... 173 7.1 MEASUREMENT PROCEDURE........................................................................................................................ 173 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................................ 173 7.3 MEASUREMENT EQUIPMENT USED............................................................................................................... 173 7.4 MEASUREMENT RESULTS.............................................................................................................................. 173 8. MAXIMUM PEAK OUTPUT POWER TEST ................................................................................................ 182 8.1 MEASUREMENT PROCEDURE........................................................................................................................ 182 8.2 …

Text truncated - open the document above for the full version.

SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 101 of 209 Operation Mode: 802.11b TX Channel 6 Test Date : September 04, 2012 Frequency Range: Above 1GHz Temperature : 28°C Test Result: PASS Humidity : 65 % Measured Distance: 3m Test By: WOLF Note: Switching Adapter 1 SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 102 of 209 All emissions not reported were more than 20dB below the specified limit or in the noise floor. Note: (1) All Readings are Peak Value and AV. (2) Emission Level= Reading Level+Probe Factor +Cable Loss. (3) Data of measurement within this frequency range shown “ -- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 103 of 209 Operation Mode: 802.11b TX (Channel 11) Test Date : September 04, 2012 Frequency Range: Above 1GHz Temperature : 28°C Test Result: PASS Humidity : 65 % Measured Distance: 3m Test By: WOLF Note: Switching Adapter 1 SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 104 of 209 No others harmonics emissions are higher than 20dB below the limits of 47 CFR Part 15.247. Note: (1) All Readings are Peak Value and AV. (2) Emission Level= Reading Level+Probe Factor +Cable Loss. (3) Data of measurement within this frequency range shown “ -- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 105 of 209 Operation Mode: 802.11g TX Channel 1 Test Date : September 04, 2012 Frequency Range: Above 1GHz Temperature : 28°C Test Result: PASS Humidity : 65 % Measured Distance: 3m Test By: WOLF Note: Switching Adapter 1 SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 106 of 209 All emissions not reported were more than 20dB below the specified limit or in the noise floor. Note: (1) All Readings are Peak Value and AV. (2) Emission Level= Reading Level +Probe Factor +Cable Loss. (3) Data of measurement within this frequency range shown “ -- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 107 of 209 Operation Mode: 802.11g TX (Channel 6) Test Date : September 04, 2012 Frequency Range: Above 1GHz Temperature : 28°C Test Result: PASS Humidity : 65 % Measured Distance: 3m Test By: WOLF Note: Switching Adapter 1 SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 108 of 209 All emissions not reported were more than 20dB below the specified limit or in the noise floor. Note: (1) All Readings are Peak Value and AV. (2) Emission Level= Reading Level+Probe Factor +Cable Loss. (3) Data of measurement within this frequency range shown “ -- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 109 of 209 Operation Mode: 802.11g TX (Channel 11) Test Date : September 04, 2012 Frequency Range: Above 1GHz Temperature : 28°C Test Result: PASS Humidity : 65 % Measured Distance: 3m Test By: WOLF Note: Switching Adapter 1 SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 110 of 209 No others harmonics emissions are higher than 20dB below the limits of 47 CFR Part 15.247. Note: (1) All Readings are Peak Value and AV. (2) Emission Level= Reading Level+Probe Factor +Cable Loss. (3) Data of measurement within this frequency range shown “ -- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 111 of 209 Operation Mode: 802.11n HT 20 TX (Channel 1) Test Date : September 04, 2012 Frequency Range: Above 1GHz Temperature : 28°C Test Result: PASS Humidity : 65 % Measured Distance: 3m Test By: WOLF Note: Switching Adapter 1 SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 112 of 209 All emissions not reported were more than 20dB below the specified limit or in the noise floor. Note: (1) All Readings are Peak Value and AV. (2) Emission Level= Reading Level+Probe Factor +Cable Loss. (3) Data of measurement within this frequency range shown “ -- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 113 of 209 Operation Mode: 802.11n HT20 TX (Channel 6) Test Date : September 04, 2012 Frequency Range: Above 1GHz Temperature : 28°C Test Result: PASS Humidity : 65 % Measured Distance: 3m Test By: WOLF Note: Switching Adapter 1 SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 114 of 209 All emissions not reported were more than 20dB below the specified limit or in the noise floor. Note: (1) All Readings are Peak Value and AV. (2) Emission Level= Reading Level+Probe Factor +Cable Loss. (3) Data of measurement within this frequency range shown “ -- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. SHENZHEN EMTEK CO., LTD. REPORT NO: ES120825178E FCC ID: K7SF7D7601V1 DATE: 09/19/12 Page 115 of 209 Opera…

Text truncated - open the document above for the full version.

Radiated Emission Test Conducted Emissions Test
