K7SF8E206PS2Keyboard

FCC ID.:K7SF8E206PS2 F8E206-BLK-PS2 SPECIFICATION 1. Outline: DimensionS: LxWxH=459x172x39mm 2.Scope: This keyboard F8E206-BLK-PS2 is 107/108 key, especially with new key support for Microsoft Windows, also compatible with AT or PS/2 . 3.Features: 3.1.ACPI power management keys 3.2.107/108 Enhanced layout 3.3.Fully compatible with PS/2 and Microsoft Windows OS 3.4.Membrane key switch with tactile feedback 3.5.High quality membrane tactile key switch 3.6.Worldwide language layout supported 3.7.A target calculated Mean Time Between Failures(MTBF) is greater than 5,000 hour 4.Specifications 4.1.Key Switch Actuation Switch Travel: 3.5±0.3mm Switch Feeling: Silent tactile feedback Working Voltage:5.0±0.25VDC 4.2.Electrical Specification Current Consumption:30mA Max Power Consumption: 0.2 Watts Max FCC ID.:K7SF8E206PS2 4.3. Environmental data: Operating temperature:0 to 45 Storage temperature:-20 to 60 Humidity: -20% to 90%(non-condensing) 4.4. Connector 4.4.1. MINI DIN 6 pin connector pin assignment See Figure 1 Figure 1 5. Reserve Shield Frame Ground PIN SIGNAL 2 Data 1 Ground 4. Clock 3 VCC 3 5 2 5 1 4 4.4.2. DIN standard 5 pin connector pin assignmentSee Figure 2 2 3 1 5 4 4. Ground 3 Reserve 2 Data Shield Frame Ground 5. VCC PIN SIGNAL 1 Clock Figure 2 FCC ID.:K7SF8E206PS2 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation, if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on ,the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.

VCC LED1LED2LED3 PS /2 C L K PS /2 DATA N UM LOCK SCRO LL LOC K CAP S LOC K To Key boar d Contro ll er F OSC 1.8MH z R0~R7 C0~C17 8 *18 Key Ma tri x F8E206-B LK- PS 2

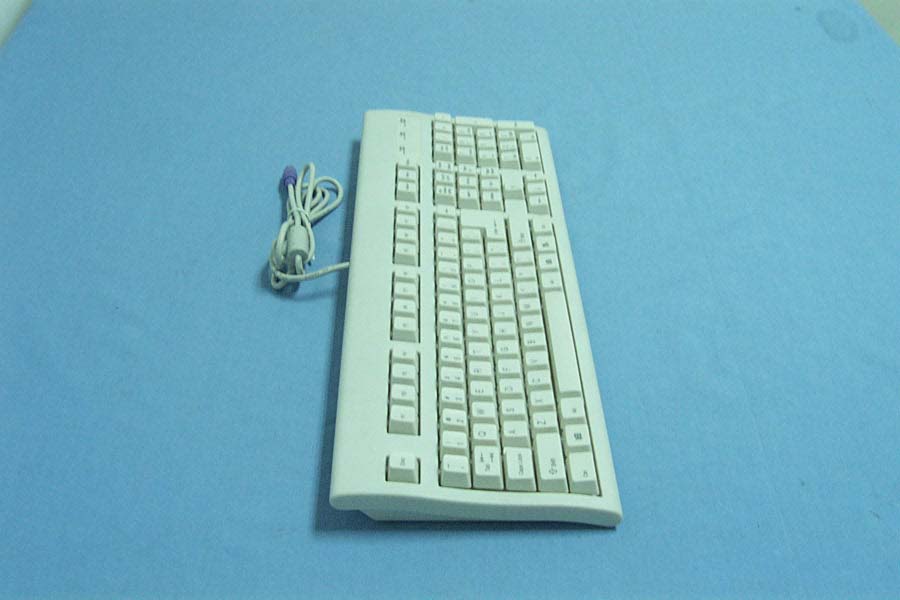

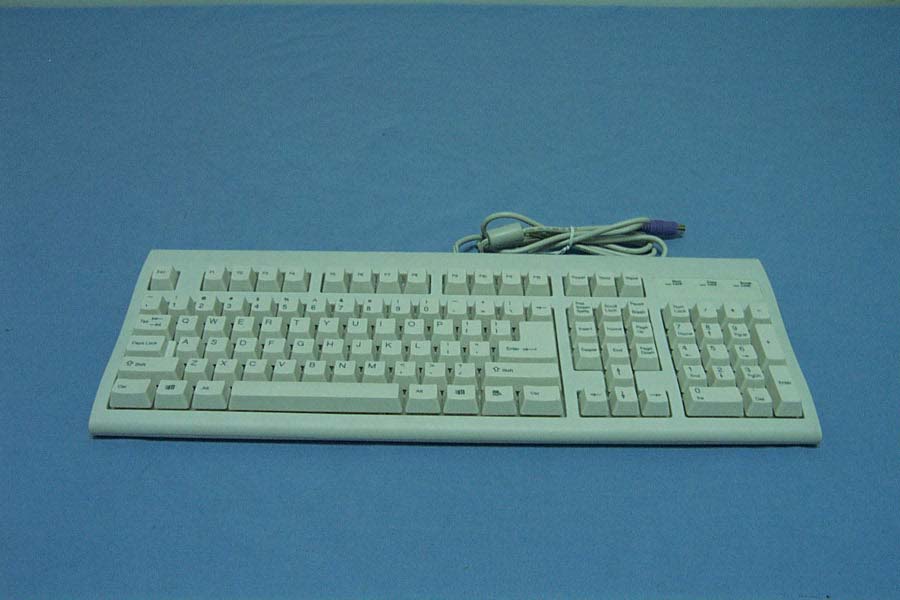

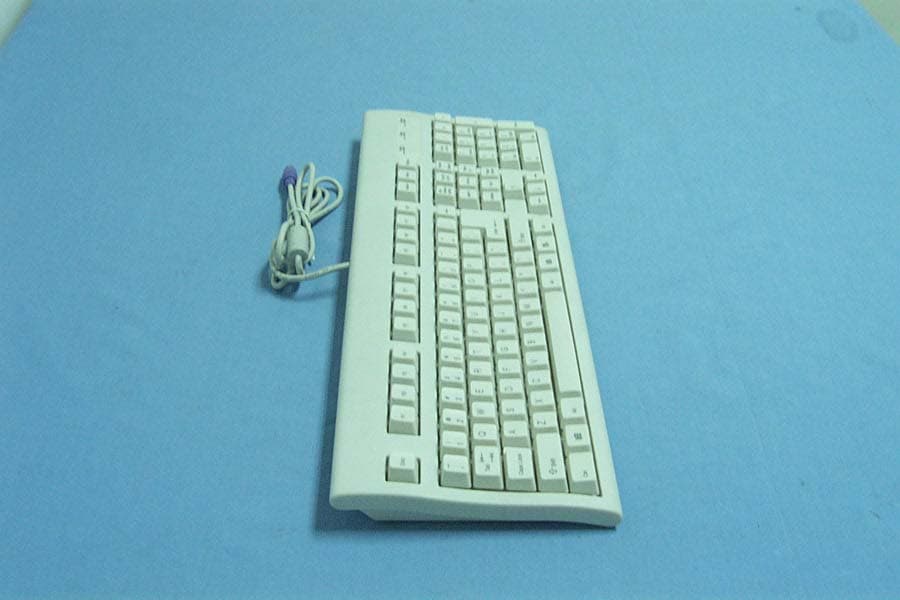

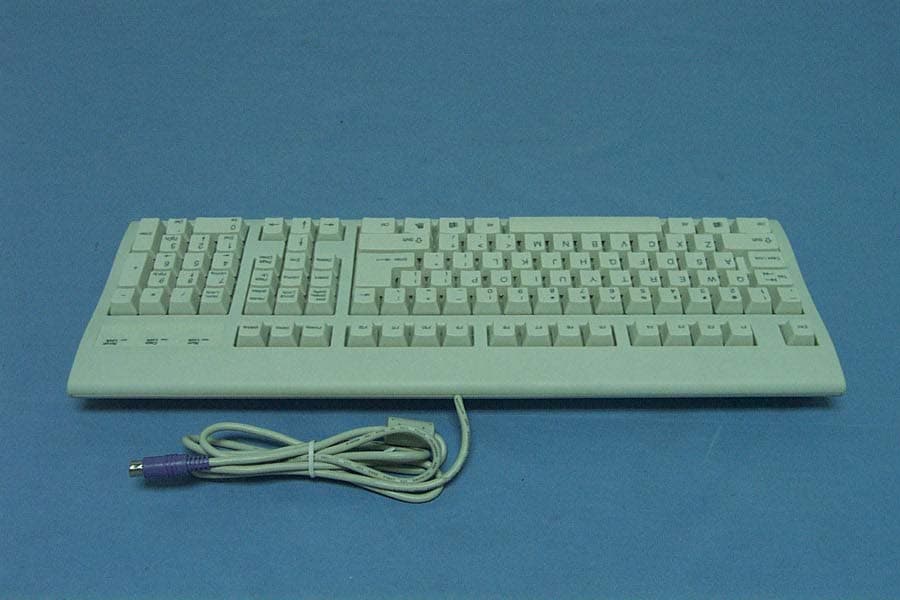

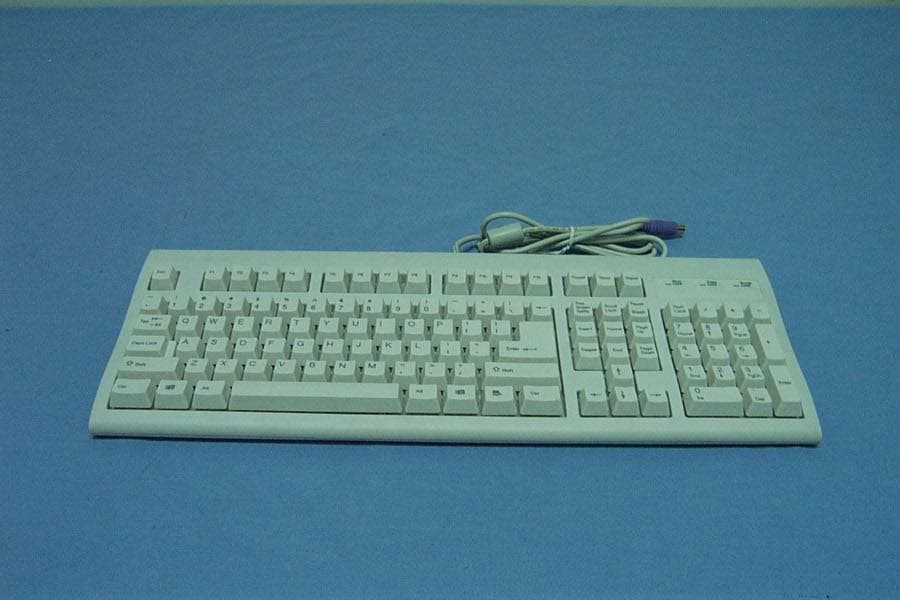

Front view of EUT Back view of EUT Left view of EUT

ID LABEL AND LOCATION INFO S/N:KXXXXXXXXX MADE IN CHINADLK-9810 N10117 DC: 5.0V MAX: 20mA FCC ID: K7SF8E206PS2 Standard Keyboard Model Name: F8E206-BLK-PS2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Report Number: SZ0302027 FCC ID: K7SF8E206PS2 March 8, 2003 LAB CODE:200577-0 FCC CLASS B COMPLIANCE REPORT for Electromagnetic Emissions of KEYBOARD ID Number : K7SF8E206PS2 Trade Name : BELKIN Model Number : F8E206-BLK-PS2 Serial Number : N/A Report Number : SZ0302027 Date : March 8, 2003 Prepared for : BELKIN CORPORATION 501W.WALNUT STREET,COMPTON,CA90220 USA Prepared by : COMPLIANCE ENGINEERING SERVICES (CHINA) d.b.a. COMPLIANCE ENGINEERING SERVICES (CHINA) NO. 6, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 Page 1of 32 Rev. 00 Report Number: SZ0302027 FCC ID: K7SF8E206PS2 March 8, 2003 LAB CODE:200577-0 TABLE OF CONTENTS DESCRIPTION PAGE VERIFICATION OF COMPLIANCE 3 FCC ID 4 SPECIFICATION 5 SYSTEM DESCRIPTION 7 PRODUCT INFORMATION 8 SUPPORT EQUIPMENT 9 SECTION 1 EN 55022(LINE CONDUCTED & RADIATED EMISSION) 10 MEASUREMENT PROCEDURE & LIMIT (LINE CONDUCTED EMISSION TEST) 11 MEASUREMENT PROCEDURE & LIMIT (RADIATED EMISSION TEST) 13 SUMMARY DATA 16 TEST FACILITY 19 TEST EQUIPMENT LIST 20 BLOCK DIAGRAM OF TEST SETUP 21 APPENDIX 1 PHOTOGRAPHS (TEST SETUP OF LINE CONDUCTED EMISSION) 22 APPENDIX 2 PHOTOGRAPHS (TEST SETUP OF RADIATED EMISSION) 24 APPENDIX 3 PHOTOGRAPHS OF EUT 26 APPENDIX 4 SPECTRUM PLOT OF L1 AND L2 30 Page 2 Rev. 00 Report Number: SZ0302027 FCC ID: K7SF8E206PS2 March 8, 2003 LAB CODE:200577-0 VERIFICATION OF COMPLIANCE Equipment Under Test: KEYBOARD Trade Name: BELKIN Model Number: F8E206-BLK-PS2 Serial Number: N/A Applicant: BELKIN CORPORATION 501W.WALMUT STREET,COMPTON,CA90220 USA Manufacturer: BELKIN CORPORATION 501W.WALMUT STREET,COMPTON,CA90220 USA Type of Test: FCC Class B Measurement Procedure: ANSI C63.4: 2000 File Number: SZ0302027 Date of test: March 8,2003 Deviation: None Condition of Test Sample: Normal The above equipment was tested by Compliance Engineering Services (China) for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart B and the measurement procedure according to ANSI C63.4. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Tom Lai / Q.A. Manager Page 3 Rev. 00 Report Number: SZ0302027 FCC ID: K7SF8E206PS2 March 8, 2003 LAB CODE:200577-0 FCC ID LABEL S/N:KXXXXXXXXX MADE IN CHINADLK-9810 N10117 DC: 5.0V MAX: 20mA FCC ID: K7SF8E206PS2 Standard Keyboard Model Name: F8E206-BLK-PS2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Page 4 Rev. 00 Report Number: SZ0302027 FCC ID: K7SF8E206PS2 March 8, 2003 LAB CODE:200577-0 F8E206-BLK-PS2 SPECIFICATION 1. Outline: DimensionS: LxWxH=459x172x39mm 2.Scope: This keyboard F8E206-BLK-PS2 is 107/108 key, especially with new key support for Microsoft Windows, also compatible with AT or PS/2. 3.Features: 3.1.ACPI power management keys 3.2.107/108 Enhanced layout 3.3.Fully compatible with PS/2 and Microsoft Windows OS 3.4.Membrane key switch with tactile feedback 3.5.High quality membrane tactile key switch 3.6.Worldwide language layout supported 3.7. A target calculated Mean Time Between Failures(MTBF) is greater than 5,000 hour 4.Specifications 4.1.Key Switch Actuation Switch Travel: 3.5±0.3mm Switch Feeling: Silent tactile feedback Working Voltage:5.0±0.25VDC 4.2.Electrical Specification Current Consumption:30mA max Power Consumption:0.2 Watts max 4.3.Environmental data: Operating temperature:0 to 45 Storage temperature:-20 to 60 Humidity: -20% to 90%(non-condensing) Page 5 Rev. 00 Report Number: SZ0302027 FCC ID: K7SF8E206PS2 March 8, 2003 LAB CODE:200577-0 4.4.Connector 4.4.1.MINI DIN 6 pin connector pin assignment, See Figure 1 Figure 1 5. Reserve Shield Frame Ground PIN SIGNAL 2 Data 1 Ground 4. Clock 3 VCC 3 5 2 5 1 4 4.4.2. DIN standard 5 pin connector pin assignment, See Figure 2 2 3 1 5 4 4. Ground 3 Reserve 2 Data Shield Frame Ground 5. VCC PIN SIGNAL 1 Clock Figure 2 Page 6 Rev. 00 Report Number: SZ0302027 FCC ID: K7SF8E206PS2 March 8, 2003 LAB CODE:200577-0 SYSTEM DESCRIPTION EUT Test Program: 1. EMC test program was loaded and executed in Windows 2000 mode. 2. Data was sent to EUT and monitor is full of “H” patterns on the screen. 3. Test program sequentially exercised printer and modem, then sent “H” patterns to them individually. 4. Repeat 2 to 3. Test program is self-repeating throughout the test. Page 7 Rev. 00 Report Number: SZ0302027 FCC ID: K7SF8E206PS2 March 8, 2003 LAB CODE:200577-0 PRODUCT INFORMATION Housing Type: Plastic EUT Power Rating: 5V DC Power during Test: 5V DC from PC Power Cord Type: Unshielded, 1.8m OSC/Clock Frequencies: N/A I/O Port of EUT: I/O Port Type Q’TY Tested with PS/2 1 1 Difference between model numbers as below: Model Number Trade Name 1. DLK-9810 DELUX Note: The model number and trade name(list on this report) are different (Please refer list as above) just for marketing only. Page 8 Rev. 00 Report Number: SZ0302027 FCC ID: K7SF8E206PS2 March 8, 2003 LAB CODE:200577-0 SUPPORT EQUIPMENT No. Equipment Model # Serial # FCC ID Trade Name Data Cable Power Cord 1. PC PC-6 N/A DoC N/A N/A Unshielded, 1.5m 2. LCD MONITOR SDM-M61 N/A DoC SONY Shielded, 1.5m Unshielded, 1.5m 3. PRINTER KX-P11801 1KKBQ41529 ACJ5Z6KX-P1191PANASONIC Shielded, 1.5m Unshielded, 1.5m 4. MODEM SUPERFAX6.0 9013593 IFAXDM1414 ACCEX Shielded, 1.5m Unshielded, 1.5m 5. MOUSE C4736-601401 N/A DoC HP Unshielded, 1.5m N/A Note: All the above equipment/cables were placed in worse case positions to maximize emission signals during emission test. Grounding: Grounding was in accordance with the manufacturer’s requirements and conditions for th…

Text truncated - open the document above for the full version.

LINE CONDUCTED EMISSION TEST (EN 55022) SZ0302027 SZ0302027 APPENDIX 2 PHOTOGRAPHS OF TEST SETUP (TEST SETUP OF RADIATED EMISSION ) RADIATED EMISSION TEST (EN 55022) SZ0302027 SZ0302027
