K7SF8E825-USBMini Wireless Optical Mouse

MiniWireless Optical MouseNavigate your notebook with optical precision and wireless freedom U ser Manual F8E825-USB BA TTERY INSTALLATION 1. Press and hold the bottom release tab as youslide the top cover off. (fig. 1) 2. Insert 2 AAA batteries. (fig. 1-2) 3. Replace the top cap and close it. !CAUTION:• Be sure to check polarity (+ or – sign) andinsert battery properly. •M ake sure battery type is AAA alkaline (1.5V). • Remove the batteries if mouse will not be in use for a long time. • Each time you replace the batteries, repeat them ouse setup by following the “setup for linkage” (fig. 5). HARDWARE INSTALLATION1. Shut down the computer. 2. Connect the receiver either directly or with theU SB extension cable to the USB port on the PC. (fig. 2) 3. Place the receiver beside the notebook ord esktop PC. (fig. 3) 4. T urn on the PC. 5. Switch on the power of the wireless mouselocated on the backside of the mouse. (fig. 4) !CAUTION:While traveling, please switch off the unit to savebattery power. (fig. 4)DRIVER INSTALLATION1. Insert the installation CD into your CD-ROM drive. 2. The CD should automatically load theinstallation. If it does not load, click “Start”then “Run”, then type “X:\setup” (replace “X”with the correct drive letter for your CD-ROMd rive, usually D). Then follow through the on-screen instructions to complete theinstallation. 3. When the setup is complete, the system willr estart automatically. It will show a mouse icon in the bottom right-hand corner of the screen. !CAUTION : Some computers running Windows® 98 will requireinsertion of the Windows 98 CD to finish theinstallation of the driver.ID SETUP1. Aim the front point of the mouse at the receiver. 2. IMPORTANT: FIRST, PRESS THE CONNECT BUTTON OF THE MOUSE; THEN PRESS THECONNECT BUTTON OF THE RECEIVER (fig. 5).NEVER REVERSE THIS PROCEDURE. 3. When the connect button of the receiver ispressed, the LED inside the receiver willlight. As soon as the linkage is completed, theLED will go off. 4. The setup must be completed within oneminute. If setup time exceeds one minute,r epeat procedure. BUTTON FUNCTION SETUP1. Start the setup from the Control Panel ordirectly click on the mouse icon at the bottomright corner of the screen. It shows thefoll owing functions: - Button: set up for either right or left hand, and adjust the speed - Wheel: set up the functions for hot keys and zooming - Motion: set up the speed of the mouse pointer 2. After the function is set up, press “Yes” to storethe new setup. SETUP FOR MULTI-USERSWhen using more than one MiniWireless OpticalM ouse in the same location, set up one mouse at a time. You must complete the setup for each mousebefore beginning the next.ENVIRONMENTTo avoid environmental interference, which will shorten the effective operation distance, pleasen ote the following: 1. Do not put the mouse and receiver on a metalcabinet or desk. Metal creates RF interference,which may impair the RF communication andshorten the communication distance. 2. K eep a distance of more than 1.5m between fig. 1 fig. 4 fig. 3 fig. 2 fig. 5 fig. 1-2 press up P74211-A_F8E825-USB man.qxd 7/8/03 5:06 PM Page 1 your mouse and another operational RF deviceto avoid interference. 3. The optical sensor of the mouse will not workcorrectly if placed on a mirror, glass, or on anyr eflecting or half-tone painted surface. TROUBLESHOOTINGThe cursor doesn’t react when I move the mouse.1. This is probably because the distance betweenthe receiver and mouse exceeds the workingra nge . Simply adjust so that the mouse is closer to the receiver. 2. Ma ke sure that the mouse is not placed on a r eflective surface such as a mirror, glass, half-tone painted surface, or on a 3D mousepad. When using this wireless device on a m etal table or near metal furniture, use a no n-reflective, thick mouse pad to reduce the potential for interference. 3. Y our ID setup may not have worked properly. Please repeat the ID setup process. TECHNICAL SPECIFICATIONSW orks with Windows 98, 2000, Me, or XP When using Windows 98 and setting up the mouseusing a USB port, you may need your Windows 98installation CD. UNINSTALL INSTRUCTIONS1. Go to “Start” then “Programs” and select “BelkinF8E825-USB mini wireless optical mouse”. 2. Y ou should then see the “uninstall” option. Left-click on it. 3. Choose your desired language and click “OK”. 4. Then follow the on screen instructions tocomplete the uninstall. Note: Y ou may encounter some “Locked File Detected” screens during the uninstall. If so left-click on the “Reboot” option for them. It willthen remove those locked files during the nextreboot of your system. FCC/CE StatementDECLARATION OF CONFORMITY WITH FCC RULES FORELECTROMAGNETIC COMPATIBILITYWe, Belkin Corporation, of 501 West Walnut Street, Compton, CA90220, declare under our sole responsibility that the product,F8E825-USB, to which this declaration relates, complies with Part15 of the FCC Rules. Operation is subject to the following twoconditions: (1) this device may not cause harmful interference,and (2) this device must accept any interference received,including interference that may cause undesired operation.Caution: Exposure to Radio Frequency Radiation.The radiated output power of this device is far below the FCCradio frequency exposure limits. Nevertheless, the device shall beused in such manner that the potential for human contact normaloperation is minimized.When connecting an external antenna to the device, the antennashall be placed in such a manner to minimize the potential forhuman contact during normal operation. In order to avoid thepossibility of exceeding the FCC radio frequency exposure limits,human proximity to the antenna shall not be less than 20cm (8inches) during normal operation.Federal Communications Commission NoticeThis equipment has been tested and found to comply with thelimits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful inte…

Text truncated - open the document above for the full version.

1234 A B C D 4321 D C B A Key Input Left Right Middle Scroll Input Up Down Data output VCC Data out Oscillator Power Amplification ANT Tx Power control Tx Power control Connect key Sensor Detecting Movement Connect Movement VCC DC/DC Convertor BATTERY Osc1 Memory Memory F8E825-USB mouse block diagram TX 27.145 MHz PDF created with FinePrint pdfFactory trial version http://www.fineprint.com

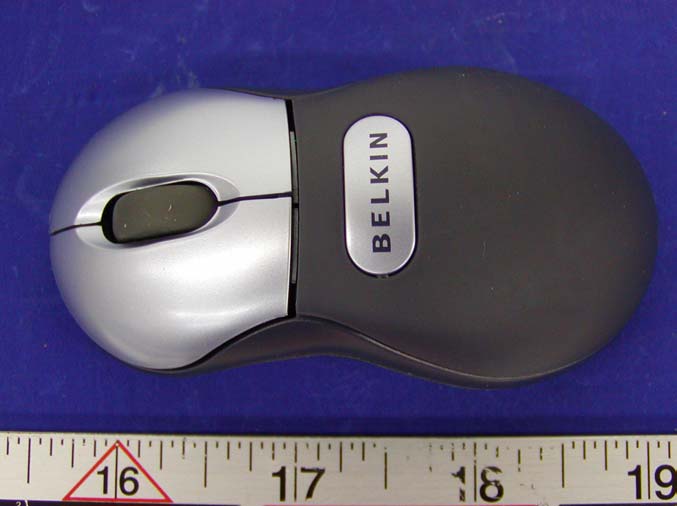

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS Transmitter Chassis - Top View Transmitter Chassis - Bottom View

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing and shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom Side of Transmitter / FCC Label Proposed Location FCC Warning Statement If the EUT is too small, the FCC statement could be presented in the user manual. The following is one sample of the FCC Statement: “ This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” FCC ID: K7SF8E825 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0"

APPENDIX C - EUT INTERNAL PHOTOGRAPHS Transmitter Chassis – Cover Off View Transmitter – Component View Transmitter – Solder View

Description of the F8E825-USB Mouse Circuit’s Operation Principle This circuit is mainly consisted of DC-DC convertor (IC-U4), MCU (IC-U3), photoelectric processor (IC-U1) and RF FSK circuit (Q1). Switching on the power controller SW6, IC-U4 provides the circuit with a stable 3.9V volts d.c. to keep the circuit working. When the mouse is moving on the desktop, photoelectric processor IC-U1 collect optical signals reflected by the desktop, and transfer them into electric signals, then input the electric signals into the MCU (IC-U3) to have these signals processed and managed. After that, these processed signals are outputted from the 4 th feet of the IC-U3to meet a control simultaneous signal produced by the 3 rd feet. Together, they are sent to the RF FSK circuit (Q1). to have transmitting modulation management. Similarly, when any key of the mouse is being operated, IC-U3 of MCU will make identification for the operation. Then, similarly, the 4 th feet of IC-U3 in the MCU output data and control signal to the RF FSK circuit (Q1). to carry out transmitting modulation management. IC-U3 is an E-P ROM storage that makes sure the circuit will keep working, by the way of keeping the ID code unchanged, when being out of power, changing the battery or being re-electrified. SW5 is a switch for ID code varying. PDF created with FinePrint pdfFactory trial version http://www.fineprint.com

123456 A B C D 654321 D C B A Date: Filename: E:\G-TECH 2003\P7301\V11\P7301V11.sch Drawn TITLE: F8E825-USB-SCH Approved Confirmed by: by: by: Version V11 文 件 编 号 GT-D-R0101 GND 10 GND 12 PD 15 SDIO 16 SCLK 1 X A 2 X B 3 Y B 4 Y A 5 R_BIN 14 REFA 7 REFB 8 OSC_OUT 11 OSC_IN 9 XY_LED 6 V D D 1 3 U1 ADNS-2051 V+3.9 12 SW1 L 12 SW2 R 12 SW3 M V+3.9 A C B SW4 SW WHEEL A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U2 KS24C010 C1 0.1uF R1 22k R2 22k C5 30pF V+3.9 C8 100uF/16V C2 0.1uF X1 18.432MHZ C3 0.1uF C9 10uF/50V R10 22K 1 2 3 X2 6.00MHZ C6 30pF C7 30pF R11 220K R12 220K PA4/VREF 1 PA5 2 PA6 3 PA7 4 VDD 5 OSC2 6 OSC1 7 PB0 8 RB1 9 PB2 10 PB3 11 CNTI 12 /RST 13 VSS 14 PA0 15 PA1 16 PA2 17 PA3 18 U3 JS5618 SDIO SCLK SCLK SDIO PD PD EPSCLK EPSCLK SDIO V+3.9 V+3.9 TXP TXD WELL1 WELL2 L_Key R_Key M_Key V+3.9 V+3.9 L_Key R_Key M_Key WELL1 WELL2 R3 22K R4 22K R5 22K C10 0.1uF SW5 Reset R13 1K TXD V+3.9 R14 10K L1 PK0406-221K C13 100uF/10V D1 1N5819 Battery R16 100K LX 3 G N D 1 OUT 2 U4 RT9261-33CX T1 T2 VCC 2 G N D 3 OUT 1 U5 * C4 * Battery R19 * TXD C14 2200pF C15 2200pF LED2 HLMP-ED80 C16 CD288H-47uF/25V V+3.9 D3 1N372R0 R6 22K R7 22K T7 T8 T9 T10 R15 10K C17 100pF C18 100pF R20 220R 1 2 3 Q1 KSC2223Y C19 30pF C20 30pF R8 22K R21 47K R23 47R C11 0.1uF R22 47K C21 1000pF C12 0.1uF L2 2.2uH L3 8.2uH C23 220pF 1 ANT1 ANT=150mm TXD TXP C24 22uF 1 2 3 Q2 9014 X3 27.145M C25 24pF V+3.9 C26 15pF C22 1000pF Q3 9014 R17 100K R9 22K R18 100K C27 1uF V+3.9 Reset Reset L4 * SP1 * T4 12 SW6 POWER PDF created with FinePrint pdfFactory trial version http://www.fineprint.com

Note: This test report is specially limited to the above client company and product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 SUBPART C EMI MEASUREMENT AND TEST REPORT For BELKIN CORPORATION 501W WALNUT STREET COMPTON, CA90220 FCC ID: K7SF8E825-USB 2003-11-07 This Report Concerns: Original Report Equipment Type: Mini Wireless Optical Mouse, ITE Test Engineer: Ling Zhang / Report No.: R0309301(T) Test Date: 2003-10-03 Reviewed By: Ming Jing / Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 BELKIN CORPORATION FCC ID: K7SF8E825-USB Report # R0309301(T)RPT.doc Page 2 of 12 FCC 15.227 Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................3 1.2 OBJECTIVE.............................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S).......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................3 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................5 2.1 JUSTIFICATION.......................................................................................................................................................5 2.2 SCHEMATICS AND BLOCK DIAGRAM......................................................................................................................5 2.3 EQUIPMENT MODIFICATIONS.................................................................................................................................5 2.4 TEST SETUP CONFIGURATION................................................................................................................................5 3 - SUMMARY OF TEST RESULTS..........................................................................................................................6 4 - RADIATED EMISSIONS TEST ............................................................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 EUT SETUP............................................................................................................................................................7 4.3 SPECTRUM ANALYZER SETUP................................................................................................................................7 4.4 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.5 TEST PROCEDURE..................................................................................................................................................8 4.6 CORRECTED AMPLITUDE & MARGIN CALCULATION.............................................................................................8 4.7 SUMMARY OF TEST RESULTS.................................................................................................................................8 4.8 RADIATED EMISSIONS TEST RESULT DATA...........................................................................................................9 4.9 BAND EDGE.........................................................................................................................................................10 4.10 OCCUPIED BANDWIDTH.....................................................................................................................................11 5 - CONDUCTED EMISSIONS .................................................................................................................................12 BELKIN CORPORATION FCC ID: K7SF8E825-USB Report # R0309301(T)RPT.doc Page 3 of 12 FCC 15.227 Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The BELKIN CORPORATION ’s product, model F8E825-USB or the "EUT" as referred to in this report is a Mini Wireless Optical Mouse. The EUT is measured approximately 3.5” L x 1.7” W x 1.1” H. * The test data gathered are from production sample, serial number: 20339, provided by the manufacturer. 1.2 Objective This Type approval report is prepared on behalf of BELKIN CORPORATION in accordance with Part 2, Subpart J, and Part 15, Subparts A and B of the Federal Communication Commissions rules. The objective of the manufacturer is to determine compliance with FCC rules, sec 15.209 and sec 15.227. 1.3 Related Submittal(s)/Grant(s) No Related Submittals. 1.4 Test Methodology All measurements contained in this report were conducted with ANSI C63.4-2001, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. All radiated and conducted emissions measurement was performed at Bay Area Compliance Laboratory, Corp. The radiated testing was performed at an antenna-to-EUT distance of 3 meters. 1.5 Test Facility The Open Area Test site u…

Text truncated - open the document above for the full version.

APPENDIX B - TEST SETUP PHOTOGRAPHS Transmitter Radiated Emission
