K7SF8E826-MSEErgoFit Wireless Optical Mouse

Optical Wireless Mouse User’s Manual Contents Welcome!...................................................................... 1-1 Optical Wireless Mouse Installation....................................... 1-2 ID Mode Settings........................................................... 1-3 Using the Optical Wireless Mouse.................... ................... 1-4 Mouse Care and Troubleshooting........................................... 1-5 Federal Communication Commission Interference Statement 1-6 1-1 Welcome! Congratulations on your purchase of your new Optical Wireless Mouse. This manual contains information that will assist you in installing, operating, and caring for your Optical Wireless Mouse. Product Description: The Optical Wireless Mouse was designed to give you freedom of movement and an enjoyable experience while working or gaming. Its sleek, comfortable design makes ordinary tasks easier and helps offer a new level of comfort to your PC computing experience. The mouse is supported by Microsoft Windows 95, Windows 98, Windows Me, Windows NT Workstation, Windows 2000 and Windows XP. Note: If you are connecting the mouse to a notebook that has an onboard pointing device or if you are using a keyboard with an onboard pointing device, you may need to disable that device before installing and using the mouse. The package contains: • Optical Wireless Mouse • RF receiver with USB connector • USB to PS/2 Adapter • CD-ROM containing driver software for the Optical Wireless Mouse • Optical Wireless Mouse User’s Manual • Warranty Information • 2 AA Batteries Optical Wireless Mouse Installation Your Optical Wireless Mouse installation is fast and easy. It can be completed in 3 simple steps. Note: After installing the driver software on your computer you will need to shut down and reboot your system. Make sure that all work is saved and all programs are closed before installing this device. Step 1 - Battery Installation: 1. Locate the two AA sized 1.5 Volt batteries that came in your Optical Wireless Mouse package. 2. Remove the battery cover from the compartment at the back of your Optical Wireless Mouse. 3. Install the two batteries into the compartment paying close attention to proper polarities. 4. Replace the battery compartment cover. Step 2 - Connecting the Receiver: PS/2 Installation 1. Make sure your computer is turned off. 2. Locate the round 6-pin (PS/2) connector at the end of receiver cable. 3. Connect this to an available round 6-pin (PS/2) port at the back of your computer. 4. Turn your computer on. USB Installation (Note: If you have Microsoft Windows 95 or Windows NT Workstation, these operating systems do not support USB.) 1. Make sure that your computer is turned on. 2. Remove the USB to PS/2 adapter at the base of the cord and locate a rectangular USB port on your computer or USB hub. 3. Plug the USB (rectangular) connector into the USB port and follow the on-screen instructions. Step 3 - Software Installation: Included in your package is a CD-ROM containing driver software for the Optical Wireless Mouse. Note: If you are installing this device running Windows 2000 or Windows XP, you may encounter a message stating “Digital Signature Not Found” or this device has not passed the Windows XP logo testing. Select Yes to continue the installation running Windows 2000 or click Continue Anyway to complete the installation running Windows XP. 1. Insert the Mouse Suite CD-ROM into your CD-ROM drive and then follow the setup program instructions on your screen. Note: If the setup program does not appear, please refer to steps 2-5 listed below. 2. Click the Start button at the left hand corner of the computer screen. 3. Click Run. Type <drive>:\setup. For example, if your CD-ROM drive letter is (E:), type e:\setup. 4. Click OK. 5. Follow the onscreen instructions to complete the Mouse Suite software installation. Once the Mouse Suite software installation is completed, you can start using your Optical Wireless Mouse. Welcome! 1-1 1-2 Optical Wireless Mouse Installation 1-3 ID & Channel Settings z Default Mode Receive r: *Press the button located on the top of the receiver over 3 sec; the red led of the receiver will dim after release the button. When the led is dimmed, Default mode is set. *The product is default mode when ex-factory. Mouse: *The mouse will be set Default Mode automatically via replace batteries every time. z ID Mode Step 1.Press the button located on the top of the receiver then the 'Red" LED is on Step 2.Press the rubber button located on the bottom of the mouse; then the Red LED of the receiver is off after releasing the rubber button, When the Red LED is off, ID-Mode is set. To return to Default Mode from ID Mode , the user have to implement the Default Mode procedure. z Channel ID Mode : channel will be changed via ID mode setting procedure every time. (Total two channels could be used in ID mode) Default Mode : In default mode, just only one channel could be used. z Advantage and Disadvantage for Two Modes * ID mode : Suggested working environment - Office area Advantage : Less interference chance (1/4096) in compare with Logitech (1/256). Is able to reset ID when interfere with other mouse near by. Disadvantage : User has to set ID every time when change/input batteries.(Method of setting ID mode is same as above.) * Default mode : Suggested working environment - home or soho office Advantage : User do not need to set ID by themselves (even when changing batteries) Disadvantage : will interfere with other same products within 2m ID Mode Settings 1-3 Optical Wireless Mouse Installation 1-2 Using the Optical Wireless Mouse The Optical Wireless Mouse has multiple functions and features such as Zoom and Auto-scrolling, which helps you to increase your productivity. You can also assign frequently used functions and/or shortcuts to the mouse buttons by using the tabs in the Mouse Suite software. To launch the Mouse Suite software, click Start , click Settings …

Text truncated - open the document above for the full version.

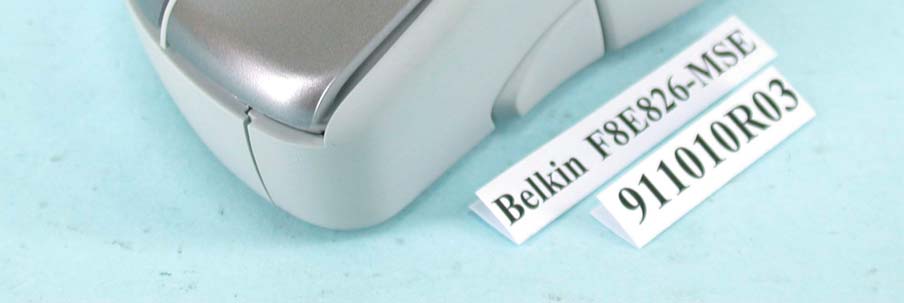

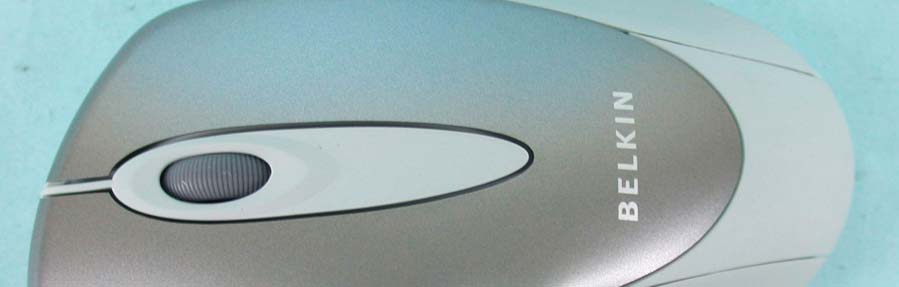

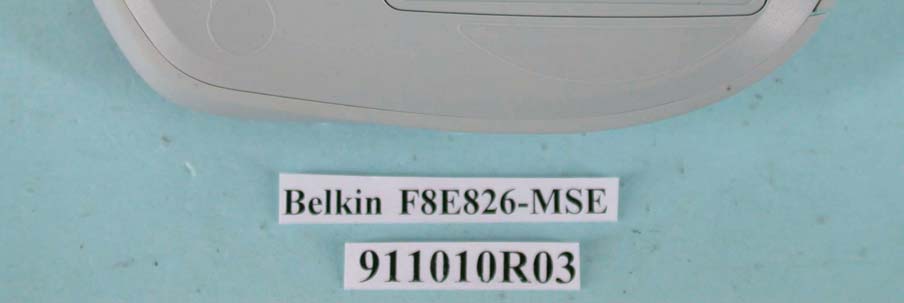

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

LABEL LOCATION FOR FCC ID

ErgoFit ™ Wireless Optical Mouse Made in China Belkin F8E826-MSE FCC ID: K7SF8E826-MSE P81686 model# F8E826-MSE F8E826-OPT

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: K7SF8E826-MSE ADT No.911010R03 Operational Description The transmitter of the EUT (ErgoFit Wireless Optical Mouse) is powered by 3V Battery. The receiver is powered by host computer. Both transmitter and receiver use Loop Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: K7SF8E826-MSE Report No.: RF911010R031Issued: June 21, 2003 FCC TEST REPORT REPORT NO.: RF911010R03 MODEL NO.: F8E826-MSE RECEIVED: Feb. 27, 2003 TESTED: Mar. 6 ~ Mar. 12, 2003 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Street, Compton, CA 90220, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 14 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 FCC ID: K7SF8E826-MSE Report No.: RF911010R032Issued: June 21, 2003 Table of Contents 1CERTIFICATION .........................................................................................................3 2SUMMARY OF TEST RESULTS.................................................................................4 3GENERAL INFORMATION .........................................................................................5 3.1GENERAL DESCRIPTION OF EUT............................................................................ 5 3.2DESCRIPTION OF TEST MODES.............................................................................. 6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................. 6 3.4DESCRIPTION OF SUPPORT UNITS........................................................................ 6 4TEST PROCEDURE AND RESULT ............................................................................7 4.1CONDUCTED EMISSION MEASUREMENT .............................................................. 7 4.2RADIATED EMISSION MEASUREMENT ................................................................... 7 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................................7 4.2.2TEST INSTRUMENT...................................................................................................8 4.2.3TEST PROCEDURE ...................................................................................................9 4.2.4DEVIATION FROM TEST STANDARD .......................................................................9 4.2.5TEST SETUP ............................................................................................................10 4.2.6EUT OPERATING CONDITION ................................................................................10 4.2.7TEST RESULT .......................................................................................................... 11 4.3ANTENNA REQUIREMENT ...................................................................................... 12 4.3.1STANDARD APPLICABLE ........................................................................................12 4.3.2ANTENNA CONNECTED CONSTRUCTION............................................................12 5PHOTOGRAPHS OF THE TEST CONFIGURATION ...............................................13 6INFORMATION ON THE TESTING LABORATORIES ..............................................14 FCC ID: K7SF8E826-MSE Report No.: RF911010R033Issued: June 21, 2003 1 CERTIFICATION PRODUCT : ErgoFit Wireless Optical Mouse BRAND NAME : Belkin MODEL NO : F8E826-MSE APPLICANT : Belkin Corporation STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from Mar. 6 ~ Mar. 12, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: K7SF8E826-MSE Report No.: RF911010R034Issued: June 21, 2003 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –10.9 dBuV at 189.28 MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: K7SF8E826-MSE Report No.: RF911010R035Issued: June 21, 2003 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT ErgoFit Wireless Optical Mouse MODEL NO. F8E826-MSE POWER SUPPLY 3VDC from battery for transmitter MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz / 27.095MHz BANDWIDTH OF EACH CHANNEL 50kHz NUMBER OF CHANNEL 2 ANTENNA TYPE Loop Antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of a Wireless Mouse. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: K7SF8E826-MSE Report No.: RF911010R036Issued: June 21, 2003 3.2 DESCRIPTION OF TEST MODES Two channels are provided to this EUT. ChannelFrequency 127.045 MHz 227.095 MHz Note: Channel 2, the worst case, was chosen for final test. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of an ErgoFit Wireless Optical Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. NA FCC ID: K7SF8E826-MSE Report No.: RF911010R03…
