K7SF8E859-BNDLWIRELESS MULTIMEDIA KEYBOARD

Belkin International, Inc.
WIRELESS MULTIMEDIA KEYBOARD - FCC ID K7SF8E859-BNDL - Belkin International, Inc.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Oct 11, 2005
Application Purpose
Original Equipment
Date of Application
Oct 11, 2005
Equipment Note
WIRELESS MULTIMEDIA KEYBOARD
Frequency Range
27.14500000 - 27.19500000
Company
Belkin International, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

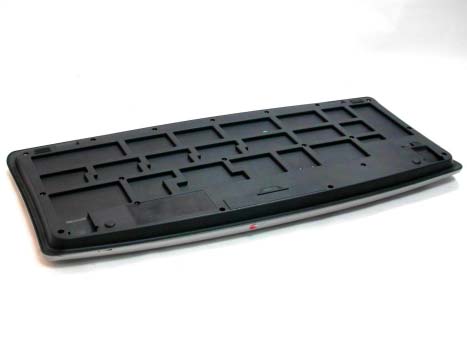

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Belkin Tech Support US: 800-223-5546, ext. 2263 310-898-1100, ext. 2263 Europe: 00 800 223 55 460 Australia: 1800 235 546 New Zealand: 0800 235 546 Belkin Corporation 501 West Walnut Street Compton, CA 90220-5221, USA 310-898-1100 310-898-1111 fax Belkin Ltd. Express Business Park, Shipton Way Rushden, NN10 6GL, United Kingdom +44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax © 2005 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Belkin B.V. Boeing Avenue 333 1119 PH Schiphol-Rijk, The Netherlands +31 (0) 20 654 7300 +31 (0) 20 654 7349 fax Belkin Ltd. 7 Bowen Crescent, West Gosford NSW 2250, Australia +61 (0) 2 4372 8600 +61 (0) 2 4372 8603 fax Wireless Multimedia Desktop 250 Wireless Multimedia Desktop 250 User Manual F8E859-BNDL Discover easy Internet and multimedia functionality with wireless convenience Keyboard Mouse User Manual Table of Contents Table of Contents 1. Introduction .........................................................................1 Package Contents ................................................................2 Software Compatibility .........................................................2 2. Quick Setup ..........................................................................3 For PS/2 Connections ..........................................................3 For USB Connections ..........................................................4 3. Software Driver Installation ................................................5 For Windows 98 SE, 2000, Me, and XP ..............................5 4. About your Belkin Software ................................................6 Product Features ..................................................................6 For the Keyboard .................................................................6 For the Mouse ....................................................................10 5. Troubleshooting .................................................................13 6. Information ........................................................................15 1 Congratulations and thank you for purchasing the Wireless Multimedia Desktop 250 by Belkin. We appreciate your business and we are sure you will enjoy years of reliable use with these high-quality input devices. Although the Wireless Multimedia Desktop 250 will function out-of-the-box as a Human Interface Device (HID) or standard PS/2 keyboard and mouse, for advanced programmability and functionality, we recommend that you use the included software. This will give you added flexibility and allow you to program and customize your settings, and reassign keys to fit your preference. Introduction 1 2 3 4 5 6 7 8 9 10 2 Section Package Contents Software Compatibility Windows ® OS for USB interface: Windows XP, Me, 2000, 98 SE Windows OS for PS/2 interface: Windows XP, Me, 2000, 98 SE Wireless Multimedia Keyboard 4 AA Batteries Wireless 5-Button Optical Mouse User Manual USB and PS/2 Receiver CD Software Driver Introduction | Package Contents PS/2 Adapter Quick Setup | For PS/2 Connections 3 For PS/2 Connections 1. Be sure that your computer is powered off. 2. Connect the receiver to your computer’s PS/2 ports. The receiver has a two-headed connector for the keyboard and mouse connection (purple is for the keyboard and the USB connection, and the green adapter is for the mouse). There is also a diagram on the top connector for identification. Your computer will either have a matching color scheme or an illustration next to the port, or both (See Fig. 1). 3. Install the batteries into your keyboard and mouse. Please make sure you follow the diagram on the inside of the battery compartment to ensure that you install them correctly. 4. Power on your computer. The receiver automatically scans for and synchronizes the keyboard and mouse when you power on the computer. Your keyboard and mouse should now be functioning. NOTE: If synchronizing does not occur automatically, please refer to the information on “Synchronizing” in the Troubleshooting section at the end of this User Manual. Fig. 1 Quick Setup | For USB Connections 1 2 3 4 5 6 7 8 9 10 4 Section For USB Connections 1. Be sure that your computer is powered on. If you are running Windows 98 SE, Me, or 2000, you will need to have your old keyboard and mouse connected during the installation. 2. Install the batteries into your keyboard and mouse. Please make sure you follow the diagram on the inside of the battery compartment to ensure that you install them correctly. 3. Connect only the receiver to your computer with the USB connector. (Do not connect the green PS/2 connection as it is not necessary in a USB environment) (See Fig. 2). NOTE: When connecting the USB cable to your computer, Windows will start a New Hardware Wizard. Windows XP completes the Wizard automatically. In Windows 98 SE, Me, and 2000, you will need to go through the New Hardware Wizard setup with your old keyboard and mouse. Windows 98 SE may require you to insert your Windows 98 SE Installation CD into your computer’s CD-ROM drive to complete the install. 4. The receiver automatically scans and synchronizes the keyboard and mouse. Your keyboard and mouse should now be functioning. 5. If synchronizing does not occur automatically, please refer to the information on “Synchronizing” in the Troubleshooting section at the end of this User Manual. Fig. 2 Software Driver Installation 5 For Windows 98 SE, Me, 2000, and XP NOTE: The keyboard and mouse should now be functioning for basic input. If this is not the case, carefully repeat the Quick Setup procedures in the previous pages. When the keyboard and mouse are functioning for basic input, install the software described in the following section. NOTE: If you have previously installed any keyboard or mouse driver on your computer, you must uninstall it/them before proceeding with this installation procedure. 1. Insert your Wireless Multimedia Deskt…

Text truncated - open the document above for the full version.

Cover Letter(s)

Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: K7SF8E859-BNDL Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics l Part List l Block diagram l Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: l External Photos l Internal Photos l Test Setup Photos l User’s Manual Sincerely, Mark Freeman, Product Manager Belkin Corporation

ID Label/Location Info

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Belkin F8E859-BNDL Wireless Desktop 250 P10603Made in China F8E859-BNDL S/N: FCC ID: K7SF8E859-BNDL Canada 210 P1

ID Label/Location Info

LABEL Format: LABEL Size: 78 x 42 mm LABEL Position: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. LABEL

Test Report

Test Report ----------------------------------------------------------------------------- 1/12 Report No.: B1515050755 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Report No. B1515050755 FCC ID K7SF8E859-BNDL Specifications FCC Part 15, Class B Test Method ANSI C63.4 Applicant Belkin Corporation Applicant 501 West Walnut Street Compton, address CA 90220-5221, USA Product name Wireless Multimedia Keyboard Items tested Wireless Keyboard Model No. F8E859-BNDL Sample No. B15050753 Frequency Range 26.96MHz to 27.28MHz Results Compliance (As detailed within this report) Date 10/04/2005 (month / day / year)(Sample received) 10/05/2005 (month / day / year)(Tested) Prepared by Project Engineer Authorized by General Manager (Frank Tsai) Issue date October 05, 2005 (month / day / year) Modifications None Tested by Training Research Co., Ltd. (Accredited by NVLAP) Office at 1F, No. 255, Nan Yang Street, Hsichih, Taipei Hsien 221, Taiwan Open site at No. 15, Lane 530, Pa-Lian RD., Sec. 1, Hsichih City, Taipei Hsien, Taiwan, R.O.C. Conditions of issue : z This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. z The test data in this test report are following the procedures in accordance with the terms of accreditation. z This test report and measurements made by TRC are traceable to the NIST only Conducted and Radiated Method (TRC is accredited by NVLAP, code No.: 200174-0). z The device has been tested is fully complied with the requirements the Directive FCC Part 15. Test Report ----------------------------------------------------------------------------- 2/12 Report No.: B1515050755 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Contents Chapter 1 Introduction Description of EUT ................................................................................................................... 3 Configuration of Test Setup ...................................................................................................... 4 List of Support Equipment ........................................................................................................ 4 Chapter 2 Conducted Emission Test Test Condition and Setup .......................................................................................................... 5 Chapter 3 Peak Power Measurement (Frequency Band: 26.96 ~ 27.28) Test Setup .................................................................................................................................. 6 Test Procedure........................................................................................................................... 6 Chapter 4 Radiated Emission Test Test Condition and Setup .......................................................................................................... 7 Radiated Test Placement ........................................................................................................... 8 Appendix A: Peak Power and Radiated test result ......................................................................................... 9 Appendix B: Band Edge of Measurement ..................................................................................................... 11 Test Report ----------------------------------------------------------------------------- 3/12 Report No.: B1515050755 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Chapter 1 Introduction Description of EUT: EUT : Wireless Keyboard Model No. : F8E859-BNDL Product name : Wireless Multimedia Keyboard Frequency Range : 26.96 – 27.28 MHz Power Type : Powered by two 1.5VDC AA batteries *This EUT has two channels (with 256 IDs): CH 1: 27.1450MHz, CH 2: 27.1950MHz Test method: Pretest was found that the emission of operating mode is worse than standby mode. So, The final test is made at the operating mode. During the measurement, the following mode were tested: z Radiated used channel 1. z Radiated used channel 2. The radiation pretest was found out “Radiated used channel 1” was the worst case and we only recorded this data in this report. While testing, the EUT was made to transmit continuously and adjusted at a position, which transmitted the maximum emission. The test placement as the photographs showed is the worst case emission placed. (If the emission is close to the ambient, the resolution BW and view resolution will be reduced and the data will be recorded by detection of maximum hold peak mode.) The testing configuration of test setup is showing in the next page. Test Report ----------------------------------------------------------------------------- 4/12 Report No.: B1515050755 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Configuration of Test Setup EUT: Put three AA size, 1.5V battery into the battery cell of EUT, powers the subject device. The EUT does not be connected with any product. List of Support Equipment Conducted (Radiated) test: N/A EUT (Tx) Test Report ----------------------------------------------------------------------------- 5/12 Report No.: B1515050755 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Chapter 2 Conducted Emission Test Test Condition and Setup: All the equipment is placed and setup according to the ANSI C63.4 – 2003. The EUT is assembled on a wooden table that is 80 cm high, is placed 40 cm from the back-wall that is a vertical conducting plane. One LISN is for EUT, the other LISN is for support equipment. They are all placed on the conductive ground. The EUT’s LISN connect a line switch box for selecting L1 or L2, then connect to a preamplifier and Spectrum. The spectrum measured from 150KHz to 30MHz. Conducted emission levels are detected at max. peak mode. But if the max. peak mode failed or over average limit, it will be measured by QP and average detection mode using the Receiver. …

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated Test Placement: (Photographs)

Contact Information

Applicant

Jay TU(Manager, Regulatory Compliance)
[email protected]310-633-9309Fax: none

Test Firm

Training Research Co., Ltd.Jack Tsai
[email protected]886-2-26935155Fax: 886-2-26934440

Technical Specifications

#Rule PartsFrequency RangePower Output
115C27.145 MHz - 27.195 MHz-
