User Manual TuneCast ™ Universal The innovative TuneCast Universal from Belkin is designed to power and transmit audio from your iPod or MP3 player to your car stereo. Please review this User Manual carefully so that you can be sure you’ll get the most from your TuneCast Universal, virtually anywhere you go. Introduction 1. For AUDIO: Plug the 3.5mm headphone jack into your iPod or MP3 player and the cigarette-lighter adapter into your car’s cigarette-lighter outlet. 2. For MOUNTING: Use multi-mount socket and mount with adhesive backing to attach your TuneCast Universal to any smooth surface. 3. Tune your car stereo frequency to a channel with a weak broadcast signal. The ideal channel is one that is not picking up a signal from a radio station, or is doing so weakly. 4. Press the or button on the TuneCast Universal to select the transmission frequency chosen in step 3 on your car for broadcast. Press and hold either button for fast-forward or backward tuning. Setup Instructions 5. Your TuneCast Universal can memorize up to two different frequencies so you can recall them quickly later. a. Select the desired frequency using the or buttons. b. Press and hold the MI or MII button for two seconds. When the MI or MII icon blinks, release the button. 6. Adjust the volume of your FM radio to the desired listening level.* *Due to characteristics of FM transmission, you will experience better sound quality by adjusting the volume on your car stereo when necessary, and by leaving your iPod volume at a medium level. Setup Instructions FM frequency display Memory slot indicator Memory I/II buttons UP/DOWN tuning buttons FCC Statement NOTE: This equipment has been tested and found to comply with the li mits for a Class B digital device, pursuant to part 15 of the FCC Rules. These li mits are designed to provid e reasonable protection against harmful interference in a resid ential inst allation. This equipment generates, uses, and can radiate radio frequency e nergy and, if not inst alled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular inst allation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equi pment off and on, the user is e ncouraged to try to correct the interference by one of the following measures: • Reori ent or relocate the recei ving antenna. • Incr ease the separation between the equipment and recei ver. reviecer eht hcihw ot taht morf tnereffid tiucric a no teltuo na ot tnempiuqe eht tcennoC • is connected. • Consul t the dealer or an experi enced radio/TV technician for help. Belkin International , Inc., is not responsible for any interference caused by unauthorized modifications to this equipment. Such modifications could voi d the user’s authority to operate this equipment. Information Belkin International, Inc., Limited 3-Year Product Warranty What this warranty covers. Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this Belkin product that the product shall be free of defects in design, assembly, material, or workmanship. What the period of coverage is. Belkin warrants the Belkin product for three years. What will we do to correct problems? Product Warranty. Belkin will repair or replace, at its option, any defective product free of charge (except for shipping charges for the product). What is not covered by this warranty? All above warranties are null and void if the Belkin product is not provided to Belkin for inspection upon Belkin’s request at the sole expense of the purchaser, or if Belkin determines that the Belkin product has been improperly installed, altered in any way, or tampered with. The Belkin Product Warranty does not protect against acts of God such as flood, lightning, earthquake, war, vandalism, theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse, damage due to low voltage disturbances (i.e. brownouts or sags), non-authorized program, or system equipment modification or alteration. How to get service. To get service for your Belkin product you must take the following steps: 1. Contact Belkin International, Inc., at 501 W. Walnut St., Compton, CA 90220, Attn: Customer Service, or call (800)-223-5546, within 15 days of the Occurrence. Be prepared to provide the following information: a. The part number of the Belkin product. b. Where you purchased the product. c. When you purchased the product. d. Copy of original receipt. 2. Your Belkin Customer Service Representative will then instruct you on how to forward your receipt and Belkin product and how to proceed with your claim. Belkin reserves the right to review the damaged Belkin product. All costs of shipping the Belkin product to Belkin for inspection shall be borne solely by the purchaser. If Belkin determines, in its sole discretion, that it is impractical to ship the damaged equipment to Belkin, Belkin may designate, in its sole discretion, an equipment repair facility to inspect and estimate the cost to repair such equipment. The cost, if any, of shipping the equipment to and from such repair facility and of such estimate shall be borne solely by the purchaser. Damaged equipment must remain available for inspection until the claim is finalized. Whenever claims are settled, Belkin reserves the right to be subrogated under any existing insurance policies the purchaser may have. Belkin International, Inc., Limited 3-Year Product Warranty Belkin International, Inc., Limited 3-Year Product Warranty How state law relates to the warranty. THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN. THERE ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED BY LAW, IMPLIED, INCLUDING THE IMPLIED WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY, ARE LIMITED IN DURATION TO THE TERM OF THIS WA…

Text truncated - open the document above for the full version.

501 W. Walnut Street ?Compton ?California 90220 USA Date : 03-OCTOBER-2007 The Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Attn.: Mr. KC Lee Dear Sir, Re. : Letter of Attestation This equipment has been tested in accordance with the requirements contained in the appropriate Commission Regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. Each unit manufactured, imported or marketed, as defined in the Commission regulations, will conform to the samples tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made by the Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Yours sincerely, ________________________ Manager, Document Control & Regulatory Compliance

Date: 2007-10-08 RE: Category 1 - 15.239 FM transmitter Category 1: FM band modulators / transmitters operating under 15.239 of the FCC rules. Description: The Equipment Under Test (EUT) is a Belkin International INC., TUNECAST UNIVERSAL INLINE * CLA/3.5MM HEADPHONE JACK. The transmitter is a four button transmitter. The EUT continues to transmit while button is being pressed. Modulation by audio input; and type is frequency modulation. Q1: Describe the operation of the device A1: (Please see user manual) The transmitter is a voice transmitter operating at 88.1-107.9MHz band. The transmitter is powered by a 12V.d.c. and the transmitting frequency is IC controlled. The operation is achieved by different combinations of form frequency modulating signal on the 88.1-107.9MHz carrier frequency. Q2: Provide information on the device and its antenna. A2: There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 12Volt car battery. Q3: How is it installed? A3: (Please see user manual) Q4: Describe the test procedure used. A4: ANSI C63.4 test method is adopted. Q5: If tested in a car, describe how was it configured and tested. A5: We just test on test table according to ANSI C63.4 and product not mentions use on the car. Q6: At the present time, FM transmitters (subject to 15.239) tested in vehicles must also be tested on a test table. Provide both sets of data. All data must be compliant A6: Please see test report. Q7: Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. A7: The EUT just only operation on 88.1-107.9MHz. (the IC controlled) Q8: Was the bandwidth properly tested with maximum audio input? A8: During the test, we would use MP3 or CD player input audio signal to EUT and turn max. volume with different sound (e.g.: very loud song) in order to get worst result. Q9: Use a typical audio file from a typical device. e.g. do not use a 1 kHz signal from a signal generator. A9: During the test, we would use MP3 or CD player input audio signal to EUT and turn max. volume with different sound (e.g.: very loud song) in order to get worst result. Q10: Provide the test report showing compliance with the rules. A10: HKSTC provided test report.

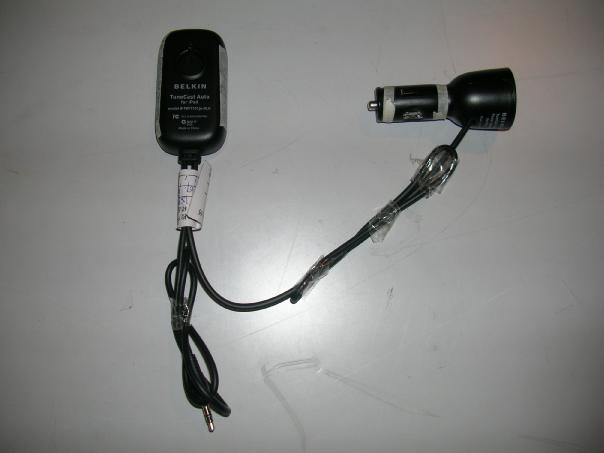

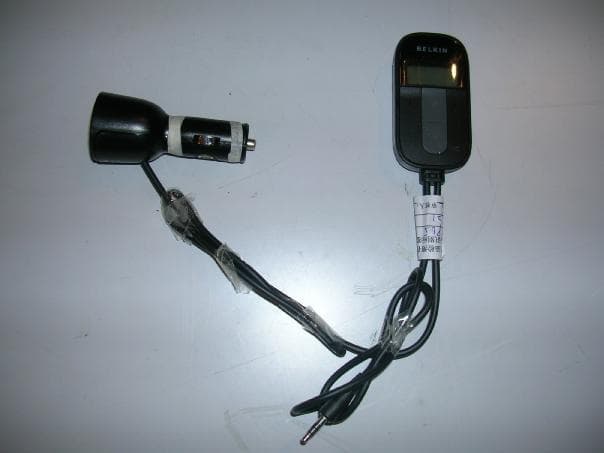

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL REMARK: Devices smaller than the palm of the hand, the label is placed in the users manual.

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID: K7SF8M066 Antenna, Ground and Power Source No external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 12 Volt power. Antenna

STC Test Report Date : 2007-10-08 Page 1 of 20 No. : HM159965 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (SHL012): Belkin International INC. 501 West Wainut Street, Compton, CA90220, U.S.A. Manufacturer: N/A Description of Samples: Product: TUNECAST UNIVERSAL INLINE * CLA/3.5MM HEADPHONE JACK Brand Name: BELKIN Model Number: F8M066 FCC ID: K7SF8M066 Date Samples Received: 2007-09-12 Date Tested: 2007-09-18 to 2007-09-21 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: --- Dr. LEE Kam Chuen, ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-10-08 Page 2 of 20 No. : HM159965 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 20 Content Page 2 of 20 1.0 General Details 1.1 Test Laboratory Page 3 of 20 1.2 Applicant Details Page 3 of 20 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 4 of 20 Description of EUT operation 1.4 Date of Order Page 4 of 20 1.5 Submitted Samples Page 4 of 20 1.6 Test Duration Page 4 of 20 1.7 Country of Origin Page 4 of 20 2.0 Technical Details 2.1 Investigations Requested Page 5 of 20 2.2 Test Standards and Results Summary Page 5 of 20 3.0 Test Results 3.1 Emission Page 6-12 of 20 3.2 Bandwidth Measurement Page 13-16 of 20 3.3 Operation Description Page 17 of 20 Appendix A List of Measurement Equipment Page 18 of 20 Appendix B Photographs Page 19-20 of 20 STC Test Report Date : 2007-10-08 Page 3 of 20 No. : HM159965 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Belkin International INC. 501 West Wainut Street, Compton, CA90220, U.S.A. Manufacturer N/A STC Test Report Date : 2007-10-08 Page 4 of 20 No. : HM159965 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: TUNECAST UNIVERSAL INLINE * CLA/3.5MM HEADPHONE JACK Manufacturer: N/A Brand Name: BELKIN Model Number: F8M066 Input Voltage: 12Vd.c. (“Acid-lead” battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Belkin International INC., TUNECAST UNIVERSAL INLINE * CLA/3.5MM HEADPHONE JACK. The transmitter is a 4 button transmitter. The EUT continues to transmit while audio input is being pressed. It is voice transmitter, Modulation by audio input and type is frequency modulation. 1.4 Date of Order 2007-09-12 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2007-09-18 to 2007-09-21 1.7 Country of Origin CHINA STC Test Report Date : 2007-10-08 Page 5 of 20 No. : HM159965 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4: 2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.239 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Report Date : 2007-10-08 Page 6 of 20 No. : HM159965 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be repro…
