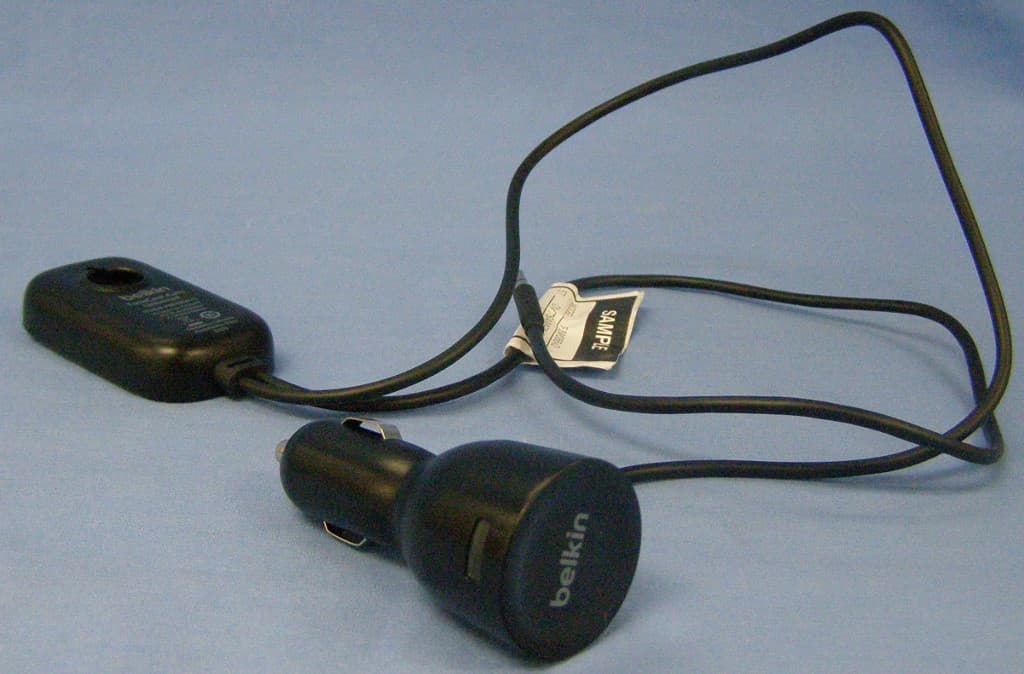

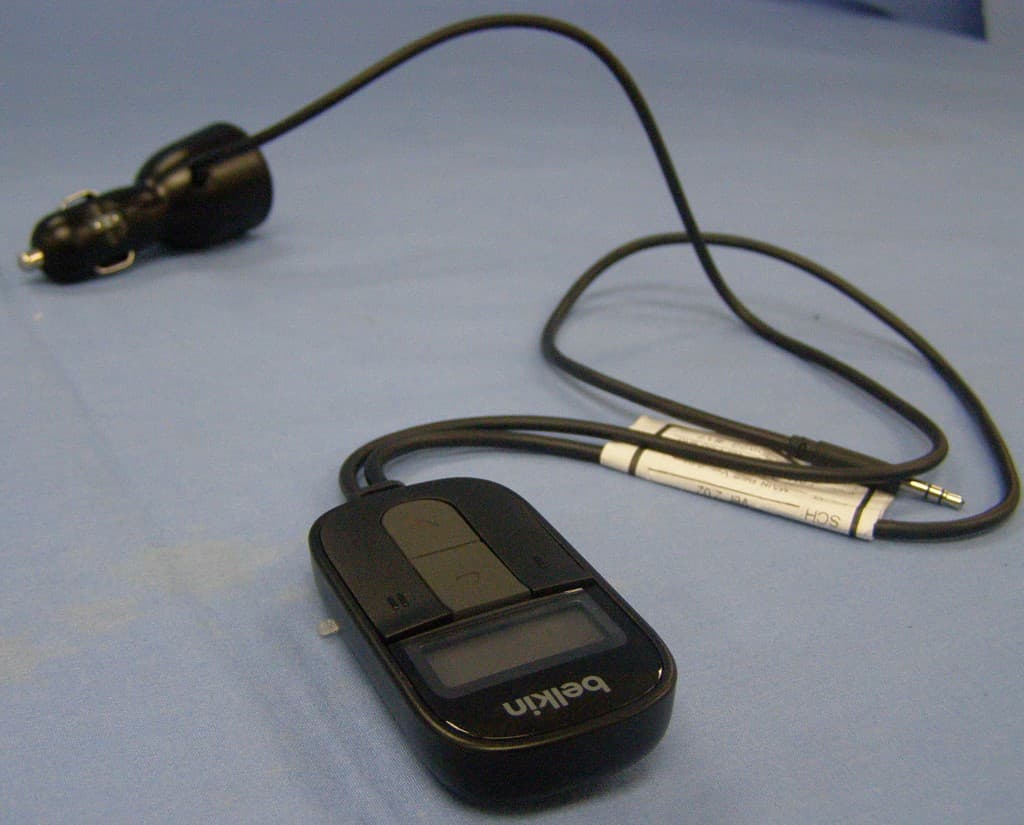

K7SF8M066V2TuneCast Auto Universal

8820tt01485 Rev. A01 Ok mk 4/19/13 Information FCC Statement DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY We, Belkin International, Inc., of 12045 E. Waterfront Drive, Playa Vista, CA 90094, declare under our sole responsibility that the products, SKU No: F8J034, F8M066, F8Z439, to which this declaration relates, comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the distance between the equipment and the receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. IMPORTANT NOTE: Industry Canada Statement This device complies with ICES-003 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) This device may not cause interference, and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Ce dispositif est conforme a la norme CNR- standards d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage prejudiciable, et (2) ce dispositif doit accepter tout brouillage recu, y compris un brouillage susceptible de provoquer un fonctionnement indesirable. IC Statement This digital apparatus complies with CAN ICES-3(B)/NMB-3 (B) CE Declaration of Conformity We, Belkin International, Inc., declare under our sole responsibility that the products F8J034, F8M066, F8Z439, to which this declaration relates, are in conformity with EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC Energy Directive 2005/32/EC & 2009/125/EC RoHS Directive 2011/65/EU (Recast). We further declare that the product meets the essential requirement of the above Directives. The limits contain in these articles are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Belkin Internation, Inc 12045 East Waterfront Drive Playa Vista California 90094 United States Tel: 1 (310) 751-2816 Fax: 1 (310) 751-5912 Agency Authorization Letter Date: 2013-05-30 To whom it may concern: We, the undersigned, Belkin International, Inc. hereby authorize Compatible Electronics and its employees to act on our behalf, until otherwise notified, for applications submitted to CETCB. We certify that we are not subject to denial of federal benefits that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U. S. C 862. Further, no party as defined in 47 CFR 1.2002(b), for this application is subject to denial of federal benefits that includes FCC benefits. Thank you for your attention to this matter If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Daniel Wesey / EMC Regulatory Compliance Engineer Belkin International, Inc. Tel: 1 (310) 751-2816 E-mail: [email protected]

BELKIN INTERNATIONAL INC. 12045 East Waterfront Drive Playa Vista, CA 90094 USA Declaration of non-duplicate submittal 13/05/30 Compatible Electronics TCB, 114 Olinda Drive Brea, CA 92828 Subject: TCB application submittal Gentlemen: We Belkin International would like to declare that the application being submitted for the device with FCC ID: K7SF8M066V2, has not been submitted to another TCB or FCC. If you have any question, please do not hesitate to contact us at (310) 751-2816 Sincerely, Name/ Title: Daniel Wesey/ EMC Regulatory Compliance Engineer Signature:

Belkin International, Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094 2014/9/18 CETCB Confidentiality Request FCC ID: K7SF8M066V2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Operational Description Block Diagram Schematics The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Daniel Wesey / EMC Regulatory Compliance Engineer Belkin International, Inc. TEL: 1 (310) 751-2816 FAX: 1 (310) 751-5912 Email: [email protected]

SAR Exclusion Justification This device FCC ID: is excluded from SAR testing by the following justi fication The maximum power that the transmitter is capable o f is 0.00 mW Using the following formula from section 4.3.1 of K DB 447498 at test separation distances ≤ 50 mm [(max. power of channel, including tune-up toleranc e, mW) / (min. test separation distance, mm)] * [ √ f(GHz)] Duty Cycle 11.00% Value 1-g (mW) 10-g (mW) 0.00 424 1109 "Value" is ≤ 7.5 , the SAR test exclusion threshold 1-g power limit 10-g power limit 456 1141 “source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An e xample of this is the determination of exposure from a device that uses d igital technology such as a time-division multiple- access (TDMA) scheme for transmission < 50mm power limits for above caclulation using spe cified frequency K7SF8M066V2 Max Peak Power (dBm) Min Separation distance (mm) Fre quency (Ghz) When the minimum test separation distance is < 5 mm , a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 0.108 5 -50.49 SAREXJUST-B-0-43 REV A 01/21/2014

Report Number: D40728R1 FCC Part 15, Subpart B, Subpart C Section 15.239 Test Report TuneCast Auto Universal - FCC ID: K7SF8M066V2 Model: F8M066V2 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 16 FCC PART 15, SUBPART B & SUBPART C SECTION 15.239 TEST REPORT for TUNECAST AUTO UNIVERSAL MODEL: F8M066V2 Prepared for BELKIN INTERNATIONAL, INC. 12045 EAST WATERFRONT DRIVE PLAYA VISTA, CA 90094 Prepared by:_____________________ TOREY OLIVER Approved by:____________________ JEFF KLINGER COMPATIBLE ELECTRONICS INC. 20621 PASCAL WAY LAKE FOREST, CA 92630 (949) 587-0400 DATE: JULY 28, 2014 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 8 23 53 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: D40728R1 FCC Part 15, Subpart B, Subpart C Section 15.239 Test Report TuneCast Auto Universal - FCC ID: K7SF8M066V2 Model: F8M066V2 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. Description of Test Configuration 9 4.1 Description Of Test Configuration - EMI 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 7. Test Procedures 14 7.1 RF Emissions 14 7.1.1 Conducted Emissions Test 14 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.1.3 Radiated Emissions (Spurious and Harmonics) Test (Continued) 15 7.1.4 Peak Radiated EMI 15 7.2 20dB Bandwidth of the Fundamental 16 7.3 Restricted Bands and Band Edges 16 8. CONCLUSIONS 16 Report Number: D40728R1 FCC Part 15, Subpart B, Subpart C Section 15.239 Test Report TuneCast Auto Universal - FCC ID: K7SF8M066V2 Model: F8M066V2 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos  Test Setup Diagrams  Radiated Emissions Photos  Antenna Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of 3 Meter Radiated Site 2 High Frequency Test Volume Report Number: D40728R1 FCC Part 15, Subpart B, Subpart C Section 15.239 Test Report TuneCast Auto Universal - FCC ID: K7SF8M066V2 Model: F8M066V2 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product certification, approval or endorsement by NVLAP, NIST, or any agency of the federal government. Device Tested: TuneCast Auto Universal Model: F8M066V2 SN: 17 Product Description: See Expository Statement Modifications: The EUT was not modified. Manufacturer: Belkin International, Inc. 12045 East Waterfront Drive Playa Vista, CA 90094 Test Date: September 5, 2014 Test Specifications: CFR Title 47, Part 15, Subpart B Section 15.109, Subpart C, Sections 15.205, 15.209 and 15.239 Test Procedure: ANSI C63.10 & ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. Report Number: D40728R1 FCC Part 15, Subpart B, Subpart C Section 15.239 Test Report TuneCast Auto Universal - FCC ID: K7SF8M066V2 Model: F8M066V2 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 16 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Intentional Radiated RF Emissions, 9 kHz - 1080 MHz Complies with the limits of CFR Title 47, Part 15, Subpart C, section 15.205, 15.209, and 15.239. 2 Radiated Emissions (Digital Portion), 30 - 1000 MHz Complies with the limits of CFR Title 47, Part 15, Subpart B, section 15.109 3 Conducted Emissions 150kHz-30MHz The EUT does not connect to AC mains; Therefore this test was not performed. 4 -20 dB Bandwidth of the Fundamental Complies with the limits of CFR Title 47, Part 15, Subpart C, section 15.239. 5 Peak Radiated EMI Complies with the limits of CFR Title 47, Part 15, Subpart C, sectio…
