K7SF8T031Wireless USB Printer Adapter

Bluetooth ™ USB Printer Adapter Print to your USB printers via Bluetooth wireless technology User Manual F8T031 TABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Overview Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Supported Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 FAQs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 1 2 INTRODUCTION Congratulations and thank you for purchasing the BluetoothUSB Printer Adapter from Belkin. This breakthrough Adapter adds Bluetoothtechnology to your existing USB printer, allowing it to connect with all devices enabled with Bluetoothv1.1 technology. Wirelessly print from your PDA, desktop, or laptop computer via Bluetoothtechnology. Please be sure to review this User Manual carefully to ensure that you take advantage of all the features and capabilities of your new BluetoothUSB Printer Adapter. OVERVIEW 3 Product Features The BluetoothUSB Printer Adapter is compliant with Bluetoothstandard version 1.1 and provides: • Compliance with Bluetoothspecification v1.1 devices • Support of USB 1.1-compliant printers* • Operating distance of up to 100 meters • Compact design • Support for data rates up to 721Kbps • Hardcopy Cable Replacement and Serial Port Profiles *Multifunctional printers will not operate when used with this Adapter System Requirements • PDA or PC enabled with Bluetoothtechnology • Serial Port or Hardcopy Cable Replacement Profile support • USB v1.1-compliant printer Package Contents • BluetoothUSB Printer Adapter • User Manual • Quick Installation Guide • Registration Card OVERVIEW 4 OVERVIEW 5 Supported Profiles The services supported by your BluetoothUSB Printer Adapter are defined as “Profiles”. Available Profiles include: • Generic Access • Service Discovery • Serial Port • Hardcopy Cable Replacement OVERVIEW 6 Specifications Bluetooth ComplianceVersion 1.1 Compatible to Bluetooth SPP and HCRP Profile Physical Interface:USB v1.1-compliant, A-type Operating Frequency:2.4 to 2.4835GHz Output Power:Class I (0-20 dBm) RF Data Rate:723/56Kbps Operation Range:100m (333 ft.) radius indoors Antenna:Integrated LED:BluetoothActivity, USB Status Dimensions:81 (W) x 81 (L) x 26mm (H) Weight:108g Operating Temp:0 to 50 degrees Celsius Storage Temp:10 to 70 degrees Celsius Humidity:5~90% non-condensing Supported Profiles:GAP, SDP, HCRP, Serial Specifications subject to change without notice. OVERVIEW 7 LEDs BluetoothLED (Blue) On/Blinking: Bluetooth device is connected to the Adapter Off: No Bluetooth devices are connected to the Adapter USB LED (Amber) Fast Blinking: No printer detected Slow Blinking: Printer detected LED: USB LED: Bluetooth 8 HARDWARE INSTALLATION Installing the USB Printer Please do not connect any devices other than a USB printer directly to the USB port of the Adapter. 1. With the printer powered off, connect one end of a standard USB cable to the USB B-type connector of your USB printer and connect the other end to the USB type A printer connector on the Adapter. Note: You must have the printer driver installed in each computer you wish to print from prior to use. Go to the Control Panel in Windows and open the “Printers” folder. Select “Add a Printer” and choose a “Local Printer” (not network printer or USB printer). Then select the “Bluetooth Port” as its’ port. 2. Connect the included power adapter into an available power outlet. Attach the barrel plug into the power jack of the Adapter. You should see the Bluetoothand USB LED blink rapidly for three seconds and then the USB (Amber) LED will remain blinking. 3. Power on the connected USB printer. Your BluetoothUSB Printer Adapter is now installed and ready for use. 9 HARDWARE INSTALLATION Connecting Via Serial Port Profile The method of connecting to the printer described below is for use of the Serial Port Profile. For example, using the BluetoothPC Card (part number F8T002), or the BluetoothUSB Adapter (part number F8T001 or F8T003) from Belkin on Windows or devices that use WIDCOMM BTW software. 1. Double-click on the Bluetoothicon on your desktop. 2. Choose Bluetoothfrom the menu bar. Click “Search for devices”. The “Belkin USB Printer” icon should appear. 3. Double-click on the icon. You should see “Discovering Services”. Icons will appear symbolizing the services your device offers. 10 HARDWARE INSTALLATION 4. Double-click on the “Virtual Printer” icon. 5. A connection via Serial Port Profile over the virtual COM port will be created. This is usually “COM3” or “COM4” but can be configured to another port. Make note of the COM port for your specific application. 6. Go to Control Panel in Windows and open the “Printers” folder. 7. Right-click on the printer you pre-installed and choose “Properties”. 8. Select the “Ports” tab. 9. Under the “Ports” section, select the printer for the virtual COM port created in step 5. You are now ready to print via Bluetooth technology to your USB printer. Note: Each time you would like to print via the printer connected to the Adapter, you will have to double-click on the “Virtual [USB Printer]” icon first to make a connection, unless you set the printer you created above to be your default printer. In that case, the PC stack will automatically send the print job via virtual COM…

Text truncated - open the document above for the full version.

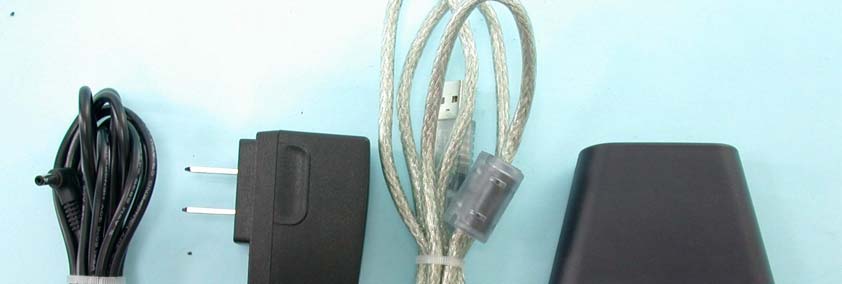

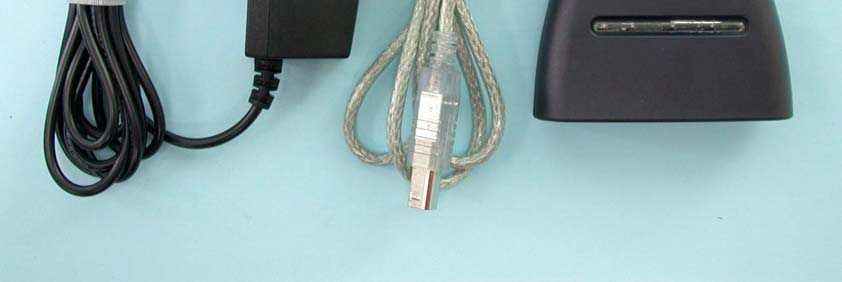

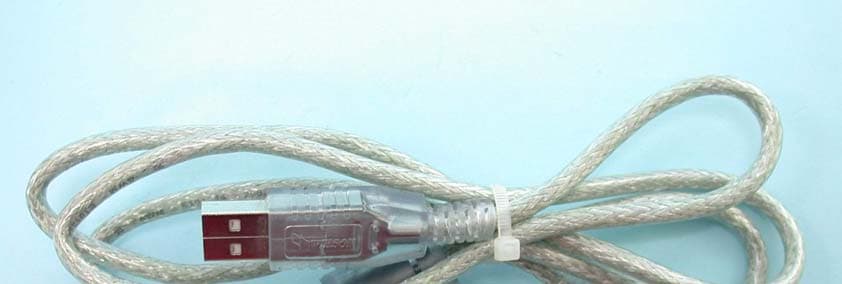

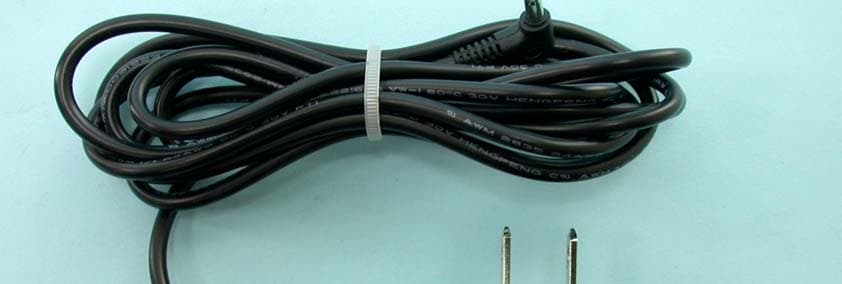

CONSTRUCTION PHOTOS OF EUT BELKIN F8T031 930129R03

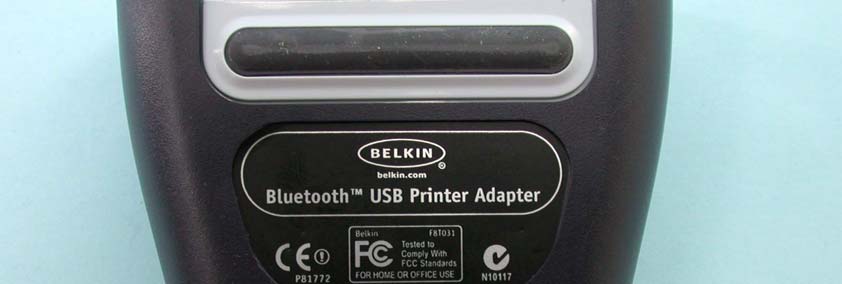

belkin.com F8T031 Belkin 0560 P81772 Made in China Bluetooth ™ Wireless USB Printer Adapter Model: F8T031 FCC ID: K7SF8T031 IC ID: 3623A-XXXXXXXX

CONSTRUCTION PHOTOS OF EUT

FCC ID: K7SF8T031 Report No.930129R03 Operational Description The transmitter of the EUT (Wireless USB Printer Adapter) is powered by AC adapter. The antenna is Patch antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual. This device is a Frequency Hopping device with 79 hopping frequencies.
