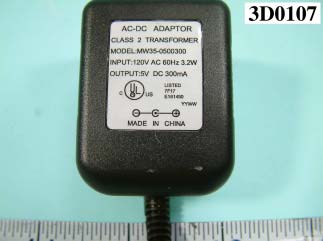

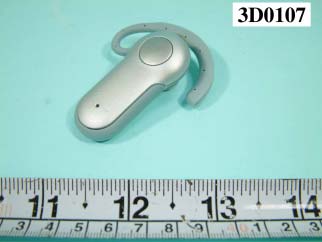

K7SF8T060XHDSTBLUETOOTH HEADSET

Bluetooth™ Hands-Free Headset Bluetooth™ Hands-Free Headset Belkin Tech SupportUS: 877.736.5771 310.898.1100 ext. 2263Europe: 00 800 223 55 460Australia: 1800 666 040Belkin Corporation501 West Walnut StreetCompton • CA • 90220 • USAT el: 310.898.1100 Fax: 310.898.1111Belkin Components, Ltd.Express Business Park • Shipton WayRushden • NN10 6GL • United KingdomT el: +44 (0) 1933 35 2000 Fax: +44 (0) 1933 31 2000 Belkin, Ltd.7 Bowen Crescent • West GosfordNSW 2250 • AustraliaTe l: +61 (0) 2 4372 8600 Fax: +61 (0) 2 4372 8603Belkin Components B.V.Starparc Building • Boeing Avenue 3331119 PH Schiphol-Rijk • The NetherlandsTe l: +31 (0) 20 654 7300 Fax: +31 (0) 20 654 7349 © 2004 Belkin Corporation. All rights reserved. All trade names are registeredtrademarks of r espective manufacturers listed. The Bluetooth name and the Bluetooth trademarks are owned by Bluetooth SIG, Inc., and are used by Belkin Corporation under license. belkin.com P74500 F8T061 P74500_F8T061_man.qxd 1/13/04 4:28 PM Page 1 Congratulations and thank you for purchasing the Bluetooth Hands-Free Headset from Belkin. The Headset features thebreakthrough Bluetooth wireless technology that lets you create efficient communications with your Bluetooth technology-enabled phone. Please review this manualcarefully to ensure you get the most from your product. Product FeaturesThe Bluetooth Hands-Free Headset is compliant with Bluetooth standard version 1.1 and provides: • Support for the Headset and Hands-Free Profile• Compatibility with Bluetooth technology-enabled phones • A moldable ear hook, providing a comfortable fit with SoftHold™ technology • Built-in security: up to 128-bit encryption and authentication Introduction 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . .2Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3Supported Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2 Getting to Know your Hands-Free Headset . . . . .6 3 Before you Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 4 Pairing to a T echnology-Enabled Phone . . . . . . . . . . . . . . . . . .12 5 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 1 section 12345 T able of Contents Bluetooth P74500_F8T061_man.qxd 1/13/04 4:28 PM Page 3 SpecificationsModel: F8T061 Bluetooth Compliance: Version 1.1 Operating Frequency: 2.4 to 2.4835GHz Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum) Modulation: GFSK (Gussian Frequency Shift Keying) RF Output: 0 dBm, Class 2 Sensitivity: < 0.1% BER at -81 dBm Frequency Stability: +/- 10PPM Operation Range: 10m (33 ft.)* Design: Left and right ear Battery: Rechargeable lithium polymer System Requirements Compatible with all phones enabled with Bluetooth v1.1, including, but not limited to: • Sony Ericsson ® T610, T616, T618, T68i, P800 • Nokia ® 3650, 3600, 6310, 6310i, 8910, 8910i, 6600, N-Gage™ • Philips ® Fisio ® 820, 825 • Ericsson ® T39m, T68m P ackage Contents • Bluetooth Hands-Free Headset • Desktop Charger• SoftHold moldable ear hook with 3 interchangeable earplugs • 5V DC, 300mA Power Supply• User Manual• Registration Card 3 Introduction section 12345 Introduction 2 P74500_F8T061_man.qxd 1/13/04 4:28 PM Page 2 Supported ProfilesThe services supported by your Headset are defined as“Profiles”. Available Profiles include: • Hands-Free• Headset Antenna: Integrated, 0 +/- adbi LED Indicator: Power/Pairing Charger: 5.0V DC, 300mA T ypical Power Consumption: TX: 150mA, Rx 80mA Dimensions: 6 4mm (L) x 22mm (W) x 8mm (H) W eight: 0.8oz. *10m range is dependent upon environment, number ofusers, and other wireless devices within immediate proximity.Specifications are subject to change without notice. 5 Introduction section 12345 Introduction 4 P74500_F8T061_man.qxd 1/13/04 4:28 PM Page 4 Getting to Know your Hands-Free Headset 6 Status IndicatorsLED Status5 quick blue flashes Headset is being turned on 5 quick red flashes Headset is being turned off Continues blue/red flashing Headset is in pairing mode Flashes blue once every 3 seconds Headset paired but not active 3 quick blue flashes every 3 seconds Headset paired and active 7 Getting to Know your Hands-Free Headset section 12345 LED Window To ggle: - Talk- On-Off- Volume up-down- Pairing SoftHold Moldable Ear HookInterchangeable Earplug P74500_F8T061_man.qxd 1/13/04 4:28 PM Page 6 8 Before you BeginW arning: The Bluetooth Hands-Free Headset and charger have magnets in them that allowthem to dock with each other. Keep magnets atleast two feet away from computer hard drives,and other magnetic storage media, monitors,televisions, VCRs, videotapes, cameras, camerafilm, credit cards, etc. F or Technology-Enabled Phones The Bluetooth Hands-Free Headset is compatible with Bluetooth phones (version 1.1 phones). Check for phone compatibility on page 2, or check with your phone manufacturer to ensure Bluetooth compatibility. 9 Before you Begin section 12345 Charge your HeadsetY our Bluetooth Hands-Free Headset is equipped with a r echargeable lithium polymer battery and must be charged prior to use.1. Plug one end of the power adapter into the desktopcharger and the other end into an available 110VACelectrical outlet. 2. Insert the Headset into the desktop charger. Thecharging indicator on the charger will illuminate red. 3. Charge the Headset for approximately two hours or untilthe red charger indicator light goes out. Note: The red indicator light will be on while the Headset is charging and will turn off when charging is complete. Bluetooth P74500_F8T061_man.qxd 1/13/04 4:28 PM Page 8 12345 10 Adjust the EarpieceThe SoftHold earpiece was designed to comfortably fitaround the left or right ear. You may change the position ofthe earpiece simply by flipping the earpiece and snapping itinto place as describe…
