K7SF8V9017Bluetooth Headset

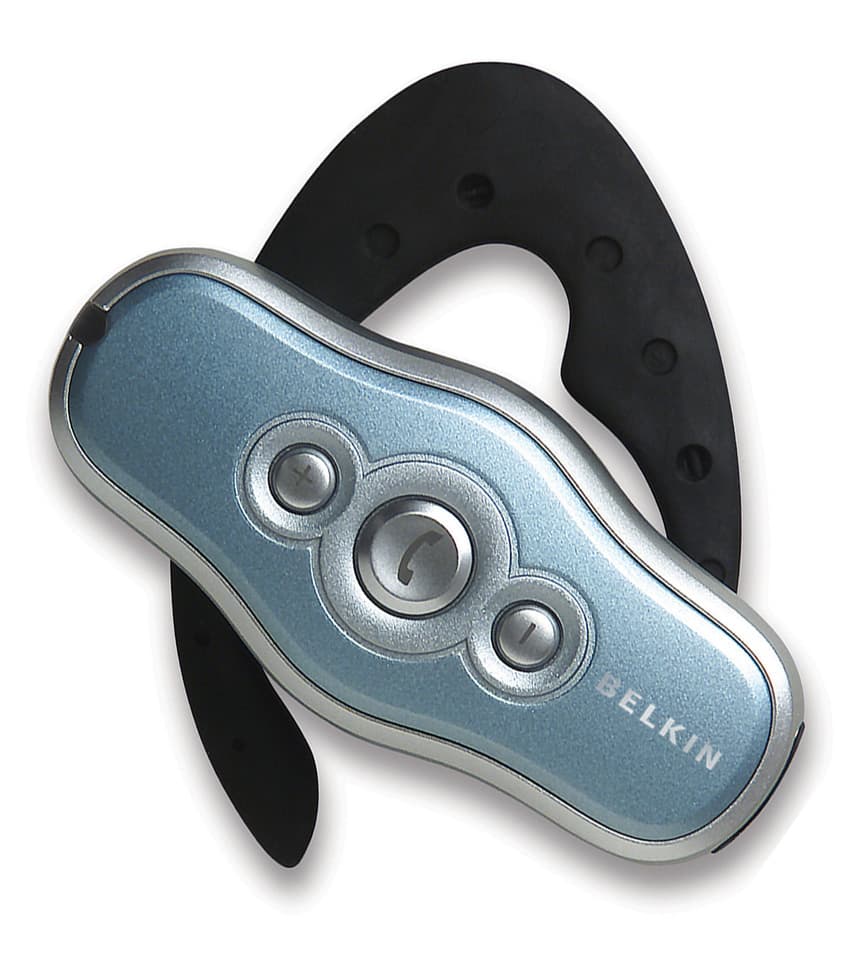

Experience the freedom of wireless communication Bluetooth ™ Hands-Free Headset For use with mobile phones enabled with Bluetooth ™ technology. F8V9017 User Manual Table of Contents Important Information for Safe Use ..............................................2 Introduction ................................................................................5 Operation Modes ..........................................................................6 Controls and Functions..................................................................7 Operation ..................................................................................12 Appendix – A ............................................................................19 Regulatory Notices ..................................................................19 Federal Communications Commission Notices............................19 Canadian Notice ......................................................................20 European Community Notice ....................................................21 Wireless Notice ......................................................................22 1 Important Information for Safe Use Note: Read this information before using the Bluetooth Hands-Free Headset. To avoid the risk of product malfunction, product damage, or personal injury, take care to observe these safety precautions and always use the Bluetooth Hands-Free Headset according to the instructions for use. Headset Care • Never expose to liquid or immerse in water, avoid excessive humidity. • Do not attempt to disassemble the Headset; it contains no user-serviceable parts. The rechargeable battery is pre-installed and ready for use. • Do not drop or throw the Headset and protect it from environments that could scratch it. Use only a soft cloth to clean it. • Do not expose the Headset to extremes of temperature. • Never expose the Headset to open flames and do not dispose of in a fire. • Do not allow children to play with the Headset. It contains small parts that could detach to create a choking hazard. 2 Important Information for Safe Use (continued) Driving • Check the regulations affecting the use of hands-free devices where you drive. Only use the Headset when and where it is safe to do so. Operation in Special Environments • Medical equipment and hospitals: Due to the risk of interference with medical equipment, do not use the Headset or a mobile phone nearby without permission. • Aircraft: To avoid interference with communication systems, turn the Headset OFF when required to do so by airline regulations. Never use the Headset while in the air. • If you are unsure if radio-transmitting equipment is allowed in any area, seek authorization before turning the Headset ON. Charging • Only use the charger supplied with the Headset to charge the product to avoid risk of damage or personal injury. • The charger can only be disconnected by unplugging, so it is recommended to only use a power socket easily accessible. 3 Important Information for Safe Use (continued) Charging (continued) • Ensure the charger is compatible with the AC supply available before attempting to plug it in. • The charger is for indoor use only. Never expose to liquid or immerse in water, avoid excessive humidity. Environmental Care • Please observe local regulations regarding the disposal of your packaging materials and the product itself. Where possible, promote their recycling. • This product contains a rechargeable NiMH battery. 4 Introduction Description The Bluetooth Hands-Free Headset (Headset) is a complete audio headset supporting the Bluetooth headset profile. The Headset is a convenient personal device providing 2- way wireless audio connectivity to other Bluetooth devices such as mobile phones, PDAs, and PCs. The use of the Bluetooth short-range wireless standard ensures interoperation with a wide range of other Bluetooth products. Features • Bluetooth v1.1-compliant with headset profile • Boomless design for comfortable unobtrusive use • Optimized acoustic design • Easy-to-operate user interface • Long talk and standby time • Rechargeable • Lightweight 5 Operation Modes Operation Modes PIN Code: Keep the 4-digit PIN code information supplied with the Headset in a safe place. It is unique to your Headset. It will be needed for pairing. The Headset supports these modes of operation: • OFF—the Headset is off and cannot receive or make a connection. • STANDBY—the Headset is ready to receive or make a connection from a paired device within range. • INCOMING CALL—the Headset is ready to answer a call being received. • TALK—the Headset is actively connected to another device and communication can be made, after answering or initiating a call. • PAIRING—this is a special mode used to “pair” the Headset ready for use with a companion device such as a mobile phone. • CHARGING—the Headset can be charged by connecting the charger supplied. 6 Controls and Functions Keypad • One push button to switch the Headset on/off, to select PAIRING mode, or to initiate or answer a call • Two switches to control receive-volume 7 LED indicator Volume + Main multifunction button Volume - Charging connector Microphone Shown configured for wearing on the right ear. Controls and Functions (continued) Key Press Key PressEffect in Current Mode OFFPAIRING STANDBYINCOMINGTALK CALL 8 Short (more than 0.5 sec. and less than 3 sec.) Medium (3–10 sec.) Long (more than 10 sec.) Switch on and go into STANDBY mode Switch on and go into PAIRING mode Exit PAIRING mode and go to STANDBY Exit PAIRING mode, reset PAIRING data and switch OFF Initiate a call Switch OFF Headset Answer a call Switch OFF Headset End current call (Not possible when microphone is muted) Mute and un-mute the microphone Mute and un-mute the microphone Controls and Functions (continued) 9 Volume Buttons These buttons allow the user to select a receive-volume from eight levels. A short press is used to increase or decrease volume one step. …

Text truncated - open the document above for the full version.

Label/Labellocation

CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29Page 66 (71) Photograph no.: 1 CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29Page 67 (71) Photograph no.: 2 CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29Page 68 (71) Photograph no.: 3 PCB front view with shielding CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29Page 69 (71) Photograph no.: 4 CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29Page 70 (71) Photograph no.: 5 CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29Page 71 (71) Photograph no.: 6

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelephon: +49 (0)681 598-0Telefax: -9075 RSC14issue test report consist of 71 PagesPage 1 (71) TTI-P-G166/98-30 Accredited Bluetooth™ Test Facility (BQTF) Test Report No.: 2-3061-01-01/02 FCC Part 15.247 / CANADA RSS-210 PH11052 FCC ID: PUBWCM0004 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Accredited testing-laboratory DAR registration number: TTI-P-G-166/98 CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29 Page 2 (71) Table of Contents 1 General Information 1.1 Notes 1.2 Testing Laboratory 1.3 Details of Applicant 1.4 Application Details 1.5 Test Item 1.6 Test Specifications 2 Technical Test 2.1 Summary of Test Results 2.2 Test Report CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29 Page 3 (71) 1 General Information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test Laboratory Manager: 2002-11-05RSC8411Berg M. DateSectionNameSignature Technical Responsibility for Area of Testing: 2002-11-05RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29 Page 4 (71) 1.2 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR-registration number : TTI-P-G 166/98-30 Accredited Bluetooth™ Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3Details of Applicant Name Philips Components Street : 1000 W. Maude Av. City : Sunnyvale, CA 94085 Country : USA Telephone : +1 408 617 4719 Telefax : +1 408 617 7731 Contact : Joel Wilson ( [email protected] ) Telephone : +1 408 617 4719 1.3 Application Details Date of receipt of application : 2002-10-16 Date of receipt of test item : 2002-10-24 Date of test : 2002-10-24/25 CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29 Page 5 (71) 1.4 Test Item Type of equipment : Bluetooth ™ Headset Type designation: PH11052 Manufacturer: applicant Street: City: Country: Serial number: 0008 C600 308F FCC ID: PUBWCM0004 Hardware: UAA3558 + pcf87750 Software : LM3.4, BTE1000 Additional information : Frequency: 2400 – 2483.5 MHz Type of modulation: 1M00FXD / 79M8FXD (FHSS) Number of channels : 79 Antenna: integral antenna / component antenna Power supply: 2.4V DC rechargeable Ni-MH battery Output power: EIRP: 0.564 mW (worst case) Temperature range: -10°C - +60°C 1.5 Test Specifications: FCC Part 15 §15.247 CANADA RSS-210 CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29 Page 6 (71) 2 Technical Test 2.1Summary of Test Results The radiated measurements were performed vertical andhorizontal over the whole frequency range.We start at 1 m high with vertical receiving antenna and rotate the dish continuously. During rotation we use the antenna lift system to vary the high from 1 to 4 m. So we find maximum radiation output. At this points we do manual remeasurements. After this we do the same measurements in horizontal position of the receiving antenna. This (horizontal and vertical) is made for all the three planes of the test sample. We use the maximum received results. The detector function and selection of bandwidth are according ANSI C63.2-1996 item 8.2.1 and ANSI C63.4-1992 Item 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna 1GHz: Average, RBW 1MHz, VBW 10 MHz, waveguide horn The product fullfills also the requirements for CANADA RSS-210 No deviations from the technical specification(s) were ascertained in the course of the tests performed. Final verdict : PASS CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29 Page 7 (71) 2.2Test Report TEST REPORT Test Report No. : 2-3061-01-01/02 CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29 Page 8 (71) TEST REPORT REFERENCE LIST OF MEASUREMENTS ParagraphPARAMETER TO BE MEASUREDPAGE Transmitter parameters Antenna gain 9 § 15.247 (a)(1) Carrier frequency separation10 § 15.247 (a)(1)Number of hopping channels11 § 15.247 (a)(1 iii) Time of occupancy (dwell time)13 § 15.247 (d) Power spectral density (Inquiry/Page mode)18 § 15.247 (a)(1)Spectrum bandwidth of a FHSS System19 § 15.247 (b)(2)Maximum peak output power23 §15.247 (c)Band edge compliance 28 § 15.247 (c)Emission limitations 38 Receiver parameters § 15.109Spurious radiations - Radiated 42/61 Test equipment listing62 Photographs of the equipment64 CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29Page 9 (71) Equipment under test : PH11052 Ambient temperature : 24° °° °C Relative humidity : 46% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) - Antenna Gain The gain is 0.0 dBi (manufacturer declarartion) CETECOM ICT Services GmbH Test Report No.: 2-3061-01-01/02Issue Date: 2002-10-29Page 10 (71) Equipment under test : PH11052 Ambient temperature : 24° °° °C Relative humidity : 46% REFERE…
