K7SF8Z024-RXRemote Control for iPod - RX

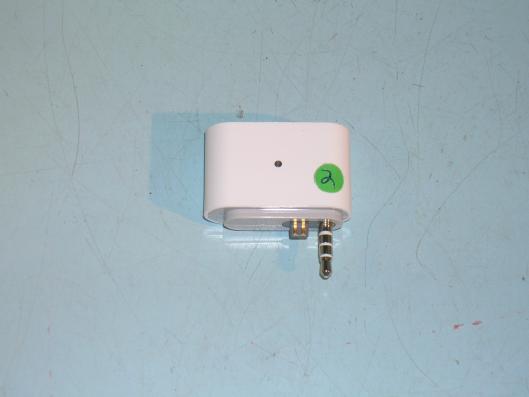

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC LABEL

Belkin RFremote TuneControl RX Specifications for printed graphics BelkinIDG 03/15/05 REVISED 04/07/05: TuneCommand REVISED 04/08/05: Color for the Belkin logo REVISED 05/06/05: Color for the Belkin logo REVISED 08/23/05: FCC number REVISED 08/31/05: TM placement REVISED 09/07/05: revised FCC ID layout All graphics indicated in red are to be printed in Pantone Cool Gray 429C light gray 429C All graphics indicated in blue are to be printed in White ( match with Apple white) White REAR VIEW TOP VIEW 17mm 5.8mm REAR VIEW TOP VIEW 17mm 5.8mm 4mm4mm

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

WIRELESS RF REMOTE W/RCVR (RECEIVER) FOR iPOD F8Z024 Description F8Z024 is a remote control for ipod, which use 2.4GHz wireless radio frequency. This system consists of a Receiver and a remote Transmitter, When the Receiver connector plug into the ipod, pressing any buttons on Remote Transmitter to output signal for Receiver and then the Receiver returns a signal to Remote Transmitter, the communication is successful if the LED on Receiver and Transmitter are green at the same time, otherwise, the LED of Remote Transmitter shows amber. These accessories multi-clip, surface-Mount Hook, battery, lanyard adjuster, as well as a lanyard can make you carry the system very convenient. Receiver The Receiver is a stereo signal receiving configuration from Transmitter, it will power on automatically when plug the stereo connector of the Tunecommand Receiver in the jack on the top your ipod. The green light will blink three times to show you connecting status.

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 1 of 20 No. : HM155144 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: Belkin Corporation 501 West Walnut Street Compton California 90220-5221 United States Description of Samples: Model name: WIRELESS RF REMOTE W/RCVR (RECEIVER) FOR iPOD Model no.: F8Z024 Brand name: BELKIN FCC ID: K7SF8Z024-RX Date Samples Received: 2005-09-15 Date Tested: 2005-09-23 to 2005-10-21 Investigation Requested: FCC Part 15 Regulations-Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- K C Lee, EMD for Chief Executive 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 2 of 20 No. : HM155144 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 20 Content Page 2-3 of 20 1.0 General Details 1.1 Test Laboratory Page 4 of 20 1.2 Applicant Details Page 4 of 20 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 20 Description of EUT operation 1.4 Date of Order Page 5 of 20 1.5 Submitted Sample Page 5 of 20 1.6 Test Duration Page 5 of 20 1.7 Country of Origin Page 5 of 20 2.0 Technical Details 2.1 Investigations Requested Page 7 of 20 2.2 Test Standards and Results Summary Page 7 of 20 3.0 Test Results 3.1 Radiated Emission Page 8-13 of 20 3.2 Conducted Emission Page 14 of 20 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 3 of 20 No. : HM155144 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 15 of 20 Appendix B Duty Cycle Correction During 100 msec Page 16-17 of 20 Appendix D Photographs Page 18-20 of 20 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 4 of 20 No. : HM155144 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant Belkin Corporation 501 West Walnut Street Compton California 90220-5221 United States HKSTC Code Number for Applicant SHT003 Manufacturer N/A 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 5 of 20 No. : HM155144 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: WIRELESS RF REMOTE W/RCVR (RECEIVER) FOR iPOD Manufacturer: N/A Brand Name: BELKIN Model Number: F8Z024 Input Voltage: The product draws power from the signal port of the console. 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Belkin Corporation, WIRELESS RF REMOTE W/RCVR (RECEIVER) FOR iPOD, the transmission signal is frequency hopping with channel frequency 2433MHz. 1.4 Date of Order 2005-09-15 1.5 Submitted Sample(s): 2 Samples per model 1.6 Test Duration 2005-09-23 to 2005-10-21 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 6 of 20 No. : HM155144 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 Regulations and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.249 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 N/A Note: N/A - Not Applicable 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 7 of 20 No. : HM155144 香港新界大埔工業村大宏街10號 10 Dai Wang…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
