K7SF8Z024-TXRemote Control for iPod - TX

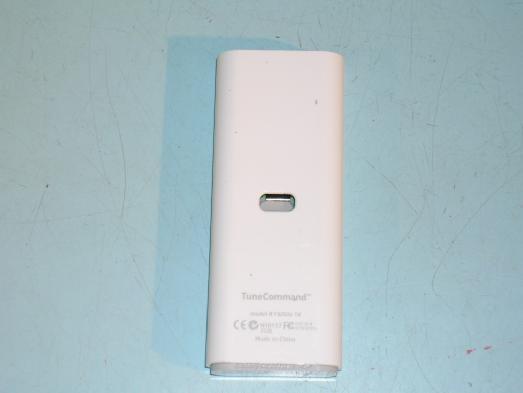

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

Belkin RFremote TuneControl TX Specifications for printed and comolded graphics BelkinIDG 03/15/05 REVISED 03/21/05: revised graphics REVISED 04/07/05: revised front logo and rear info REVISED 04/11/05: Made in China REVISED 06/21/05: revised rear info REVISED 08/17/05: revised FCC ID layout REVISED 09/07/05: revised FCC ID layout All graphics indicated in red are to be comolded ABS in Apple white All graphics indicated in green are to be printed in Pantone Cool Gray 428C light gray 428C All graphics indicated in blue are to be printed in Pantone Cool Gray 429C light gray 429 C REAR VIEW FRONT VIEW 8mm 17.8mm 6mm

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

WIRELESS RF REMOTE W/RCVR (RECEIVER) FOR iPOD F8Z024 Description F8Z024 is a remote control for ipod, which use 2.4GHz wireless radio frequency. This system consists of a Receiver and a remote Transmitter, When the Receiver connector plug into the ipod, pressing any buttons on Remote Transmitter to output signal for Receiver and then the Receiver returns a signal to Remote Transmitter, the communication is successful if the LED on Receiver and Transmitter are green at the same time, otherwise, the LED of Remote Transmitter shows amber. These accessories multi-clip, surface-Mount Hook, battery, lanyard adjuster, as well as a lanyard can make you carry the system very convenient. Receiver The Receiver is a stereo signal receiving configuration from Transmitter, it will power on automatically when plug the stereo connector of the Tunecommand Receiver in the jack on the top your ipod. The green light will blink three times to show you connecting status. Remote Transmitter The Remote Transmitter can control the ipod device’s play/pause, skip forward, skip backward, and volume up/down functions when the communication is successful between Receiver and Transmitter. In addition, the two small round buttons can conveniently control the shuffle and repeat functions. When push a button on the Remote, the green lights on the Remote and the Receiver blink, indicating that the signal has been WIRELESS RF REMOTE W/RCVR (RECEIVER) FOR iPOD received correctly. But if the Remote and the Receiver are too far apart to communicate, the light on the Remote blinks amber (after a short delay) instead of green when pressing a button. Microprocessor The microprocessor U1 (IC CY8C21323-24 LFXIT) which consists of many Mixed Signal Array & includes configurable blocks of analog and digital logic, as well as programmable interconnect & allows the user to create customized peripheral configurations, to match the requirements of each individual application. Additionally, a fast CPU, Flash program memory, SRAM data memory, and configurable IO are included in a range of convenient pin-outs. This IC that is used in both of remote transmitter and the receiver .It control the ipod connector, the Transceiver and LED for Receiver unit, and control the power switch , Transceiver LED and keyboard for Transmitter. The battery The Remote’s battery level is automatically checked after pressing every button. If the battery level is low, the Remote’s red light will blink following the green or amber blinking. Then the low battery should be replaced soon. However, the Tunecommand will continue to work normally until the battery is exhausted and can’t work when Transmitter send out weak amber light. WIRELESS RF REMOTE W/RCVR (RECEIVER) FOR iPOD FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help.

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 1 of 20 No. : HM155143 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: Belkin Corporation 501 West Walnut Street Compton California 90220-5221 United States Description of Samples: Model name: WIRELESS RF REMOTE W/RCVR (RECEIVER) FOR iPOD Model no.: F8Z024 Brand name: BELKIN FCC ID: K7SF8Z024-TX Date Samples Received: 2005-09-15 Date Tested: 2005-10-02 to 2005-10-21 Investigation Requested: FCC Part 15 Regulations-Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, EMD for Chief Executive 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 2 of 20 No. : HM155143 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 20 Content Page 2-3 of 20 1.0 General Details 1.1 Test Laboratory Page 4 of 20 1.2 Applicant Details Page 4 of 20 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 20 Description of EUT operation 1.4 Date of Order Page 5 of 20 1.5 Submitted Sample Page 5 of 20 1.6 Test Duration Page 5 of 20 1.7 Country of Origin Page 5 of 20 2.0 Technical Details 2.1 Investigations Requested Page 7 of 20 2.2 Test Standards and Results Summary Page 7 of 20 3.0 Test Results 3.1 Radiated Emission Page 8-13 of 20 3.2 Conducted Emission Page 14 of 20 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 3 of 20 No. : HM155143 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 15 of 20 Appendix B Duty Cycle Correction During 100 msec Page 16-17 of 20 Appendix D Photographs Page 18-20 of 20 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 4 of 20 No. : HM155143 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant Belkin Corporation 501 West Walnut Street Compton California 90220-5221 United States HKSTC Code Number for Applicant SHT003 Manufacturer N/A 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 5 of 20 No. : HM155143 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: WIRELESS RF REMOTE W/RCVR (RECEIVER) FOR iPOD Manufacturer: N/A Brand Name: BELKIN Model Number: F8Z024 Input Voltage: The product draws power from the signal port of the console. 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Belkin Corporation, WIRELESS RF REMOTE W/RCVR (RECEIVER) FOR iPOD, the transmission signal is frequency hopping with channel frequency 2433MHz. 1.4 Date of Order 2005-09-15 1.5 Submitted Sample(s): 2 Samples per model 1.6 Test Duration 2005-10-02 to 2005-10-21 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 6 of 20 No. : HM155143 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 Regulations and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.249 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 N/A Note: N/A - Not Applicable 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-31 TEST REPORT Page 7 of 20 No. : HM155143 香港新界大埔工業村大宏街10號 10 Da…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
