K7SF8Z049-1Tune Base FM for iPod

PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com

PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com

PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com

1) How does this device operate? F8Z049 is a digital tuning FM transmitter with CLA and 30 PIN CONNECTOR , this system consists of a FM transmitter, a car adapter and a 30 PIN connector, a MCU controller, an EEPROM programmer, in addition to two press keys which are used to turn the proper FM frequency and four memory keys for turning to the stored channel and the workingfrequency can display on the screen of ipod. The FM transmitter is a FM stereo transmitting configuration, which radiates FM wave on the air by modulating the any required signal to the carrier signal. The transmission frequency is set from 88.1 to 107.9MHz. Auto Power on & Auto Power off When the power on, the unit will turn on within 0.5 seconds. But If there is no audio being detected for 30 seconds, it will turn off automatically to conserve the power while the unit detects the input audio signal again or pressing the M1 or MII button, it will turn on again automatically. This product can be powered by an DC to DC regulator within the cigarette lighter adapter. The DC regulator transforms input DC into 5V DC as the whole system’s power. 2) Provide information on the device and its antenna. This product is designed to power, charge, and transmit audio from your iPod to your car stereo. The transmitter utilize dipole antenna. The antenna was solder to PCB. Antenna 3) How is it installed? The transmitter is fed by 12v car power supply。 It can connected to the car power outlet only. 4) What test procedure was used? ANSI C63.4. the test was performed in the chamber. 5) If tested in a car, how was it configured/tested? the test was performed in the chamber. 6) Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. The FM transmitter is a FM stereo transmitting configuration, which radiates FM wave on the air by modulating the any required signal to the carrier signal. The transmission frequency is set from 88.1 to 107.9MHz. We selected the low(88.1MHz) mid(98MHz) and High(107.9MHz) working frequency to measure the frequency. Press the ÇorÈ button on the TuneCast Auto to select the transmission frequency . 7) Was the bandwidth properly tested with maximum audio input? The test was performed with the maximum audio input. And play MP3.

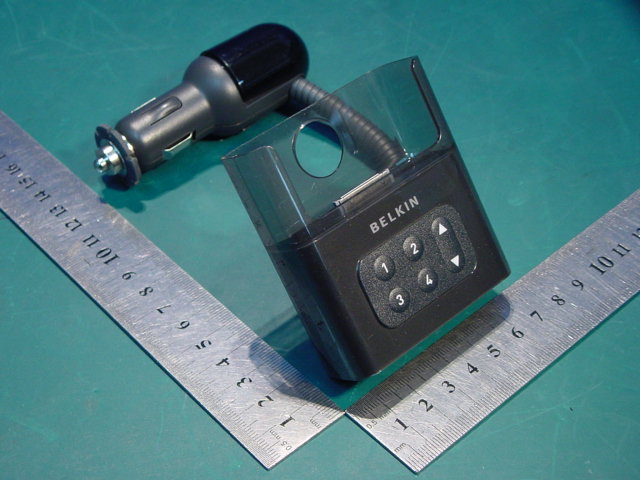

1 Photo 1 Appearance of EUT Photo 2 Appearance of EUT

TITLE QTY/SET: 1SCALE: 1:1 DRAWN BY UNIT:mm A4 CONCORD ELECTRONIC LTD. Rev. Desciption Appr. CHECK BYAPPR. BY MATERIAL: Terry 27-July-06 F8Z049-BLK-LF silkscreen artwork 3.0mm PMS428C Light Gray Pure White PMS428C Light Gray PMS430C Light Gray PMS430C Light Gray Pure White Part No Drawing No 02 3302 007 001 1.0 Silkscreen artworkTerry

1 Photo 1 Inside of EUT Photo 2 Inside of EUT 2 Photo 3 Inside of EUT Photo 4 Inside of EUT 3 Photo 5 Inside of EUT Photo 6 Inside of EUT 4 Photo 7 Inside of EUT Photo 8 Inside of EUT

PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com ItemDescriptionP/NColorMaterialflammability rating 6220-087097-162Slight grey 6220-301402-161SBlack 6220-087097-161Slight grey 6220-230202-161SBlack 3Screw6150-261202-210NickelSteel 4Contact spring 6156-087097-551 Nickel磷銅 5Contact fuse 6156-087097-554A Nickel磷銅 6CLA Washer6156-087097-506 Stainless 7CLA-NUT 6151-087097-004 NickelBrass 8CLA-Collar6156-087097-508NickelSteel 9CLA-Tip6156-087097-553Nickel快銷銅 10CLA-Spring 6156-087097-504Nickel彈簧鋼 6200-008049-310SDark grey 6200-008049-305SLight grey 6200-008049-311SApple Black 6200-008049-306S Apple white 6200-008049-309SDark grey 6200-008049-304SLight grey 6221-408049-812SDark grey 6221-408049-811SLight grey 6200-087097-304SWhite 6221-808049-811SApple Black 16Friction Washer 6220-087097-101SNatualSilicon 17Steel washer 6156-087097-501BlackSteel 18Retaining ring 6156-087097-502BlackSteel 6200-008049-302SApple white 6200-008049-307S Apple black 6221-808049-412SDark grey 6221-808049-411S Light grey 6200-008049-303SApple white 6200-008049-308S Apple Black 6221-808049-461S Light grey 6221-808049-462SDark grey 6200-008049-301STransparent 6200-008049-312SBlack 6221-008049-851SApple white 6221-808049-851SApple black 6221-008049-853SApple white 6221-808049-853SApple black 6221-008049-854SApple white 6221-808049-854SApple black 6221-008049-855SApple white 6221-808049-855SApple black 6221-008049-856ASApple white 6221-808049-856ASApple black 6221-008049-857SApple white 6221-808049-857SApple black 6221-008049-858SApple white 6221-808049-858SApple black 6221-008049-859SApple white 6221-808049-859SApple black 6300-001400-031Light grey 6300-001400-034Dark grey 6156-008049-501 Light grey 6156-008049-502 Dark grey 34Fuse 6090-910013-601 3510pin Connector6081-410015-111Grey 36FPC connector 6081-507020-210 F8Z049 1FIT RING穩定環軟膠 2CLA Friction WasherSilicon 11CLA-Left-Hosuing 33Gooseneck swag 14CLA-3.5mm-FILLER slleve 15Gooseneck connector 19 12CLA-Back-Cap 13CLA-Right-Housing PC PC PC PC PC PC 20Connector coverPC 22Connector cover backPC 21Inner back housingPC 23 Inner front housingPC 32Membrane keypad ABS/HB ABS/HB ABS/HB ABS/HB ABS/HB 24 25 26 27 28 29 30 31 Mini spacer nano spacer 5G-30GB spacer 5G-60GB Spacer Photo/color thick Spacer Photo/color thin Spacer 4G thick spacer 4G thin spacer Steel ABS/HB ABS/HB ABS/HB PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com

EMC TEST REPORT For TuneBase FM for iPod Model Number: F8Z049 FCC ID: K7SF8Z049-1 Report Number : WT068001703 Guangdong EMC Compliance Test Center Tel : 0086-755-26941637, 26941529, 26941531 Email : Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory Site Location : Bldg. of Metrology &Quality Inspection, Longzhu Road, Shenzhen, Guangdong, China Fax : 0086-755-26941545 [email protected] Report No.: WT068001703 Page 2/33 TABLE OF CONTENTS TEST REPORT DECLARATION........................................................................................................3 1. TEST RESULTS SUMMARY...................................................................................................4 2. GENERAL INFORMATION....................................................................................................5 2.1. Report information............................................................................................................5 2.2. Laboratory Accreditation and Relationship to Customer.................................................5 2.3. Measurement Uncertainty.................................................................................................6 3. PRODUCT DESCRIPTION......................................................................................................6 3.1. EUT Description...............................................................................................................6 3.2. Related Submittal(s) / Grant (s)........................................................................................7 3.3. Block Diagram of EUT Configuration..............................................................................7 3.4. Operating Condition of EUT............................................................................................7 3.5. Special Accessories...........................................................................................................7 3.6. Equipment Modifications..................................................................................................7 3.7. Support Equipment List....................................................................................................7 3.8. Test Conditions.................................................................................................................7 4. TEST EQUIPMENT USED.......................................................................................................8 4.1. Test Equipment Used to Measure Conducted Disturbance..............................................8 4.2. Test Equipment Used to Measure Radiated Disturbance and bandwidth.........................8 5. CONDUCTED DISTURBANCE TEST....................................................................................9 5.1. Test Standard and Limit....................................................................................................9 5.2. Test Procedure..................................................................................................................9 5.3. Test Arrangement..............................................................................................................9 5.4. Test Data.........................................................................................................................10 6. RADIATED DISTURBANCE TEST......................................................................................11 6.1. Test Standard and Limit..................................................................................................11 6.2. Test Procedure................................................................................................................11 6.3. Test Arrangement............................................................................................................11 6.4. Test Data.........................................................................................................................11 7. OCCUPIED BANDWIDTH.....................................................................................................17 7.1. Test Standard and Limit..................................................................................................17 7.2. Test Procedure................................................................................................................17 7.3. Test Arrangement............................................................................................................17 7.4. Test Data.........................................................................................................................17 Report No.: WT068001703 Page 3/33 TEST REPORT DECLARATION Applicant : Belkin Corporation Address : 501 West Walnut Street, Compton, CA90220, U.S.A. Manufacturer : Belkin Corporation Address : 501 West Walnut Street, Compton, CA90220, U.S.A. EUT Description : TuneBase FM for iPod Model Number F8Z049 FCC ID Number K7SF8Z049-1 Test Standards: FCC Part 15 15.239 :2006 The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the maximum emissions from the EUT.Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.239. The test report is valid for above tested sample only and shall not be reproduced in part without written approval of the laboratory. Tested by: Date: Sep. 13,2006 (Dewelly Yang) Checked by: Date: Sep. 13,2006 (Louis Lin) Approved by: Date: Sep. 13, 2006 (Peter Lin) Report No.: WT068001703 Page 4/33 1. TEST RESULTS SUMMARY Table 1 Test Results S…

Text truncated - open the document above for the full version.

Photo 1: Radiated test photo
