K7SF8Z179TuneFM for iPod

Belkin Tech Support US: 800-223-5546, ext. 2263 310-898-1100, ext. 2263 UK: 0845 607 77 87 Australia: 1800 235 546 New Zealand: 0800 235 546 Singapore: 65 64857620 Europe: www.belkin.com/support Belkin International, Inc. 501 West Walnut Street Los Angeles, CA 90220, USA 310-898-1100 310-898-1111 fax Belkin Ltd. Express Business Park, Shipton Way Rushden, NN10 6GL, United Kingdom +44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax Belkin B.V. Boeing Avenue 333 1119 PH Schiphol-Rijk, The Netherlands +31 (0) 20 654 7300 +31 (0) 20 654 7349 fax Belkin Ltd. 4 Pioneer Avenue Tuggerah Business Park Tuggerah, NSW 2259, Australia +61 (0) 2 4350 4600 +61 (0) 2 4350 4700 fax © 2008 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. F8Z179-XXXP75527-A User Manual TuneFM ™ for iPod Introduction Introduction | 01 The innovative TuneFM from Belkin is designed to play your iPod through your car, home, or portable stereo. Please review this User Manual carefully so that you can be sure to get the most from your iPod, virtually anywhere you go. Package Includes: "VU P
1 PXFS
$ PS E 5VOF' .
G PS
J1 PE • TuneFM for iPod • Auto Power Cord • User Manual • Quick Install Guide Car Setup Instructions Car Setup Instructions | 02 1. Turn down your car stereo’s volume. 2. Plug the Belkin TuneFM to your iPod (at the bottom of the iPod). 3. Plug the included Auto Power Cord to your cigarette lighter outlet in your car and to the bottom of your TuneFM for optional powering and charging in the car.  -  -  -  -     Using the TuneFM Transmitter Using the TuneFM Transmitter | 03 The TuneFM transmitter function automatically turns on when the iPod is connected. It automatically turns off when the iPod is removed. 1. Insert the TuneFM into your iPod. The backlight of the TuneFM will turn on after pressing “Play” on the iPod, or any buttons on the TuneFM, and the current transmitter frequency will be displayed on its screen. 2. Tune your stereo frequency to a channel with a weak broadcast signal. The ideal channel is one that is not broadcasting a radio program, or is doing so weakly. To identify the best available frequencies in your area, visit www.belkin.com/mybestfm. 3. Match station using plus and minus buttons. 4. Press the ”+” or “-” button on the TuneFM to select the transmission frequency chosen in step 2. The frequency will be visible on the screen of the TuneFM. Pressing and holding either button will provide faster tuning. 5. Adjust the volume of your FM radio to the desired listening level. NOTE: We recommend that you remove the TuneFM from the iPod when not in use. Storing and Using Presets Storing and Using Presets | 04 1. To store a preset, select the desired frequency using ”+” or “-” buttons. Push and hold the memo button for 1 or 2 seconds until you hear a beep to store the station. An audible beep sounds in the transmitted audio when the new frequency is programmed. 2. To transmit over one of your preset frequencies, momentarily press “1” or “2”. This will instantly tune the FM transmitter to the frequency stored in that preset.  -  - Using the PRO Setting to Improve Performance Using the PRO Setting to Improve Performance | 05 When you connect your iPod, your TuneFM will automatically detect the iPod model and adjust the volume. Although the default volume setting will be ideal for most conditions, you may be able to improve the audio performance of your TuneFM by using the PRO setting. The PRO setting can make your music sound louder and fuller by decreasing the amount of attenuation in the audio signal. Professional FM stations use dynamic compression to make music louder and fuller while limiting distortion. You can use the three PRO settings on your TuneFM to add dynamic compression to your audio: When you press the “PRO” button, your TuneFM will display the current PRO setting. Pressing the “PRO” button again will change the setting to PRO1, PRO2, and as follows: OFF Normal – No change to the audio. This setting works well with all types of audio. PRO 1 – Increases the average volume of the audio. This setting works well with most types of music. PRO 2 – Increases the average volume even further. This setting works well with quieter music, but it may cause distortion with louder music. – Increases the average volume and transmits in mono (instead of stereo). This setting works well for podcasts and audio books. It can also be used to improve reception if you are not receiving a clear signal from your TuneFM. Troubleshooting Troubleshooting | 06 The audio is distorted. Solution • Tune your car stereo and the TuneFM to a different frequency. I am unable to get clear FM reception. Solution 1 • Tune your car stereo and the TuneFM to a different frequency. Solution 2 • In some instances, lowering the car antenna (available in some cars) improves the clarity of the TuneFM’s signal. Solution 3 • Change PRO setting to mode. This may improve signal reception, but the audio will be monaural instead of stereo. Solution 4 • If used indoors, attach or reposition the antennas on the stereo receiver. Playback of my iPod stays paused after I’ve changed a setting on the TuneFM. Solution • Simply press the “Play/Pause” button on your iPod to resume playback. The TuneFM does not appear to be saving my settings. Solution • Be sure NOT to remove the iPod from the cradle or remove power to the TuneFM while adjusting the TuneFM settings. Troubleshooting Troubleshooting | 07 When I attach a USB cable from my computer to the TuneFM, my computer does not recognize that the iPod is attached. Solution • The USB connector on the TuneFM can only be used to charge the iPod. My iPod does not seem to be charging. Solution 1 • Make sure that the TuneFM is correctly connected to your car’s power outlet with the included Auto Power Cord. Solution 2 • Ensure that your car’s power…

Text truncated - open the document above for the full version.

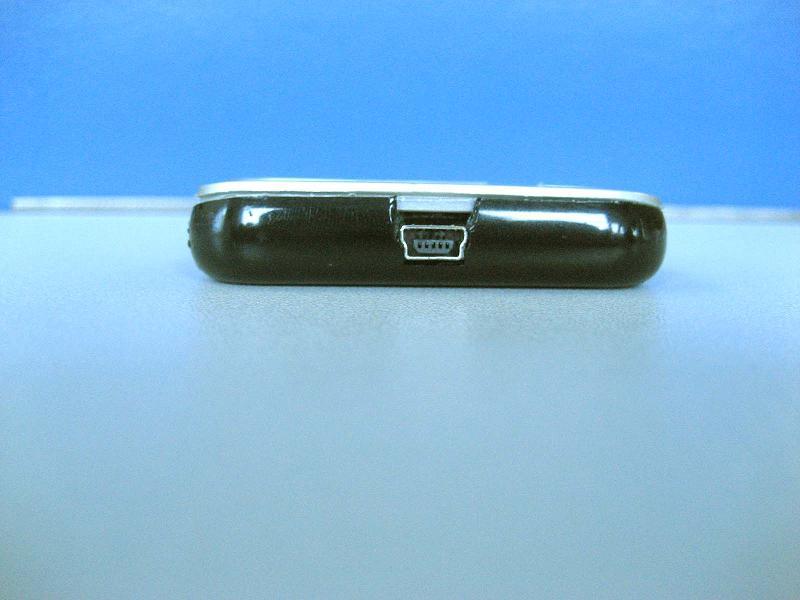

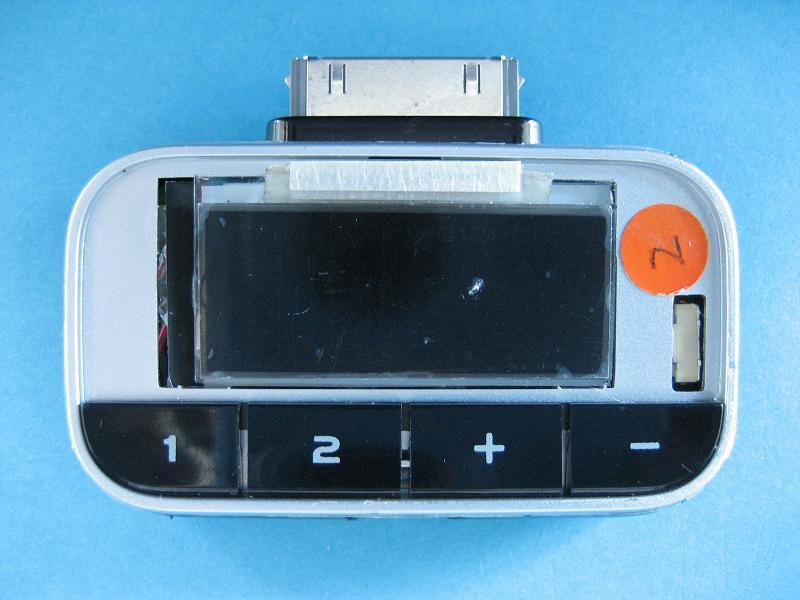

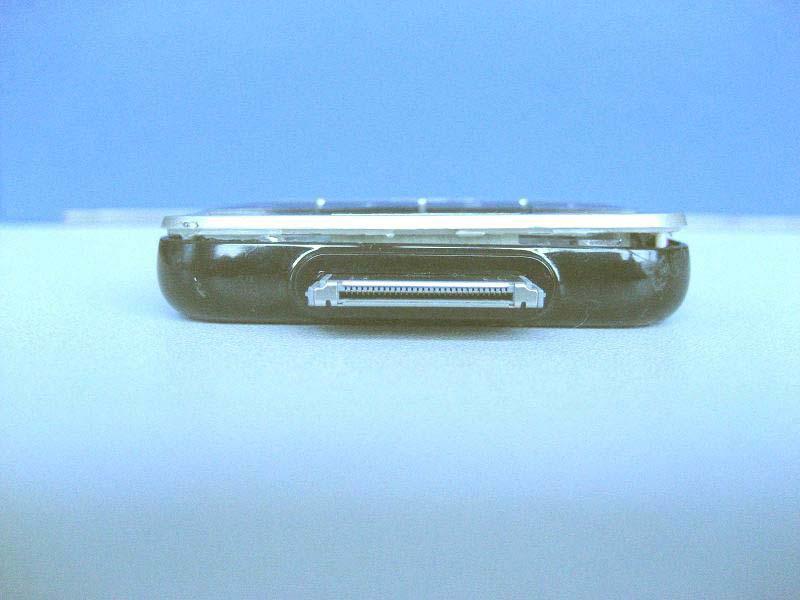

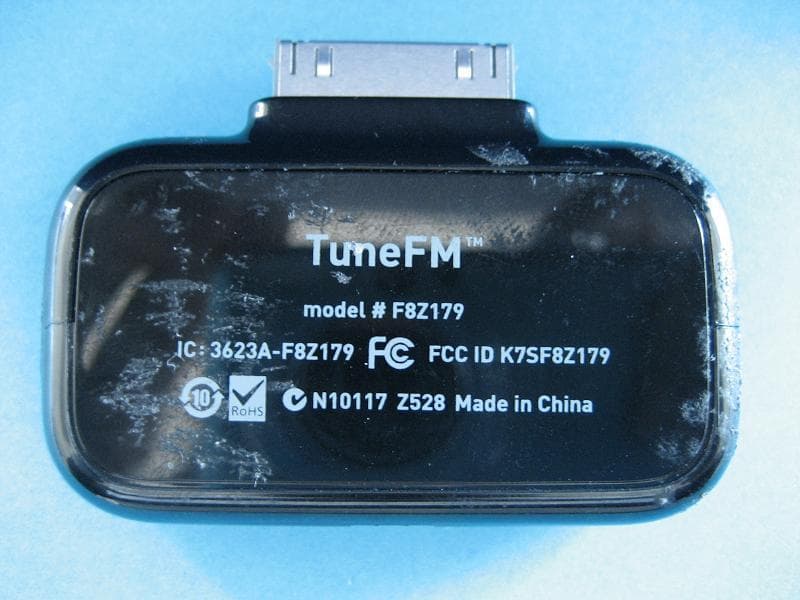

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

Graphics indicated in gray are to be printed in PMS 429 C medium gray PMS 429 C Graphics indicated in red are to be printed in PMS 877 C silver PMS 877C TuneFM 3 Specifications for graphics v. 1.2 Belkin IDG 01/07/08 update 1.2: corrected IC number 1:1 Scale back side front top

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

STC Test Report Date : 2008-03-27 Page 1 of 21 No. : MH182173 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (SHL012): Belkin International INC. 501 West Walnut Street, Compton, CA 90220, U.S.A. Manufacturer: N/A Description of Samples: Product: Ipod TuneFM Brand Name: BELKIN Model Number: F8Z179 FCC ID: K7SF8Z179 Date Samples Received: 2008-01-30 Date Tested: 2008-01-31 to 2008-03-11 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2007 and ANSI C63.4:2003 for FCC Certification. Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: --- Dr. LEE Kam Chuen, ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2008-03-27 Page 2 of 21 No. : MH182173 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 21 Content Page 2-3 of 21 1.0 General Details 1.1 Test Laboratory Page 4 of 21 1.2 Applicant Details Page 4 of 21 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 21 Description of EUT operation 1.4 Date of Order Page 5 of 21 1.5 Submitted Samples Page 5 of 21 1.6 Test Duration Page 5 of 21 1.7 Country of Origin Page 5 of 21 2.0 Technical Details 2.1 Investigations Requested Page 6 of 21 2.2 Test Standards and Results Summary Page 6 of 21 3.0 Test Results 3.1 Emission Page 7-13 of 21 3.2 Bandwidth Measurement Page 14-17 of 21 3.3 Operation Description Page 18 of 21 STC Test Report Date : 2008-03-27 Page 3 of 21 No. : MH182173 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 19 of 21 Appendix B Photographs Page 20-21 of 21 STC Test Report Date : 2008-03-27 Page 4 of 21 No. : MH182173 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Belkin International INC. 501 West Walnut Street, Compton, CA 90220, U.S.A. Manufacturer N/A STC Test Report Date : 2008-03-27 Page 5 of 21 No. : MH182173 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Ipod TuneFM Manufacturer: N/A Brand Name: BELKIN Model Number: F8Z179 Input Voltage: 12Vd.c. 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Belkin International INC., Ipod TuneFM. It is FM transmitter, Modulation by IC; and type is frequency modulation. 1.4 Date of Order 2008-01-30 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2008-01-31 to 2008-03-11 1.7 Country of Origin China STC Test Report Date : 2008-03-27 Page 6 of 21 No. : MH182173 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2007 and ANSI C63.4: 2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.239 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Report Date : 2008-03-27 Page 7 of 21 No. : MH182173 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong K…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
