Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Mar 20, 2008
Application Purpose: Original Equipment
Date of Application: Mar 20, 2008
Equipment Note: Part 15 Low Power Communication Device Transmitter
Frequency Range: 88.10000000 - 107.90000000
Company: Belkin International, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Belkin Tech Support US: 800-223-5546, ext. 2263 310-898-1100, ext. 2263 UK: 0845 607 77 87 Australia: 1800 235 546 New Zealand: 0800 235 546 Singapore: 65 64857620 Europe: www.belkin.com/support Belkin International, Inc. 501 West Walnut Street Los Angeles, CA 90220, USA 310-898-1100 310-898-1111 fax Belkin Ltd. Express Business Park, Shipton Way Rushden, NN10 6GL, United Kingdom +44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax Belkin B.V. Boeing Avenue 333 1119 PH Schiphol-Rijk, The Netherlands +31 (0) 20 654 7300 +31 (0) 20 654 7349 fax Belkin Ltd. 4 Pioneer Avenue Tuggerah Business Park Tuggerah, NSW 2259, Australia +61 (0) 2 4350 4600 +61 (0) 2 4350 4700 fax © 2008 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. iPod and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc. F8Z183-XXXF8Z183-XXXP75609P75609 User Manual TuneBase TM FM for iPod and iPhone Introduction Introduction | 01 iPod or iPhoneVersion of Firmware iPhone1.1.1 iPod touch1.1 iPod nano 3rd generation (video)1.0.1 iPod classic 1.0.1 iPod nano 2nd generation1.1.3 iPod 5th generation (video):1.2.1 and above iPod nano 1st generation: 1.3.1 and above iPod 4th generation (color display):1.2.1 and above iPod 4 th generation3.1.1 and above iPod mini:1.4.1 and above Note: iPod 3 rd generation is not supported. To check the firmware version of your iPod or iPhone, select “Settings” and then select “About”. To check the firmware version of your iPod or iPhone, select “Settings” and then select “About”. T Your version is listed under “Version”. If your firmware is out of date, you can use iTunes to automatically update your iPod or iPhone. See http://www.apple.com/ipod/download. Your TuneBase FM can be used to charge, hold, power, and play your iPod or iPhone as you drive. This User Manual explains how you can use your TuneBase FM to get the most from your iPod or iPhone, virtually anywhere you go. iPod and iPhone Models You Can Use with Your TuneBase FM Your TuneBase FM can be used with the following iPod or iPhone models: What’s in the Box What’s in the Box | 02 �� Setup Instructions Setup Instructions | 03 Your TuneBase FM for iPod includes eight adapter sleeves and six spacer pads for all supported iPod models. 1. Select the correct sleeve and pad for your model of iPod from the chart below. iPod or iPhone Model CapacitySleevePad iPhone 4GB/8GB iPod touch8GB/16GB PMS Red032CPMS 355CPMS 646C Stickers for TuneBaseFM2 cradles BelkinIDG 09/11/02007 ods v.1.2 scale 1:1 Please ensure correct sizing for cradle’s sticker recess iPod nano 3rd generation (video) 4GB/8GB PMS Red032CPMS 355CPMS 646C Stickers for TuneBaseFM2 cradles BelkinIDG 09/11/02007 ods v.1.2 scale 1:1 Please ensure correct sizing for cradle’s sticker recess none iPod classic 80GB PMS Red032CPMS 355CPMS 646C Stickers for TuneBaseFM2 cradles BelkinIDG 09/11/02007 ods v.1.2 scale 1:1 Please ensure correct sizing for cradle’s sticker recess 160GB PMS Red032CPMS 355CPMS 646C Stickers for TuneBaseFM2 cradles BelkinIDG 09/11/02007 ods v.1.2 scale 1:1 Please ensure correct sizing for cradle’s sticker recess �� iPod nano 2nd generation 2GB/4GB/8GB �� none Setup Instructions Setup Instructions | 04 iPod or iPhone Model CapacitySleevePad �� iPod 5th generation (video) 30GB 60GB/80GB �� iPod nano 1st generation 1GB/2GB/4GB �� none �� iPod 4th generation (color display) 20GB/30GB �� 40GB/60GB �� iPod 4th generation 20GB �� 40GB �� iPod mini 1st generation 4GB/6GB �� Setup Instructions Setup Instructions | 05 2. Carefully slide the sleeve into the top of the cradle and attach the spacer pad to the back of the cradle. Setup Instructions Setup Instructions | 06 3. Turn down your stere…

Text truncated - open the document above for the full version.

Attestation Statements

MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 Date: 18-February-2008 Dear Sir, Re. : Letter of Attestation This equipment has been tested in accordance with the requirements contained in the appropriate Commission Regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. Each unit manufactured, imported or marketed, as defined in the Commission’s regulations, will conform to the samples tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made by the Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Sincerely, Marc Matejka (Engineering Services Manager)

Cover Letter(s)

501 W. Walnut Street – Compton – California 90220 USA Date : 12-March-2008 MET Laboratories, Inc. TCB Reviewer 914 W. Patapsco Ave. Baltimore, MD 21230 USA Dear Sirs, Re. : Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. as agent for Belkin International Inc., 501 West Walnut Street, Compton, Ca 90220 to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of Belkin International Inc., Product name : Ipod / Iphone TUNEBASE FM Model : F8Z183 This authorization will expire one year from the date of this letter. _________________________ Engineering Services Manager PAGE 1 OF 3 501 W. Walnut Street – Compton – California 90220 USA Date : 18-February-2008 The Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Attn.: Mr. KC Lee Dear Sir, Re. : Letter of Attestation This equipment has been tested in accordance with the requirements contained in the appropriate Commission Regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. Each unit manufactured, imported or marketed, as defined in the Commission’s regulations, will conform to the samples tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made by the Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Yours sincerely, ________________________ Engineering Services Manager PAGE 2 OF 3 501 W. Walnut Street – Compton – California 90220 USA PAGE 3 OF 3 Belkin International, Inc. 501 W. Walnut St. Compton, CA 90220 Date: 18-February-2008 FCC ID: K7SF8Z183 To Whom It May Concern: We request under 47CFR0.459 that materials submitted to the Telecommunications Certification Body be withheld from public inspection. Specifically, Belkin International Inc. requests that the following materials be withheld from public inspection under 47CFR0.457&0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list (3) PCB Layout (4) Block diagram Therefore, in accordance with 47CFR0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection. Signature & Company Chop Engineering Services Manager

Cover Letter(s)

MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 Date: 18-February-2008 FCC ID: K7SF8Z183 To Whom It May Concern: We request under 47CFR0.459 that materials submitted to the Telecommunications Certification Body be withheld from public inspection. Specifically, Belkin International Inc. requests that the following materials be withheld from public inspection under 47CFR0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list (3) PCB Layout (4) Block diagram Therefore, in accordance with 47CFR0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection. Marc Matejka (Engineering Services Manager)

Cover Letter(s)

Date: 2008-03-07 RE: Category 1 - 15.239 FM transmitter Category 1: FM band modulators / transmitters operating under 15.239 of the FCC rules. Description: The Equipment Under Test (EUT) is a Belkin International INC. , Ipod/Iphone TUNEBASE FM. The transmitter is modulation by IC; and type is frequency modulation. Q1: Describe the operation of the device A1: (Please see user manual) The transmitter is operating at 88.1-107.9.1MHz band. The transmitter is powered by a 12V.d.c. car battery and the transmitting frequency is IC controlled. The operation is achieved by different combinations of form frequency modulating signal on the 88.1-107.9.1MHz carrier frequency. Q2: Provide information on the device and its antenna. A2: The antenna consists of a 11cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 12Volt primary battery. Q3: How is it installed? A3: (Please see user manual) Q4: Describe the test procedure used. A4: ANSI C63.4 test method is adopted. Q5: If tested in a car, describe how was it configured and tested. A5: We just test on test table according to ANSI C63.4 and product not mentions use on the car. Q6: At the present time, FM transmitters (subject to 15.239) tested in vehicles must also be tested on a test table. Provide both sets of data. All data must be compliant A6: Please see test report. Q7: Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. A7: The EUT just only operation on 88.1-107.9MHz. (the IC controlled) Q8: Was the bandwidth properly tested with maximum audio input? A8: During the test, we would use MP3 or CD player input audio signal to EUT and turn max. volume with different sound (e.g.: very loud song) in order to get worst result. Q9: Use a typical audio file from a typical device. e.g. do not use a 1 kHz signal from a signal generator. A9: During the test, we would use MP3 or CD player input audio signal to EUT and turn max. volume with different sound (e.g.: very loud song) in order to get worst result. Q10: Provide the test report showing compliance with the rules. A10: HKSTC provided test report.

External Photos

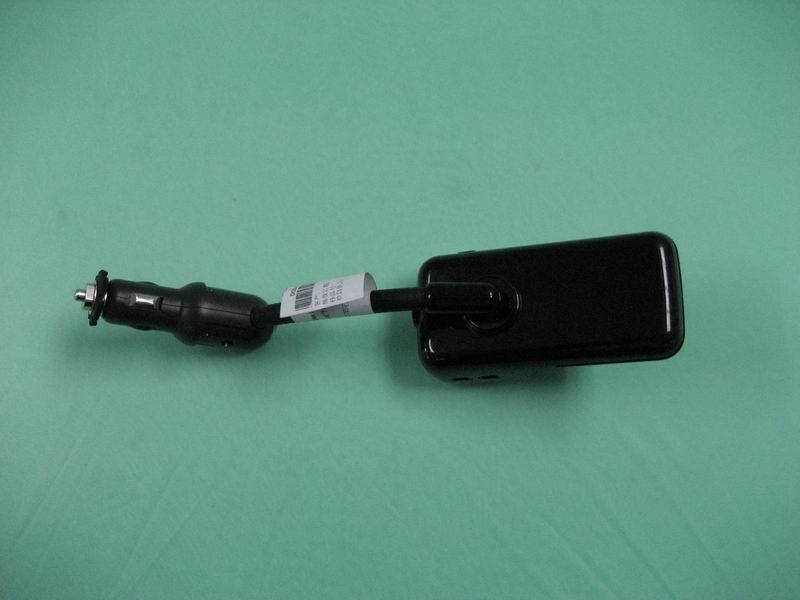

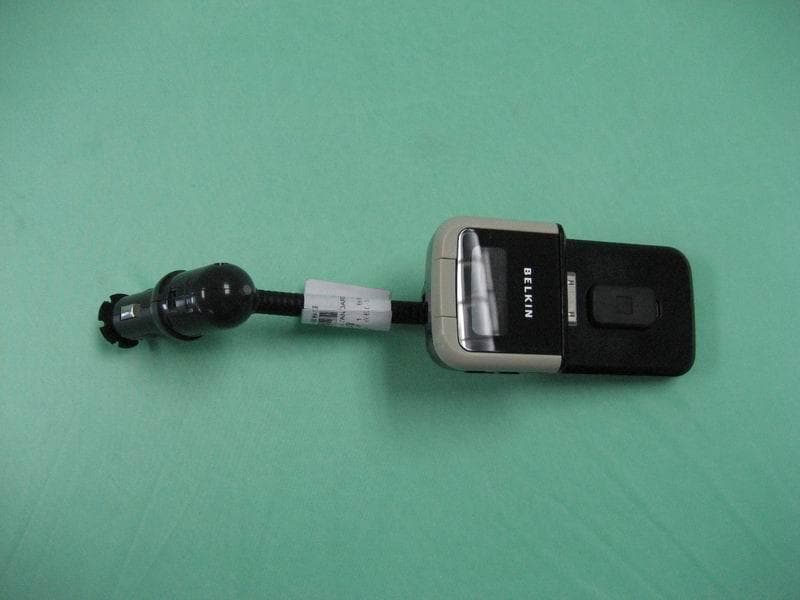

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

ID Label/Location Info

Graphics indicated in blue are to be printed in black black Graphics indicated in green are to be printed in PMS 430 C medium gray PMS 429 C Graphics indicated in red are to be printed in PMS 877 C silver PMS 877C F8Z183 TuneBase FM 3 Specifications for graphics v. 1.0 Belkin IDG 02/14/08 top fr ont bottom transmitter cradlecigarette lighter adapter

Internal Photos

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

Test Report

STC Test Report Date : 2008-03-06 Page 1 of 21 No. : MH182189 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (SHL012): Belkin International INC. 501 West Walnut Street, Compton, CA 90220, U.S.A. Manufacturer: N/A Description of Samples: Product: Ipod/Iphone TUNEBASE FM Brand Name: BELKIN Model Number: F8Z183 FCC ID: K7SF8Z183 Date Samples Received: 2008-02-19 Date Tested: 2008-02-29 to 2008-03-04 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2007 and ANSI C63.4:2003 for FCC Certification. Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: --- Dr. LEE Kam Chuen, ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2008-03-06 Page 2 of 21 No. : MH182189 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 21 Content Page 2-3 of 21 1.0 General Details 1.1 Test Laboratory Page 4 of 21 1.2 Applicant Details Page 4 of 21 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 21 Description of EUT operation 1.4 Date of Order Page 5 of 21 1.5 Submitted Samples Page 5 of 21 1.6 Test Duration Page 5 of 21 1.7 Country of Origin Page 5 of 21 2.0 Technical Details 2.1 Investigations Requested Page 6 of 21 2.2 Test Standards and Results Summary Page 6 of 21 3.0 Test Results 3.1 Emission Page 7-13 of 21 3.2 Bandwidth Measurement Page 14-17 of 21 3.3 Operation Description Page 18 of 21 STC Test Report Date : 2008-03-06 Page 3 of 21 No. : MH182189 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 19 of 21 Appendix B Photographs Page 20-21 of 21 STC Test Report Date : 2008-03-06 Page 4 of 21 No. : MH182189 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Belkin International INC. 501 West Walnut Street, Compton, CA 90220, U.S.A. Manufacturer N/A STC Test Report Date : 2008-03-06 Page 5 of 21 No. : MH182189 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Ipod/Iphone TUNEBASE FM Manufacturer: N/A Brand Name: BELKIN Model Number: F8Z183 Input Voltage: 12Vd.c. 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Belkin International INC., Ipod/Iphone TUNEBASE FM. It is FM transmitter, Modulation by IC. and type is frequency modulation. 1.4 Date of Order 2008-02-19 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2008-02-29 to 2008-03-04 1.7 Country of Origin China STC Test Report Date : 2008-03-06 Page 6 of 21 No. : MH182189 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2007 and ANSI C63.4: 2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.239 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Report Date : 2008-03-06 Page 7 of 21 No. : MH182189 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, T…

Text truncated - open the document above for the full version.

Test Setup Photos

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
