K7SF8Z901-TXTuneStage Bluetooth Transmitter

User Manual TuneStage ™ for iPod ® Introduction Designed to let you roam and play your tunes from virtually anywhere in your home, TuneStage from Belkin delivers the pristine, CD-quality sound that iPod users desire. Using Bluetooth™ technology, TuneStage transmits from up to 33 feet away from your stereo, free of the barriers that limit traditional remotes—such as walls, ceilings, or windows. Please review this User Manual carefully so that you can be sure to get the most from your TuneStage. Introduction | 01 What’s in the Box What’s in the Box | 02 7 Ft. RCA Stereo Cable 12V/1A AC Power Adapter TuneStage Bluetooth Transmitter for iPod TuneStage Bluetooth Receiver Operating Instructions STEP 1 - TuneStage Receiver Setup 1. Ensure that your stereo system is powered off. 2. Plug the TuneStage Receiver into your home stereo system either by using the included stereo cable or a standard 3.5mm male/3.5mm male audio cable. Plug the AC power adapter (included) into both the Receiver and AC outlet and press the power button. The blue Status LED on the front will begin blinking. 3. Power on your home stereo system and select the audio channel input that the TuneStage Receiver is connected to. Wall-Mounting the TuneStage Receiver 1. Make sure the antenna is pointed upward. 2. You can hang the TuneStage Receiver on a wall using two screws (not included). 3. The cables should run through the channel on the bottom of the TuneStage Receiver, so they are held securely to the wall. Operating Instructions | 03 2xRCA or 3.5mm mini-jack stereo connection DC power adapter connection ���� ��������� ������������������������������������������������������������������������������������� ������ ��������� ������������������������������ ���������������������� ������������������������������ ����������������������� ���������������������� ����� ���������� ������������������������������������ ����������������������������������� ������������������������������������������ ����������������������������������������� ������������������������������������������� ����������������������������������������� ������������������������������ ����������������������� ���������������������� ����� ���������� ������������������������������������ ����������������������������������� ������������������������������������������ ����������������������������������������� ������������������������������������������� ����������������������������������������� 80 mm 3.2 inches STEP 2 - TuneStage Transmitter Setup 1. Power on your iPod. Then, plug the TuneStage Transmitter into the remote/headphone connector. Press “PLAY” on the iPod. The TuneStage Transmitter will power on automatically. The Transmitter’s blue Status LED should be blinking rapidly. 2. The TuneStage Transmitter and Receiver will pair with each other automatically. When the connection has been made, the blue light on the TuneStage Receiver will stop flashing and stay on solid. The light on the Transmitter will now flash slowly. 3. Play a tune from the iPod. Set the volume of the iPod to a medium level, and adjust the volume of your stereo system’s speakers as desired. 4. Enjoy! iPod or iPod mini ���� ��������� ������������������������������������������������������������������������������������� ������ ��������� ������������������������������ ���������������������� Operating Instructions | 04 ���� ��������� ������������������������������������������������������������������������������������� ������ ��������� ������������������������������ ���������������������� Do not move the Transmitter back and forth to avoid damage to the receptacle For Best Results • Try to keep the TuneStage Transmitter close to your home stereo system. While the Transmitter often works at distances of 33 feet or more, a distance of 10 feet or less will minimize interference and maximize performance. • Power on the TuneStage Receiver first and then plug the Transmitter into the iPod to begin the pairing process. • Adjust the volume on the iPod to a medium level and increase the volume on the stereo to a desired listening level. • Bluetooth devices are known to have interference from devices operating in the same RF frequency (2.4GHz). However, using AFH (Adaptive Frequency Hopping), the interference with 802.11b/g has been minimized. Some interference (within a 6 1⁄2-foot range) with microwave ovens and 2.4GHz cordless phones may be present. Understanding the LEDs Operating Instructions | 05 Receiver StatusLED Power offOff Power switched onBlinks on/off in 0.5 sec. intervals for 20 sec., then turns off Detecting TX signal from standbyBlinks on/off in 0.5 sec. intervals for 20 sec., then turns off Paired/receiving signalOn Rapid Blinking: Searching for Bluetooth Transmitter (LED will turn OFF after 20 seconds but the Receiver will continue searching) Steady Light : Paired with Transmitter (Bluetooth connection active) ���� ��������� ������������������������������������������������������������������������������������� ������ ��������� ������������������������������ ���������������������� Rapid Blinking: Searching for Bluetooth Receiver Slow Blinking: Paired with Receiver (Bluetooth connection active) ���� ��������� ������������������������������������������������������������������������������������� ������ ��������� ������������������������������ ���������������������� ���� ��������� ������������������������������������������������������������������������������������� ������ ��������� ������������������������������ ���������������������� ���� ��������� ������������������������������������������������������������������������������������� ������ ��������� ������������������������������ ���������������������� ���� ��������� ������������������������������������������������������������������������������������� ������ ��������� ������������������������������ ���������������������� ���� ��������� ������������������������������������������������������������������������������������� ������ ��������� ������������������������…

Text truncated - open the document above for the full version.

501 W. Walnut Street – Compton – California 90220 USA November 28, 2005 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457 and 0.459 pertaining to confidential material. Belkin Corporation would like the following documents regarding this submission for FCC ID: K7SF8Z091TX to be kept confidential. 1. Schematics 2. Block diagrams The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Tac Pham International Regulatory Compliance Manager

Response to E05-000377-1 6 Please explain how the output power is controlled for it appears that depending upon the power class that different output powers are possible. 1. No external power amplifier (PA) is implemented in the design of DUTs (F8Z901-TX and F8Z901-RX). With the internal (PA) in the Bluetooth chip, maximum of only +6dBm is physically possible. Since Bluetooth specification for Class 1 RF transmit power range is 0 to +20 dBm, the device is rated at Class 2, as the product design intended. 2. The firmware controls the RF transmit power with level control from on- chip 6-bit DAC and maintains the transmit power to be within the Bluetooth specification for class 2 RF transmit power range (-6 to +4 dBm).

Response to E05-000377-2 1. A revised test report has been uploaded showing how the 20.8 db duty cycle correction factor was calculated.

501W.WalnutStreet- Compton- California90220USA November28,2005 FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Gentlemen: Thisletteris tocomplywithSection0.457and0.459pertainingtoconfidentialmaterial.Belkin CorporationwouldlikethefollowingdocumentsregardingthissubmissionforFCCID: K7SF8Z091TXto bekeptconfidential. 1.Schematics 2.Blockdiagrams Theabovematerialcontainstradesecretsortechnicaldata,whichwouldcustomarilybeguarded fromcompetitors.Wedonotwantthesedocumentsto beaccessibletothegeneralpublic. Sincerely, TacPham InternationalRegulatoryComplianceManager

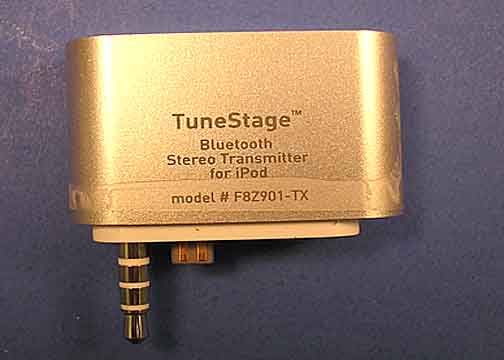

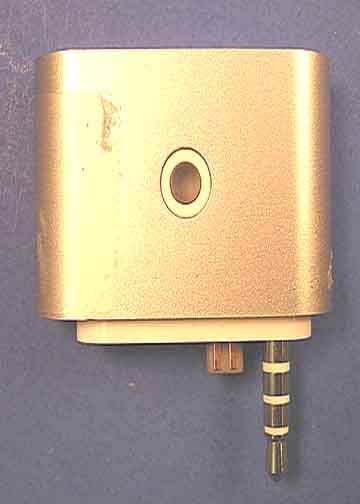

SUBMITTAL PHOTOGRAPH TX Front SUBMITTAL PHOTOGRAPH TX Back SUBMITTAL PHOTOGRAPH TX Top SUBMITTAL PHOTOGRAPH TX Bottom SUBMITTAL PHOTOGRAPH TX Side 1 SUBMITTAL PHOTOGRAPH TX Side 2

Belkin TuneStage Bluetooth Transmitter (TX) Specifications for printed graphics BelkinIDG 08/03/05 ods All graphics indicated in blue are to be printed in Pantone Cool Gray 6C light gray Cool Gray 6C TOP VIEW front REAR VIEW All graphics indicated in red are to be printed in Pantone 431C dark gray 431C FCC ID: K7SF8Z901-TX IC: 3623A-F8Z901 TX

SUBMITTAL PHOTOGRAPH TX PCB Top 1 SUBMITTAL PHOTOGRAPH TX PCB Top 2 SUBMITTAL PHOTOGRAPH TX PCB Bottom

Operational Description for TuneStage TX (F8Z901-TX) TuneStage TX is a Bluetooth v.1.2 Class 2 compliant device that functions as an A2DP (Advanced Audio Distribution Profile) source and an AVRCP (Audio Video Remote Control Protocol) target. TuneStage TX does not have an independent power source and it is powered by 3.3V power output drawn from Apple iPod. It communicates with iPod via UART and receives an analog output from iPod and digitally transmits the data to TuneStage RX or other A2DP sink devices via Bluetooth radio link. TuneStage TX implements the PCB printed meander line antenna. For TuneStage TX’s RF characteristics, please refer to Bluetooth Radio Specification (page 7 – 17). Further information can be found in the Bluetooth Specification v.1.2 available from http://www.bluetooth.org and BlueCore3-Multimedia Data Sheet available from http://www.csr.com Operational Description for TuneStage RX (F8Z901-RX) TuneStage RX is a Bluetooth v.1.2 Class 2 compliant device that functions as an A2DP (Advanced Audio Distribution Profile) sink. It is powered by 12VDC AC/DC adapter and connects to the home stereo system with RCA or 3.5mm stereo audio cable. It connects & receives digital RF data from TuneStage TX (or other A2DP source devices) via Bluetooth radio link and outputs the analog audio to the home stereo system. Antenna Specification: Normal gain – 1.5 dBi For TuneStage RX’s RF characteristics, please refer to Bluetooth Radio Specification (page 7 – 17). Further information can be found in the Bluetooth Specification v.1.2 available from http://www.bluetooth.org and BlueCore3-Multimedia Data Sheet available from http://www.csr.com Bluetooth Radio Specification 1 SCOPE Bluetooth devices operate in the unlicensed 2.4 GHz ISM (Industrial Scientific Medical) band. A frequency hop transceiver is applied to combat interference and fading. A shaped, binary FM modulation is applied to minimize transceiver complexity. The symbol rate is 1 Ms/s. For full duplex transmission, a Time- Division Duplex (TDD) scheme is used. This specification defines the requirements for a Bluetooth radio. Requirements are defined for two reasons: • Provide compatibility between radios used in the system • Define the quality of the system The Bluetooth radio shall fulfil the stated requirements under the operating conditions specified in Appendix A and Appendix B. The radio parameters shall be measured according to the methods described in the RF Test Specification. This specification is based on the established regulations for Europe, Japan and North America. The standard documents listed below are only for information, and are subject to change or revision at any time. Europe: Approval Standards: European Telecommunications Standards Institute, ETSI Documents: EN 300 328, ETS 300-826 Approval Authority: National Type Approval Authorities Japan: Approval Standards: Association of Radio Industries and Businesses, ARIB Documents: ARIB STD-T66 Approval Authority: Ministry of Post and Telecommunications, MPT. North America: Approval Standards: Federal Communications Commission, FCC, USA Documents: CFR47, Part 15, Sections 15.205, 15.209, 15.247 and 15.249 Approval Standards: Industry Canada, IC, Canada Documents: GL36 Approval Authority: FCC (USA), Industry Canada (Canada) 2 FREQUENCY BANDS AND CHANNEL ARRANGEMENT The Bluetooth system operates in the 2.4 GHz ISM band. This frequency band is 2400 - 2483.5 MHz. RF channels are spaced 1 MHz and are ordered in channel number k as shown in Table 2.1. In order to comply with out-of-band regulations in each country, a guard band is used at the lower and upper band edge. 3 TRANSMITTER CHARACTERISTICS The requirements stated in this section are given as power levels at the antenna connector of the Bluetooth device. If the device does not have a connector, a reference antenna with 0 dBi gain is assumed. Due to difficulty in measurement accuracy in radiated measurements, systems with an integral antenna should provide a temporary antenna connector during type approval. If transmitting antennas of directional gain greater than 0 dBi are used, the applicable paragraphs in EN 300 328, EN 301 489-17and FCC part 15 shall be compensated for. The device is classified into three power classes. Power class 1 device shall implement power control. The power control is used for limiting the transmitted power over +4 dBm. Power control capability under +4 dBm is optional and could be used for optimizing the power consumption and overall interference level. The power steps shall form a monotonic sequence, with a maximum step size of 8 dB and a minimum step size of 2 dB. A class 1 device with a maximum transmit power of +20 dBm shall be able to control its transmit power down to 4 dBm or less. Devices with power control capability optimizes the output power in a physical link with LMP commands (see Link Manager Protocol). It is done by measuring RSSI and reporting back if the transmission power shall be increased or decreased if possible. In a connection, the output power shall not exceed the maximum output power of power class 2 for transmitting packets if the receiving device does not support the necessary messaging for sending the power control messages, see Link Manager Protocol Section 4.1.3 on page 211. In this case, the transmitting device shall comply with the rules of a class 2 or class 3 device. If a class 1 device is paging or inquiring very close to another device, the input power can be larger than the requirement in Section 4.5 on page 39. This can cause the receiving device to fail to respond. It may therefore be useful to page at Class 2 or 3 power in addition to paging at power class 1. 3.1 MODULATION CHARACTERISTICS The Modulation is GFSK (Gaussian Frequency Shift Keying) with a bandwidthbit period product BT=0.5. The Modulation index shall be between 0.28 and 0.35. A binary one shall be represented by a positive frequency deviation, and a binary zero shall be represent…

Text truncated - open the document above for the full version.

5473A Clouds Rest Road : Mariposa, CA 95338 : Phone 209-966-5420 : Fax 209-742-6133 FCC 1.1310(b), Maximum Permissible Exposure Calculations RSS133 Subclause 8 Exposure of Humans to RF Field Date of Report: April 30th, 2005 Calculations prepared for: Belkin Corporation 501 W. Walnut Street Compton, CA 90220 Calculations prepared by: Eddie Wong 110 N. Olinda Place Brea, CA 9283 Model Number: Belkin TuneStage F8Z901-TX, F8Z901-RX FCC Identification: NA Fundamental Operating Frequency: 2402-2480 MHz Maximum Rated Output Power: 0.00100W Measured Output Power: 0.00111W MPE Limit in accordance with 1.1310(b): Limits for general population/uncontrolled exposure MPE Limit for 2402-2480 MHz = 1 mW/cm 2 (10 W/m 2 ) 1 Power Output (Watts) Power Density Limit (mW/cm 2 ) Minimum Distance (Meters) 0.00111 1 0.003 P t = Power Delivered to the Antenna G = Antenna Gain d = Distance in meters Zo = Impedance of Free Space The typical antennas to be used with the EUT which under normal operation has an antenna separation of at least 0.1 from human body. As can be seen from the MPE result, this device passes the limit specified in 1.1310 at a distance of 0.003 meter. Calculation: = 0.003 meter. 377 x 10 1 x 00111.0 x 30 d= 0 2 t 2 x Zd G x P x 30 )(W/m Density Power=

Page 1 of 66 Report No: FC05-022A ADDENDUM TO BELKIN CORPORATION TEST REPORT FC05-022 FOR THE BLUETOOTH TRANSMITTTER (F8Z901-TX) AND RECEIVER (F8Z901-RX) FCC PART 15 SUBPART C SECTIONS 15.207, 15.209 AND 15.247 COMPLIANCE DATE OF ISSUE: AUGUST 4, 2005 PREPARED FOR: Belkin Corporation 501 West Walnut Street Compton, CA 90220 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: W.O. No.: 112636 83591 Date of test: April 25-30, 2005 Report No.: FC05-022A This report contains a total of 66 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 66 Report No: FC05-022A TABLE OF CONTENTS Administrative Information .............................................................................................4 FCC to Canada Standard Correlation Matrix...................................................................5 Conditions for Compliance ..............................................................................................5 Approvals .........................................................................................................................6 Equipment Under Test (EUT) Description ......................................................................7 FCC 15.31(e) Voltage Variation......................................................................................7 FCC 15.31(m) Number Of Channels ...............................................................................7 FCC 15.33(a) Frequency Ranges Tested .........................................................................7 FCC 15.35 Analyzer Bandwidth Settings ........................................................................7 FCC 15.203 Antenna Requirements ................................................................................7 FCC 15.205 Restricted Bands..........................................................................................7 Eut Operating Frequency .................................................................................................7 Equipment Under Test .....................................................................................................8 Peripheral Devices ...........................................................................................................8 Report of Measurements ..................................................................................................9 Table 1: FCC 15.207 Six Highest Conducted Emission Levels: F8Z901-TX.....9 Table 2: FCC 15.207 Six Highest Conducted Emission Levels: F8Z901-RX ....10 Table 3: FCC 15.209 Six Highest Radiated Emission Levels: F8Z901-RX........11 FCC 15.247(a)(1) Occupied Bandwidth –20dBc.................................................12 FCC 15.247(a)(1)(iii) Number Of Hopping Frequency.......................................16 FCC 15.247(a)(1)(iii) Average Time Of Occupancy...........................................21 FCC 15.247(b)(1) RF Output Power ...................................................................23 FCC 15.247(c) Bandedge Plots ...........................................................................25 Table 4: FCC 15.247(d) Six Highest Radiated Emission Levels: F8Z901-TX ...29 Table 5: FCC 15.247(d) Six Highest Radiated Emission Levels: F8Z901-RX ...30 Temperature And Humidity During Testing....................................................................31 EUT Setup........................................................................................................................31 Correction Factors............................................................................................................31 Table A: Sample Calculations .............................................................................31 Test Instrumentation and Analyzer Settings ....................................................................32 Spectrum Analyzer Detector Functions ...............................................................32 Peak..........................................................................................................32 Quasi-Peak ...............................................................................................32 Average ....................................................................................................32 EUT Testing.....................................................................................................................33 Mains Conducted Emissions................................................................................33 Antenna Conducted Emissions ............................................................................33 Radiated Emissions ..............................................................................................33 Appendix A: Test Setup Photographs..............................................................................35 Photograph Showing Mains Conducted Emissions .............................................36 Photograph Showing Mains Conducted Emissions .............................................37 Photograph Showing Mains Conducted Emissions .............................................38 Page 3 of 66 Report No: FC05-022A Photograph Showing Mains Conducted Emissions .............................................39 Photograph Showing Radiated Emissions ...........................................................40 Photograph Showing Radiated Emissions ...........................................................41 Photograph Showing Radiated Emissions ...........................................................42 Photograph Showing Radiated Emissions ...........................................................43 Photograph Showing Radiated Emissions ...........................................................44 Photograph Showing RF …

Text truncated - open the document above for the full version.

Page 1 of 66 Report No: FC05-022B ADDENDUM TO BELKIN CORPORATION TEST REPORT FC05-022A FOR THE BLUETOOTH TRANSMITTTER (F8Z901-TX) AND RECEIVER (F8Z901-RX) FCC PART 15 SUBPART C SECTIONS 15.207, 15.209 AND 15.247 COMPLIANCE DATE OF ISSUE: DECEMBER 7, 2005 PREPARED FOR: Belkin Corporation 501 West Walnut Street Compton, CA 90220 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: W.O. No.: 112636 83591 Date of test: April 25-30, 2005 Report No.: FC05-022B This report contains a total of 66 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 66 Report No: FC05-022B TABLE OF CONTENTS Administrative Information .............................................................................................4 FCC to Canada Standard Correlation Matrix...................................................................5 Conditions for Compliance ..............................................................................................5 Approvals .........................................................................................................................6 Equipment Under Test (EUT) Description ......................................................................7 FCC 15.31(e) Voltage Variation......................................................................................7 FCC 15.31(m) Number Of Channels ...............................................................................7 FCC 15.33(a) Frequency Ranges Tested .........................................................................7 FCC 15.35 Analyzer Bandwidth Settings ........................................................................7 FCC 15.203 Antenna Requirements ................................................................................7 FCC 15.205 Restricted Bands..........................................................................................7 Eut Operating Frequency .................................................................................................7 Equipment Under Test .....................................................................................................8 Peripheral Devices ...........................................................................................................8 Report of Measurements ..................................................................................................9 Table 1: FCC 15.207 Six Highest Conducted Emission Levels: F8Z901-TX.....9 Table 2: FCC 15.207 Six Highest Conducted Emission Levels: F8Z901-RX ....10 Table 3: FCC 15.209 Six Highest Radiated Emission Levels: F8Z901-RX........11 FCC 15.247(a)(1) Occupied Bandwidth –20dBc.................................................12 FCC 15.247(a)(1)(iii) Number Of Hopping Frequency.......................................16 FCC 15.247(a)(1)(iii) Average Time Of Occupancy...........................................21 FCC 15.247(b)(1) RF Output Power ...................................................................23 FCC 15.247(d) Bandedge Plots ...........................................................................25 Table 4: FCC 15.247(d) Six Highest Radiated Emission Levels: F8Z901-TX ...29 Table 5: FCC 15.247(d) Six Highest Radiated Emission Levels: F8Z901-RX ...30 Temperature And Humidity During Testing....................................................................31 EUT Setup........................................................................................................................31 Correction Factors............................................................................................................31 Table A: Sample Calculations .............................................................................31 Test Instrumentation and Analyzer Settings ....................................................................32 Spectrum Analyzer Detector Functions ...............................................................32 Peak..........................................................................................................32 Quasi-Peak ...............................................................................................32 Average ....................................................................................................32 EUT Testing.....................................................................................................................33 Mains Conducted Emissions................................................................................33 Antenna Conducted Emissions ............................................................................33 Radiated Emissions ..............................................................................................33 Appendix A: Test Setup Photographs..............................................................................35 Photograph Showing Mains Conducted Emissions .............................................36 Photograph Showing Mains Conducted Emissions .............................................37 Photograph Showing Mains Conducted Emissions .............................................38 Page 3 of 66 Report No: FC05-022B Photograph Showing Mains Conducted Emissions .............................................39 Photograph Showing Radiated Emissions ...........................................................40 Photograph Showing Radiated Emissions ...........................................................41 Photograph Showing Radiated Emissions ...........................................................42 Photograph Showing Radiated Emissions ...........................................................43 Photograph Showing Radiated Emissions ...........................................................44 Photograph Showing …

Text truncated - open the document above for the full version.

PHOTOGRAPH SHOWING MAINS CONDUCTED EMISSIONS Mains Conducted Emissions - Front View - F8Z901-TX PHOTOGRAPH SHOWING MAINS CONDUCTED EMISSIONS Mains Conducted Emissions - Side View - F8Z901-TX PHOTOGRAPH SHOWING MAINS CONDUCTED EMISSIONS Mains Conducted Emissions - Front View - F8Z901-RX PHOTOGRAPH SHOWING MAINS CONDUCTED EMISSIONS Mains Conducted Emissions - Side View - F8Z901-RX PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Front View - Loop Antenna PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Front View PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Front View PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Front View - Horn Antenna PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Back View PHOTOGRAPH SHOWING RF POWER OUTPUT AND VOLTAGE VARIATION RF Power Output and Voltage Variation PHOTOGRAPH SHOWING OCCUPIED BANDWIDTH, CARRIER FREQUENCY SEPARATION, AVERAGE TIME OF OCCUPANCY AND NUMBER OF HOPPING FREQUENCY Occupied Bandwidth, Carrier Frequency Separation, Average Time of Occupancy and Number of Hopping Frequency
