K7SF9K1001V4N150 Wireless N Router

User Manual F9K1001V4 8820-00773 Rev. B01 WIRELESS ROUTER N 150 TABLE OF CONTENTS Getting Started ........................................... 1What’s in the Box............................................. 1Initial Setup.................................................. 1Advanced Tools & Settings..................................... 8The Belkin Router Manager .................................... 9Adding Computers to Your Network ............................ 10Manually Set Up Your Internet Connection ...................... 13Getting to Know Your Router .............................. 20 Front Panel ................................................. 20 Back Panel ................................................. 21Technical Details ........................................ 22 Technical Features .......................................... 22System Requirements........................................ 23 Using Your Router ....................................... 24Enabling Auto Update on Your Belkin Router..................... 24Updating Your Router via Your System Tray (Windows) or Menu Bar (Mac) ................................. 26 Updating the Router’s Firmware via the Web Interface ............ 27Resetting the Router ......................................... 31Restoring Your Router to Factory Defaults....................... 31Restoring the Router to Default Se ttings Using the Web Interface . . . 32 Troubleshooting, Support, and Warranty ................... 35Troubleshooting............................................. 35Technical Support ........................................... 42Belkin International, Inc., Limited 2-Year Product Warranty......... 43Regulatory Information................................... 46FCC Statement.............................................. 46 1 GETTING STARTED What’s in the Box N150 Wireless Router Ethernet cable (attached to router)Power supply (attached to router)Network information card (attached to router)Belkin Setup CD with User ManualQuick Setup Guide Initial SetupWhere to Place Your Router For the best results, place the Router next to your modem in an open location away from large metal objects and magnets such as those found in speakers. Raising the Router above floor level can improve the strength of your wireless signal. 2 GETTING STARTED How to Set It Up Connect Your N150 Router 1. Turn off your modem by disconnecting its power supply. 2. Connect your Router to your modem using the cable (already attached). 1 2 3 GETTING STARTED 3. Power up your modem by plugging in its power supply. 4. Power up your Router by plugging in its power supply. 3 4 4 GETTING STARTED Run the Installer Software Insert the included CD into your computer. Find the setup program and open it. It should run automatically; if not, follow the prompts.The setup software will configure your Internet connection and let you know when things are working.If you have DSL, you may need a username and password from your Internet provider. Setup 5 GETTING STARTED 1. Click the Setup icon on the CD menu. 6 GETTING STARTED 2. After a brief installation, the setup software will ask you for the network name and password from the network information card that is stored in the foot of your new Belkin Router. Store the card under the base of your Router for future reference. 7 GETTING STARTED 3. A progress screen will appear while additional software is installed. This may take a few minutes to complete. Once finished, a “Success” message will appear indicating that you are connected to the Internet via your new Belkin Router. During setup you may be asked for additional information.You may need to enter a username and password provided by your ISP. This username and password is likely to be found on materials that came from your ISP when you signed up for service. If necessary, you may need to contact your ISP to retrieve your username and password.If you have a static IP address, you may need to enter additional information also provided by your ISP.If your computer doesn’t have a wireless adapter, or the setup software is unable to control it, you may be asked to connect your computer to the Router with a network cable. 8 GETTING STARTED Advanced Tools & Settings After the initial setup is complete, you have the option to change settings like your network name, security type, and password. To make these changes and others, click on the Advanced Tools icon at the CD Setup menu and select one of the following settings that you would like to change:Network Name & Security – Personalize your network name (SSID), password, and strength of wireless security.Internet Service Provider & Login Settings – Have you moved or changed Internet Service Providers? If you’d like to change these settings without running through the setup process again, this is the place. 9 GETTING STARTED The Belkin Router Manager The Belkin Router Manager appears in your system tray (Windows) or menu bar (Mac). Its icon indicates the current status of your Router and also allows you to access your Router’s settings to make changes. It also provides quick access to software that came bundled with your Router.To access the Router settings, click on the icon and select from the menu that appears.The status of your Router is shown by the Belkin Router Manager icon, which closely mimics the l ight on the front of the Router. Blue: You are connected to your Belkin Router and it is connected to the Internet.Amber: You are connected to your Belkin Router, but it is not connected to the Internet. Router SettingsUser ManualNetwork problem detected...Networked USB DevicesBackup your files and foldersVideo MoverCheck for UpdatesOptionsExitNet w N et w Bac ku Vid 10 GETTING STARTED Adding Computers to Your Network Wireless devices such as computers, network printers, and gaming systems can connect to your Router with a few simple steps. Using the CD1. Put the Setup CD into your computer. If the CD doesn’t open automatically, browse to your …

Text truncated - open the document above for the full version.

Belkin International, Inc. 12045 East Waterfront Drive Playa Vista California 90094 United States Tel: 1 (310) 751-2816 Fax: 1 (310) 751-5912 Confidential Letter Date: 2011/10/14 Federal Communications Commission Authorization and Evaluation Division FCC ID ：K7SF9K1001V4 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive Playa Vista California 90094 United States Signature : ____________________________ Job Title and Dept. : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 1 (310) 751-2816

Belkin International, Inc. 12045 East Waterfront Drive Playa Vista California 90094 United States Tel: 1 (310) 751-2816 Fax: 1 (310) 751-5912 DoC Attestation Letter Date: 2011/10/14 We Belkin International, Inc., as the grantee of this project FCC ID: K7SF9K1001V4, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD1O1104, FCC Test Firm Registration No.: 187376). Regards, FCC Grantee contact person information. Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive Playa Vista California 90094 United States Signature : _____________________________ Job Title and Dept. : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 1 (310) 751-2816

Belkin International, Inc. 12045 East Waterfront Drive Playa Vista California 90094 United States Tel: 1 (310) 751-2816 Fax: 1 (310) 751-5912 Power of Attorney Date: 2011/10/14 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Belkin / F9K1001V4 FCC ID: K7SF9K1001V4 Product name: N150 Wireless N Router FCC Grantee contact person information. Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive Playa Vista California 90094 United States Signature : _____________________________ Job Title and Dept. : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 1 (310) 751-2816

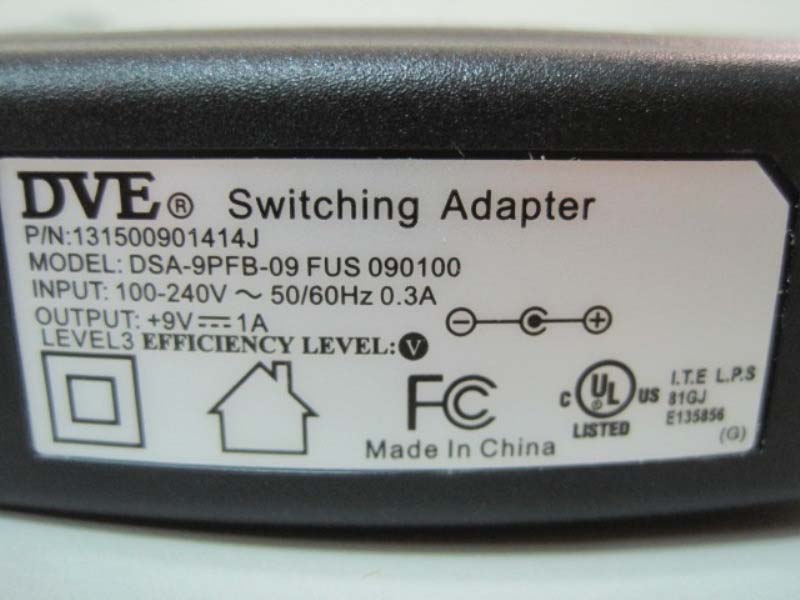

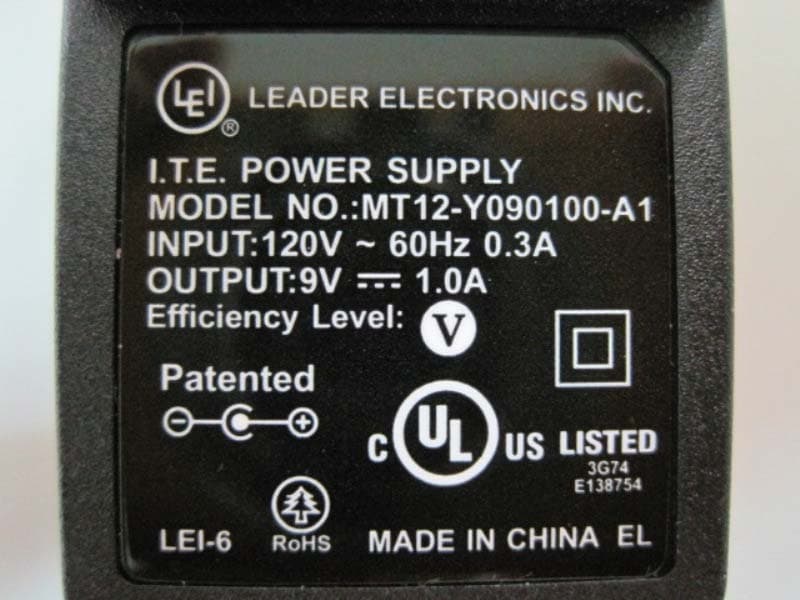

1O1104 SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT 1O1104 SPORTON International Inc. PAGE NUMBER : A2 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A3 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A4 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A5 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A6 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255

Label size: 32mm*88mm

1O1104 SPORTON International Inc. PAGE NUMBER : A1 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Main source: (PA：RTC6619) 1O1104 SPORTON International Inc. PAGE NUMBER : A2 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A3 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A4 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A5 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A6 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A7 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 Second source: (PA：RTC6649) 1O1104 SPORTON International Inc. PAGE NUMBER : A8 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A9 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A10 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A11 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A12 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255 1O1104 SPORTON International Inc. PAGE NUMBER : A13 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 26, 2011 FAX : 886-2-2696-2255

Report No.: FR1O1104 FCC ID: K7SF9K1001V4 Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR1O1104 FCC ID: K7SF9K1001V4 Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR1O1104 FCC ID: K7SF9K1001V4 Page No. : C3 of C3 1.3. Calculated Result and Limit Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11n MCS020MHz: 23.02 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.54 2.2594 23.0200 200.4472 0.090147 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 02 FCC RADIO TEST REPORT Applicant’s company Belkin International, Inc. Applicant Address 12045 East Waterfront Drive, Playa Vista, CA 90094 FCC ID K7SF9K1001V4 Product Name N150 Wireless N Router Brand Name Belkin Model Name F9K1001V4 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Oct. 11, 2011 Final Test Date Oct. 18, 2011 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR1O1104 Report Format Version: 02 Page No. : iof ii FCC ID: K7SF9K1001V4 Issued Date :Nov. 14, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details .................................................................................................................................................................................... 3 3.2. Accessories ......................................................................................................................................................................................... 5 3.3. Table for Filed Antenna....................................................................................................................................................................... 5 3.4. Table for Carrier Frequencies ............................................................................................................................................................. 6 3.5. Table for Test Modes ........................................................................................................................................................................... 6 3.6. Table for Testing Locations .................................................................................................................................................................. 7 3.7. Table for Supporting Units ................................................................................................................................................................... 7 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 8 3.9. Test Configurations ............................................................................................................................................................................. 9 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 11 4.2. Peak Output Power Measurement .................................................................................................................................................... 15 4.3. Average Output Power Measurement .............................................................................................................................................. 18 4.4. Power Spectral Density Measurement .............................................................................................................................................. 21 4.5. 6dB Spectrum Bandwidth Measurement .......................................................................................................................................... 26 4.6. Radiated Emissions Measurement .................................................................................................................................................... 31 4.7. Band Edge Emissions Measurement ................................................................................................................................................. 61 4.8. Antenna Requirements ..................................................................................................................................................................... 78 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 79 6. TEST LOCATION.............................................................................................................................................. 81 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 82 APPENDIX A. PHOTOGRAPH OF EUT .......................................................................................................... A1 ~ A19 APPENDIX B. TEST PHOTOS .......................................................................................................................... B1 ~ B6 APPENDIX C. MA…

Text truncated - open the document above for the full version.

Report No.: FR1O1104 FCC ID: K7SF9K1001V4 Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR1O1104 FCC ID: K7SF9K1001V4 Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR1O1104 FCC ID: K7SF9K1001V4 Page No. : 3 of 6 SIDE VIEW Report No.: FR1O1104 FCC ID: K7SF9K1001V4 Page No. : 4 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR1O1104 FCC ID: K7SF9K1001V4 Page No. : 5 of 6 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR1O1104 FCC ID: K7SF9K1001V4 Page No. : 6 of 6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
