K7SF9K1002V1N300 Wireless N Router

User Manual 8820-00774 Rev. A00 Table Of COnTenTs Troubleshooting, support, and Warranty . . . . . . . . . . . . . . . . . . .27 Troubleshooting.............................................27 Technical Support ...........................................34 Belkin International, Inc., Limited 2-Year Product Warranty.........35 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 FCC Statement..............................................38 CE Statement...............................................39 Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 What’s in the Box.............................................1 Initial Setup..................................................1 Advanced Tools & Settings.....................................6 The Belkin Router Manager ....................................7 Manual Setup Using Your Browser ..............................8 Adding Computers to Your Network .............................9 Getting to Know Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Front Panel .................................................12 Back Panel .................................................13 Technical Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Technical Features ..........................................14 System Requirements........................................15 Using Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Enabling Auto Update on Your Belkin Router.....................16 Updating Your Router via Your System Tray (Windows) or Menu Bar (Mac) .................................18 Updating the Router’s Firmware via the Web Interface ............19 Resetting the Router .........................................23 Restoring Your Router to Factory Defaults.......................23 Restoring the Router to Default Settings Using the Web Interface...24 1 GeTTInG sTaRTeD What’s in the box N300 Wireless N Router Ethernet cable (attached to router) Power supply (attached to router) Network information card (attached to router) Belkin Setup CD with User Manual Initial setup Where to Place Your Router For the best results, place the Router next to your modem in an open location away from large metal objects and magnets such as those found in speakers. Raising the Router above floor level can improve the strength of your wireless signal. 2 GeTTInG sTaRTeD 23 modem 1 How to set It Up 3 GeTTInG sTaRTeD 1 . Connect your Router’s Ethernet cable to your modem’s Ethernet port (on the back of your modem). This port might be labeled differently on your particular modem. If you are adding a Router for the first time, this port may be connected to your computer by an Ethernet cable. It is OK to disconnect your computer and plug the Router into the modem instead. 2 . Plug the Router’s power supply into a wall outlet. 3 . Put the CD into your computer. If the CD doesn’t open automatically, please browse to your CD drive and double-click on the Belkin Setup CD icon. 4 . Click the Setup icon on the CD menu. Setup 4 GeTTInG sTaRTeD 5 . After a brief installation, the setup software will ask you for the network name and password from the network information card that is attached to your Router. Store the card under the base of your Router for future reference. 5 GeTTInG sTaRTeD 6 . A progress screen will appear while additional software is installed. This may take a few minutes to complete. Once finished, a “Success” message will appear indicating that you are connected to the Internet via your new Belkin Router. During setup you may be asked for additional information . You may need to enter a username and password provided by your ISP. This username and password is likely to be found on materials that came from your ISP when you signed up for ser vice. If necessar y, you may need to contact your ISP to retrieve your username and password. If you have a static IP address, you may need to enter additional information also provided by your ISP. If your computer doesn’t have a wireless adapter, or the setup software is unable to control it, you may be asked to connect your computer to the Router with a network cable. 6 GeTTInG sTaRTeD advanced Tools & settings After the initial setup is complete, you have the option to change settings like your network name, security type, and password. To make these changes and others, click on the Advanced Tools icon at the CD Setup menu and select one of the following settings that you would like to change: network name & security – Personalize your network name (SSID), password, and strength of wireless security. Internet service Provider & login settings – Have you moved or changed Internet Service Providers? If you’d like to change these settings without running through the setup process again, this is the place. 7 GeTTInG sTaRTeD The belkin Router Manager belkin.310 Router Settings User Manual Check for Updates Options Exit The Belkin Router Manager appears in your system tray (Windows) or menu bar (Mac). Its icon indicates the current status of your Router and also allows you to access your Router’s settings to make changes. It also provides quick access to software that came bundled with your Router. To access the Router settings, click on the icon and select from the menu that appears. The status of your Router is shown by the Belkin Router Manager icon, which closely mimics the light on the front of the Router. blue: You are connected to your Belkin Router and it is connected to the Internet. amber: You are connected to your Belkin Router, but it is not connected to the Internet. 8 GeTTInG sTaRTeD In your browser, type “http://router” (you do not need to type in anything else such as “www”). Then press the Enter key. If you’re still having trouble running the manual setup option, type “192.168.2.1” in your browser (you do not need to typ…

Text truncated - open the document above for the full version.

Date: March 2, 2011 Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating on 2.4GHz band. Ad Hoc function is available and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards,

12045 E. Waterfront Drive Playa Vista, CA 90094, USA Date: February 21, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: K7SF9K1002V1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Yours sincerely, __________________________________ Name: Daniel Wesey/EMC Regulatory Compliance Engineer Belkin International Inc. TEL: 310-751-2816 FAX: 310-751-5912 E-Mail: [email protected]

12045 E. Waterfront Drive Playa Vista, CA 90094, USA Date:February 21, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. R ex Lai / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. R ex Lai / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Yours sincerely, __________________________________ Name: Daniel Wesey/EMC Regulatory Compliance Engineer Belkin International Inc. TEL: 310-751-2816 FAX: 310-751-5912 E-Mail: [email protected]

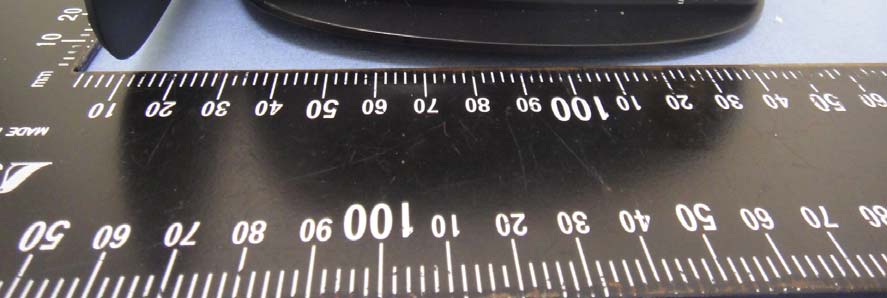

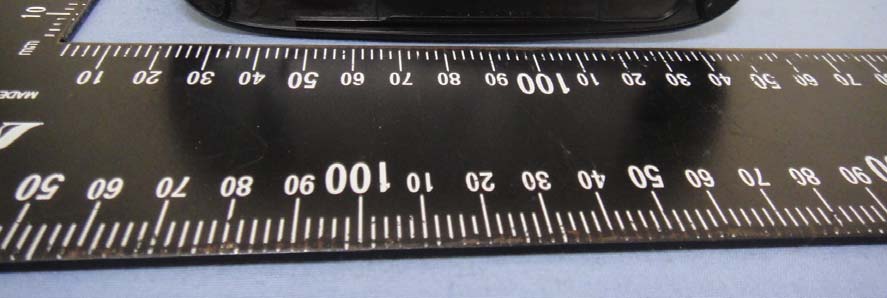

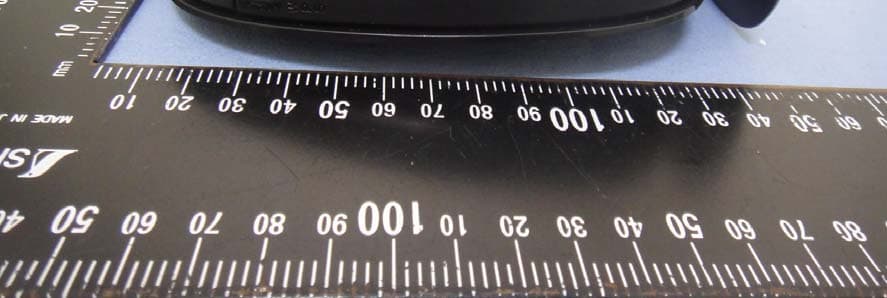

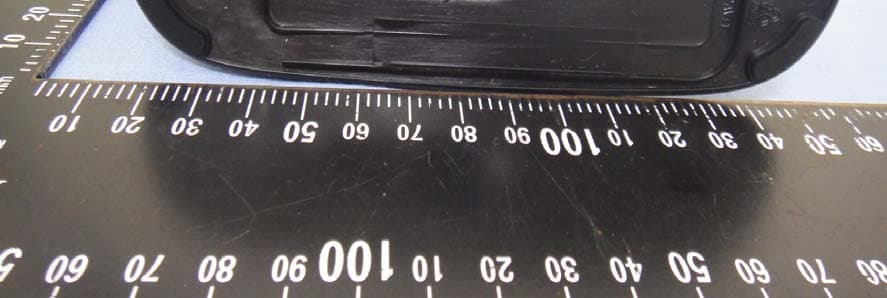

Compliance Certification Services Inc. Report No.: T110215204 Date of Issue: March 2, 2011 A1 - 1 Total Page: 11 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110215204 Date of Issue: March 2, 2011 A1 - 2 Total Page: 11 Rev. 00 Compliance Certification Services Inc. Report No.: T110215204 Date of Issue: March 2, 2011 A1 - 3 Total Page: 11 Rev. 00 Compliance Certification Services Inc. Report No.: T110215204 Date of Issue: March 2, 2011 A1 - 4 Total Page: 11 Rev. 00 Compliance Certification Services Inc. Report No.: T110215204 Date of Issue: March 2, 2011 A1 - 5 Total Page: 11 Rev. 00

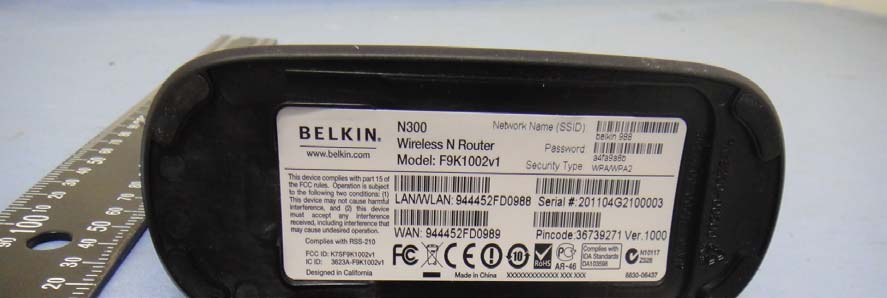

DSC01532.JPG www.belkin.com N300 Wireless N Router Model: F9K1002v1 Designed in CaliforniaMade in China8830-06437 Rev. A00 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Complies with RSS-210 FCC ID: K7SF9K1002 IC: 3623A-F9K1002 N10117 Z528 Complies with IDA Standards DA103598 932YYD00FN LAN/WLAN MAC: XXXXXXXXXXXX WAN MAC: XXXXXXXXXXXX Serial #: XXXXXXXXXXXXXX Ver. XXXXPIN code: XXXXXXXX Elements within red boxes are to be printed in BLACK on pre-printed label at the factory. *** Please keep the printed element within the red boxes *** LAN/WLAN MAC: XXXXXXXXXXXX WAN MAC: XXXXXXXXXXXX Serial #: XXXXXXXXXXXXXX Ver. XXXX PIN code: XXXXXXXX belkin.XXXX XXXXXXXX XXXXXXXX WPA/WPA2 Network Name (SSID): Password: PIN c ode: Security Type: belkin.XXXX XXXXXXXX WPA/WPA2 Network Name (SSID) : Pas sword: Security Type: 88mm R2.5mm 32mm front of the product SCALE 1:1 ALL TEXTS ARE: HELVETICA NEUE 65 MEDIUM DATE: 02/09/2011REVISION: XXX N300 RouterF9K1002v1 DESIGNER: [YI] DO NOT MAKE CHANGES WITHOUT PERMISSION FROM BELKIN IDG. ID LABEL LAYOUT ALL DIMENSIONS IN [mm]. LABEL MATERIAL: Mylar with Matte PP finish ELEMENTS SHOWN IN GRAY: PANTONE 429C ELEMENTS SHOWN IN BLACK: BLACK INNOVATION DESIGN GROUP PR# LBL_F9K1002_8830-06437 Rev. A00 27230 MKTG# DESIGNERKEVIN DATE2/9/11VERSION01

Compliance Certification Services Inc. Report No.: T110215204 Date of Issue: March 2, 2011 A1 - 6 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110215204 Date of Issue: March 2, 2011 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T110215204 Date of Issue: March 2, 2011 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T110215204 Date of Issue: March 2, 2011 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T110215204 Date of Issue: March 2, 2011 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T110215204 Date of Issue: March 2, 2011 A1 - 11 Rev. 00

Page of Antenna Design for Wireless Router (BELKIN case) V1.02 Document Number NE3-10087 1 st Released Date 12/13/2010 Last Released Date 12/22/2010 Author Dora Su Review by Romeo Chou Page of Revised History Date Version Revised Record 12/13/10 1.00 1 st released 12/21/10 1.01 Final Mock up 12/22/10 1.02 Verify electrical Page of Specification Rough description 2G antenna for a Wireless AP. Isolation between antennas must be under 20dB minus. Item Initial Specification Final Specification Dimensions PCB : Ant1 49(L)*9(W)*1.6(H)mm Ant2 49(L)*9(W)*1.6(H)mm Impedance 50 Test environment With Housing Spectrum 802.11bg Freq. Range 2.4~2.5GHz Antenna type PCB Gain dBi VSWR 1.921 Radiation Omni Polarization Linear HPBW / H None HPBW / E None Rad. efficiency >80% Connector type I-PEX Cable type 1.13 Cable length None Isolation 20dB Page of 1. Antenna picture Ant1 Ant2 Page of 2 S-parameter test results 2.1 Ant1 S11 and S12 Test Results 2.1.1 S11 2.1.2 S12 Page of 2.2 Ant2 S11 and S12 Test Results 2.2.1 S11 2.2.2 S12 Page of 3.1 Measurement setting for Ant1 XY YZ XZ 0° Right Up Up 90° Back Back Right 180° Left Down Down 270° Front Front Left X Y Z AUT Up(+Z) Left Front Back(+Y) Right(+X) Down Page of θ φ To t a l a n g l e 175 ̊ 360 ̊ How many angle scan one point 5 ̊ 5 ̊ Total scan point 36 73 Page of 3 2D patterns 3.1 ANT 1 2.4~2.5GHz X-Z Plane (E-total) Page of Y-Z Plane (E-total) X-Y Plane (E-total) Page of 3.2 Ant 2 2.4~2.5GHz X-Z Plane (E-total) Page of Y-Z Plane (E-total) X-Y Plane (E-total) Page of Frequency Ant1(dB) Ant2 (dB) 2400MHz -14.8 -11.6 2450MHz -26.3 -13.8 2500MHz -20.9 -16.5 4. Summary 4.1 Return Loss 4.2 Isolation Frequency ANT1 (dB) ANT2 (dB) 2400MHz -31.3 -33.7 2450MHz -29.4 -30.7 2500MHz -29.7 -30.8 4.3 3D total Peak Gain & Efficiency Ant1 Ant2 Frequency Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) Efficiency (%) 2400MHz 3.7 81 2.8 73 2450MHz 4.1 87 3.5 80 2500MHz 4.2 82 3.7 80

Page 1 of 14 Antenna Design for Wireless AP (BELKIN case) V1.00 Document Number 1 st Released Date 12/13/2010 Last Released Date 12/13/2010 Author Dora Su Review by Romeo Chou Page 2 of 14 Revised History Date Version Revised Record 12/13/10 1.00 1 st released Page 3 of 14 Specification Rough description 2G/5G antenna for a Wireless AP. Isolation between antennas must be under 20dB minus. Item Initial Specification Final Specification Dimensions PCB : Ant1 45(L)*12(W)*0.6(H)mm Ant2 49(L)*9(W)*0.8(H)mm Impedance 50Ω Test environment With Housing Spectrum 802.11n Freq. Range 2.4~2.5GHz/4.9~5.825GHz Antenna type PCB Gain dBi VSWR 1.92：1 Radiation Omni Polarization Linear HPBW / H None HPBW / E None Rad. efficiency >70% Connector type I-PEX Cable type 1.13 Cable length None Isolation 20dB Page 4 of 14 1. Antennas’ setup and environment 1.1 Ant 1 1.2 Ant 2 Ant 1 Ant 2 Page 5 of 14 2 S-parameter test results 2.1 Ant1 S11 and S12 Test Results 2.1.1 S11 2.1.2 S12 Page 6 of 14 2.2 Ant2 S11 and S12 Test Results 2.2.1 S11 2.2.2 S12 Page 7 of 14 3.1 Measurement setting for Ant1 XY YZ XZ 0° Right Up Up 90° Back Back Right 180° Left Down Down 270° Front Front Left X Y Z AUT Up(+Z) Left Front Back(+Y) Right(+X) Down Page 8 of 14 θ φ To t a l a n g l e 175 ̊ 360 ̊ How many angle scan one point 5 ̊ 5 ̊ Total scan point 36 73 Page 9 of 14 3 2D patterns 3.1 ANT 1 2.4~2.5GHz/4.9~5.825GHz X-Z Plane (E-total) Page 10 of 14 Y-Z Plane (E-total) X-Y Plane (E-total) Page 11 of 14 3.2 Ant 2 2.4~2.5GHz/4.9~5.825GHz X-Z Plane (E-total) Page 12 of 14 Y-Z Plane (E-total) X-Y Plane (E-total) Page 13 of 14 Frequency Ant1(dB) Ant2 (dB) 2400MHz -17 -13 2450MHz -20 -10 2500MHz -21 -8 4900MHz -15 -9 5150MHZ -16 -9 5350MHZ -15 -9 5825MHZ -15 -7 4. Summary 4.1 Return Loss 4.2 Isolation Frequency ANT1 (dB) ANT2 (dB) 2400MHz -36 -29 2450MHz -33 -30 2500MHz -31 -32 4900MHz -41 -41 5150MHZ -42 -41 5350MHZ -42 -46 5825MHZ -42 -41 Page 14 of 14 4.3 3D total Peak Gain & Efficiency Ant1 Ant2 Frequency Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) Efficiency (%) 2400MHz 4.1 74 4.3 75 2450MHz 5.0 84 4.9 83 2500MHz 4.6 85 4.8 80 4900MHz 6.1 82 5.2 64 5150MHZ 6.9 88 5.2 72 5350MHZ 6.9 86 4.2 69 5825MHZ 7.4 90 5.9 74

Compliance Certification Services Inc. Report No.: T110215204 FCC ID: K7SF9K1002V1 IC: 3623A-F9K1002V1 Date of Issue: March 2, 2011 Page 106 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT N300 Wireless N Router Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 23.28 dBm (212.81 mW) IEEE 802.11g mode: 22.81 dBm (190.98 mW) IEEE 802.11n HT 20 MHz mode Channel mode: 21.93 dBm (155.95 mW) IEEE 802.11n HT 40 MHz mode: 21.83 dBm (152.40 mW) Antenna gain (Max) 1. Gain: 4.9 dBi(Numeric gain: 3.09) 2. Gain: 3.7 dBi (Numeric gain: 2.34) Antenna Calculation for MIMO Mode 10*LOG(((10^(4.9/20)+10^(3.7/20))^2)/2)= 7.33dBi (Numeric gain: 5.40) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 23.28 dBm (212.81 mW) at 2437MHz (with 5.40 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: T110215204 FCC ID: K7SF9K1002V1 IC: 3623A-F9K1002V1 Date of Issue: March 2, 2011 Page 107 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T110215204 FCC ID: K7SF9K1002V1 IC: 3623A-F9K1002V1 Date of Issue: March 2, 2011 Page 108 Rev. 00 IEEE 802.11b mode: EUT output power = 212.81mW Numeric Antenna gain = 3.09 Æ Power density = 0.1309 mW / cm 2 IEEE 802.11g mode: EUT output power = 190.98 mW Numeric Antenna gain = 3.09 Æ Power density = 0.117436 mW / cm 2 IEEE 802.11n HT 20 MHz mode Channel mode: EUT output power =155.95 mW Numeric Antenna gain = 5.40 Æ Power density = 0.167584mW / cm2 IEEE 802.11n HT 40 MHz mode: EUT output power = 152.40 mW Numeric Antenna gain = 5.40 Æ Power density = 0.163769 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T110215204 FCC ID: K7SF9K1002V1 IC: 3623A-F9K1002V1 Date of Issue: March 7, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 111 Rev. 00 FCC 47 CFR PART 15 SUBPART C & INDUSTRY CANADA RSS-210 TEST REPORT For N300 Wireless N Router Model: F9K1002v1 Trade Name: BELKIN Issued to Belkin International Inc. 12045 E. Waterfront Drive Playa Viste, CA 90094, USA Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T110215204 FCC ID: K7SF9K1002V1 IC: 3623A-F9K1002V1 Date of Issue: March 7, 2011 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................8 4.3 MEASUREMENT UNCERTAINTY ...............................................................................................9 5. FACILITIES AND ACCREDITATIONS ........................................................................................10 5.1 FACILITIES .......................................................................................................................................10 5.2 EQUIPMENT......................................................................................................................................10 5.3 LABORATORY ACCREDITATIONS AND LISTING................................................................................10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................11 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................12 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................12 6.2 SUPPORT EQUIPMENT ...............................................................................................................12 7. APPLICABLE RULES FOR INDUSTRY CANADA RSS-210 .....................................................13 8. FCC PART 15.247 REQUIREMENTS & RSS-210 REQUIREMENTS ....................................22 8.1 99% BANDWIDTH............................................................................................................................22 8.2 6DB BANDWIDTH.............................................................................................................................33 8.3 PEAK POWER....................................................................................................................................44 8.4 AVERAGE POWER............................................................................................................................46 8.5 BAND EDGES MEASUREMENT ................................................................................................48 8.6 PEAK POWER SPECTRAL DENSITY....................................................................................................57 8.7 SPURIOUS EMISSIONS.................................................................................................................72 8.8 RADIATED EMISSIONS ..............................................................................................................85 8.9 POWERLINE CONDUCTED EMISSIONS.............................................................................................103 APPENDIX I RADIO FREQUENCY EXPOSURE .............................................................................106 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...........................................................................109 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110215204 FCC ID: K7SF9K1002V1 IC: 3623A-F9K1002V1 Date of Issue: March 7, 2011 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Belkin International Inc. 12045 E. Waterfront Drive Playa Viste, CA 90094, USA Manufacturer: Belkin International Inc. 12045 E. Waterfront Drive Playa Viste, CA 90094, USA Equipment Under Test: N300 Wireless N Router Tr a d e N a m e : BELKIN Model: F9K1002v1 Date of Test: February 22 ~ March 7, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C & Industry Canada RSS-210 Issue 8 December, 2010 No non-comp…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T110215204 FCC ID: K7SF9K1002V1 IC: 3623A-F9K1002V1 Date of Issue: March 2, 2011 Page 109 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: T110215204 FCC ID: K7SF9K1002V1 IC: 3623A-F9K1002V1 Date of Issue: March 2, 2011 Page 110 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: T110215204 FCC ID: K7SF9K1002V1 IC: 3623A-F9K1002V1 Date of Issue: March 2, 2011 Page 111 Rev. 00 Powerline Conducted Emissions Setup Photos
