K7SF9K1003V1N450 Wireless N+ Router

27460_8820-00775_F9K1003_N450_Wireless_N_Router_041811-ok WIRELESS N+ ROUTER N450 USER MANUAL 8820-00775 F9K1003 v1 Ok mk 1/12/11 TABLE OF CONTENTS Getting Started What’s in the Box Initial Setup Advanced Tools & Settings The Belkin Router Manager Manual Setup Using Your Browser Adding Computers to Your Network Additional Capabilities Getting to Know Your Router Front Panel Back Panel Technical Details Technical Features System Requirements Using Your Router Enabling Auto Update on Your Router Updating Your Router via Your System Tray Updating the Router’s Firmware via the Web Interface Resetting the Router Restoring Your Router to Factory Defaults Restoring the Router to Default Settings Using the Web Interface Troubleshooting, Support, and Warranty Troubleshooting Technical Support Belkin International, Inc., Limited 2-Year Product Warranty Regulatory Information FCC Statement 27460_8820-00775_F9K1003_N450_Wireless_N_Router_041811-ok CE Statement 27460_8820-00775_F9K1003_N450_Wireless_N_Router_041811-ok Getting Started What’s in the Box N450 Wireless N+ Router Ethernet cable (attached to router) Power supply (attached to router) Network information card (attached to router) Belkin Setup CD with User Manual Initial Setup Where to Place Your Router For the best results, place the Router next to your modem in an open location away from large metal objects and magnets such as those found in speakers. Raising the Router above floor level can improve the strength of your wireless signal. How to Set It Up [R N150 N300 N450 setup.ai] 1) Connect your Router’s Ethernet cable to your modem’s Ethernet port (on the back of your modem). This port might be labeled differently on your particular modem. If you are adding a Router for the first time, this port may be connected to your computer by an Ethernet ca ble. It is OK to disconnect your computer and plug the Router into the modem instead. 2) Plug the Router’s power supply into a wall outlet. 3) Put the CD into your computer. If the CD doesn’t open automatically, please browse to your CD drive and double­ click on th e Belkin Setup CD icon. [SCREENSHOT OF SETUP MENU setup menu.png] 4) Click the Setup icon on the CD menu. [SCREENSHOT OF NETWORK INFO CARD SCREEN setup netinfo card.png] 27460_8820-00775_F9K1003_N450_Wireless_N_Router_041811-ok 5) After a brief installation, the setup software will ask you for the network name and password from the network information card that is attached to your Router. Store the card under the base of your Router for future reference. [SCREENSHOT OF SUCCESS setup success.png] 6) A progress screen will appear while additio nal software is installed. This may take a few minutes to complete. Once finished, a “Success” message will appear indicating that you are connected to the Internet via your new Belkin Router. During setup you may be asked for additional information. You may need to enter a username and password provided by your ISP. This username and password is likely to be found on materials that came from your ISP when you signed up for service. If necessary, you may need to contact your ISP to retrieve your username and password. If yo u have a static IP address, you may need to enter additional information also provided by your ISP. If your computer doesn’t have a wireless adapter, or the setup software is unable to control it, you may be asked to connect your computer to the Router with a network cable. Advanced Tools & Settings [SCREENSHOT OF ADVANCED MENU setup advanced2.png] After the initial setup is complete, you have the option to change settings like your network name, security type, and password. To make these changes and others, click on the Advanced Tools icon at the CD Setup menu and select one of the following settings that you would like to cha nge: Network Name & Security Personalize your network name (SSID), password, and strength of wireless security. Internet Service Provider & Login Settings Have you moved or changed Internet Service Providers? If you’d like to change these settings without running through the setup process again, this is the place. 27460_8820-00775_F9K1003_N450_Wireless_N_Router_041811-ok The Belkin Router Manager [SHARE SCREENSHOT OF TRAY APP MENU (TBD)] The Belkin Router Manager appears in your system tray (Windows) or menu bar (Mac). Its icon indicates the current status of your Router and also allows you to access your Router’s settings to make changes. It also provides quick access to software that came bundled with your Router. To acc ess the Router settings, click on the icon and select from the menu that appears. The status of your Router is shown by the Belkin Router Manager icon, which closely mimics the light on the front of the Router. Blue: You are connected to your Belkin Router and it is connected to the Internet. Amber: You are connected to your Belkin Router, but it is not connected to the Internet. 27460_8820-00775_F9K1003_N450_Wireless_N_Router_041811-ok Manual Setup Using Your Browser [ZOOMED SCREENSHOT OF ADDRESS BAR address bar.png] In your browser, type “http://router” (you do not need to type in anything else such as “www”). Then press the Enter key. If you’re still having trouble running the manual setup option, type “192.168.2.1” in your browser (you do not need to type in a nything else such as “http://” or “www”). Then press the Enter key. Adding Computers to Your Network Wireless devices such as computers, network printers, and gaming systems can connect to your Router with a few simple steps. Using the CD 1) Put the Setup CD into your computer. If the CD doesn’t open automatically, browse to your CD drive and open the Belkin Setup CD icon. 2) Click the Setup icon on the CD menu. 3) After a brief installation, the setup software will ask you for the network name and pa ssword from the network information card that came with your Router. This card is most likely now located underneath the foot of your Router in the provided card slot. 4) A prog…

Text truncated - open the document above for the full version.

Belkin International, Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094, U.S.A. Tel: 1 (310) 751-2816 Fax: 1 (310) 751-5912 Confidential Letter Date: 2011/4/20 Federal Communications Commission Authorization and Evaluation Division FCC ID：K7SF9K1003V1 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, FCC Grantee contact person information. Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive, Playa Vista, CA 90094, U.S.A. Signature : _____________________________ Job Title and Dept. : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 1 (310) 751-2816

Belkin International, Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094, U.S.A. Tel: 1 (310) 751-2816 Fax: 1 (310) 751-5912 Date: 2011/4/20 To Whom it may concern, We, as the grantee of this project FCC ID: K7SF9K1003V1/ IC: 3623A-F9K1003V1 , would like to declare that the composite portion c atagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive, Playa Vista, CA 90094, U.S.A. Signature : _____________________________ Job Title and Dept. : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 1 (310) 751-2816

Belkin International, Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094, U.S.A. Tel: 1 (310) 751-2816 Fax: 1 (310) 751-5912 Power of Attorney Date: 2011/4/20 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. The specified radio equipment as below: Brand name and model type of the specified radio equipment: Belkin / F9K1003v1 Product name: N750 DB Wireless N+ Router FCC ID: K7SF9K1003V1 FCC Grantee contact person information. A pplicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive, Playa Vista, CA 90094, U.S.A. Signature : _____________________________ Job Title and Dept. : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 1 (310) 751-2816

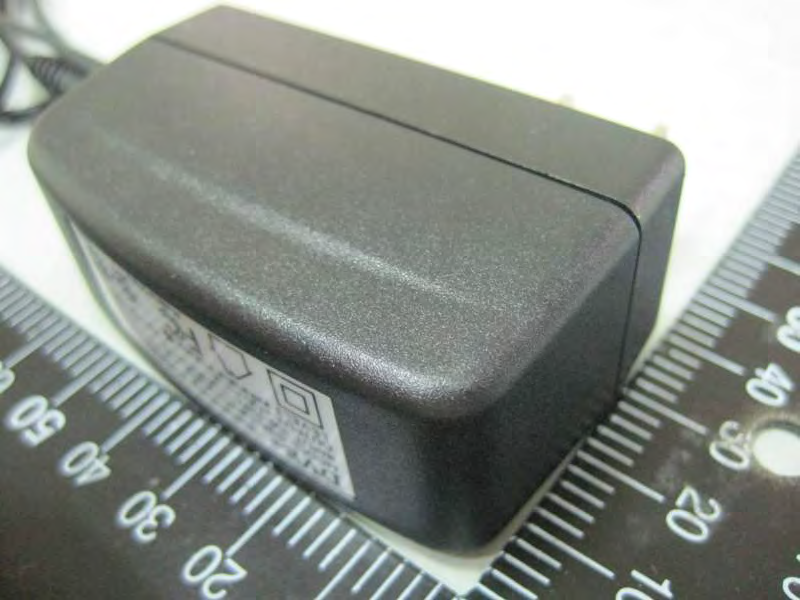

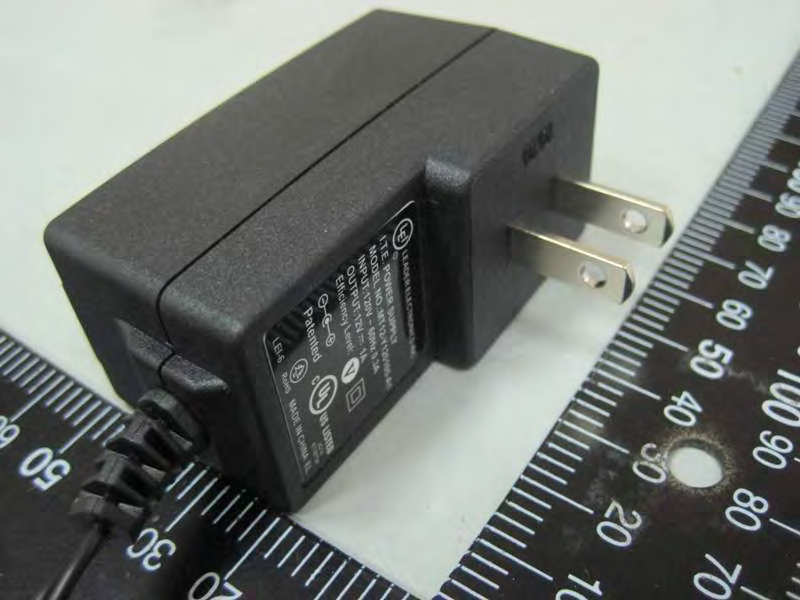

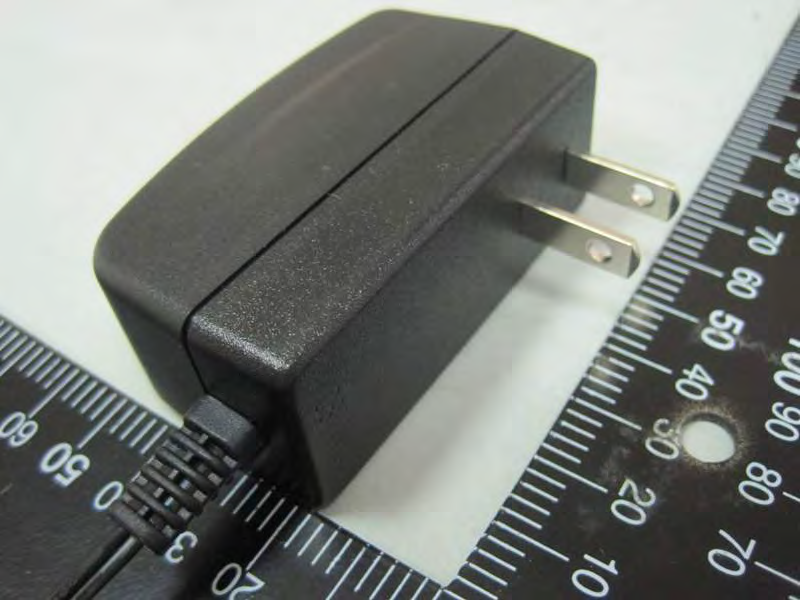

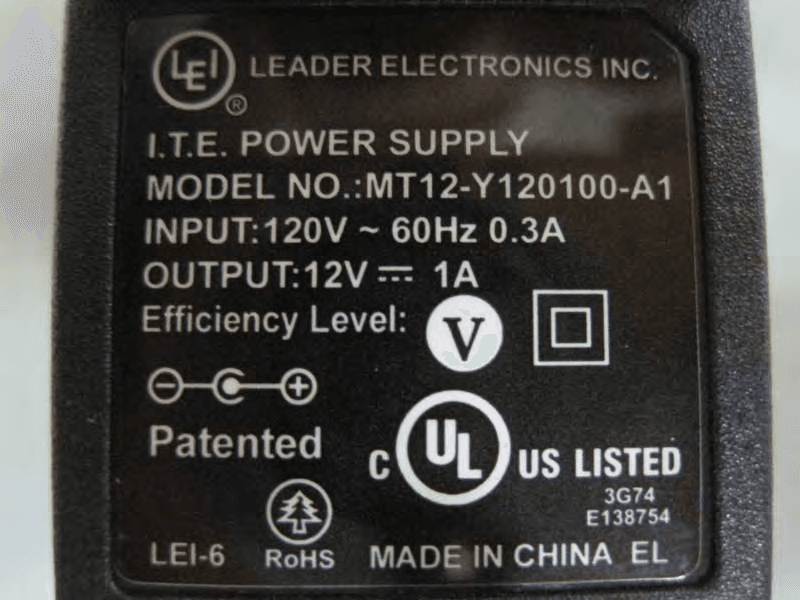

Report No.: 132406 SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 132406 SPORTON International Inc. PAGE NUMBER : A2 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 Report No.: 132406 SPORTON International Inc. PAGE NUMBER : A3 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 Adapter 1: Trade name: DVE Model: DSA-12PFE-12 BUS 120100 Report No.: 132406 SPORTON International Inc. PAGE NUMBER : A4 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 Report No.: 132406 SPORTON International Inc. PAGE NUMBER : A5 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 Adapter 2: Trade name: Leader Model: MT12-Y120100-A1 Report No.: 132406 SPORTON International Inc. PAGE NUMBER : A6 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255

Label size: 88mm*32mm

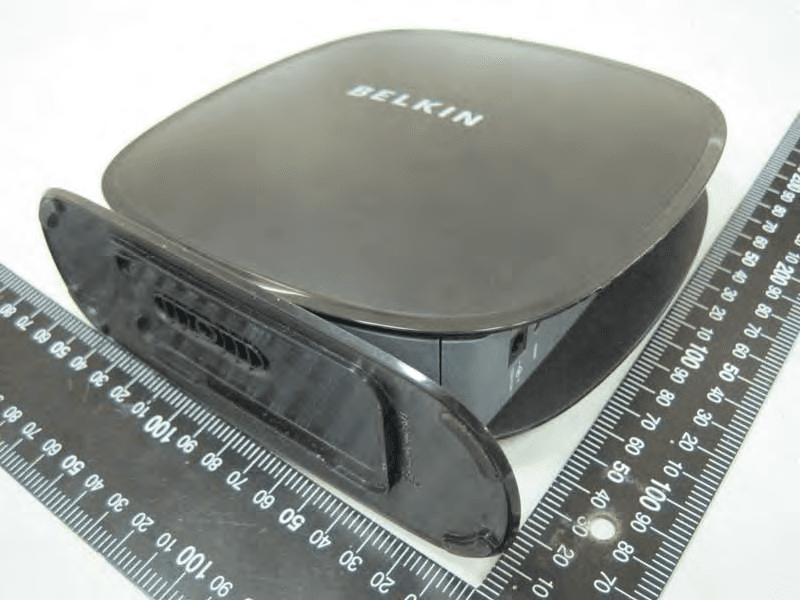

Report No.: 132406 SPORTON International Inc. PAGE NUMBER : A1 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 132406 SPORTON International Inc. PAGE NUMBER : A2 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 Report No.: 132406 SPORTON International Inc. PAGE NUMBER : A3 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 Report No.: 132406 SPORTON International Inc. PAGE NUMBER : A4 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 Report No.: 132406 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255

Report No.: FR132406 FCC ID: K7SF9K1003V1 Page No. : 1 of 3 Appendix B. Maximum Permissible Exposure Report No.: FR132406 FCC ID: K7SF9K1003V1 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR132406 FCC ID: K7SF9K1003V1 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : PCB antenna Max Conducted Power for IEEE 802.11g Ant. 1 + Ant. 2+ Ant. 3: 29.89 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.5 2.8184 29.8868 974.2694 0.5466 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Belkin International, Inc. Applicant Address 12045 East Waterfront Drive, Playa Vista, CA 90094, USA FCC ID K7SF9K1003V1 Product Name N450 Wireless N+ Router Brand Name Belkin Model Name F9K1003v1 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Mar. 24, 2011 Final Test Date Apr. 29, 2011 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR132406 Report Format Version: 01 Page No. : iof ii FCC ID: K7SF9K1003V1 Issued Date : May 02, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION ..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 5 3.3. Table for Filed Antenna ............................................................................................................................................................................. 5 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 6 3.5. Table for Test Modes .................................................................................................................................................................................. 6 3.6. Table for Testing Locations........................................................................................................................................................................ 7 3.7. Table for Supporting Units ......................................................................................................................................................................... 7 3.8. Table for Parameters of Test Software Setting ....................................................................................................................................... 7 3.9. Test Configurations ..................................................................................................................................................................................... 9 4. TEST RESULT ......................................................................................................................................................... 12 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 12 4.2. Peak Output Power Measurement ....................................................................................................................................................... 18 4.3. Power Spectral Density Measurement .................................................................................................................................................. 22 4.4. Radiated Emissions Measurement ......................................................................................................................................................... 33 4.5. Band Edge Emissions Measurement ...................................................................................................................................................... 53 4.6. Antenna Requirements ........................................................................................................................................................................... 62 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 63 6. TEST LOCATION .................................................................................................................................................. 65 7. TAF CERTIFICATE OF ACCREDITATION .............................................................................................................. 66 APPENDIX A. PHOTOGRAPHS OF EUT ........................................................................................................ A1 ~ A11 APPENDIX B. TEST PHOTOS ............................................................................................................................ B1 ~ B6 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE ....................................................................................... C1 ~C3 Report No.: FR132406 Report Format Version: 01 Page No. : iiof ii FCC ID: K7SF9K1003V1 Issued Date : May 02, 2011 History of This Test Rep…

Text truncated - open the document above for the full version.

Report No.: FR132406 FCC ID: K7SF9K1003V1 Page No. : A1 of A 6 Appendix A. Test Photos Report No.: FR132406 FCC ID: K7SF9K1003V1 Page No. : A2 of A 6 1. Photographs of Conducted Emissions Test Configuration For Mode 2 FRONT VIEW REAR VIEW Report No.: FR132406 FCC ID: K7SF9K1003V1 Page No. : A3 of A 6 SIDE VIEW Report No.: FR132406 FCC ID: K7SF9K1003V1 Page No. : A4 of A 6 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR132406 FCC ID: K7SF9K1003V1 Page No. : A5 of A 6 30MHz~1GHz For Mode 2 FRONT VIEW REAR VIEW Report No.: FR132406 FCC ID: K7SF9K1003V1 Page No. : A6 of A 6 Above 1GHz For Mode 2 FRONT VIEW REAR VIEW
