K7SF9K1015V1N300 Wireless Range Extender

User Manual F9K1015v1 8820-01753 Rev. A00 N300 Wi-Fi ® RANGE EXTENDER Table Of COnTenTs Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 What’s in the Box.....................................................1 Initial Setup ..........................................................1 Set Up Your Range Extender Wirelessly...............................2 Wired Setup .........................................................4 Getting to Know Your Wi- fi Range e x tender . . . . . . . . . . . . . . . . . . . . . . 5 T echnical Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 S ystem Requirements ................................................6 ad vanced s e ttings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 R esetting the Wi- fi Range e x tender . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Troubleshooting, s u pport, and Warranty . . . . . . . . . . . . . . . . . . . . . . . . 17 T roubleshooting .....................................................17 T echnical Support ...................................................19 B elkin International, Inc., Limited 2-Year Product Warranty ........... 20 R egulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 FCC Statement ......................................................22 IC Statement ........................................................22 1 Congratulations on buying an N300 Wi-Fi Range Extender (the Range Extender). This device will enable you to extend the range of your dual-band router to eliminate “dead spots” in your wireless network. The Range Extender extends your 2.4GHz network. GeTTInG sTaRTeD Initial setup To get started, you will need: • Your primary wireless router, its network name (SSID), and password. • A personal computer with a web browser What’s in the box N300 Wi-Fi Range Extender Quick Installation Guide User Manual on CD 2 GeTTInG sTaRTeD set Up Your Range extender Wirelessly step 1 Find a spot that receives about half of your router’s Wi-Fi signal. step 2 Find a power outlet near that spot and plug in your Range Extender. Belkin.setup Agnes’s home wi-fi MyNetwork belkin.f84 http://Belkin.range Belkin.setup Agnes’s home wi-fi MyNetwork belkin.f84 http://Belkin.range 3 GeTTInG sTaRTeD step 3 On your device, connect to the Wi-Fi network “belkin.setup” On Windows Vista or Windows 7, please check the option “Connect Automatically” when you select the network. step 4 Complete setup by opening browser to: Belkin.setup Agnes’s home wi-fi MyNetwork belkin.f84 http://Belkin.range Belkin.setup Agnes’s home wi-fi MyNetwork belkin.f84 http://Belkin.range 4 GeTTInG sTaRTeD How to reset the Range extender and get it connected if you change your router’s network name or password: step 1: Locate the Range Extender’s reset button on the base of the unit. st ep 2: With the unit still powered on, press and hold the Range Extender’s reset button for 10 seconds. st ep 3: Connect your computer to the “Belkin.setup” wireless network. Make sure nothing is plugged into your Ethernet port. st ep 4: In your Internet browser, open the address “http://Belkin.range” and follow the on-screen instructions. 5 GeTTInG TO KnOW YOUR Wi-fi RanGe exTenDeR a) Wi-fi Protected setup (WPs) light and button (not pictured) The WPS button on the top of your Range Extender can be used to help establish a secure connection between your Range Extender and other WPS-enabled Wi-Fi devices such as computers. To use the WPS feature on your Range Extender, see “Advanced Settings > Wi-Fi Protected Setup > Using Wi-Fi Protected Setup.” The small LED light near the WPS button shows what is happening while you are using WPS to establish a connection. Off: Idle blinking blue: The Range Extender is listening for a WPS-enabled computer or other device. solid blue: The Range Extender has made a secure connection with the computer or other device. blin king a m ber: A connection was not created. b) s t atus l i ght Your Range Extender’s status is shown by the light on the front. Off: The Range Extender is not plugged into a power source. blinking blue: The Range Extender is starting up. solid blue: The Range Extender is connected to the Wi-Fi® network. solid amber: The Range Extender is connected to the Wi-Fi network but is experiencing a weak signal. A weak signal may lead to performance problems. Consider moving the Range Extender closer to the wireless router. blinking amber: The Range Extender is not connected to the Wi-Fi network. Check to make sure that your wireless router is functioning properly, and/or move the Range Extender closer to the wireless router. alternating blue/amber: The Range Extender is ready to be set up. (Refer to “Getting Started” for instructions on how to set up your Range Extender.) C) Reset button (not pictured) This button is used to restart your Range Extender in rare cases when it functions incorrectly. Resetting the Range Extender will preserve your settings. This button may also be used to restore the factory default settings. Please see the Troubleshooting section for more information. 6 TeCHnICal DeTaIls system Requirements 802.11/b/g/n 2.4GHz wireless router with broadband Internet connection At least one computer with: - I nstalled wireless network interface card and TCP/IP protocol - W indows® XP 32 (SP3 or greater), Windows Vista® 32/64, or Windows 7 32/64; or Mac OS® X v10.5 or above - I nternet Explorer® v7 or above, Firefox®, Google Chrome™, or Safari® - M inimum 1.8GHz processor - M inimum 512MB RAM specifications Wireless Standards with Link Rate - IEEE 802.11n (up to 300Mbps for 2.4GHz) - IEEE 802.11g (up to 54Mbps*) - IEEE 802.11b (up to 11Mbps*) Wireless Operating Spectrum: - 2 .4GHz Wireless Security: - W i-Fi Protected Setup™ - 2 56-bit WPA®/WPA2® encryption - 6 4/128-bit WEP encryption 7…

Text truncated - open the document above for the full version.

Confidential Letter Date: 2014/1/20 Federal Communications Commission Authorization and Evaluation Division FCC ID：K7SF9K1015V1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Belkin International Inc. Applicant’s company address : 12045 East Waterfront Drive, Playa Vista, CA 90094, USA Signature : Name and Job Title : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 310-751-2816

Power of Attorney Date: 2014/1/20 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Belkin / F9K1015V1 FCC ID: K7SF9K1015V1 Product name: N300 Wireless Range Extender FCC Grantee contact person information. Applicant’s company name : Belkin International Inc. Applicant’s company address : 12045 East Waterfront Drive, Playa Vista, CA 90094, USA Signature : Name and Job Title : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 310-751-2816

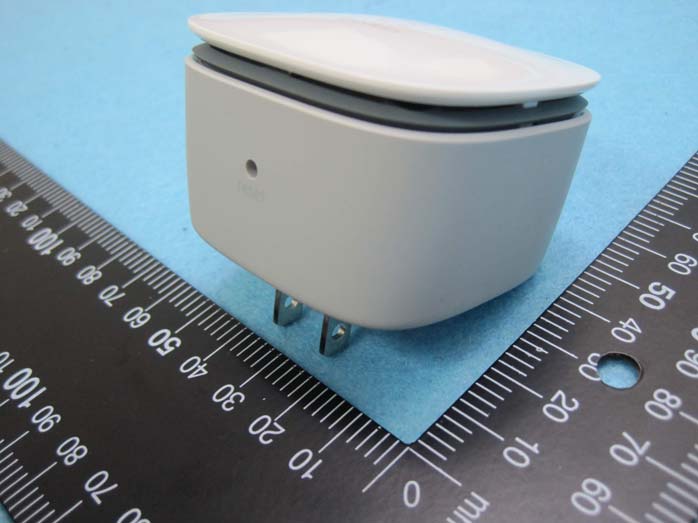

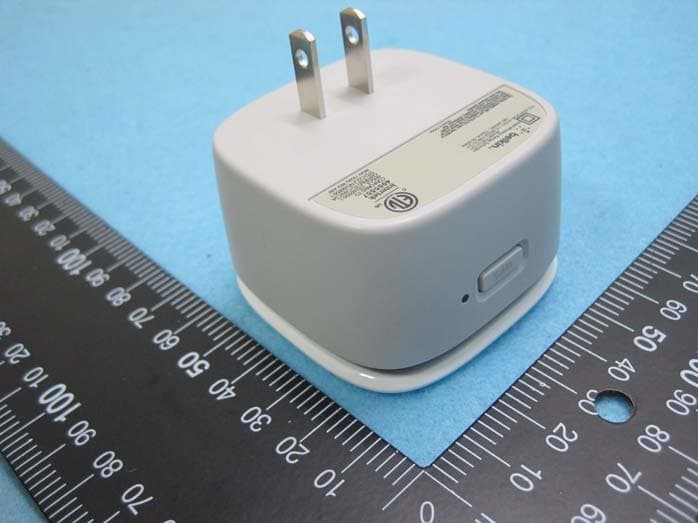

Report No.:410924 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-3-327-3456 ISSUED DATE : Feb. 14, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:410924 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-3-327-3456 ISSUED DATE : Feb. 14, 2014 FAX : 886-3-327-0973

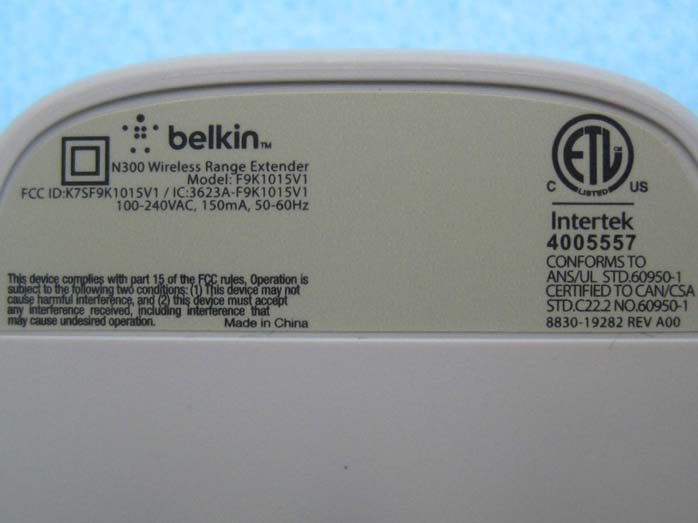

59.99 16.73 4005557 N300 Wireless Range Extender Model: F9K1015V1 FCC ID:K7SF9K1015V1 / IC:3623A-F9K1015V1 100-240VAC, 150mA, 50-60Hz Made in China 8830-19282 REV A00 4005557 N300 Wireless Range Extender Model: F9K1015V1 FCC ID:K7SF9K1015V1 / IC:3623A-F9K1015V1 100-240VAC, 150mA, 50-60Hz Made in China 8830-19282 REV A00 16.43mm 50.2mm

Report No.:410924 SPORTON International Inc. PAGE NUMBER : 1 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Feb. 14, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:410924 SPORTON International Inc. PAGE NUMBER : 2 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Feb. 14, 2014 FAX : 886-3-327-0973 Report No.:410924 SPORTON International Inc. PAGE NUMBER : 3 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Feb. 14, 2014 FAX : 886-3-327-0973 Report No.:410924 SPORTON International Inc. PAGE NUMBER : 4 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Feb. 14, 2014 FAX : 886-3-327-0973 Report No.:410924 SPORTON International Inc. PAGE NUMBER : 5 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Feb. 14, 2014 FAX : 886-3-327-0973

Report No.: FR410924 FCC ID: K7SF9K1015V1 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR410924 FCC ID: K7SF9K1015V1 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR410924 FCC ID: K7SF9K1015V1 Page No. : B3 of B3 1.3. Calculated Result and Limit Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11b: 16.49 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 16.4900 44.5656 0.014059 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Belkin International, Inc. Applicant Address 12045 East Waterfront Drive, Playa Vista, CA 90094, USA FCC ID K7SF9K1015V1 Product Name N300 Wireless Range Extender Brand Name Belkin Model No. F9K1015V1 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Jan. 09, 2014 Final Test Date Jan. 27, 2014 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r01 and KDB 662911 D01 v02r01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR410924 Report Format Version: 01 Page No. : i of ii FCC ID: K7SF9K1015V1 Issued Date : Feb. 12, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................7 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. EUT Operation during Test ...................................................................................................................................................................8 3.10. Duty Cycle ..........................................................................................................................................................................................9 3.11. Test Configurations ...........................................................................................................................................................................11 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................18 4.3. Power Spectral Density Measurement ..............................................................................................................................................21 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................28 4.5. Radiated Emissions Measurement ....................................................................................................................................................33 4.6. Emissions Measurement ....................................................................................................................................................................52 4.7. Antenna Requirements .....................................................................................................................................................................70 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 71 6. MEASUREMENT UNCERTAINTY.......................................................................................................................... 73 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A5 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE ....…

Text truncated - open the document above for the full version.

Report No.: FR410924 FCC ID: K7SF9K1015V1 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR410924 FCC ID: K7SF9K1015V1 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR410924 FCC ID: K7SF9K1015V1 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR410924 FCC ID: K7SF9K1015V1 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR410924 FCC ID: K7SF9K1015V1 Page No. : A5 of A5 Test Configuration: Above 1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW
