K7SF9K1102V2N600 DB Wireless N + Router

WIRELESS DUAL-BAND N+ ROUTER N600 DB USER MANUAL 8820-00777 Rev. CB00 F9K1102V21 Ok mk 1/12/11 TABLE OF CONTENTS Getting Started What’s in the Box Initial Setup Advanced Tools & Settings The Belkin Router Manager Adding Computers to Your Network Manually Set Up Your Internet Connection Adding USB Devices Bundled Software Getting to Know Your Router Front Panel Back Panel Technical Details Technical Features System Requirements Using Your Router Enabling Auto Update on Your Router Updating Your Router via Your System Tray Updating the Router’s Firmware via the Web Interface Resetting the Router Restoring your Router to Factory Defaults Restoring the Router to Default Settings Using the Web Interface Troubleshooting, Support, and Warranty Troubleshooting Technical Support Belkin International, Inc., Limited 2-Year Product Warranty Regulatory Information FCC Statement Getting Started What’s in the Box N600 DB Wireless Dual‐Band N+ Router Ethernet cable (attached to router) Power supply (attached to router) Network information card (attached to router) Belkin Setup CD with User Manual Quick Setup Guide Initial Setup Where to Place Your Router For the best results, place the Router next to your modem in an open location away from large metal objects and magnets such as those found in speakers. Raising the Router above floor level can improve the strength of your wireless signal. How to Set It Up Connect Your N600 DB Router 1. Turn off your modem by disconnecting its power supply. 2. Connect your Router to your modem using the cable (already attached). [You can get the actual artwork from the N900DB QIG “QIG_F9K1104_8830-06656_N900.pdf”] 3. Power up your modem by plugging in its power supply. 4. Power up your Router by plugging in its power supply. [You can get the actual artwork from the N900DB QIG “QIG_F9K1104_8830-06656_N900.pdf”] Run the Installer Software Insert the included CD into your computer. Find the setup program and open it. It should run automatically; if not, find the setup program and open it. fFollow the prompts. The setup software will configure your Internet connection and let you know when things are working. If you have DSL, you may need a username and password from your Internet provider. [Image of laptop and CD] [You can get the actual artwork from the N900DB QIG “QIG_F9K1104_8830-06656_N900.pdf”] [SCREENSHOT OF SETUP MENU setup menu.png] 1) Click the Setup icon on the CD menu. [ Diagram of bottom of the router showing service card – can be obtained from “Tested QIG 2011 07 14.pdf” provided ] 2) After a brief installation, the setup software will ask you for the network name and password from the network information card that is stored in the foot of your new Belkin Router. Store the card under the base of your Router for future reference. [SCREENSHOT OF SUCCESS setup success.png] 3) A progress screen will appear while additional software is installed. This may take a few minutes to complete. Once finished, a “Success” message will appear indicating that you are connected to the Internet via your new Belkin Router. During setup you may be asked for additional information. You may need to enter a username and password provided by your ISP. This username and password is likely to be found on materials that came from your ISP when you signed up for service. If necessary, you may need to contact your ISP to retrieve your username and password. If you have a static IP address, you may need to enter additional information also provided by your ISP. If your computer doesn’t have a wireless adapter, or the setup software is unable to control it, you may be asked to connect your computer to the Router with a network cable. Advanced Tools & Settings [SCREENSHOT OF ADVANCED MENU setup advanced2.png] After the initial setup is complete, you have the option to change settings like your network name, security type, and password. To make these changes and others, click on the Advanced Tools icon at the CD Setup menu and select one of the following settings that you would like to change: Network Name & Security Personalize your network name (SSID), password, and strength of wireless security. Internet Service Provider & Login Settings Have you moved or changed Internet Service Providers? If you’d like to change these settings without running through the setup process again, this is the place. The Belkin Router Manager [N600 SCREENSHOT OF TRAY APP MENU (TBD)] The Belkin Router Manager appears in your system tray (Windows) or menu bar (Mac). Its icon indicates the current status of your Router and also allows you to access your Router’s settings to make changes. It also provides quick access to software that came bundled with your Router. To access the Router settings, click on the icon and select from the menu that appears. The status of your Router is shown by the Belkin Router Manager icon, which closely mimics the light on the front of the Router. Blue: You are connected to your Belkin Router and it is connected to the Internet. Amber: You are connected to your Belkin Router, but it is not connected to the Internet. Adding Computers to Your Network Wireless devices such as computers, network printers, and gaming systems can connect to your Router with a few simple steps. Using the CD 1) Put the Setup CD into your computer. If the CD doesn’t open automatically, browse to your CD drive and open the Belkin Setup CD icon. 2) Click the Setup icon on the CD menu. 3) After a brief installation, the setup software will ask you for the network name and password from the network information card that came with your Router. This card is most likely now located underneath the foot of your Router in the provided card slot. 4) A progress screen will appear while additional software is installed. This may take a few minutes to complete. Once finished, a “Success” message will appear indicating that you are connected to the Internet via your new Belkin Router. Note: The setup software runs only on Wi…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: June 11, 2012 Subject: FCC Application for FCC ID: K7SF9K1102V2 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Applicant : Belkin International, Inc. Address : 12045 East Waterfront Dr. Playa Vista California 90094 United States Signature : _________________________________ Name and Job Title. : Daniel Wesey / EMC Regulatory Compliance Engineer E-mail : [email protected] Tel. : (310) 751-2816

Date: 2012/6/11 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: K7SF9K1102V2 Product name: N600 DB Wireless N+ Router To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model F9K1102V2 to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Belkin International, Inc. Address : 12045 East Waterfront Dr. Playa Vista California 90094 United States Signature : _________________________________ Name and Job Title. : Daniel Wesey / EMC Regulatory Compliance Engineer E-mail : [email protected] Tel. : (310) 751-2816

Date: June 11, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: K7SF9K1102V2 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until October 20, 2012. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Belkin International, Inc. Address : 12045 East Waterfront Dr. Playa Vista California 90094 United States Signature : _________________________________ Name and Job Title. : Daniel Wesey / EMC Regulatory Compliance Engineer E-mail : [email protected]

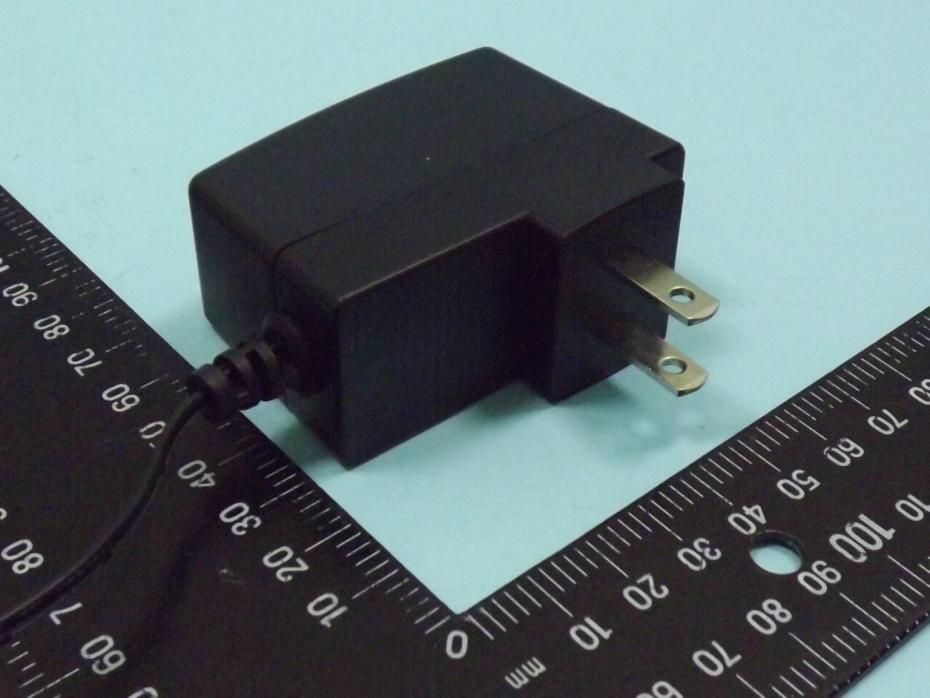

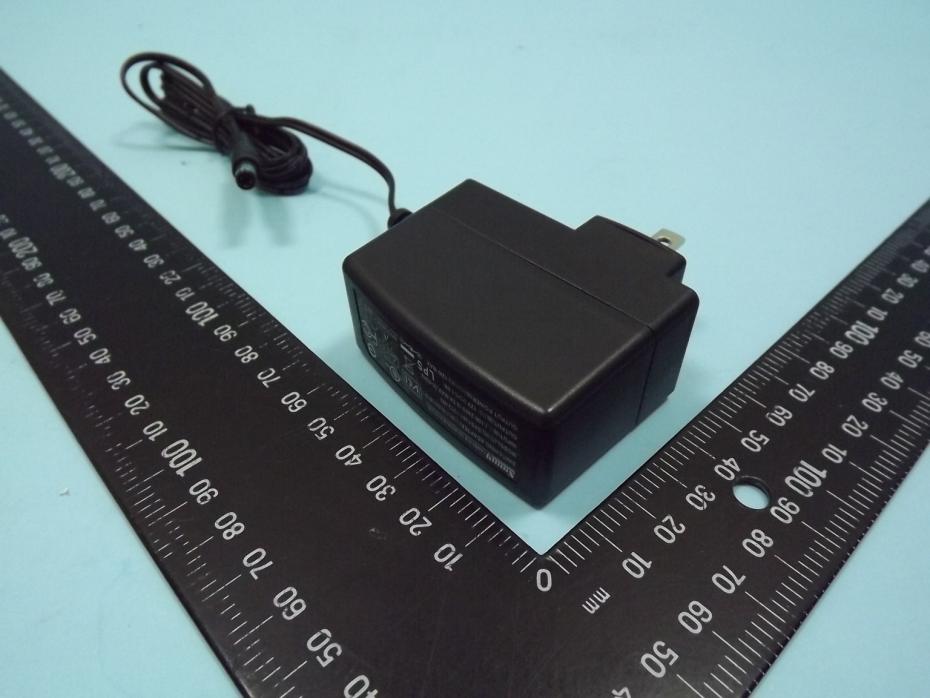

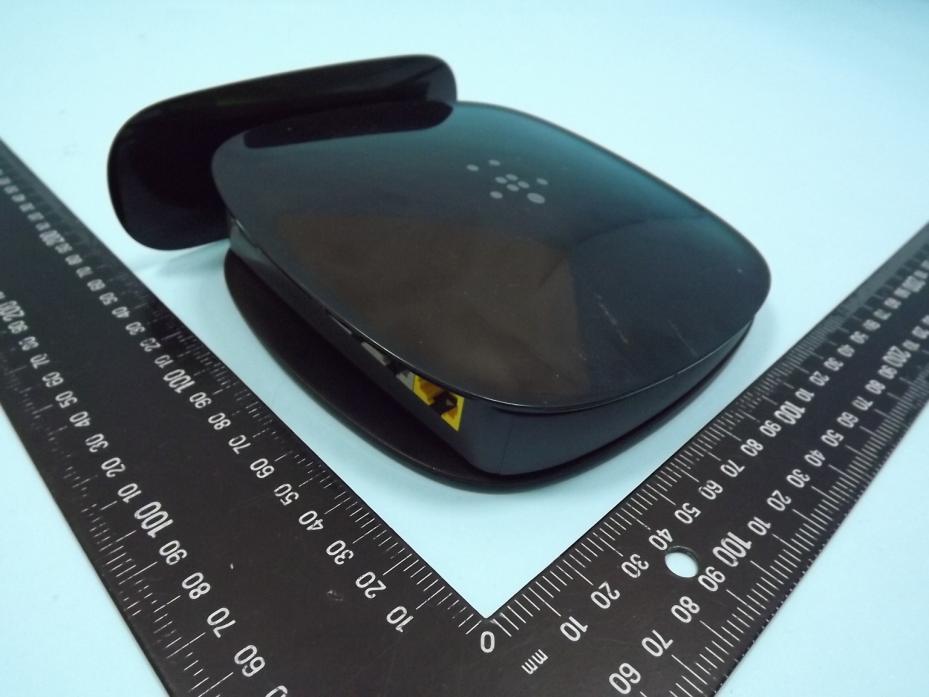

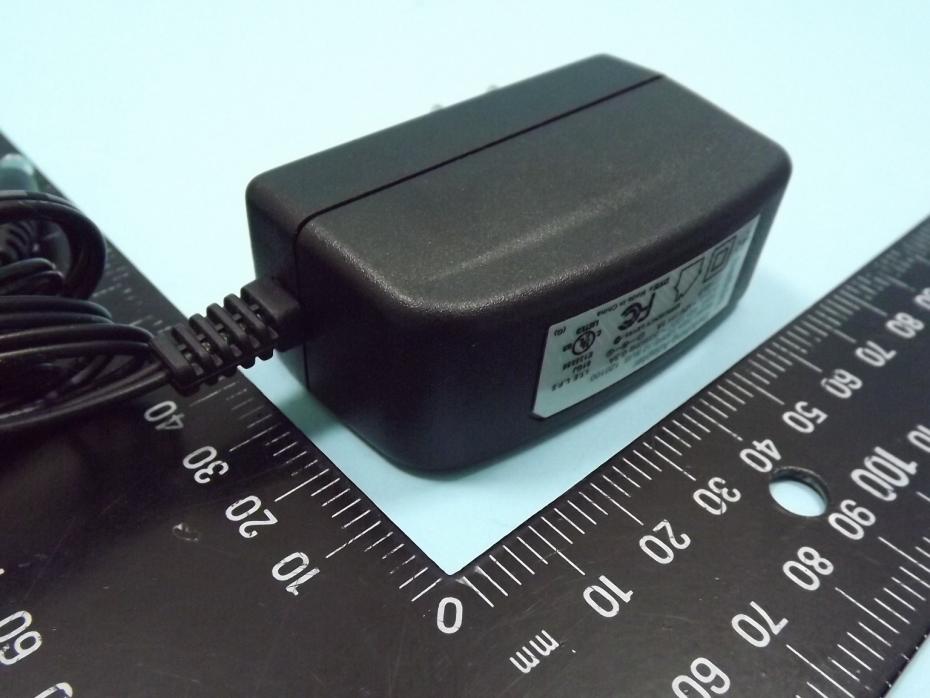

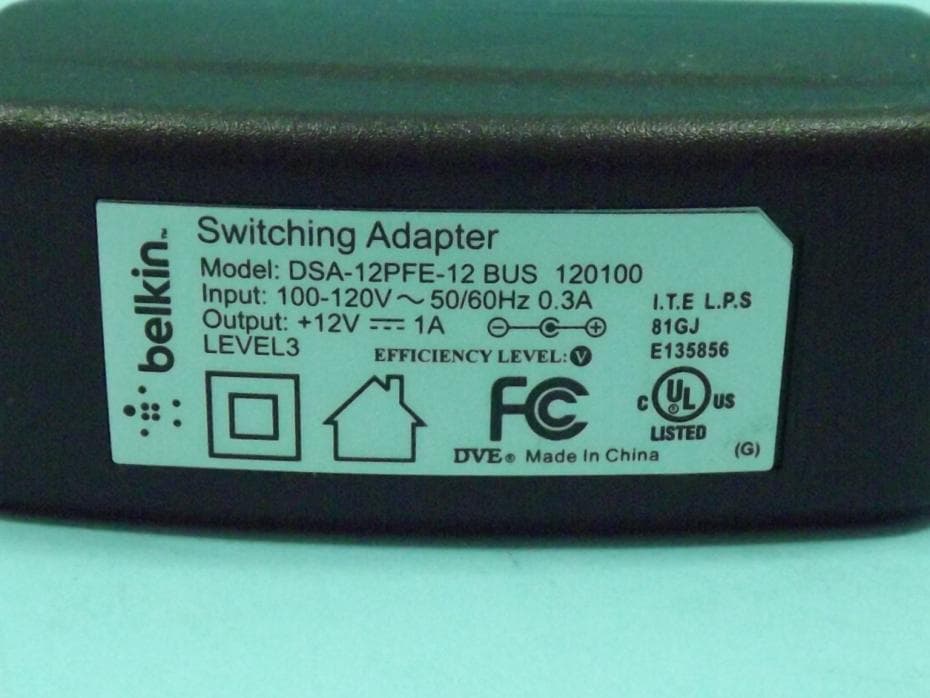

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Jun. 27, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Jun. 27, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B16 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Jun. 27, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B17 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Jun. 27, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B18 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Jun. 27, 2012 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page No. : 75 of 80 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC ID : K7SF9K1102V2 FCC Test Report Report No. : FR241874AC 4 Maximum Permissible Exposure 4.1 Maximum Permissible Exposure 4.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 SPORTON INTERNATIONAL INC. Page No. : 76 of 80 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC ID : K7SF9K1102V2 FCC Test Report Report No. : FR241874AC RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 4.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   SPORTON INTERNATIONAL INC. Page No. : 77 of 80 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC ID : K7SF9K1102V2 FCC Test Report Report No. : FR241874AC 4.1.3 Result of Maximum Permissible Exposure Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location b 1 1 N/A 15.85 N/A g 2 2 Correlated 24.66 N/A n (HT20) 2 2 Uncorrelated 25.44 N/A n (HT40) 2 2 Uncorrelated 23.74 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 - - Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 15.85 - - - 15.85 3.95 19.80 0.0190 11G-20M 1 24.66 - - - 24.66 3.95 28.61 0.1445 11N2.4G-20M 2 21.96 22.86 - - 25.44 3.80 29.24 0.1671 11N2.4G-40M 2 19.92 21.42 - - 23.74 3.80 27.54 0.1130 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains SPORTON INTERNATIONAL INC. Page No. : 65 of 70 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC ID : K7SF9K1102V2 FCC Test Report Report No. : FR241874AI 4 Maximum Permissible Exposure 4.1 Maximum Permissible Exposure 4.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 SPORTON INTERNATIONAL INC. Page No. : 66 of 70 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC ID : K7SF9K1102V2 FCC Test Report Report No. : FR241874AI RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page No. : 1 of 75 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC ID : K7SF9K1102V2 FCC Test Report Report No. : FR241874AN FCC Test Report Equipment : N600 DB Wireless N+ Router Brand Name : Belkin Model No. : F9K1102V2 FCC ID : K7SF9K1102V2 Standard : 47 CFR FCC Part 15.407 Applicant Manufacturer : Belkin International Inc. 12045 E. Waterfront Drive Playa Viste, CA 90094, USA The product sample received on Apr. 18, 2012 and completely tested on Jun. 21, 2012. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Wayne Hsu / Assistant Manager Tested by: XXXX / Engineer SPORTON INTERNATIONAL INC. Page No. : 2 of 75 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC ID : K7SF9K1102V2 FCC Test Report Report No. : FR241874AN Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 9 1.3 Testing Applied Standards ..................................................................................................................... 9 1.4 Testing Location Information .................................................................................................................. 9 1.5 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION OF EUT ....................................................................................................... 11 2.1 The Worst Case Modulation Configuration .......................................................................................... 11 2.2 Test Channel Frequencies Configuration ............................................................................................. 11 2.3 The Worst Case Power Setting Parameter .......................................................................................... 12 2.4 The Worst Case Measurement Configuration ...................................................................................... 13 2.5 Test Setup Diagram ............................................................................................................................. 15 3 TRANSMITTER TEST RESULT .......................................................................................................... 17 3.1 AC Power-line Conducted Emissions .................................................................................................. 17 3.2 Emission Bandwidth ............................................................................................................................. 20 3.3 RF Output Power .................................................................................................................................. 25 3.4 Peak Power Spectral Density ............................................................................................................... 29 3.5 Peak Excursion..................................................................................................................................... 35 3.6 Transmitter Radiated Bandedge Emissions ......................................................................................... 39 3.7 Transmitter Radiated Unwanted Emissions ......................................................................................... 46 3.8 Frequency Stability ............................................................................................................................... 68 4 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................. 70 4.1 Maximum Permissible Exposure .......................................................................................................... 70 5 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 73 6 CE RTIFICATION OF TAF ACCREDITATION ..................................................................................... 75 APPENDIX A. TEST PHOTOS .............................................................................................................. A1 ~ A6 APPENDIX B. PHOTOGRAPHS OF EUT ........................................................................................... B1 ~ B19 SPORTON INTERNATIONAL INC. Page No. : 3 of 75 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC ID : K7SF9K1102V2 FCC Test Report Report No. : FR241874AN Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions 0.37511MHz: 40.04 (8.35 dB) - AV 42.74 (15.65dB) - QP [Ref. page 18] FCC 15.207 Complied 3.2 15.407(a) Emission Bandwidth Bandwidth [MHz] 20MHz: 22.72 40MHz: 40.32 Information only Complied 3.3 15.407(a) RF Output Power (Maximum Conducted Output Power) Power [dBm] 5180-5240MHz: 14.64 5190-5230MHz: 16.16 Power [dBm] 5180-5240MHz: 17 5190-5230MHz: 17 Complied 3.4 15.407(a) Peak Power Spectral Density PPSD [dBm/MHz] 5180-5240MHz: 1.87 5190-5230MHz: 0.93 PPSD [dBm/MHz] 5180-5240MHz: 4 5190-5230MHz: 4 Complied 3.5 15.407(a) Peak Excursion 6.16 dB 13 dB Complied 3.6 15.407(b…

Text truncated - open the document above for the full version.

Page No. : A1 of A6 FCC ID : K7SF9K1102V2 F FCC TEST REPORT Report No. : FR241874AC Appendix A. Test Photos Page No. : A2 of A6 FCC ID : K7SF9K1102V2 F FCC TEST REPORT Report No. : FR241874AC 1 Photographs of Conducted Emissions Test Configuration Mode 1 FRONT VIEW REAR VIEW Page No. : A3 of A6 FCC ID : K7SF9K1102V2 F FCC TEST REPORT Report No. : FR241874AC SIDE VIEW Page No. : A4 of A6 FCC ID : K7SF9K1102V2 F FCC TEST REPORT Report No. : FR241874AC 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW Page No. : A5 of A6 FCC ID : K7SF9K1102V2 F FCC TEST REPORT Report No. : FR241874AC For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW Page No. : A6 of A6 FCC ID : K7SF9K1102V2 F FCC TEST REPORT Report No. : FR241874AC For radiated emissions above 1GHz FRONT VIEW REAR VIEW
