K7SF9K1102V3N600 DB Wireless N+ Router

<NEW BELKIN LOGO> Wireless N+ ROUTER N600 DB USER MANUAL 8820-00777 Rev. E01 F9K1102V3 TABLE OF CONTENTS Getting Started What’s in the Box Initial Setup Advanced Tools & Settings The Belkin Router Manager Adding Computers to Your Network Manually Set Up Your Internet Connection Additional Capabilities Adding USB Devices USB Print and Storage Manager Guest Access Media Server by myTwonky Content Filtering by Norton IntelliStream QoS IPv6 Configuration Getting to Know Your Router Front Panel Back Panel Technical Details Technical Features System Requirements Using Your Router Enabling Auto Update on Your Router Updating Your Router via Your System Tray Updating the Router’s Firmware via the Web Interface Resetting the Router Restoring your Router to Factory Defaults Restoring the Router to Default Settings Using the Web Interface Troubleshooting, Support, and Warranty Troubleshooting Technical Support Belkin International, Inc., Limited 2-Year Product Warranty Regulatory Information FCC Statement Getting Started What’s in the Box N600 DB Wireless N+ Router Ethernet cable (attached to router) Power supply (attached to router) Network information card (attached to router) Belkin Setup CD with User Manual Quick Setup Guide Initial Setup Where to Place Your Router For the best results, place the Router next to your modem in an open location away from large metal objects and magnets such as those found in speakers. Raising the Router above floor level can improve the strength of your wireless signal. How to Set It Up Connect Your N600 DB Router 1. Turn off your modem by disconnecting its power supply. 2. Connect your Router to your modem using the cable (already attached). [You can get the actual artwork from the N900DB QIG “QIG_F9K1104_8830- 06656_N900.pdf”] 3. Power up your modem by plugging in its power supply. 4. Power up your Router by plugging in its power supply. [You can get the actual artwork from the N900DB QIG “QIG_F9K1104_8830- 06656_N900.pdf”] Run the Installer Software Insert the included CD into your computer. It should run automatically; if not, find the setup program and open it. Follow the prompts. The setup software will configure your Internet connection and let you know when things are working. If you have DSL, you may need a username and password from your Internet provider. [Image of laptop and CD] [You can get the actual artwork from the N900DB QIG “QIG_F9K1104_8830- 06656_N900.pdf”] [SCREENSHOT OF SETUP MENU setup menu.png] 1) Click the Setup icon on the CD menu. [ Diagram of bottom of the router showing service card – can be obtained from “Tested QIG 2011 07 14.pdf” provided ] 2) After a brief installation, the setup software will ask you for the network name and password from the network information card that is stored in the foot of your new Belkin Router. Store the card under the base of your Router for future reference. [SCREENSHOT OF SUCCESS setup success.png] 3) A progress screen will appear while additional software is installed. This may take a few minutes to complete. Once finished, a “Success” message will appear indicating that you are connected to the Internet via your new Belkin Router. During setup you may be asked for additional information. You may need to enter a username and password provided by your ISP. This username and password is likely to be found on materials that came from your ISP when you signed up for service. If necessary, you may need to contact your ISP to retrieve your username and password. If you have a static IP address, you may need to enter additional information also provided by your ISP. If your computer doesn’t have a wireless adapter, or the setup software is unable to control it, you may be asked to connect your computer to the Router with a network cable. Advanced Tools & Settings [SCREENSHOT OF ADVANCED MENU setup advanced2.png] After the initial setup is complete, you have the option to change settings like your network name, security type, and password. To make these changes and others, click on the Advanced Tools icon at the CD Setup menu and select one of the following settings that you would like to change: Network Name & Security Personalize your network name (SSID), password, and strength of wireless security. Internet Service Provider & Login Settings Have you moved or changed Internet Service Providers? If you’d like to change these settings without running through the setup process again, this is the place. The Belkin Router Manager [N600 SCREENSHOT OF TRAY APP MENU (TBD)] The Belkin Router Manager appears in your system tray (Windows) or menu bar (Mac). Its icon indicates the current status of your Router and also allows you to access your Router’s settings to make changes. It also provides quick access to software that came bundled with your Router. To access the Router settings, click on the icon and select from the menu that appears. The status of your Router is shown by the Belkin Router Manager icon, which closely mimics the light on the front of the Router. Blue: You are connected to your Belkin Router and it is connected to the Internet. Amber: You are connected to your Belkin Router, but it is not connected to the Internet. Adding Computers to Your Network Wireless devices such as computers, network printers, and gaming systems can connect to your Router with a few simple steps. Using the CD 1) Put the Setup CD into your computer. If the CD doesn’t open automatically, browse to your CD drive and open the Belkin Setup CD icon. 2) Click the Setup icon on the CD menu. 3) After a brief installation, the setup software will ask you for the network name and password from the network information card that came with your Router. This card is most likely now located underneath the foot of your Router in the provided card slot. 4) A progress screen will appear while additional software is installed. This may take a few minutes to complete. Once finished, a “Success” message will appear indicating that you are connec…

Text truncated - open the document above for the full version.

BELKIN INTERNATIONAL, INC. 12045 East Waterfront Drive Playa Vista California 90094 United States Tel: 1-310-751-5100 / Fax: 1-310-751-5912 Power of Attorney Date: 2012/5/17 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: BELKIN / F9K1102v3 FCC ID: K7SF9K1102V3 Product name: N600 DB Wireless N+ Router FCC Grantee contact person information. Applicant’s company name : BELKIN INTERNATIONAL, INC. Applicant’s company address : 12045 East Waterfront Drive Playa Vista California 90094 United States Signature : _____________________________ Job Title and Dept. : Daniel Wesey / Manager, Global Engineering Services E-Mail : [email protected] Tel. : 1-310-751-2816

BELKIN INTERNATIONAL, INC. 12045 East Waterfront Drive Playa Vista California 90094 United States Tel: 1-310-751-5100 / Fax: 1-310-751-5912 DoC Attestation Letter Date: 2012/5/17 We BELKIN INTERNATIONAL, INC. , as the grantee of this project FCC ID: K7SF9K1102V3, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD242601, FCC Test Firm Registration No.: 187376). Regards, FCC Grantee contact person information. Applicant’s company name : BELKIN INTERNATIONAL, INC. Applicant’s company address : 12045 East Waterfront Drive Playa Vista California 90094 United States Signature : _____________________________ Job Title and Dept. : Daniel Wesey / Manager, Global Engineering Services E-Mail : [email protected] Tel. : 1-310-751-2816

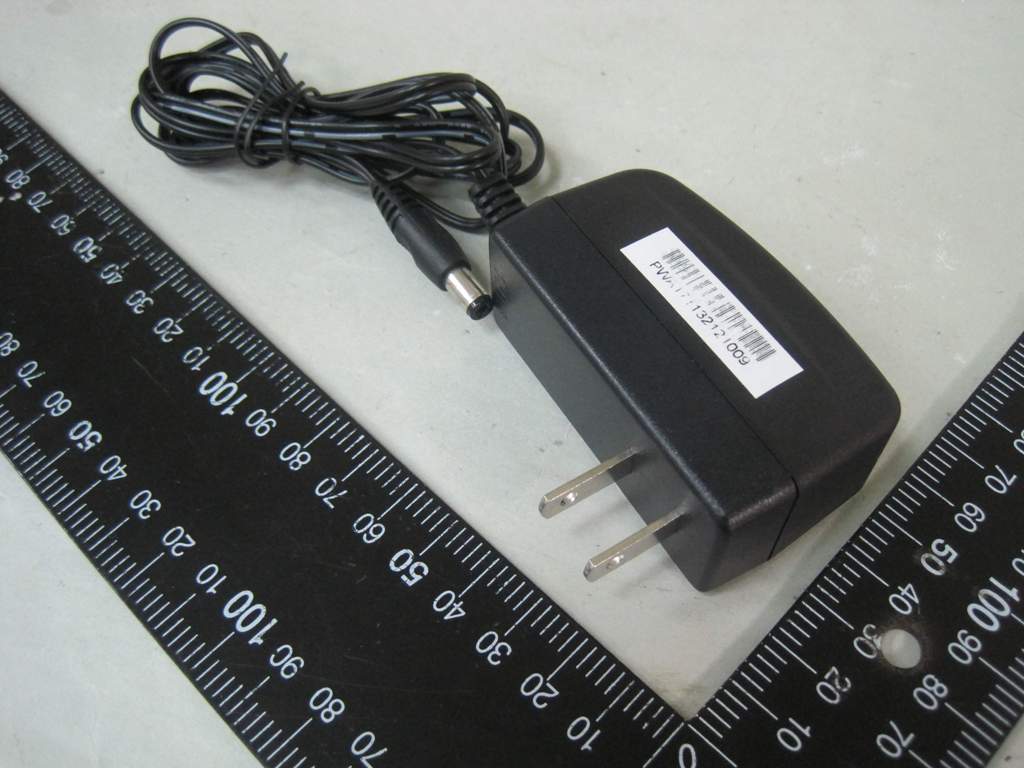

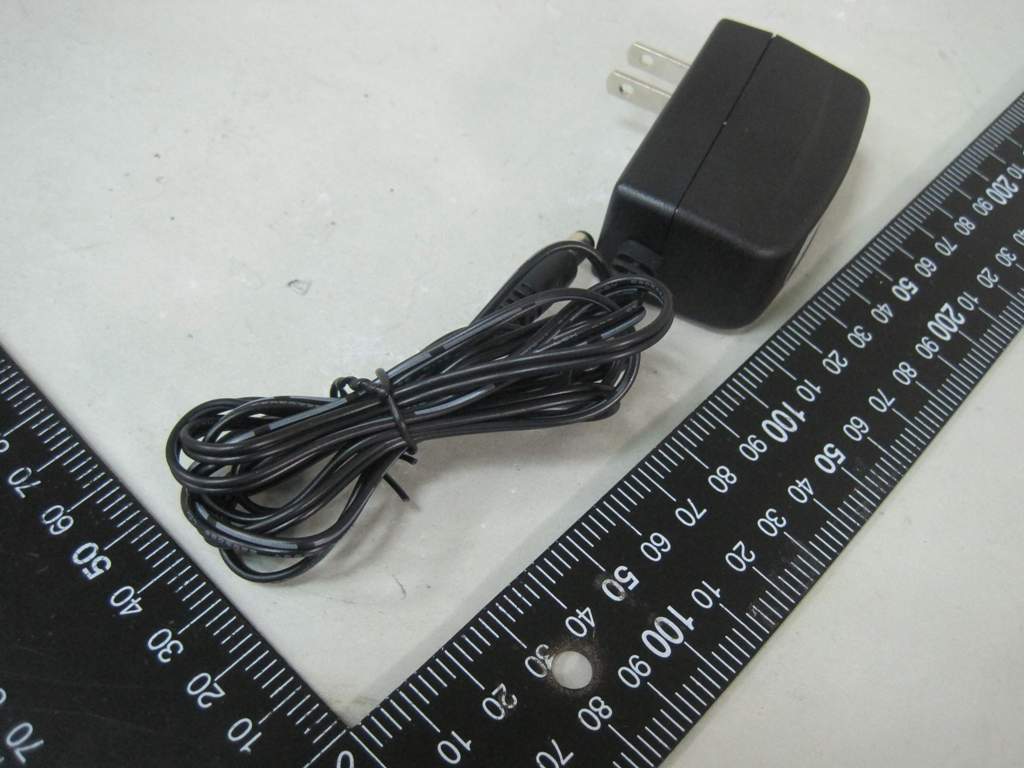

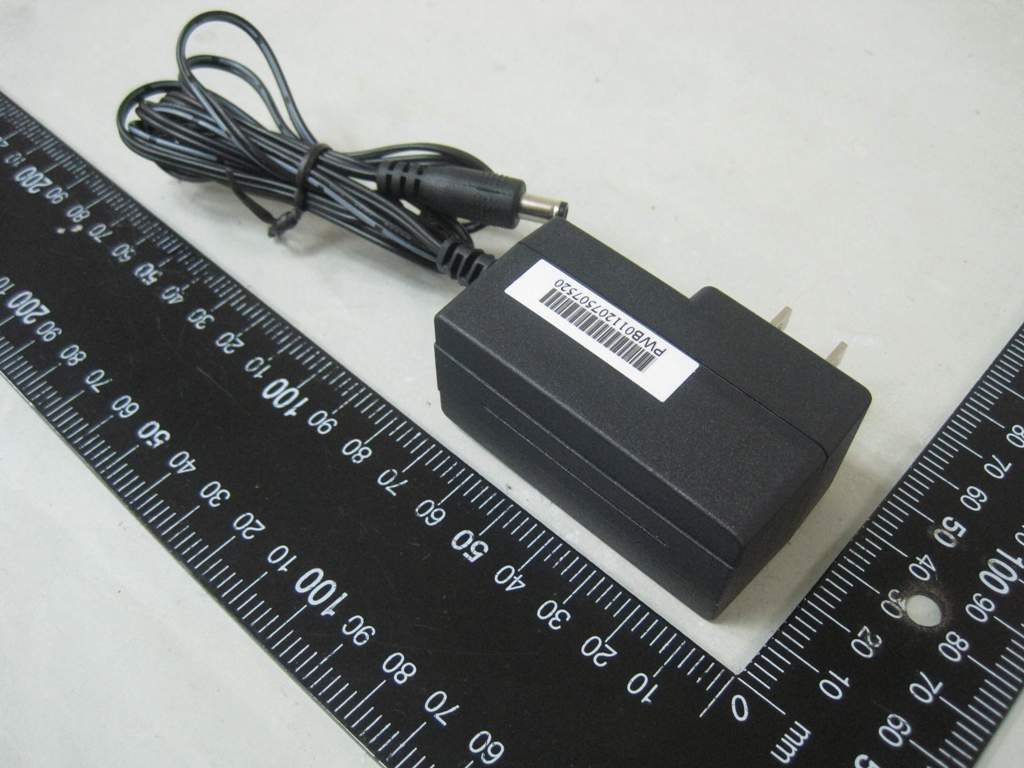

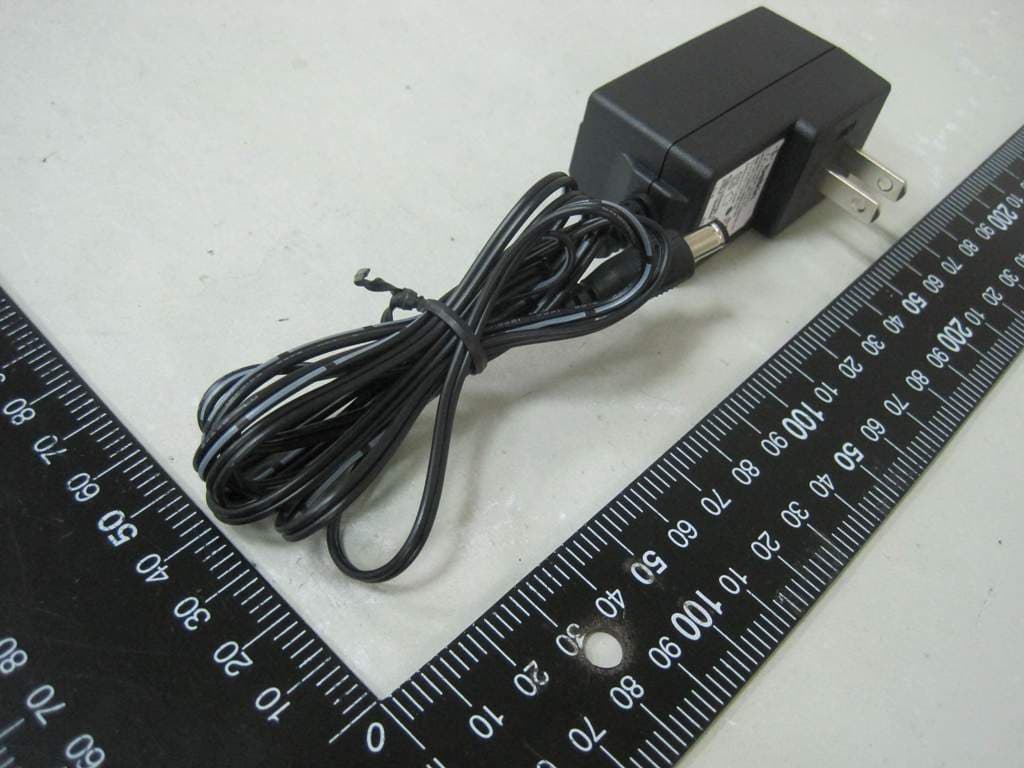

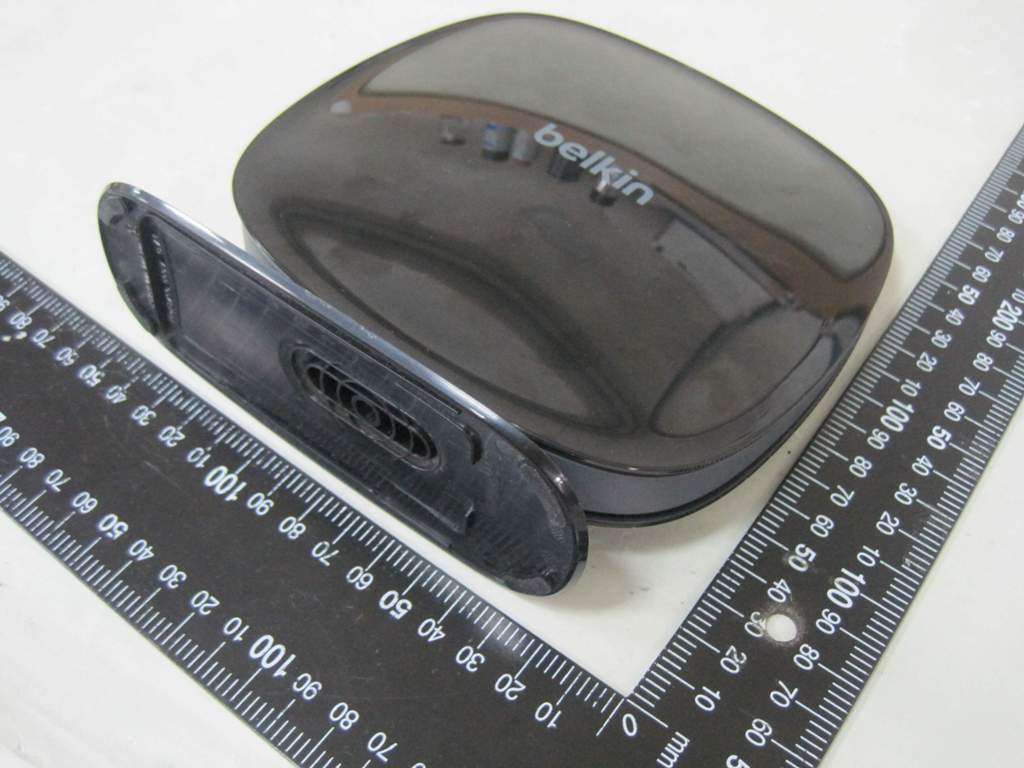

Report No.:242483 SPORTON International Inc. PAGE NUMBER : D1 OF D6 TEL : 886-2-2696-2468 ISSUED DATE : May 31, 2012 FAX : 886-2-2696-2255 APPENDIX D. Photographs of EUT Report No.:242483 SPORTON International Inc. PAGE NUMBER : D2 OF D6 TEL : 886-2-2696-2468 ISSUED DATE : May 31, 2012 FAX : 886-2-2696-2255 Report No.:242483 SPORTON International Inc. PAGE NUMBER : D3 OF D6 TEL : 886-2-2696-2468 ISSUED DATE : May 31, 2012 FAX : 886-2-2696-2255 Adapter 1 Brand name: Belkin Model name: MT12-Y120100-A1 Report No.:242483 SPORTON International Inc. PAGE NUMBER : D4 OF D6 TEL : 886-2-2696-2468 ISSUED DATE : May 31, 2012 FAX : 886-2-2696-2255 Report No.:242483 SPORTON International Inc. PAGE NUMBER : D5 OF D6 TEL : 886-2-2696-2468 ISSUED DATE : May 31, 2012 FAX : 886-2-2696-2255 Adapter 2 Brand name: Belkin Model name: DSA-12PFE-12BUS 120100 Report No.:242483 SPORTON International Inc. PAGE NUMBER : D6 OF D6 TEL : 886-2-2696-2468 ISSUED DATE : May 31, 2012 FAX : 886-2-2696-2255

Report No.:242483 SPORTON International Inc. PAGE NUMBER : D1 OF D6 TEL : 886-2-2696-2468 ISSUED DATE : May 31, 2012 FAX : 886-2-2696-2255 APPENDIX D. Photographs of EUT Report No.:242483 SPORTON International Inc. PAGE NUMBER : D2 OF D6 TEL : 886-2-2696-2468 ISSUED DATE : May 31, 2012 FAX : 886-2-2696-2255 Report No.:242483 SPORTON International Inc. PAGE NUMBER : D3 OF D6 TEL : 886-2-2696-2468 ISSUED DATE : May 31, 2012 FAX : 886-2-2696-2255 Report No.:242483 SPORTON International Inc. PAGE NUMBER : D4 OF D6 TEL : 886-2-2696-2468 ISSUED DATE : May 31, 2012 FAX : 886-2-2696-2255 Report No.:242483 SPORTON International Inc. PAGE NUMBER : D5 OF D6 TEL : 886-2-2696-2468 ISSUED DATE : May 31, 2012 FAX : 886-2-2696-2255 Report No.:242483 SPORTON International Inc. PAGE NUMBER : D6 OF D6 TEL : 886-2-2696-2468 ISSUED DATE : May 31, 2012 FAX : 886-2-2696-2255

Report No.: FR242483 FCC ID: K7SF9K1102V3 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR242483 FCC ID: K7SF9K1102V3 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR242483 FCC ID: K7SF9K1102V3 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11n : 15.84 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.53 2.2542 15.8382 38.3549 0.017210 1 Complies For 5GHz ISM Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11a: 21.29dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.54 4.5085 21.2857 134.4523 0.120656 1 Complies Note: Directional Antenna Gain = 3.53 + 10 log (2) = 6.54 For 2.4GHz Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11g: 21.76 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.91 3.0976 21.7570 149.8644 0.092401 1 Complies Note: Directional Antenna Gain = 1.9 + 10 log (2) = 4.91 CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.120656 / 1 + 0.092401 / 1 = 0.213057, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Belkin International, Inc. Applicant Address 12045 East Waterfront Drive, Playa Vista, CA 90094 FCC ID K7SF9K1102V3 Product Name N600 DB Wireless N+ Router Brand Name Belkin Model Name F9K1102v3 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Apr. 24, 2012 Final Test Date May 05, 2012 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR242483AA Report Format Version: 01 Page No. : i of ii FCC ID: K7SF9K1102V3 Issued Date : May 31, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................6 3.3. Table for Filed Antenna.......................................................................................................................................................................7 3.4. Table for Carrier Frequencies .............................................................................................................................................................8 3.5. Table for Test Modes ...........................................................................................................................................................................9 3.6. Table for Testing Locations................................................................................................................................................................11 3.7. Table for Supporting Units .................................................................................................................................................................11 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................12 3.9. Test Configurations ...........................................................................................................................................................................14 4. TEST RESULT ................................................................................................................................................... 17 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................17 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................23 4.3. Average Output Power Measurement ..............................................................................................................................................26 4.4. Power Spectral Density Measurement ..............................................................................................................................................29 4.5. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................41 4.6. Radiated Emissions Measurement ....................................................................................................................................................48 4.7. Band Edge Emissions Measurement .................................................................................................................................................76 4.8. Antenna Requirements .....................................................................................................................................................................88 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 89 6. TEST LOCATION.............................................................................................................................................. 91 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 92 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A5 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE .......................................................................................... B1 ~ B3 APP…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Belkin International, Inc. Applicant Address 12045 East Waterfront Drive, Playa Vista, CA 90094 FCC ID K7SF9K1102V3 Product Name N600 DB Wireless N+ Router Brand Name Belkin Model Name F9K1102v3 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Apr. 24, 2012 Final Test Date May 05, 2012 Submission Type Original Equipment Operating Mode Master Statement Test result included is for the IEEE 802.11n and IEEE 802.11a (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR242483AB Report Format Version: 01 Page No. : i of ii FCC ID: K7SF9K1102V3 Issued Date : May 31, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations..................................................................................................................................................................9 3.7. Table for Supporting Units .................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.9. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................15 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................21 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................28 4.4. Power Spectral Density Measurement ..............................................................................................................................................31 4.5. Peak Excursion Measurement ...........................................................................................................................................................37 4.6. Radiated Emissions Measurement ....................................................................................................................................................42 4.7. Band Edge Emissions Measurement .................................................................................................................................................58 4.8. Frequency Stability Measurement ....................................................................................................................................................63 4.9. Antenna Requirements .....................................................................................................................................................................65 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 66 6. TEST LOCATION.............................................................................................................................................. 68 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 69 APPENDIX A. TEST PHOTOS ..........................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR242483 FCC ID: K7SF9K1102V3 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR242483 FCC ID: K7SF9K1102V3 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 21°C Humidity 56.4% Test Engineer Serway Li Configurations 2.4G + 5G RX Horizontal Report No.: FR242483 FCC ID: K7SF9K1102V3 Page No. : C3 of C3 Vertial

Report No.: FR242483 FCC ID: K7SF9K1102V3 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR242483 FCC ID: K7SF9K1102V3 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR242483 FCC ID: K7SF9K1102V3 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR242483 FCC ID: K7SF9K1102V3 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR242483 FCC ID: K7SF9K1102V3 Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
