K7SF9K1103V1

Belkin International, Inc.

N750 DB Wirless N+ Router

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: May 05, 2011
Application Purpose: Original Equipment
Date of Application: May 05, 2011
Equipment Note: N750 DB Wirless N+ Router
Frequency Range: 5190.00000000 - 5230.00000000
Company: Belkin International, Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

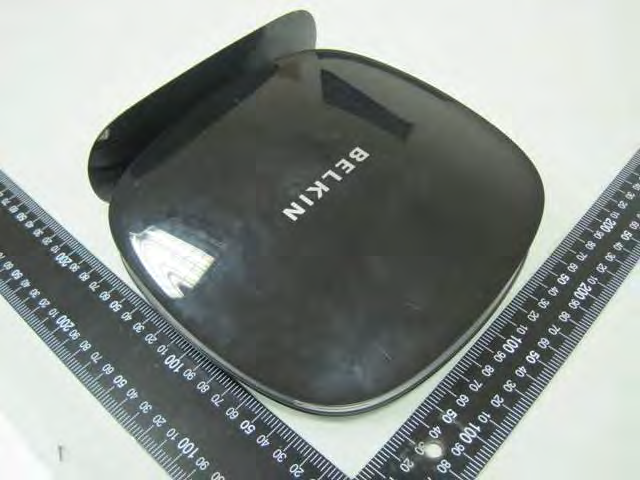

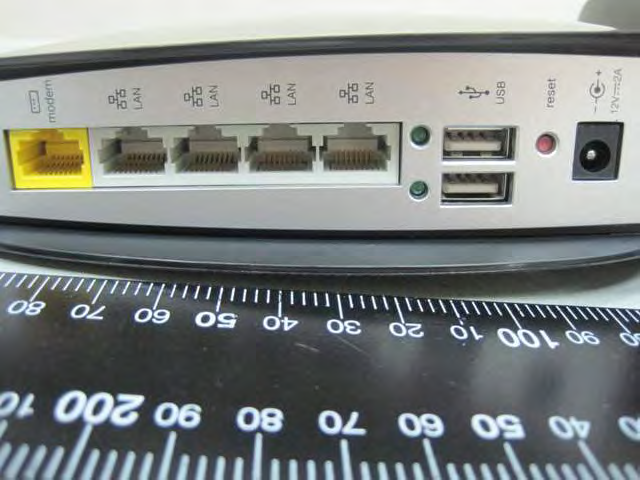

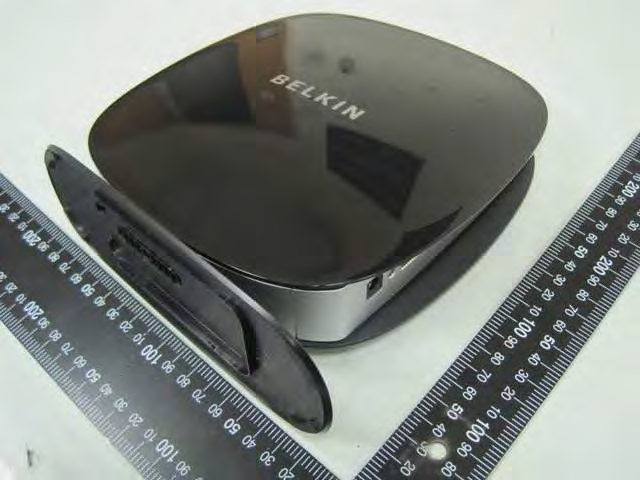

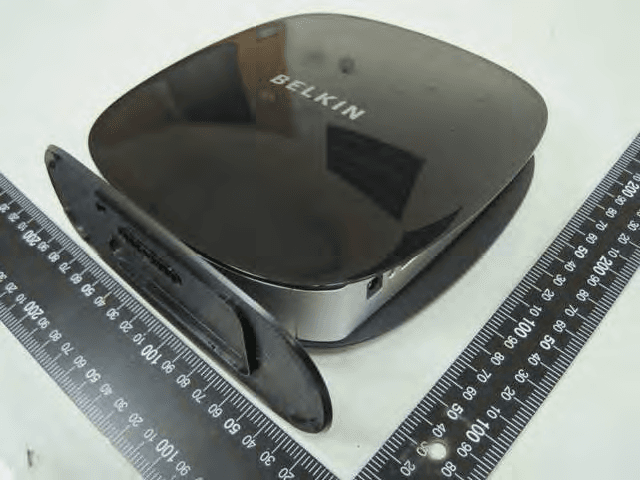

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15E	5.19 GHz - 5.23 GHz	48.00 mW

Confidentiality

Long Term

Grant Notes

Output Power listed is the maximum combined conducted peak output power as indicated in the filing. This device must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter otherwise documented in this filing. End-users must be provided transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 2T2R (2.4GHz) and 3T3R (5GHz) Spatial Multiplexing MIMO configuration - when operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 5190 - 5230 MHz. Operating of this device in the 5150 MHz to 5250 MHz range is restricted to indoor use only.
