N300 Dual-Band Wi-Fi Range Extender USER MANUAL 8820-01079 Rev. A01 F9K1111v1 Ok mk 2/16/12 TABLE OF CONTENTS Getting Started What’s in the Box Initial Setup Getting to Know Your Dual-Band Wi-Fi Range Extender Front Panel Back Panel Technical Details Technical Features System Requirements Advanced Settings Resetting the Dual-Band Wi-Fi Range Extender Troubleshooting, Support, and Warranty Troubleshooting Technical Support Belkin International, Inc., Limited 2-Year Product Warranty Regulatory Information FCC Statement Getting Started Congratulations on buying an N300 Dual-Band Wi-Fi Range Extender (the Range Extender). This device will enable you to extend the range of your dual-band router to eliminate “dead spots” in your wireless network. The dual-band feature extends both your 2.4GHz and 5GHz networks. What’s in the Box N300 Dual-Band Wi-Fi Range Extender Quick Installation Guide User Manual on CD Initial Setup To get started, you will need: • Your primary wireless router, its network name (SSID), and password. If it’s a dual-band router, please be sure you have both SSIDs and passwords. • A personal computer with a web browser Set Up Your Range Extender Wirelessly [please derive lineart from QIG: 8820-01078 B00] Step 1 Choose an outlet near the edge of your network’s Wi-Fi coverage. Step 2 Plug in your N300DB Range Extender. Step 3 Connect your computer to the “Belkin.setup” wireless network. Make sure nothing is plugged into your Ethernet port. On Windows Vista or Windows 7, please check the option “Connect Automatically” when you select the network . Step 4 Visit “http://Belkin.range” and follow the on-screen instructions . Wired Setup Step 1: Connect the Range Extender to your computer using an Ethernet cable (Ethernet cable not included). Step 2: Plug the Range Extender into a wall socket or other power source. Step 3: On your computer, turn off Wi-Fi. Step 4: Use your favorite browser to visit http://belkin.range and follow the instructions that appear there. Step 5: After your setup is complete, please turn on Wi-Fi. Getting to Know Your Dual-Band Wi-Fi Range Extender A) Status Light Your Range Extender’s status is shown by the light on the front. Off The Range Extender is not plugged into a power source. Blinking Blue The Range Extender is starting up. Solid Blue The Range Extender is connected to the Wi-Fi® network. Solid Amber The Range Extender is connected to the Wi-Fi network but is experiencing a weak signal. The weak signal may be either the 2.4GHz or 5GHz band. A weak signal may lead to performance problems. Consider moving the Range Extender closer to the wireless router. Blinking Amber The Range Extender is not connected to the Wi-Fi network. Check to make sure that your wireless router is functioning properly, and/or move the Range Extender closer to the wireless router. Alternating Blue/Amber The Range Extender is ready to be set up. (Refer to “Getting Started” for instructions on how to set up your Range Extender.) B) Wi-Fi Protected Setup (WPS) Light and Button The WPS button on the top of your Range Extender can be used to help establish a secure connection between your Range Extender and modify the line art other WPS-enabled Wi-Fi devices such as computers. To use the WPS feature on your Range Extender, see “Advanced Settings > Wi-Fi Protected Setup > Using Wi-Fi Protected Setup.” The small LED light near the WPS button shows what is happening while you are using WPS to establish a connection. Off: Idle Blinking Blue: The Range Extender is listening for a WPS-enabled computer or other device. Solid Blue: The Range Extender has made a secure connection with the computer or other device. Blinking Amber: A connection was not created. A) Wired (LAN) Connector Connect AV devices such as a TV, Blu-ray player, gaming console, and other wired devices to the port using an Ethernet cable (not included). B) Reset Button This button is used to restart your Range Extender in rare cases when it functions incorrectly. Resetting the Range Extender will preserve your settings. This button may also be used to restore the factory default settings. Please see the Troubleshooting section for more information. Technical Details System Requirements: • 802.11a/b/g/n 2.4GHz and/or 5GHz wireless router with broadband Internet connection • At least one computer with: Installed wireless network interface card and TCP/IP protocol Windows® XP 32 (SP3 or greater), Windows Vista® 32/64, or Windows 7 32/64; or Mac OS® X v10.5 or above Internet Explorer® v7 or above, Firefox®, Google Chrome™, or Safari® Minimum 1.8GHz processor Minimum 512MB RAM Specifications: • Wireless Standards with Link Rate o IEEE 802.11n (up to 150Mbps for 2.4GHz and 5GHz*) o IEEE 802.11g (up to 54Mbps*) o IEEE 802.11a (up to 54Mbps*) o IEEE 802.11b (up to 11Mbps*) • Wireless Operating Spectrum: o Simultaneous Dual-Band o 2.4GHz and 5GHz • Wireless Security: o Wi-Fi Protected Setup™ o 256-bit WPA®/WPA2® encryption o 64/128-bit WEP encryption • Ports: o 1 LAN Fast Ethernet port Advanced Settings Connecting to the Web Interface When you are connected to your Range Extender, you can access the Range Extender’s Web-Based Advanced User Interface (UI) using your Internet browser. In your browser, type “belkin.range.” Then press the “Enter” key. The Status Page This page shows the detailed status of your Range Extender. The meaning of the various items is detailed below. 1. Quick-Navigation Links 1 3 2 4 5 6 7 You can go directly to any of the Range Extender’s advanced UI pages by clicking directly on these links. 2. Language Shows the active language for the Advanced User Interface. Select the desired language by clicking one of the available languages. 3. Page Name The page you are on can be identified by this name. This User Manual will sometimes refer to pages by name. For instance, “LAN > LAN Settings” refers to the “LAN Settings” page. 4. Version Info The Version Info section gives you information on the hardware part num…

Text truncated - open the document above for the full version.

BELKIN INTERNATIONAL, INC. 12045 East Waterfront Drive Playa Vista California 90094 United States Tel: 1-310-7512816 / Fax: 1-310-751-5912 DoC Attestation Letter Date: 2012/5/16 We BELKIN INTERNATIONAL, INC., as the grantee of this project FCC ID: K7SF9K1111V1, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD242601, FCC Test Firm Registration No.: 187376). Regards, FCC Grantee contact person information. Applicant’s company name : BELKIN INTERNATIONAL, INC. Applicant’s company address : 12045 East Waterfront Drive Playa Vista California 90094 United States Signature : _____________________________ Job Title and Dept. : Daniel Wesey / Manager, Global Engineering Services E-Mail : [email protected] Tel. : 1-310-7512816

BELKIN INTERNATIONAL, INC. 12045 East Waterfront Drive Playa Vista California 90094 United States Tel: 1-310-7512816 / Fax: 1-310-751-5912 Confidential Letter Date: 2012/5/16 Federal Communications Commission Authorization and Evaluation Division FCC ID：K7SF9K1111V1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : BELKIN INTERNATIONAL, INC. Applicant’s company address : 12045 East Waterfront Drive Playa Vista California 90094 United States Signature : _____________________________ Job Title and Dept. : Daniel Wesey / Manager, Global Engineering Services E-Mail : [email protected] Tel. : 1-310-7512816

BELKIN INTERNATIONAL, INC. 12045 East Waterfront Drive Playa Vista California 90094 United States Tel: 1-310-7512816 / Fax: 1-310-751-5912 Power of Attorney Date: 2012/5/16 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: BELKIN / F9K1111v1 FCC ID: K7SF9K1111V1 Product name: N300DB Wireless range extender FCC Grantee contact person information. Applicant’s company name : BELKIN INTERNATIONAL, INC. Applicant’s company address : 12045 East Waterfront Drive Playa Vista California 90094 United States Signature : _____________________________ Job Title and Dept. : Daniel Wesey / Manager, Global Engineering Services E-Mail : [email protected] Tel. : 1-310-7512816

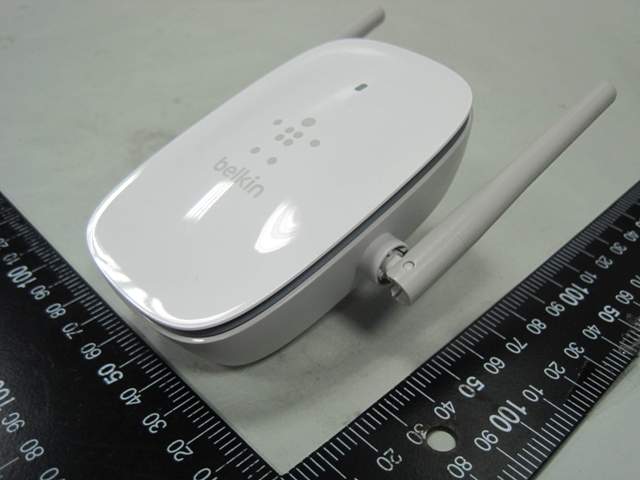

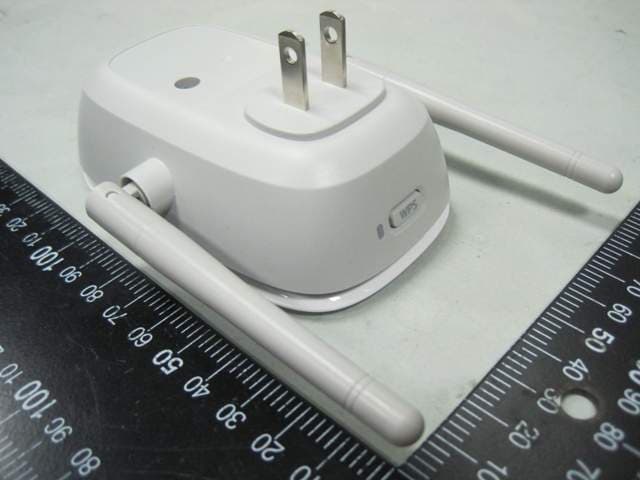

Report No. 242601 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No. 242601 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2012 FAX : 886-2-2696-2255

Report No. 242601 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No. 242601 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2012 FAX : 886-2-2696-2255 Report No. 242601 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2012 FAX : 886-2-2696-2255 Report No. 242601 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2012 FAX : 886-2-2696-2255 Report No. 242601 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2012 FAX : 886-2-2696-2255 Report No. 242601 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2012 FAX : 886-2-2696-2255

Report No.: FR242601 FCC ID: K7SF9K1111V1 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR242601 FCC ID: K7SF9K1111V1 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR242601 FCC ID: K7SF9K1111V1 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a : 15.98dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.90 1.9498 15.9800 39.6278 0.015380 1 Complies For 5GHz ISM Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n 40MHz MCS0: 17.14dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.90 1.9498 17.1400 51.7607 0.020089 1 Complies For 2.4GHz Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11g: 19.53 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.72 1.8707 19.5300 89.7429 0.033416 1 Complies

SPORTON International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Ph: 886-3-656-9065 / FAX: 886-3-656-9085 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Belkin International inc., Applicant Address 12045 East Waterfront Drive, Playa Vista, CA 90094, USA FCC ID K7SF9K1111V1 Manufacturer’s company EDIMAX Technology Co.,Ltd. Manufacturer Address No.3, Wu-Chuan 3rd Road, Wu-Gu, New Taipei City 248,Taiwan Product Name N300DB Wireless range extender Brand Name Belkin Model Name F9K1111v1 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Mar. 26, 2012 Final Test Date May 28, 2012 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR242601AB Report Format Version: 01 Page No. : i of ii FCC ID: K7SF9K1111V1 Issued Date : May 28, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations..................................................................................................................................................................9 3.7. Table for Supporting Units ...................................................................................................................................................................9 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................10 3.9. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................15 4.2. Peak Output Power Measurement ....................................................................................................................................................19 4.3. Average Output Power Measurement ..............................................................................................................................................22 4.4. Power Spectral Density Measurement ..............................................................................................................................................25 4.5. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................34 4.6. Radiated Emissions Measurement ....................................................................................................................................................41 4.7. Band Edge Emissions Measurement .................................................................................................................................................67 4.8. Antenna Requirements .....................................................................................................................................................................79 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 80 6. TEST LOCATION.............................................................................................................................................. 82 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 83 APPENDIX A. TEST PHOTOS .......................................................................................................................…
