K7SF9L1103V1N750 Wireless USB Adapter

User Manual F9L1103 8820-00781 Rev. A00 WIRELESS DUAL-BAND USB ADAPTER N750 DB Table Of COnTenTs Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Benefits of a Home Network....................................1 Advantages of a Wireless Network ..............................2 Placement of your Wireless Networking Hardware for Optimal Performance.................................................3 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Product Features ............................................7 Applications and Advantages...................................8 Product Specifications ........................................9 System Requirements........................................10 Package Contents ...........................................10 Installing and setting up the adapter . . . . . . . . . . . . . . . . . . . . . . .11 A. Installation Process for Windows Vista and 7..................11 B. Installation Process for Windows XP .........................18 Connecting to a Secure Wi-Fi ® Network.........................24 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 1 Thank you for purchasing the Belkin N750 DB Wireless Dual-Band USB Adapter. Now you can take advantage of this great new technology and gain the freedom to network your home and office computers wirelessly. This Adapter allows you to connect a notebook or desktop computer to your network. Please be sure to read through this User Manual completely, and pay special attention to the section titled, “Placement of your Wireless Networking Hardware for Optimal Performance.” benefits of a Home network Your Belkin Home Network will allow you to: • Share one high-speed Internet connection with all the computers in your home • Share resources, such as files, and hard drives among all the connected computers in your home • Share a single printer with the entire family • Share documents, music, video, and digital pictures • Store, retrieve, and copy files from one computer to another • Simultaneously play games online, check Internet email, and chat InTrOdUCTIOn 2 InTrOdUCTIOn advantages of a Wireless network • Mobility –you’ll no longer need a dedicated “computer room”—now you can work on a networked laptop or desktop computer anywhere within your wireless range • Easy installation – Belkin Easy Installation Wizards make setup simple • Flexibility – set up and access printers, computers, and other networking devices from anywhere in your home • Easy expansion – the wide range of Belkin networking products let you expand your network to include devices such as printers and gaming consoles • No cabling required – you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office • Widespread industry acceptance – choose from a wide range of interoperable networking products 3 InTrOdUCTIOn Placement of your Wireless networking Hardware for Optimal Performance Your wireless connection will be stronger the closer your computer is to your wireless router (or access point). Typical indoor operating range for your wireless devices is between 100 and 200 feet. In the same way, your wireless connection and performance will degrade somewhat as the distance between your wireless router (or access point) and connected devices increases. This may or may not be noticeable to you. As you move farther from your wireless router (or access point), connection speed may decrease. Factors that can weaken signals simply by getting in the way of your network’s radio waves are metal appliances or obstructions, and walls. If you have concerns about your network’s performance that might be related to range or obstruction factors, try moving the computer to a position between five and 10 feet from the wireless router (or access point) in order to see if distance is the problem. If difficulties persist even at close range, please contact Belkin Technical Support. Note: While some of the items listed below can affect network performance, they will not prohibit your wireless network from functioning; if you are concerned that your network is not operating at its maximum effectiveness, this checklist may help. 4 InTrOdUCTIOn 1 . Placement of your Wireless router (or access Point) Place your wireless router (or access point), the central connection point of your network, as close as possible to the center of your wireless network devices. To achieve the best wireless network coverage for your “wireless clients,” (i.e., computers enabled by Belkin Adapters or Cards): • Ensure that your wireless router’s (or access point’s) antennas are parallel to each other, and are positioned vertically (toward the ceiling). If your wireless router (or access point) itself is positioned vertically, point the antennas as much as possible in an upward direction. • In multistory homes, place the wireless router (or access point) on a floor that is as close to the center of the home as possible. This may mean placing the wireless router (or access point) on an upper floor. • Try not to place the wireless router (or access point) near a cordless 2.4GHz phone. 2 . avoid Obstacles and Interference Avoid placing your wireless router (or access point) near devices that may emit radio “noise”, such as microwave ovens. Other objects that can inhibit wireless communication can include: • Refrigerators • Washers and/or dryers • Metal cabinets • Large aquariums • Metallic-based, UV-tinted windows • Microwaves If your wireless signal seems weak in some spots, make sure that objects such as these are not blocking the signal’s path between your computers and wireless router (or access point). 5 InTrOdUCTIOn 3 . Cordless Phone Placement If the performance of your wireless network is im…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 2106 Date: August 23, 2011 Subject: FCC Application for FCC ID: K7SF9L1103V1 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Applicant : Belkin International, Inc. Address : 12045 East Waterfront Dr. Playa Vista California 90094 United States Signature : _________________________________ Name and Job Title. : Daniel Wesey / EMC Regulatory Compliance Engineer E-mail : [email protected] Tel. : (310) 751-2816

Date: September 6, 2011 Subject: Ad Hoc Mode Function Declaration FCC ID: K7SF9L1103V1 IC: 3623A-F9L1103V1 To whom it may concern, We, Belkin International, Inc., declare that the device (FCC ID: K7SF9L1103V1；IC: 3623A-F9L1103V1) 1. is acting as slave and operating within the frequency bands a. 2412~2462MHz；2422~2452MHz b. 5G Band 1: 5180~5240MHz ；5190~5230MHz c. 5G Band 4: 5745~5825MHz；5755~5795MHz 2. Ad-hoc will be supported in 802.11bgn(2412~2462MHz) mode and 802.11a (Band1: 5180~5240MHz; Band4:5745~5825MHz) 3. is not able to operate in non-US/IC frequencies, country code selection will be disable for this device. 4. The device is client without DFS detection capability. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant : Belkin International, Inc. Address : 12045 East Waterfront Dr. Playa Vista California 90094 United States Signature : _________________________________ Name and Job Title. : Daniel Wesey / EMC Regulatory Compliance Engineer E-mail [email protected] Tel. (310) 751-2816

Date: 2011/9/6 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Product Certification Representative Authorization Letter FCC ID: K7SF9L1103V1 Product name: N750 Wireless USB Adapter To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model F9L1103V1 to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Belkin International, Inc. Address : 12045 East Waterfront Dr. Playa Vista California 90094 United States Signature : _________________________________ Name and Job Title. : Daniel Wesey / EMC Regulatory Compliance Engineer E-mail : [email protected] Tel. : (310) 751-2816

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 2.0 SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw 9/2/2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SPORTON International Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: N750 Wireless USB Adapter Model Number: F9L1103V1 FCC ID: K7SF9L1103V1 We affirm that between SIEMIC and SPORTON International Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name / title: Wayne Hsu / Vice Manager Contact information / address: No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. / Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw

Confidentiality Request Letter Date: 2011/8/23 Federal Communications Commission Authorization and Evaluation Division FCC ID：K7SF9L1103V1 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Dr. Playa Vista California 90094 United States Signature : _________________________________ Job Title and Dept. : Daniel Wesey / EMC Regulatory Compliance Engineer E-mail : [email protected] Tel. : (310) 751-2816

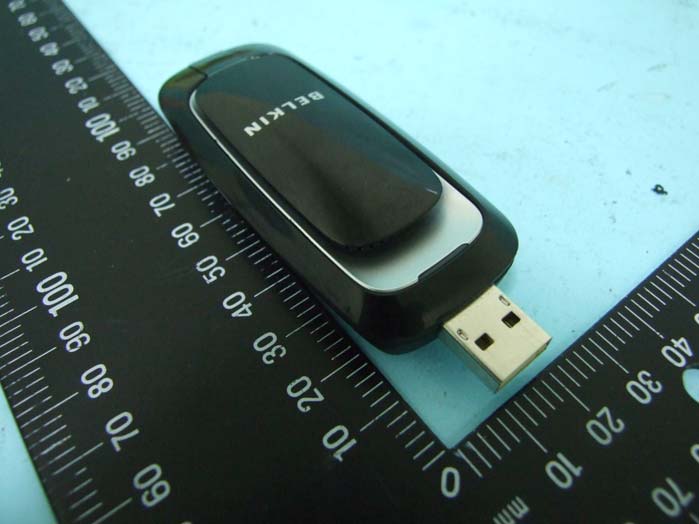

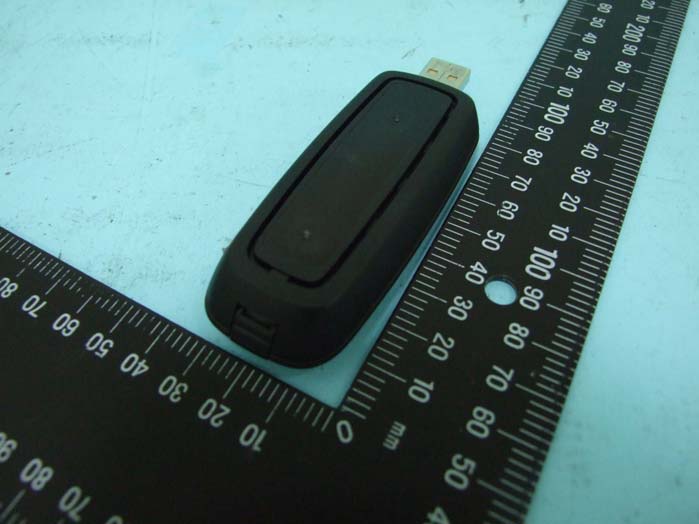

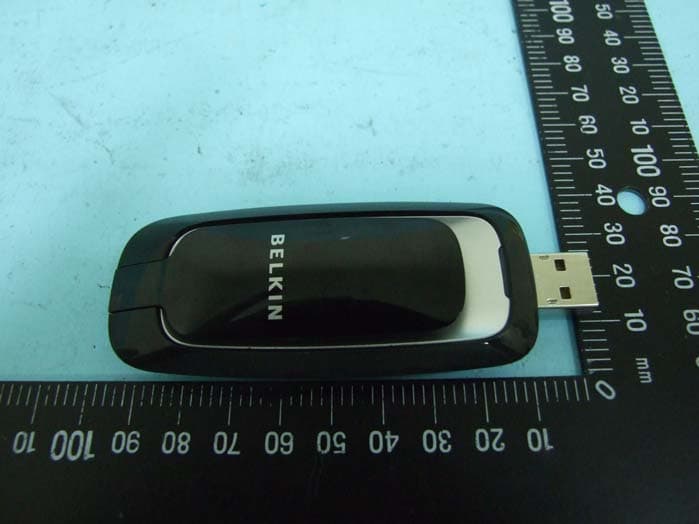

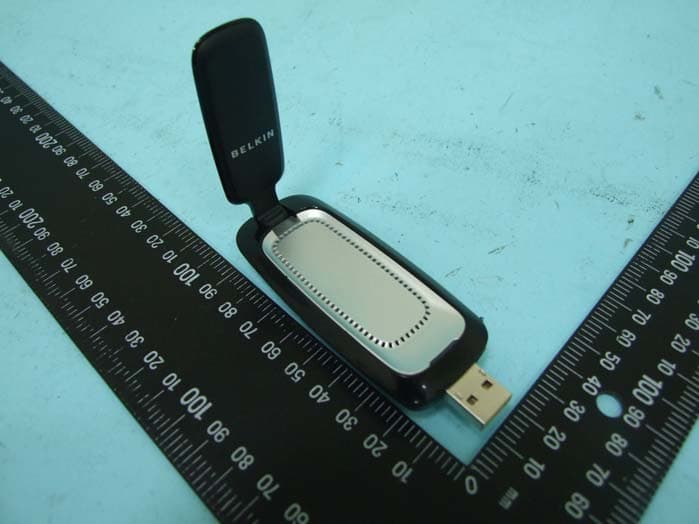

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B11 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 02, 2011 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B11 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 02, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B11 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 02, 2011 FAX : 886-2-2696-2255

N750 DB Dual-Band Wireless USB Adapter Model: F9L1103V1 • 8830-06444 Rev. A01 Made in China FCC ID: K7SF9L1103V1 Complies with RSS-210 IC: 3623A-F9L1103V1 SCALE 1:1 ALL TEXTS ARE: HELVETICA NEUE DATE: 06/14/2011REVISION: 001 N750 Wireless Dual Band USB Adapter F9D1103 v1 REVISION NOTES: 001: preliminary layout DO NOT MAKE CHANGES WITHOUT PERMISSION FROM BELKIN IDG. ID LABEL LAYOUT ALL DIMENSIONS IN [mm]. LABEL MATERIAL: Mylar with Matte PP finish ELEMENTS SHOWN IN BLACK: BLACK ELEMENTS SHOWN IN GRAY: PANTONE 429C INNOVATION DESIGN GROUP PR#28588 MKTG# LBL_F9L1103_8830-06444_ DESIGNERRichard DATE06/22/11VERSION02 LAN MAC: XXXXXXXXXXXX Serial no: XXXXXXXXXXXXXX bar code stickers: 20mm x 4mm each LAN MAC: XXXXXXXXXXXX Serial no: XXXXXXXXXXXXXX

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B11 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 02, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B11 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 02, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B5 OF B11 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 02, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B6 OF B11 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 02, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B7 OF B11 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 02, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B8 OF B11 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 02, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B9 OF B11 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 02, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B10 OF B11 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 02, 2011 FAX : 886-2-2696-2255

SPORTON INTERNATIONAL INC. Page Number : 1 of 32 TEL : 886-3-327-3456 Report Issued Date : Sep. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : K7SF9L1103V1 FCC SAR Test Report Report No. : FA181656 FCC SAR Test Report APPLICANT : Belkin International inc., EQUIPMENT : N750 Wireless USB Adapter BRAND NAME : Belkin MODEL NAME : F9L1103V1 FCC ID : K7SF9L1103V1 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Aug. 22, 2011 and completely tested on Sep. 08, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 32 TEL : 886-3-327-3456 Report Issued Date : Sep. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : K7SF9L1103V1 FCC SAR Test Report Report No. : FA181656 Table of Contents Revision History ......................................................................................................................................................... 3 1. Statement of Compliance .................................................................................................................................... 4 2 Administration Data ............................................................................................................................................. 5 2.1 Testing Laboratory ...................................................................................................................................... 5 2.2 Applicant .................................................................................................................................................... 5 2.3 Manufacturer .............................................................................................................................................. 5 2.4 Application Details ...................................................................................................................................... 5 3 General Information ............................................................................................................................................. 6 3.1 Description of Device Under Test (DUT) ...................................................................................................... 6 3.2 Applied Standards ...................................................................................................................................... 7 3.3 Device Category and SAR Limits ................................................................................................................. 7 3.4 Test Conditions ........................................................................................................................................... 7 3.4.1 Ambient Condition .............................................................................................................................. 7 3.4.2 Test Configuration .............................................................................................................................. 7 4 Specific Absorption Rate (SAR) .......................................................................................................................... 8 4.1 Introduction ................................................................................................................................................ 8 4.2 SAR Definition ............................................................................................................................................ 8 5 SAR Measurement System .................................................................................................................................. 9 5.1 E-Field Probe ........................................................................................................................................... 10 5.1.1 E-Field Probe Specification .............................................................................................................. 10 5.1.2 E-Field Probe Calibration ................................................................................................................. 11 5.2 Data Acquisition Electronics (DAE) ............................................................................................................ 11 5.3 Robot ....................................................................................................................................................... 11 5.4 Measurement Server ................................................................................................................................ 12 5.5 Phantom ................................................................................................................................................... 13 5.6 Device Holder ........................................................................................................................................... 14 5.7 Data Storage and Evaluation ..................................................................................................................... 16 5.7.1 Data Storage ................................................................................................................................... 16 5.7.2 Data Evaluation ............................................................................................................................... 16 5.8 Test Equipment List.......................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON International Inc. Report Format Version: a FCC TEST REPORT Report No. : FR181656AC FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment :N750 Wireless USB Adapter Brand Name :Belkin Model No. : F9L1103V1 Filing Type :New Application Applicant Manufacturer :Belkin International inc. 12045 East Waterfront Drive, Pla ya Vista, CA 90094, USA FCC ID :K7SF9L1103V1 Received Date :Jul. 28, 2011 Final Test Date :Aug. 25, 2011 Statement Test result included is only for the 802.11b/g/n part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-3-327-3456 Issued Date : Sep. 02, 2011 FAX : 886-3-318-0055 FCC ID : K7SF9L1103V1 FCC TEST REPORT Report No. : FR181656AC Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details .........................................................................................................................................................................................3 2.2 Table for Filed Antenna ............................................................................................................................................................................3 2.3 Table for Carrier Frequencies ..................................................................................................................................................................4 2.4 Table for Test Modes ...............................................................................................................................................................................5 2.5 Table for Testing Locations ......................................................................................................................................................................5 2.6 Table for Supporting Units .......................................................................................................................................................................5 2.7 Table for Parameters of Test Software Setting ........................................................................................................................................6 2.8 EUT Operation during Test ......................................................................................................................................................................6 2.9 Test Configuration ....................................................................................................................................................................................7 3 TEST RESULT ......................................................................................................................................................... 8 3.1 AC Power Line Conducted Emissions Measurement ..............................................................................................................................8 3.2 Maximum Peak Output Power Measurement ........................................................................................................................................12 3.3 Power Spectral Density Measurement ...................................................................................................................................................15 3.4 6dB Spectrum Bandwidth Measurement ...............................................................................................................................................30 3.5 Radiated Emissions Measurement ........................................................................................................................................................45 3.6 Band Edge and Fundamental Emissions Measurement ........................................................................................................................75 3.7 Antenna Requirements ..........................................................................................................................................................................86 4 LIST OF MEASURING EQUIPMENTS .................................................................................................................. 87 5 TEST LOCATION ................................................................................................................................................... 89 6 TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 90 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A6 APPENDIX B. PHOTOGRAPHS OF EUT ..................................................................................................... B1 ~ B11 SPORTON International Inc. Page No. : ii of ii TEL : 886-3-327-3456 Issued Date : Sep. 02, 2011 FAX : 886-3-318-0055 FCC ID : K7SF9L1103V1 FCC TEST REPORT Report No. : FR181656AC History of This Test Report Original Issue Date: Sep. 02, 2011 Report No.: FR181656AC ■ No additional attachment. □ Additional attachment were …

Text truncated - open the document above for the full version.

SPORTON International Inc. Report Format Version: a FCC TEST REPORT Report No. : FR181656AI FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment :N750 Wireless USB Adapter Brand Name :Belkin Model No. : F9L1103V1 Filing Type :New Application Applicant Manufacturer :Belkin International inc. 12045 East Waterfront Drive, Pla ya Vista, CA 90094, USA FCC ID :K7SF9L1103V1 Received Date:Jul. 28, 2011 Final Test Date :Aug. 25, 2011 Statement Test result included is only for the 802.11a/n (5725~5850 MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Sep. 02, 2011 FAX : 886-2-2696-2255 FCC ID : K7SF9L1103V1 FCC TEST REPORT Report No. : FR181656AI Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details .........................................................................................................................................................................................3 2.2 Table for Filed Antenna ............................................................................................................................................................................3 2.3 Table for Carrier Frequencies ..................................................................................................................................................................4 2.4 Table for Test Modes ...............................................................................................................................................................................5 2.5 Table for Testing Locations ......................................................................................................................................................................5 2.6 Table for Supporting Units .......................................................................................................................................................................5 2.7 Table for Parameters of Test Software Setting ........................................................................................................................................6 2.8 EUT Operation during Test ......................................................................................................................................................................6 2.9 Test Configuration ....................................................................................................................................................................................7 3 TEST RESULT ......................................................................................................................................................... 8 3.1 AC Power Line Conducted Emissions Measurement ..............................................................................................................................8 3.2 Maximum Peak Output Power Measurement ........................................................................................................................................12 3.3 Power Spectral Density Measurement .............................…

Text truncated - open the document above for the full version.
