K7SF9L1106V2AC Wi-Fi Dual-Band USB Adapter

User Manual F9L1106V2 8820-01181 Rev. E00 AC Wi-Fi ® DUAL-BAND USB ADAPTER TABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Benefits of a Home Network ....................................1 Advantages of a Wireless Network ..............................2 Placement of your Wireless Networking Hardware for Optimal Performance .................................................3 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Product Features ............................................7 Applications and Advantages ...................................8 Product Specifications ........................................9 System Requirements ........................................10 Package Contents ...........................................10 Installing and Setting up the Adapter . . . . . . . . . . . . . . . . . . . . . . .11 A. Installation Process for Windows Vista and 7 ..................11 B. Installation Process for Windows XP .........................20 Connecting to a Secure Wi-Fi ® Network.........................27 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 1 Thank you for purchasing the Belkin AC Wi-Fi Dual-Band USB Adapter. Now you can take advantage of this great new technology and gain the freedom to network your home and office computers wirelessly. This Adapter allows you to connect a notebook or desktop computer to your network. Please be sure to read through this User Manual completely, and pay special attention to the section titled, “Placement of your Wireless Networking Hardware for Optimal Performance.” Benefits of a Home Network Your Belkin Home Network will allow you to: • S hare one high-speed Internet connection with all the computers in your home • Sh are resources, such as files, and hard drives among all the connected computers in your home • Sh are a single printer with the entire family • S hare documents, music, video, and digital pictures • S tore, retrieve, and copy files from one computer to another • Si multaneously play games online, check Internet email, and chat INTRODUCTION 2 INTRODUCTION Advantages of a Wireless Network • M obility – you’ll no longer need a dedicated “computer room”—now you can work on a networked laptop or desktop computer anywhere within your wireless range • E asy installation – Belkin Easy Installation Wizards make setup simple • F lexibility – set up and access printers, computers, and other networking devices from anywhere in your home • E asy expansion – the wide range of Belkin networking products let you expand your network to include devices such as printers and gaming consoles • N o cabling required – you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office • W idespread industry acceptance – choose from a wide range of interoperable networking products 3 INTRODUCTION Placement of your Wireless Networking Hardware for Optimal Performance Your wireless connection will be stronger the closer your computer is to your wireless router (or access point). Typical indoor operating range for your wireless devices is between 100 and 200 feet. In the same way, your wireless connection and performance will degrade somewhat as the distance between your wireless router (or access point) and connected devices increases. This may or may not be noticeable to you. As you move farther from your wireless router (or access point), connection speed may decrease. Factors that can w eaken signals simply by getting in the way of your network’s radio waves are metal appliances or obstructions, and walls. If you h ave concerns about your network’s performance that might be related to range or obstruction factors, try moving the computer to a position between five and 10 feet from the wireless router (or access point) in order to see if distance is the problem. If difficulties persist even at close range, please contact Belkin Technical Support. Note: While some of the items listed below can affect network performance, they will not prohibit your wireless network from functioning; if you are concerned that your network is not operating at its maximum effectiveness, this checklist may help. 4 INTRODUCTION 1 . Placement of your Wireless Router (or Access Point) Place your wireless router (or access point), the central connection point of your network, as close as possible to the center of your wireless network devices. To achieve the best wireless network coverage for your “wireless clients,” (i.e., computers enabled by Belkin Adapters or Cards): • E nsure that your wireless router’s (or access point’s) antennas are parallel to each other, and are positioned vertically (toward the ceiling). If your wireless router (or access point) itself is positioned vertically, point the antennas as much as possible in an upward direction. • I n m ultistory homes, place the wireless router (or access point) on a floor that is as close to the center of the home as possible. This may mean placing the wireless router (or access point) on an upper floor. • T ry not to place the wireless router (or access point) n ear a cordless 2.4GHz phone. 2 . Avoid Obstacles and Interference Avoid placing your wireless router (or access point) near devices that may emit radio “noise”, such as microwave ovens. Other objects that can inhibit wireless communication can include: • R efrigerators • W ashers and/or dryers • M etal cabinets • L arge aquariums • M etallic-based, UV-tinted windows • M icrowaves If your wireless signal seems weak in some spots, make sure that o bjects such as these are not blocking the signal’s path between your computers and wireless router (or access point). 5 INTRODUCTION 3 . Cordless Phone Placement If the performance of your wi…

Text truncated - open the document above for the full version.

Confidential Letter Date: 2012/11/16 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：K7SF9L1106V2 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent Belkin International, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.459 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive, Playa Vista, CA 90094 Signature : _____________________________ Job Title and Dept. : Daniel Wesey / Manager, Global Engineering Services E-Mail : [email protected] Tel. : 1-310-751-2816

DoC Attestation Letter Date: 2012/11/16 We Belkin International, Inc., as the grantee of this project (FCC ID: K7SF9L1106V2 / Brand Name: Belkin / Model No.: F9L1106V2, F9L1107xxxxx, F9L1109V1), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD2N0801, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive, Playa Vista, CA 90094 Signature : _____________________________ Job Title and Dept. : Daniel Wesey / Manager, Global Engineering Services E-Mail : [email protected] Tel. : 1-310-751-2816

Ad Hoc Mode Function Declaration Date: 2012/11/16 FCC ID：K7SF9L1106V2 To Whom it may concern, We, the undersigned, declare that the EUT (Model Name: F9L1106V2, F9L1107xxxxx, F9L1109V1) doesn’t have Ad Hoc function on “non-US/Canada frequencies”. Regards, FCC Grantee contact person information. Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive, Playa Vista, CA 90094 Signature : _____________________________ Job Title and Dept. : Daniel Wesey / Manager, Global Engineering Services E-Mail : [email protected] Tel. : 1-310-751-2816

Power of Attorney Date: 2012/11/16 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Belkin / F9L1106V2, F9L1107xxxxx, F9L1109V1 FCC ID: K7SF9L1106V2 Product name: AC Wi-Fi Dual-Band USB Adapter FCC Grantee contact person information. Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive, Playa Vista, CA 90094 Signature : _____________________________ Job Title and Dept. : Daniel Wesey / Manager, Global Engineering Services E-Mail : [email protected] Tel. : 1-310-751-2816

Page No. : 22 Belkin International, Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094 Tel: 1-310-751-2816 / Fax: 1-310-751-5912 Tune Up Procedure Date: 2012/12/13 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oaklamd Mills Road Columbia, MD 21046 U.S.A. To whom it may concern, FCC ID: K7SF9L1106V2 The output power setting of EUT is set in the factory and followed the max level in below. There is no tune up procedure except factory default setting. Target output power setting in factory: For DTS Band: 2.4GHz Band: 802.11b : 16.5dBm ± 1dB 802.11g: 16dBm ± 1dB 802.11n (20MHz): 18dBm ± 1dB 802.11n (40MHz): 17.5dBm ± 1dB 5GHz Band: 802.11a: 15dBm ± 1dB 802.11n (20MHz): 21dBm ± 1dB 802.11n (40MHz): 20.5dBm ± 1dB 802.11ac (20MHz): 21dBm ± 1dB 802.11ac (40MHz): 20.5dBm ± 1dB 802.11ac (80MHz): 20.5dBm ± 1dB For NII Band: 802.11a: Band 1: 15dBm ± 1dB 802.11n (20MHz): Band 1: 15dBm ± 1dB 802.11n (40MHz): Band 1: 15dBm ± 1dB 802.11ac (20MHz): Band 1: 15dBm ± 1dB 802.11ac (40MHz): Band 1: 15dBm ± 1dB 802.11ac (80MHz): Band 1: 14dBm ± 1dB

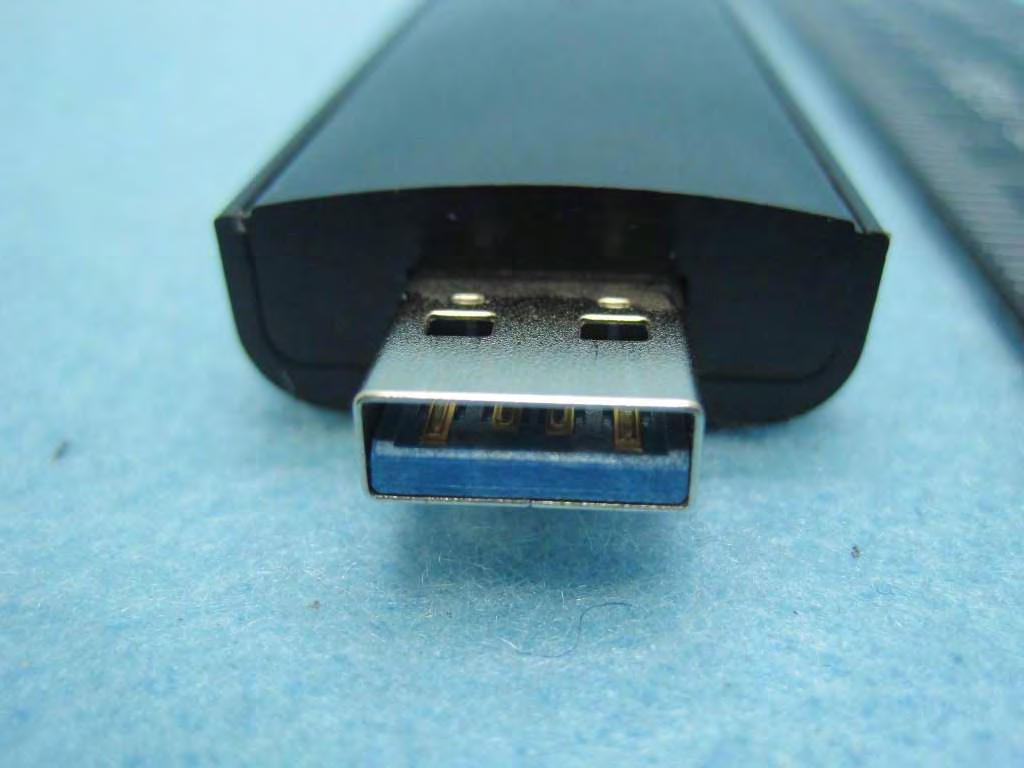

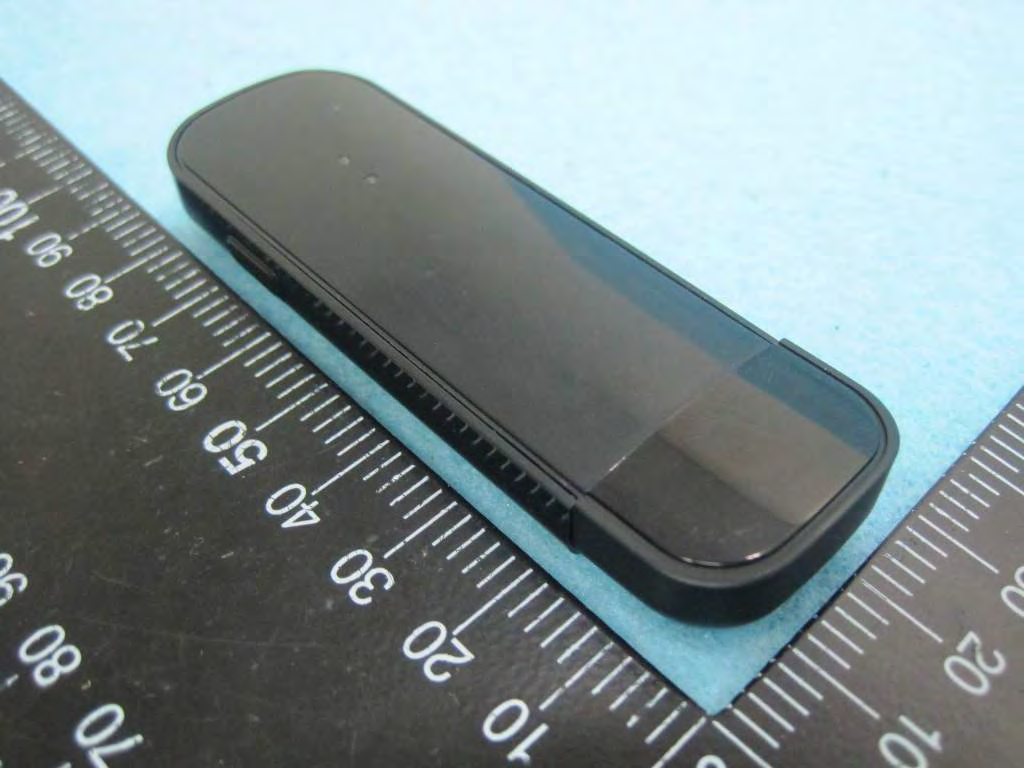

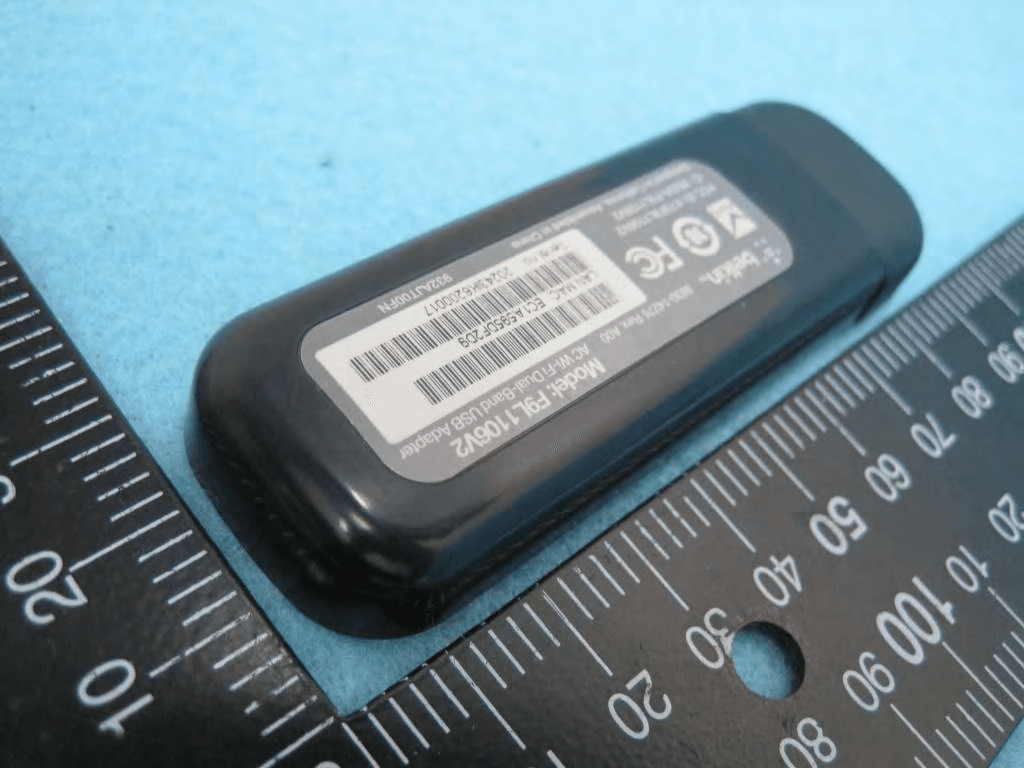

Report No.:2N0801 SPORTON International Inc. PAGE NUMBER : A1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 13, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.:2N0801 SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 13, 2012 FAX : 886-2-2696-2255

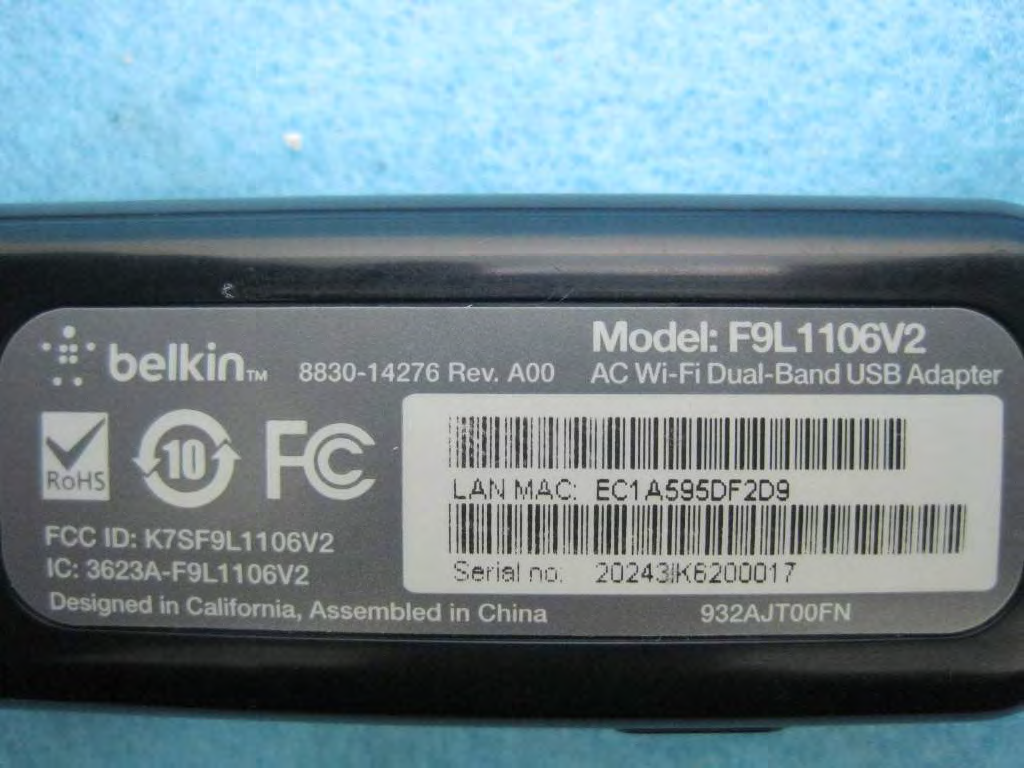

Label size: 52.6*16.4mm

Report No.:2N0801 SPORTON International Inc. PAGE NUMBER : A1 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 13, 2012 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.:2N0801 SPORTON International Inc. PAGE NUMBER : A2 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 13, 2012 FAX : 886-2-2696-2255 Report No.:2N0801 SPORTON International Inc. PAGE NUMBER : A3 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 13, 2012 FAX : 886-2-2696-2255 Report No.:2N0801 SPORTON International Inc. PAGE NUMBER : A4 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 13, 2012 FAX : 886-2-2696-2255 Report No.:2N0801 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 13, 2012 FAX : 886-2-2696-2255

SPORTON INTERNATIONAL INC. Page Number : 1 of 43 TEL : 886-3-327-3456 Report Issued Date : Dec. 18, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : K7SF9L1106V2 FCC SAR Test Report Report No. : FA2N0801 FCC SAR Test Report APPLICANT : Belkin International Inc. EQUIPMENT : AC Wi-Fi Dual-Band USB Adapter BRAND NAME : Belkin MODEL NAME : F9L1106V2, F9L1107xxxxx, F9L1109V1 FCC ID : K7SF9L1106V2 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Dec. 06, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 43 TEL : 886-3-327-3456 Report Issued Date : Dec. 18, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : K7SF9L1106V2 FCC SAR Test Report Report No. : FA2N0801 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Maximum RF output power among production units .............................................................................................. 7 3.3 Product Photos....................................................................................................................................................... 7 3.4 Applied Standards .................................................................................................................................................. 7 3.5 Device Category and SAR Limits ........................................................................................................................... 7 3.6 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 9 4 .1 Introduction ............................................................................................................................................................ 9 4.2 SAR Definition ........................................................................................................................................................ 9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder........................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. SAR Measurement Evaluation ....................................................................................................................................20 7.1 Purpose of System Performance check ..................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC SAR Test Report System Validation Probe 3792_DAE1338_2450MHz_Body_121119 System Validation – D2450V2-SN:736 Frequency (MHz) Liquid Type Conductivity (σ) Permittivity (εr) Conductivity Target (σ) Permittivity Target (εr) Delta (σ) (%) Delta (εr) (%) Probe DAE 2450 Body 1.938 52.359 1.95 52.7 1.69 -0.65 3792 1338 System Validation – D2450V2-SN:736 Section Multimeter Measured SAR (W/kg) Power Meter (dBm) Power Meter (W) 1W Normalized SAR (W/kg) 1W Target SAR (W/kg) Deviation (%) Deviation Target (%) Cube 3.3.2 Step 1 CW 4.26 19.04 0.08017 53.14 52.30 1.60 10 1g 1.95 19.04 0.08017 24.32 24.50 -0.72 10 10g 3.3.2 Step 2 CW 0.212 6.26 0.00423 1.04 13.05 0.02018 2.03 15.85 0.03846 4.26 19.04 0.08017 3.3.2 Step 3 CW 1.62 14.94 0.03119 3.3.3 Step 2 OFDM 4.37 19 0.07943 55.02 52.30 5.19 10 1g 1.99 19 0.07943 25.05 24.50 2.26 10 10g 3.3.3 Step 3 OFDM 0.20 5.97 0.00395 0.97 12.66 0.01845 1.93 15.65 0.03673 4.01 18.65 0.07328 SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC SAR Test Report System Validation Probe 3792_DAE1338_2450MHz_Body_121119 3.3.2 Step 2 CW Average Power (mW) 4.23 20.18 38.46 80.17 Single Point SAR (W/kg) 0.21 1.04 2.03 4.26 Reference Line (W/kg) 0.21 1.01 1.93 4.02 Deviation (%) 0.00% 2.73% 5.23% 5.94% 3.3.3 Step 3 OFDM Average Power (mW) 3.95 18.45 36.73 73.28 Single Point SAR (W/kg) 0.20 0.97 1.93 4.01 Reference Line (W/kg) 0.20 0.94 1.87 3.73 Deviation (%) 0.00% 3.52% 3.36% 7.63% 0.00 1.00 2.00 3.00 4.00 5.00 0.00 20.00 40.00 60.00 80.00 100.00 SAR (W/kg) Power (mW) SAR (Measured) SAR (Reference) 0.00 1.00 2.00 3.00 4.00 5.00 0.00 20.00 40.00 60.00 80.00 SAR (W/kg) Power (mW) SAR (Measured) SAR (Reference) SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC SAR Test Report System Validation Probe 3792_DAE1338_2450MHz_Body_121119 3.3.2 Step 3 CW SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC SAR Test Report System Validation Probe 3792_DAE1338_5200MHz_Body_121123 System Validation – D5GHzV2 SN1006 Frequency (MHz) Liquid Type Conductivity (σ) Permittivity (εr) Conductivity Target (σ) Permittivity Target (εr) Delta (σ) (%) Delta (εr) (%) Probe DAE 5200 Body 5.138 47.493 5.30 49.0 -3.06 -3.08 3792 1338 System Validation – D5GHzV2 SN1006 Section Multimeter Measured SAR (W/kg) Power Meter (dBm) Power Meter (W) 1W Normalized SAR (W/kg) 1W Target SAR (W/kg) Deviation (%) Deviation Target (%) Cube 3.3.2 Step 1 CW 3.74 17.00 0.05012 74.62 72.6 2.79 10 1g 1.02 17.00 0.05012 20.35 20.50 -0.72 10 10g 3.3.2 Step 2 CW 0.191 0.65 0.00116 1.011 7.57 0.00571 2.040 10.65 0.01161 4.070 13.64 0.02312 3.3.2 Step 3 CW 1.620 9.54 0.00899 3.3.3 Step 2 OFDM 4.08 17.18 0.05224 78.10 72.6 7.58 10 1g 1.11 17.18 0.05224 21.25 20.50 3.65 10 10g 3.3.3 Step 3 OFDM 0.192 0.42 0.00110 1.005 7.36 0.00545 2.014 10.39 0.01094 4.030 13.39 0.02183 SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC SAR Test Report System Validation Probe 3792_DAE1338_5200MHz_Body_121123 3.3.2 Step 2 CW Average Power (mW) 1.16 5.71 11.61 23.12 Single Point SAR (W/kg) 0.19 1.01 2.04 4.07 Reference Line (W/kg) 0.19 0.94 1.91 3.80 Deviation (%) 0.00% 7.58% 6.81% 7.04% 3.3.3 Step 3 OFDM Average Power (mW) 1.10 5.45 10.94 21.83 Single Point SAR (W/kg) 0.19 1.01 2.01 4.03 Reference Line (W/kg) 0.19 0.95 1.91 3.80 Deviation (%) 0.00% 5.89% 5.62% 5.93% 0.00 1.00 2.00 3.00 4.00 5.00 0.00 5.00 10.00 15.00 20.00 25.00 SAR (W/kg) Power (mW) SAR (Measured) SAR (Reference) 0.00 1.00 2.00 3.00 4.00 5.00 0.00 5.00 10.00 15.00 20.00 25.00 SAR (W/kg) Power (mW) SAR (Measured) SAR (Reference) SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC SAR Test Report System Validation Probe 3792_DAE1338_5200MHz_Body_121123 3.3.2 Step 3 CW SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC SAR Test Report System Validation Probe 3792_DAE1338_5800MHz_Body_121123 System Validation – D5GHzV2 SN1006 Frequency (MHz) Liquid Type Conductivity (σ) Permittivity (εr) Conductivity Target (σ) Permittivity Target (εr) Delta (σ) (%) Delta (εr) (%) Probe DAE 5800 Body 5.991 46.521 6.00 48.2 -0.15 -3.48 3792 1338 5800 Body 6.004 46.509 6.00 48.2 0.07 -3.51 3792 1338 System Validation – D5GHzV2 SN1006 Section Multimeter Measured SAR (W/kg) Power Meter (dBm) Power Meter (W) 1W Normalized SAR (W/kg) 1W Target SAR (W/kg) Deviation (%) Deviation Target (%) Cube 3.3.2 Step 1 CW 3.95 17.34 0.05420 72.88 73.10 -0.30 10 1g 1.06 17.34 0.05420 19.56 20.30 -3.66 10 10g 3.3.2 Step 2 CW 0.193 0.14 0.00103 1.086 7.83 0.00607 2.018 10.55 0.01135 4.058 13.62 0.02301 3.3.2 Step 3 CW 1.591 9.52 0.00895 3.3.3 Step 2 OFDM 4.12 17.28 0.05346 77.07 73.10 5.43 10 1g 1.11 17.28 0.05346 20.76 20.30 2.29 10 10g 3.3.3 Step 3 OFDM 0.183 0.60 0.00115 0.999 7.89 0.00615 2.010 10.86 0.01219 4.026 13.86 0.02432 SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC SAR Test Report System Validation Probe 3792_DAE1338_5800MHz_Body_121123 3.3.2 Step 2 CW Average Power (mW) 1.03 6.07 11.35 23.01 Single Point SAR (W/kg) 0.19 1.09 2.02 4.06 Reference Line (W/kg) 0.19 1.13 2.12 4.30 Deviation (%) 0.00% -4.22% -4.86% -5.65% 3.3.3 Step 3 OFDM Average Power (mW) 1.15 6.15 12.19 24.32 Single Point SAR (W/kg) 0.18 1.00 2.01 4.03 Reference Line (W/kg) 0.18 0.98 1.94 3.88 Deviation (%) 0.00% 1.89% 3.45% 3.85% 0.00 1.00 2.00 3.00 4.00 5.00 0.00 5.00 10.00 15.00 20.00 25.00 SAR (W/kg) Power (mW) SAR (Measured) SAR (Reference) SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC SAR Test Report System Validation Probe 3792_DAE1338_5800MHz_Body_121123 3.3.2 Step 3 CW 0.00 1.00 2.00 3.00 4.00 5.00 0.00 5.00 10.00 15.00 20.00 25.00 30.00 SAR (W/kg) Power (mW) SAR (Measured) SAR (Reference)

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Belkin International Inc. Applicant Address 12045 E. Waterfront Drive Playa Viste, CA 90094, USA FCC ID K7SF9L1106V2 Manufacturer’s company Belkin International Inc. Manufacturer Address 12045 E. Waterfront Drive Playa Viste, CA 90094, USA Product Name AC Wi-Fi Dual-Band USB Adapter Brand Name Belkin Model Name F9L1106V2, F9L1107xxxxx (X=A-Z, 0~9), F9L1109V1 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Nov. 01, 2012 Final Test Date Nov. 24, 2012 Submission Type Original Equipment Multiple Listing Please refer to section 3.7 Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a/ac (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR2N0801AB Report Format Version: 01 Page No. : i of ii FCC ID: K7SF9L1106V2 Issued Date :Dec. 13, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details .................................................................................................................................................................................... 3 3.2. Accessories ......................................................................................................................................................................................... 6 3.3. Table for Filed Antenna....................................................................................................................................................................... 7 3.4. Table for Carrier Frequencies ............................................................................................................................................................. 8 3.5. Table for Test Modes ........................................................................................................................................................................... 9 3.6. Table for Testing Locations ................................................................................................................................................................ 11 3.7. Table for Multiple List......................................................................................................................................................................... 11 3.8. Table for Supporting Units ................................................................................................................................................................. 11 3.9. Table for Parameters of Test Software Setting ................................................................................................................................... 12 3.10. Test Configurations ........................................................................................................................................................................... 14 4. TEST RESULT ................................................................................................................................................... 16 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 16 4.2. Maximum Conducted Output Power Measurement ......................................................................................................................... 20 4.3. Power Spectral Density Measurement .............................................................................................................................................. 24 4.4. 6dB Spectrum Bandwidth Measurement .......................................................................................................................................... 33 4.5. Radiated Emissions Measurement .................................................................................................................................................... 42 4.6. Band Edge Emissions Measurement ................................................................................................................................................. 74 4.7. Antenna Requirements ..................................................................................................................................................................... 94 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 95 6. TEST LOCATION.............................................................................................................................................. 97 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 98 APPEN…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw…

Text truncated - open the document above for the full version.
