K97SDW-150Wireless Digital Microphone

Voice Craft Electronics Co Ltd
Wireless Digital Microphone - FCC ID K97SDW-150 - Voice Craft Electronics Co Ltd
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Mar 19, 2008
Application Purpose
Original Equipment
Date of Application
Mar 19, 2008
Equipment Note
Wireless Digital Microphone
Frequency Range
2402.00000000 - 2477.00000000
Company
Voice Craft Electronics Co Ltd
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Parts List/Tune Up Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Operation of SDW-150 The Wireless Digital Microphone A. System link: For your first use of SDW-150, turn the power of transmitter and receiver on, and press the “LINK” button on the transmitter. The “STATE” LED of both the transmitter and receiver will light up and start to flash three times (time interval at 1.3 sec.) and change to light still when the system links successfully. This process shall be done if the SDW-150 has not been used for a period of days. For your next use of SDW-150, the system will link automatically when you turn on the transmitter and receiver, and the LED of each unit will light still. If the receiver is out of range, the LED will flash quickly and stop signal receipt, you need to bring the receiver closer to the transmitter, and push the LINK button again until the LED turns light still. B. Battery low The LED of each unit will flash frequently (time interval at 0.3 sec.) when the power is at low level, please change new batteries for the unit. The transmitting range will be reduced when the battery power is not supplied enough. Specification: Electronic Condenser microphone Frequency response: 100 – 10KHz Sound quality: 22KHz mono channel Impedance: 1.5K Ohm, 30% unbalance Effective output level: -50dB +/- 5dB unbalance Power requirement: Receiver: AAA x 2pcs Transmitter: AA x 2pcs Power Consumption: 60mA (both transmitter and receiver) Contains FCC ID: K97SDW-150 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation

Cover Letter(s)

Mike Kuo From: jill.shiau [[email protected]] on behalf of application [[email protected]] Sent: Wednesday, March 19, 2008 8:13 PM To: Mike Kuo Cc: jill.shiau; julia.wei; andrew.lin Subject: 回信: FW: Voice Craft Electronics Co., Ltd., FCC ID: K97SDW-150, Assessment NO.: AN08T7726, Notice#1 Attachments: SDW-150 IDLabelFomat&Location0320.pdf; SDW-150 TestReport0320.pdf 3/20/2008 Dear Mike, Please see my reply, thanks. Jill Hi Jill: Question #1: The FCC ID label format contains FCC DoC logo which indicates this device either is a PC peripheral device or a receiver. Based upon the functionality of this device, this device does not equip with any I/O port to connect to Personal computer and the receiver tuning range is beyond 960 MHz. Please explain why the FCC DoC logo is applied on this product. Ans# The FCC ID Label format has been revised, please see attached file. Question #2: As indicated in the test setup photo, Notebook computer was connected to the EUT during the tests, please explain the purpose of notebook computer and what is the support function that were used during final compliance tests. Ans# Notebook Computer was connected to the EUT of Receiver during the tests for FCC Part 15B test report. The Test report has been revised, please se attached file. Question #3: As indicated in the functional block daigram and user maunal, this device is powered by batteries and considered as portable device. Please provide the rational that X/Y/Z device orientation was not investigated. "Mike Kuo" <[email protected]> 2008/03/19 09:57 AM 收件人: "application" <[email protected]> 副本抄送: "Lucy Tsai" <[email protected]> 主旨: FW: Voice Craft Electronics Co., Ltd., FCC ID: K97SDW-150, Assessment NO.: AN08T7726, Notice#1 Ans# The field strength of spurious emission was measured in the following position: EUT stand-up position (Z axis), lie- down position (X, Y axis). The worst emission was found in lie-down position (Y axis) and the worst case was recorded. The Test report has been revised, please se attached file. Question #4: Please explain how the device was properly modulated during the final compliance tests per ANSI C63.4 requirements. Ans# The microphone of EUT was received noises (1KHz) to tune the maximize input during test. The Test report has been revised, please se attached file. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. No virus found in this incoming message. Checked by AVG. Version: 7.5.519 / Virus Database: 269.21.7/1333 - Release Date: 3/18/2008 8:10 AM No virus found in this outgoing message. Checked by AVG. Version: 7.5.519 / Virus Database: 269.21.7/1333 - Release Date: 3/18/2008 8:10 AM 3/20/2008

External Photos

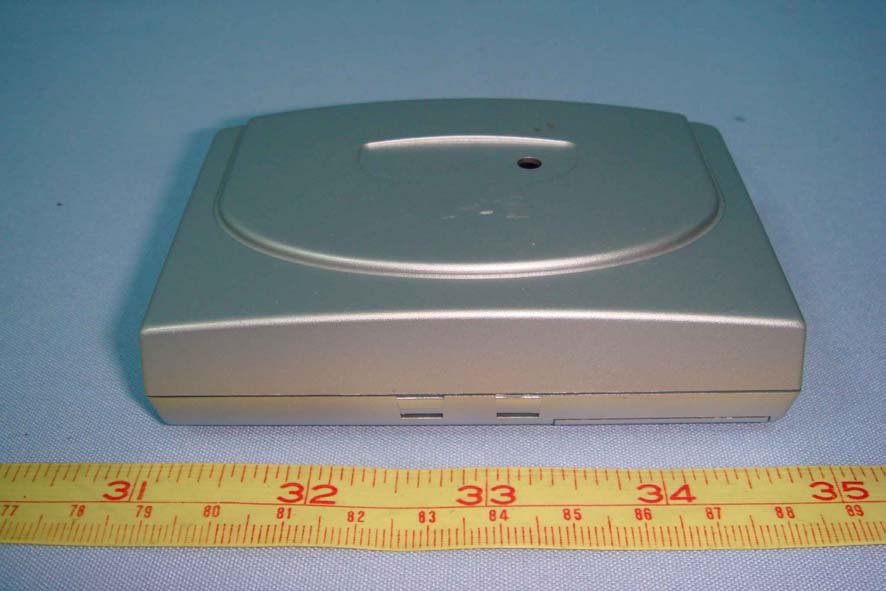

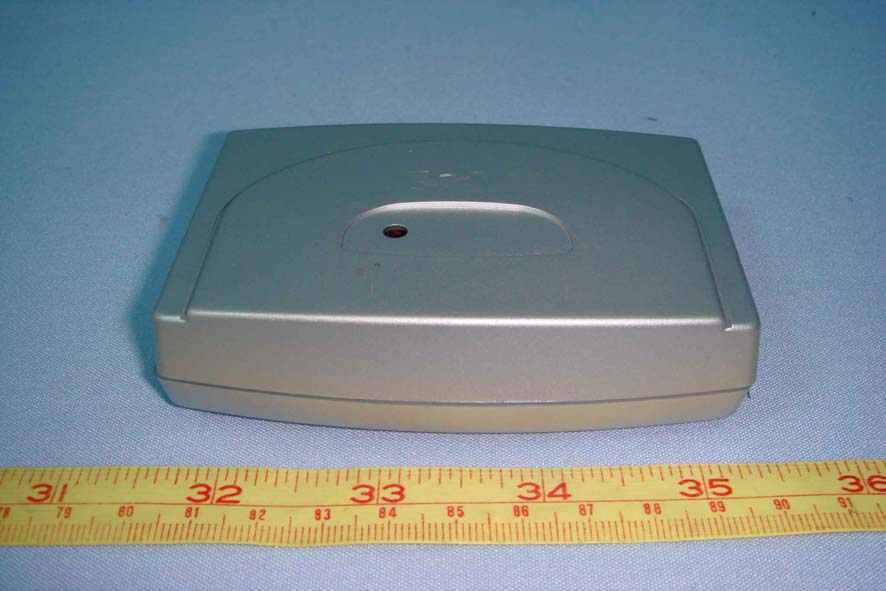

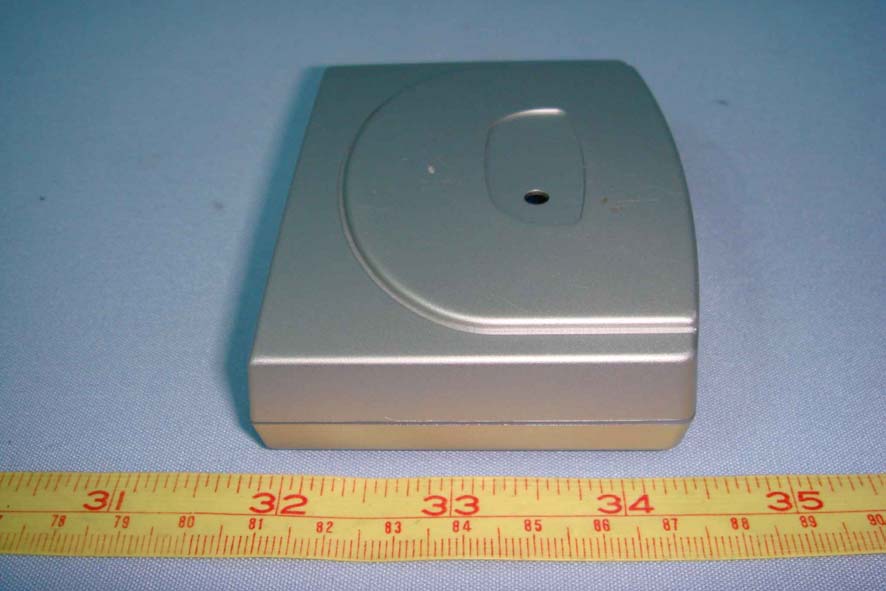

Compliance Certification Services Inc. Report No: 80225108 Date of Issue: Marc 14, 2008 EXTERNAL PHOTOGRAPHS OF EUT TX Page 1 Total Page: 11 Rev. 00 Compliance Certification Services Inc. Report No: 80225108 Date of Issue: Marc 14, 2008 Page 2 Rev. 00 Compliance Certification Services Inc. Report No: 80225108 Date of Issue: Marc 14, 2008 Page 3 Rev. 00

ID Label/Location Info

FCC ID / IC LABEL FORMAT AND LOCATION Applicant: Voice Craft Electronics Co Ltd FCC ID: K97SDW-150 Trade Name: SIMA Model Number: SDW-150 FCC ID: K97SDW-150 LABEL LOCATION

Internal Photos

Compliance Certification Services Inc. Report No: 80225108 Date of Issue: Marc 14, 2008 INTERNAL PHOTOGRAPHS OF EUT TX Antenna Page 6 Rev. 00 Compliance Certification Services Inc. Report No: 80225108 Date of Issue: Marc 14, 2008 Page 7 Rev. 00 Compliance Certification Services Inc. Report No: 80225108 Date of Issue: Marc 14, 2008 Page 8 Rev. 00

Parts List/Tune Up Info

The Specification of Antenna 1. Type: Wire Antenna, A 27~31mm plastic-covered wire can be used as antenna. In principle, 31mm length is for a wire without any cover or very thin cover. The thicker of the cover, the shorter of the antenna length. Try various length for a certain wire to optimize the transmission distance. 2. Antenna Gain: 0 dBi 3. Antenna Soldering:

Test Report

Compliance Certification Services Inc. Report No.: 80225108-RP1 FCC ID: K97SDW-150 Date of Issue: March 14, 2008 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 40 Rev. 00 FCC 47 CFR PART 15 Subpart C TEST REPORT For Wireless Digital Microphone Model Number: SDW-150 Tr a d e Na me : S I MA Issued to Voice Craft Electronics Co., Ltd. 11F, No. 29, Lane 169, Kang-Ning St., Hsi-Chih Tahu Industrial, Taipei County, Taiwan R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 80225108-RP1 FCC ID: K97SDW-150 Date of Issue: March 14, 2008 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .............................................................................................3 2. EUT DESCRIPTION .....................................................................................................................4 3. TEST METHODOLOGY ..............................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE...................................................................................................................................5 3.3 GENERAL TEST PROCEDURES............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION .................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION.....................................................................................8 4.2 MEASUREMENT EQUIPMENT USED ........................................................................................8 5. FACILITIES AND ACCREDITATIONS..................................................................................10 5.1 FACILITIES.......................................................................................................................................10 5.2 EQUIPMENT.....................................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS....................................................................................11 6. SETUP OF EQUIPMENT UNDER TEST.................................................................................12 6.1 SETUP CONFIGURATION OF EUT......................................................................................................12 6.2 SUPPORT EQUIPMENT...............................................................................................................12 7. FCC PART 15.249 REQUIREMENTS ......................................................................................13 7.1 BAND EDGES MEASUREMENT................................................................................................13 7.2 SPURIOUS EMISSION .................................................................................................................19 7.3 20 DB BANDWIDTH.........................................................................................................................33 7.4 POWERLINE CONDUCTED EMISSIONS .................................................................................35 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ...........................................................................38 Compliance Certification Services Inc. Report No.: 80225108-RP1 FCC ID: K97SDW-150 Date of Issue: March 14, 2008 1. TEST RESULT CERTIFICATION Applicant: Voice Craft Electronics Co., Ltd. 11F, No. 29, Lane 169, Kang-Ning St., Hsi-Chih Tahu Industrial, Taipei County, Taiwan R.O.C. Equipment Under Test: Wireless Digital Microphone Trade Name: SIMA Model Number: SDW-150 Date of Test: February 27 ~ March 12, 2008 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: S.C Wang Miller Lee Executive Vice President Deputy Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 80225108-RP1 FCC ID: K97SDW-150 Date of Issue: March 14, 2008 2. EUT DESCRIPTION Product Wireless Digital Microphone Trade Name SIMA Model Number SDW-150 Model Discrepancy N/A RF Module ELAN Model DRF-TR001 Power Supply 3.0VDC from Battery Frequency Range 2402 ~ 2477MHz Output Power 102.36dBuV/m Modulation Technique GFSK Number of Channels 32 Channel Antenna Gain 0dBi Antenna Designation Wire Antenna Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID:K97SDW-150 filing to comply with Section 15.10…

Text truncated - open the document above for the full version.

Test Setup Photos

Compliance Certification Services Inc. Report No.: 80225108-RP1 FCC ID: K97SDW-150 Date of Issue: March 14, 2008 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos TX Compliance Certification Services Inc. Report No.: 80225108-RP1 FCC ID: K97SDW-150 Date of Issue: March 14, 2008 RX Compliance Certification Services Inc. Report No.: 80225108-RP1 FCC ID: K97SDW-150 Date of Issue: March 14, 2008 Powerline Conducted Emissions Setup Photos RX

Contact Information

Applicant

Isabella Yu(Manager)
886 2 692-3311Fax: 886 2 695-0963

Test Firm

Compliance Certification Services Inc.Kurt Chen
[email protected]886-2-86422071Fax: 886-2-86422256

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz-
