KA2-014H027FCable Modem




































 6DCM200...04 Made in Taiwan RECYCLABLE DCM-200 USB/Ethernet Cable Modem 1 Table of Contents

















   !




  !   "
 !"!#!  $%
#$ % &  '( )*
DCM-200 USB/Ethernet Cable Modem 2
  Thank you for choosing the D-Link DCM-200 digital, two-way DOCSIS 1.0-compliant USB/Ethernet Cable Modem. The DCM-200 provides customers with high-speed access to the Internet through the cable TV (CATV) network. It works on any cable system that complies with MCNS DOCSIS specifications and provides a high-bandwidth connection to the Internet. It can download Web pages almost instantly, transfers files at exceptionally fast speeds, and delivers real-time video and music with unsurpassed quality. The DCM-200 modem digitizes data and sends it over the cable at up to 10.2 Mbps and can receive transmissions at up to 42.88 Mbps. To give you an idea of just how fast this is, digitized television quality video and audio are transmitted together at about 3 Mbps. The DCM-200 includes both a USB cable interface and a standard RJ-45 port for a 10/100BASE-T connection to a computer or computer network. When properly configured these connections allow simultaneous data transfers to an existing IP data network or the Internet via the cable company’s network.
  Open the shipping carton and carefully remove all items. In addition to this User's Manual, make sure that you have the following: ♦ DCM-200 USB/Ethernet Cable Modem ♦ DCM-200 driver CD-ROM ♦ External power adapter ♦ USB cable ♦ Category 5 Ethernet cable ♦ Quick Install Guide If any item is found missing or damaged, please contact your reseller.     Designed for versatility and performance, the USB/Ethernet Cable Modem provides the following: Product Features ♦ MCNS/DOCSIS 1.0 compliant ♦ DOCSIS 1.1 upgradeable ♦ Building MCNS MIB ♦ Frequency Agility ♦ DES Encryption and Decryption ♦ Automatic Signal Power Recognition/Adjustment ♦ Baseline Privacy Interface ♦ QPSK/16 QAM Upstream Modulation ♦ 64/256 QAM Downstream Modulation ♦ USB 1.1 compatible DCM-200 USB/Ethernet Cable Modem 3

    You will need to establish an account with your local cable operator in order to access the Internet with this modem. They will assist you in setting up the modem to operate on their network. Then for your modem to communicate with the cable service, you will first need to be able to identify the cable modem. On the cable modem find the make and model (i.e. D-Link DCM-200). The Cable Media Access Control (CMAC) address is a unique number that is used for the purpose of identifying the modem on the network. The CMAC address is found on the rear panel of the modem. Serial Number is found on the bottom of the cable modem. You may be required to provide the following information to your cable service operator. For convenient reference you can write the Modem Make and Model, CMAC address, and Serial Number in the space provided below.




______________________________________

  _______________________________________________

 ________________________________________________         The capabilities and limitations of your computer equipment and configuration can affect the overall performance of your Internet connection. The DCM-200 USB/Ethernet Cable Modem is designed to work with the following operating systems: ♦ Windows 95/98 (Only support Ethernet function) The following operating systems can support both USB/Ethernet function ♦ Windows XP ♦ Windows 2000 ♦ Windows ME (Millennium Edition) ♦ 98 SE (Second Edition) ♦ Active Ethernet Port or NIC installed ♦ TCP/IP installed on all devices All computers not using the USB interface that are connected to the modem must have either an active Ethernet interface or network interface card (NIC) installed. You will need to enable TCP/IP protocol on each computer. TCP/IP should already be installed in any computer with an active Ethernet interface. The instructions for installing TCP/IP vary depending on the type of system used. These instructions will be included with the NIC or discussed in the computer’s manual if your PC comes equipped with an Ethernet port. Your cable operator may have additional instructions for TCP/IP configuration that must be followed. DCM-200 USB/Ethernet Cable Modem 4       In order for you to enjoy the benefits of your Cable Modem, your PC must be properly connected to the cable TV wire. The following diagram illustrates a typical PC/TV installation. (Newer homes or businesses may have a dedicated coaxial cable line for Internet connection).
…

Text truncated - open the document above for the full version.

Doc. Name DCM-200 Block Diagram Doc. Num Product DCM-200-A2 Version A2 Page 1 / 1 PowerCom CONFIDENTIAL System Block Diagram Tuner Upstream IF Interface Downstream IF Interface CN9414 Ethernet Interface Memory Reset Power Regulators USB Interface 10BaseT Ethernet Crystal 35.84MHz 2.5V 3.3V 5V 9V 12V DC In Two-way Cable Link Act Status Power RDF-006 REV: B

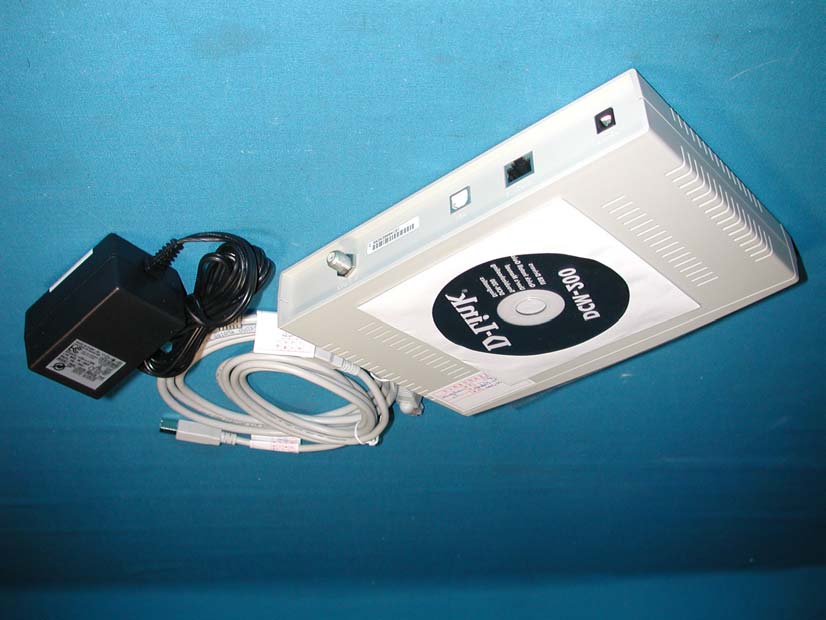

QuieTek Corporation Page: 1 of 1 FCC Report No.: 021H039FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 3: EUT Detailed Photographs (1) EUT photo (2) EUT photo

CORPORATION FCC ID.: KA2-014H027F No.8, Li-Hsin VII Road, Scien-based Industrial Park, HsinChu, Taiwan, R.O.C. Tel: 886 3 563 6666 Fax: 886 3 567 8124 FCC ID Label Sample Cable Modem Model No.: DCM-200 F F C C C C I I D D : : K K A A 2 2 - - 0 0 1 1 4 4 H H 0 0 2 2 7 7 F F This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

CORPORATION FCC ID.: KA2-014H027F No.8, Li-Hsin VII Road, Scien-based Industrial Park, HsinChu, Taiwan, R.O.C. Tel: 886 3 563 6666 Fax: 886 3 567 8124 LabelLoc The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

QuieTek Corporation Page: 1 of 5 FCC Report No.: 021H039FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 3: EUT Detailed Photographs (1) EUT photo QuieTek Corporation Page: 2 of 5 FCC Report No.: 021H039FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (2) EUT photo QuieTek Corporation Page: 3 of 5 FCC Report No.: 021H039FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (3) EUT photo QuieTek Corporation Page: 4 of 5 FCC Report No.: 021H039FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (4) EUT photo (5) EUT photo QuieTek Corporation Page: 5 of 5 FCC Report No.: 021H039FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (6) EUT photo (7) EUT photo

QuieTek Corporation Page: 1 of 18 FCC Report No.: 021H039FI Accredited Lab. of NVLAP (NIST) NVLAP Lab. Code: 200347-0 EMC Test Laboratory Rev.1 Test Report For Applicant : D-Link Corporation Equipment Type : Cable Modem Model : DCM-200 FCC ID : KA2-014H027F Report No.: 021H039FI QuieTek Corporation Page: 3 of 18 FCC Report No.: 021H039FI Accredited Lab. of NVLAP (NIST) NVLAP Lab. Code: 200347-0 EMC Test Laboratory Rev.1 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ..................................................................................................................................4 1.1 EUT Description ........................................................................................................................................................4 1.2 Tested System Details.................................................................................................................................................5 1.3 EUT Configuration.....................................................................................................................................................9 1.4 EUT Exercise Software ............................................................................................................................................11 1.5 Test performed..........................................................................................................................................................11 1.6 Test Facility..............................................................................................................................................................12 2. CONDUCTED EMISSION ...................................................................................................................................13 2.1 Test Equipment List..................................................................................................................................................13 2.2 Test Setup .................................................................................................................................................................13 2.3 Limits .......................................................................................................................................................................13 2.4 Test Procedure ..........................................................................................................................................................14 2.5 Test Results ..............................................................................................................................................................14 3. RADIATED EMISSION ........................................................................................................................................15 3.1 Test Equipment.........................................................................................................................................................15 3.2 Test Setup .................................................................................................................................................................15 3.3 Limits .......................................................................................................................................................................16 3.4 Test Procedure ..........................................................................................................................................................16 3.5 Test Results ..............................................................................................................................................................16 4. EMI REDUCTION METHOD DURING COMPLIANCE TESTING .............................................................17 5. ATTACHMENT .....................................................................................................................................................18 ATTACHMENT 1: SUMMARY OF TEST RESULTS ATTACHMENT 2: EUT TEST PHOTOGRAPHS ATTACHMENT 3: EUT DETAILED PHOTOGRAPHS QuieTek Corporation Page: 4 of 18 FCC Report No.: 021H039FI Accredited Lab. of NVLAP (NIST) NVLAP Lab. Code: 200347-0 EMC Test Laboratory Rev.1 1. General Information 1.1 EUT Description Applicant : D-Link Corporation Address : No. 8, Li-Hsin VII Road, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Equipment Type : Cable Modem Model : DCM-200 FCC ID : KA2-014H027F Operation Voltage : 120VAC/60Hz Power Adapter : High power, HPW-1512B Rev:c1 Non-Shielded, 1.8m, a ferrite core bonded Remark : 1.This device a Cable Modem. 2.QuieTek had verified the construction and function of the above model in typical operation, then shown in the test report. QuieTek Corporation Page: 5 of 18 FCC Report No.: 021H039FI Accredited Lab. of NVLAP (NIST) NVLAP Lab. Code: 200347-0 EMC Test Laboratory Rev.1 1.2 Tested System Details The types for all equipment, plus descriptions of all cables used in the tested system (including inserted cards ) are: 1.2.1 Notebook Model Number :Travel Mate 332T Manufacturer :Acer Serial Number :N/A BSMI No :3882A145 FCC ID :DoC Power Adapter :DELTA, ADP-45GB Cable In : Non-shielded, 1.7m Cable Output : Non-shielded, 1.7m 1.2.2 Cable Modem (EUT) Model Number : DCM-200 Serial Number : N/A FCC ID : KA2-014H027F Manufacturer : PowerCom Data Cable : Shielded, 1.8m LAN Cable : Non-shielded, 1.5m×1 Power Adapter : Highpower, HPW-1512B Rev:c1 Non-Shielded, 1.8m, a ferrite core bonded 1.2.3 Monitor Model Number : CM752ET-311 Serial Number : T8E004443 FCC ID : DoC Manufacturer : HITACHI Data Cable : Shielded, 1.5m Power Cord : Shielded, 1.8m 1.2.4 Modem Model Number : 1414 Serial Number : 980033035 FCC ID : IFAXDM1414 Manufacturer : ACEEX Data Cable : Shielded, 1.5m Power Adapter : ACCEX, SCP41-91000A Cable Output : Shielded, 1.5m 1.2.5 Printer Model Number : C2642A Serial Number : MY75N1D2Y1 FCC ID : B94C2642X Manufacturer …

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 9 of 18 FCC Report No.: 021H039FI Accredited Lab. of NVLAP (NIST) NVLAP Lab. Code: 200347-0 EMC Test Laboratory Rev.1 1.3 EUT Configuration (1) Mode 1 Partner PC System Notebook EUT Printer Earphone Mouse Keyboard Monitor Modem Microphone Diplex Filter UPCONVERTER CLSCO UBR7223 ACCTON SWITCH PC Mouse Wa l k m a n Modem LAN Cable*1 USB Cable*1 USB Mouse
