DWL-7200AP 802.11a/802.11g (2.4/5GHz) Manual Building Networks for People D-Link AirPremier AG Wireless Access Point with PoE TM 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics.................................................................................... 6 Installation Considerations.................................................................... 8 Getting Started ...................................................................................... 9 Using the Configuration Menu.............................................................. 11 Networking Basics.............................................................................. 27 Troubleshooting...................................................................................40 Technical Specifications ......................................................................46 3 Contents of Package: D-Link AirPremier TM AG DWL-7200AP 802.11a/802.11g (2.4GHz/5GHz) Wireless Access Point with PoE Power Adapter – 48V, 0.4A Manual on CD Quick Installation Guide Ethernet Cable Note: Using a power supply with a different voltage than the one included with the DWL-7200AP will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller. System Requirements For Configuration: Package Contents At least 128MB of memory and a 500MHz processor




Computer with Windows, Macintosh, or Linux-based operating system with an installed Ethernet adapter Internet Explorer or Netscape Navigator version 6.0 or above, with JavaScript enabled


4 Introduction The DWL-7200AP has the newest, strongest and most advanced security features available today. When used with other 802.11 WPA (Wi-Fi Protected Access) compatible products in a network with a RADIUS server, the security features include: WPA: Wi-Fi Protected Access which authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This ensures much greater security than the standard WEP security. (By contrast, the previous WEP encryption implementations required the keys to be changed manually.) For home users that will not incorporate a RADIUS server in their network, the security for the DWL-7200AP, used in conjunction with other WPA-compatible 802.11 products, will still be much stronger than ever before. Utilizing the Pre-Shared Key mode of WPA, the DWL-7200AP will obtain a new security key every time it connects to the 802.11 network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security. With the DWL-7200AP, you will automatically receive a new key every time you connect, vastly increasing the safety of your communication. At up to fifteen times the speed of previous wireless devices (up to 108Mbps in Super AG mode), you can work faster and more efficiently, increasing productivity. With the DWL-7200AP, bandwidth-intensive applications like graphics or multimedia will benefit significantly because large files are able to move across the network quickly. Inclusion of all three standards (802.11g; 802.11a; 802.11b) means that the DWL-7200AP is versatile enough to allow connection to almost any 802.11 network or device. 5 Better security with WPA- The DWL-7200AP can securely connect to wire- less clients on the network using WPA (Wi-Fi Protected Access) providing a much higher level of security for your data and communications than has previ- ously been available.


Compatible with the 802.11b standard to provide a wireless data rate of up to 11Mbps with 802.11b devices.
Features Faster Wireless Networking with speeds up to 108Mbps in Super AG mode Compatible with 802.11a, 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11a, 802.11b and 802.11g standards, the DWL-7200AP can connect with existing 802.11b-, 802.11g- or 802.11a- compliant wireless network adapter cards. LEDs LED stands for Light-Emitting Diode. The DWL-7200AP Wireless Access Point has 5 Green LEDs as shown below: Power LAN (10/100) WLAN (802.11a and 802.11b or 802.11g) A steady light indicates a connection to a power source A steady light indicates a connection to the Ethernet port; a blinking light indicates activity LED LED Activity A blinking light indicates activity in the respective wireless mode: 802.11a and/or 802.11b/802.11g 6 Wireless Basics D-Link AirPremier TM AG wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link AirPremier TM AG wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers. A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless LANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial for many users. Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. People use wireless LAN technology for many different purposes: Mobi…

Text truncated - open the document above for the full version.

26 Networking Basics (continued) Click Next. In the following window, select the best description of your computer. If your computer connects to the internet through a gateway/router, select the second option as shown. Click Next. Please follow all the instructions in this window: 27 Enter a Computer description and a Computer name (optional.) Networking Basics (continued) Click Next. Enter a Workgroup name. All computers on your network should have the same Workgroup name. Click Next. 28 Please wait while the Network Setup Wizard applies the changes. Networking Basics (continued) When the changes are complete, click Next. Please wait while the Network Setup Wizard configures the computer. This may take a few minutes. 29 Networking Basics (continued) In the window below, select the option that fits your needs. In this example, Create a Network Setup Disk has been selected. You will run this disk on each of the computers on your network. Click Next. Insert a disk into the Floppy Disk Drive, in this case drive A. Format the disk if you wish, and click Next. 30 Networking Basics (continued) Please read the information under Here’s how in the screen below. After you complete the Network Setup Wizard you will use the Network Setup Disk to run the Network Setup Wizard once on each of the computers on your network. To continue click Next. 31 Networking Basics (continued) Please read the information on this screen, then click Finish to complete the Network Setup Wizard. The new settings will take effect when you restart the computer. Click Yes to restart the computer. You have completed configuring this computer. Next, you will need to run the Network Setup Disk on all the other computers on your network. After running the Network Setup Disk on all your computers, your new wireless network will be ready to use. 32





Select the Computer Name Tab in the System Properties window. You may enter a Com- puter Description if you wish; this field is optional. To rename the computer and join a domain, click Change. Networking Basics (continued) Naming your Computer To name your computer in Windows XP, please follow these directions: Click Start (in the lower left corner of the screen). Right-click on My Computer. Select Properties. 33

Networking Basics (continued) Naming your Computer
In this window, enter the Computer name. Select Workgroup and enter the name of the Workgroup. All computers on your network must have the same Workgroup name. Click OK.
Checking the IP Address in Windows XP The wireless adapter-equipped computers in your network must be in the same IP ad- dress range (see Getting Started in this manual for a definition of IP address range). To check on the IP address of the adapter, please do the following: Right-click on the Local Area Connection icon in the task bar. Click on Status.

34 Assigning a Static IP Address in Windows XP/2000 Note: DHCP-capable routers will automatically assign IP addresses to the comput- ers on the network, using DHCP (Dynamic Host Configuration Protocol) technol- ogy. If you are using a DHCP-capable router you will not need to assign static IP addresses. If you are not using a DHCP capable router, or you need to assign a static IP address, please follow these instructions:

Go to Start. Double-click on Control Panel. Networking Basics (continued) This window will appear. Click the Support tab. Click Close.

Checking the IP Address in Windows XP 35 Networking Basics (continued) Assigning a Static IP Address in Windows XP/2000
Double-click on Network Connections.

Double-click on Properties. Right-click on Local Area Connections. 36 Networking Basics (continued) Assigning a Static IP Address in Windows XP/2000 Click on Internet Protocol (TCP/IP) Click Properties

IP Address: e.g., 192.168.0.2 Subnet Mask: 255.255.255.0 Default Gateway: Enter the LAN IP address of the wireless router. (D-Link wireless routers have a LAN IP address of 192.168.0.1) In the window below, select Use the following IP address. Input your IP address and subnet mask. (The IP addresses on your network must be within the same range. For example, if one computer has an IP address of 192.168.0.2, the other computers should have IP addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the same for all the computers on the network).
Click OK Select Use the following DNS server addresses. Enter the LAN IP address of the wireless router. (D-Link wireless routers have a LAN IP address of 192.168.0.1)

You have completed the assignment of a static IP address. (You do not need to assign a static IP address if you have a DHCP-capable router). 37 Networking Basics (continued) Checking the Wireless Connection by Pinging in Windows XP and 2000 Go to Start > Run > type cmd. A window similar to this one will appear. Type ping xxx.xxx.xxx.xxx, where xxx is the IP Address of the Wireless Router or Access Point. A good wireless connection will show four replies from the Wireless Router or Access Point, as shown.
Checking the Wireless Connection by Pinging in Windows Me and 98 Go to Start > Run > type command. A window similar to this will appear. Type ping xxx.xxx.xxx.xxx where xxx is the IP Address of the Wireless Router or Access Point. A good wireless connection will show four replies from the wireless router or access point, as shown.
38 1. Check that the Ethernet LED on the DWL-7200AP is ON. If the LED is not ON, check that the cable for the Ethernet connection is securely inserted. Check that the Ethernet adapter is working properly. Please see item 3 in this section: Check that the drivers for the network adapters are installed properly. Check that the IP address is in the same range and subnet as the DWL-7200AP. Please see Checking the IP Address in Windows XP in the Networking Basics section of this manual. Note: The IP address of the DWL-7200AP is 192.168.0.50. All the computers on the network must have a unique IP addr…

Text truncated - open the document above for the full version.

D-Link Corporation NO.8,Li Hsing Rd VII ,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU,TAIWAN,R.O.C. TEL: ++886 3-563-6666 FAX: +886 3-578-1861 FCC ID: KA2-DWL7200APA1 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, --------------------------------------------------- Leeming Li / Manager D-Link Corporation Tel: 886-3-563-6666 ext.6613 Fax: 886-3-578-1861 E-mail: [email protected]

D-Link Corporation NO.8, Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. TEL: ++886 3-563-6666 FAX: +886 3-578-1861 POWER OF ATTORNEY To whom it may concern: We, the undersigned, D-Link Corporation, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- Leeming Li / Manager D-Link Corporation Tel: 886-3-563-6666 ext.6613 Fax: 886-3-578-1861 E-mail: [email protected]

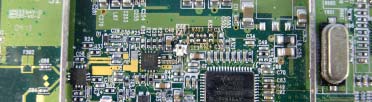

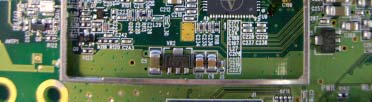

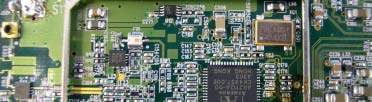

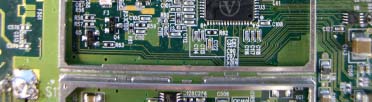

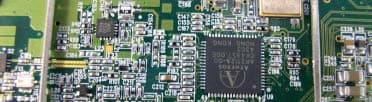

Page 1 CONSTRUCTION PHOTOS OF EUT For Sample 1: With one RJ45 port Page 2 Page 10 For Sample 2: With two RJ45 ports Page 11

(Fig. 1) FCC ID: KA2-DWL7200APA1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 1 CONSTRUCTION PHOTOS OF EUT For Sample 1: With one RJ45 port Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 For Sample 2: With two RJ45 ports Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 For Adapter Model: SA06L48-V Page 21 Page 22 Page 23 Page 24 For Adapter Model: JTA0406B Page 25 Page 26 Page 27 For POE Page 28 Page 29

FCC ID: KA2-DWL7200APA1 Report No. 930705L07 Technical Description This device is a 2.4/5GHz Wireless Access Point with PoE operates in both the 5GHz and 2.4GHz bands with DSSS and OFDM technique. The transmitter rate could be 1/2/5.5/6/9/11/12/18/24/36/48/54Mbps, and the maximum data rate could be up to 108Mbps in turbo mode. The transmitter of the EUT is powered by power adapter or POE. The antenna is Dipole Antenna with R-SMA connector. Under normal use condition, the user has to keep at least 20 cm separation distance between radiator and the body of the user. For more detailed instruction, please refer to the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: KA2-DWL7200APA1 ADT No.: 930705L071Issued: Aug. 24, 2004 RF EXPOSURE REPORT REPORT NO.: SA930705L07 MODEL NO.: DWL-7200AP ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-LINK CORPORATION ADDRESS: NO.8,Li Hsing Rd VII ,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU,TAIWAN,R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: KA2-DWL7200APA1 ADT No.: 930705L072Issued: Aug. 24, 2004 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA2-DWL7200APA1 ADT No.: 930705L073Issued: Aug. 24, 2004 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This is a stand alone radio device. So under normal use condition, it is easy to be re- located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KA2-DWL7200APA1 ADT No.: 930705L074Issued: Aug. 24, 2004 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5.0dBi or 3.16228 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 2.4GHz 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.902490240.0251032021.0 6243740.738027780.0256288511.0 11246240.550853540.0255110971.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241248.977881940.0308126561.0 6243741.686938350.0262258231.0 11246240.738027780.0256288511.0 Turbo 6243741.02041030.0258065011.0 FCC ID: KA2-DWL7200APA1 ADT No.: 930705L075Issued: Aug. 24, 2004 For 5GHz Normal Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518039.536662010.0248730551.0 4524035.481338920.0223217961.0 5526031.915378550.0200784011.0 8532031.117163370.0195762331.0 9574528.840315030.0181438371.0 13582528.840315030.0181438371.0 Turbo Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1521039.355007550.0247587741.0 2525028.840315030.0181438371.0 3529028.575905430.0179774931.0 4576025.118864320.0158026211.0 5580027.542287030.017327231.0

FCC ID: KA2-DWL7200APA1 Report No.: RF930705L071Issued: Aug. 20, 2004 FCC TEST REPORT REPORT NO.:RF930705L07 MODEL NO.:DWL-7200AP RECEIVED:Jul. 05, 2004 TESTED:Jul. 22 to Aug. 17, 2004 APPLICANT: D-LINK CORPORATION ADDRESS: NO.8,Li Hsing Rd VII ,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU,TAIWAN,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 188 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536No. 2177-01 ILAC MRA FCC ID: KA2-DWL7200APA1 Report No.: RF930705L072Issued: Aug. 20, 2004 Table of Contents 1.CERTIFICATION........................................................................................... 6 2.SUMMARY OF TEST RESULTS .................................................................. 7 3.GENERAL INFORMATION ......................................................................... 10 3.1GENERAL DESCRIPTION OF EUT ........................................................... 10 3.2DESCRIPTION OF TEST MODES ............................................................. 12 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................. 14 3.4DESCRIPTION OF SUPPORT UNITS ....................................................... 15 3.5CONFIGURATION OF SYSTEM UNDER TEST......................................... 16 4.TEST TYPES AND RESULTS (FOR PART 802.11B) ................................. 18 4.1CONDUCTED EMISSION MEASUREMENT.............................................. 18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 18 4.1.2 TEST INSTRUMENTS................................................................................ 18 4.1.3 TEST PROCEDURES ................................................................................ 19 4.1.4 DEVIATION FROM TEST STANDARD....................................................... 19 4.1.5 TEST SETUP.............................................................................................. 20 4.1.6 EUT OPERATING CONDITIONS ............................................................... 20 4.1.7 TEST RESULTS ......................................................................................... 21 4.2RADIATED EMISSION MEASUREMENT................................................... 29 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 29 4.2.2 TEST INSTRUMENTS................................................................................ 30 4.2.3 TEST PROCEDURES ................................................................................ 31 4.2.4 DEVIATION FROM TEST STANDARD....................................................... 31 4.2.5 TEST SETUP.............................................................................................. 32 4.2.6 EUT OPERATING CONDITIONS ............................................................... 32 4.2.7 TEST RESULTS ......................................................................................... 33 4.2.8 TEST RESULTS - DSSS ............................................................................ 36 4.2.9 TEST RESULTS - OFDM............................................................................ 39 4.36DB BANDWIDTH MEASUREMENT ......................................................... 43 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT ....................................... 43 4.3.2 TEST INSTRUMENTS................................................................................ 43 4.3.3 TEST PROCEDURE................................................................................... 44 4.3.4 DEVIATION FROM TEST STANDARD....................................................... 44 4.3.5 TEST SETUP.............................................................................................. 44 4.3.6 EUT OPERATING CONDITIONS ............................................................... 44 4.3.7 TEST RESULTS -DSSS ............................................................................. 45 4.3.8 TEST RESULTS -OFDM............................................................................. 49 4.4MAXIMUM PEAK OUTPUT POWER.......................................................... 54 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT........... 54 FCC ID: KA2-DWL7200APA1 Report No.: RF930705L073Issued: Aug. 20, 2004 4.4.2 INSTRUMENTS .......................................................................................... 54 4.4.3 TEST PROCEDURES ................................................................................ 55 4.4.4 TEST SETUP.............................................................................................. 55 4.4.5 EUT OPERATING CONDITIONS ............................................................... 55 4.4.6 TEST RESULTS -DSSS ............................................................................. 56 4.4.7 TEST RESULTS -OFDM............................................................................. 57 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 58 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 58 4.5.2 TEST INSTRUMENTS................................................................................ 58 4.5.3 TEST PROCEDURE................................................................................... 59 4.5.4 DEVIATION FROM TEST STANDARD....................................................... 59 4.5.5 TEST SETUP.......................................................................................…

Text truncated - open the document above for the full version.

Report No. 930705L07 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2005 High pass filter WHK3.1/18G- 10SS SN4Jun. 8, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE 2.5GHz~13GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable and a high pass filter. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 13GHz~25GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930705L07 2 4. TEST SETUP 2.5GHz~13GHz: 13GHz~25GHz: 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER EUT SPECTRUM ANALYZER HIGH PASS FILTER Report No. 930705L07 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930705L07 4 Ch1 Report No. 930705L07 5 Ch11 Report No. 930705L07 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930705L07 7 Ch1 Report No. 930705L07 8 Ch11 Report No. 930705L07 9 TEST RESULTS – For 802.11a, Normal mode The spectrum plots are attached on the following 6 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930705L07 10 Ch1 Report No. 930705L07 11 Ch4 Report No. 930705L07 12 Ch5 Report No. 930705L07 13 Ch8 Report No. 930705L07 14 Ch9 Report No. 930705L07 15 Ch13 Report No. 930705L07 16 TEST RESULTS – For 802.11a, Turbo The spectrum plots are attached on the following 5 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930705L07 17 Ch1 Report No. 930705L07 18 Ch2 Report No. 930705L07 19 Ch3 Report No. 930705L07 20 Ch4 Report No. 930705L07 21 Ch5

FCC ID: KA2-DWL7200APA1 Report No.: RF930705L07182Issued: Aug. 20, 2004 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST ( With Adapter1) FCC ID: KA2-DWL7200APA1 Report No.: RF930705L07183Issued: Aug. 20, 2004 (With Adapter2) FCC ID: KA2-DWL7200APA1 Report No.: RF930705L07184Issued: Aug. 20, 2004 (With Adapter1+POE) FCC ID: KA2-DWL7200APA1 Report No.: RF930705L07185Issued: Aug. 20, 2004 (With Adapter2+POE) FCC ID: KA2-DWL7200APA1 Report No.: RF930705L07186Issued: Aug. 20, 2004 RADIATED EMISSION TEST (With Adapter) FCC ID: KA2-DWL7200APA1 Rep…
