Page 1 of 3 RE: D Link Corporation FCC ID: KA22001120010-1 1) The manual makes mention of a modular application, 2 antennas (page vii & viii), and a different FCC ID which do not match this application. However, this is in reference to the modular MINI PCI module contained within this application. Please comment on if the antenna and cable utilized as part of this EUT are exactly those submitted in the modular approval for the MINI PCI Card. Additional information should be added to the manual (page viii) that strongly advises that that module (not the entire EUT) is approved only as a mobile device and clearly advise what the installation criteria must be to maintain compliance. The information in the manual also mentions 2 antennas, but if the manual is being provided with this product, it will only have 1 antenna provided as shown in this application. This application pertains to the PCI Card. The user manual statement has been change to reflect the use of a modular device with a PCI Card and to use only the provided antenna. Also, only one antenna is specified, which is the 3 dBi. The FCC ID pertains to the modular device that will be used with the PCI Card. D-link requested a submission for the PCI Card, with it’s own FCC ID number, even though the Modular Mini PCI application will have cover this particular configuration. 2) The sales literature mentions a single + 5 dBi gain antenna, the RF exposure states +3 dBi, and the test report states both +3 & +4 dBi (page 2 of 52, page 5 of 18, page 9 of 52 and many more). Please provide a thorough description of the antenna used for this configuration and correct the affected exhibits. Literature has been change to reflect only 3 dBi antenna. All exhibits have been corrected to reflect the 3 dBi antenna only. Report has been corrected and MPE exposure has also been corrected. 3) The model number in the sales literature does not match the model number in the test report/manual. Please comment. An additional literature has been uploaded to reflect the other missing model number. So, a total of two literatures have been provided one for the DW-590 and one for the DWL-A520. 4) The theory of operation states that the EUT uses 8 channels between 5180-5320, while the sales literature states 11 channels. Please explain. Literature has been revised to reflect only 8 channels for US and Canada. Page 2 of 3 5) It appears in the manual that the software allows a pull down menu to program the unit for use on different frequency sets for U.S., Canada, and Japan. This control capability should normally not be given to the end user if it will cause the radio to transmit on frequencies not authorized in the U.S. The FCC has recently stated in a Report and Order regarding software defined radios that the manufacturer will be held responsible for keeping the integrity of its programming intact. If the device could be hacked or programmed in an unauthorized manner, the responsibility for such action would rest with the manufacturer, and the FCC would go to the manufacturer for fines or forfeiture actions if either action were necessary. The FCC has further explained to TCBs to also apply the philosophy of the R&O with regard to protecting multiple-capable programming and existing devices that they are approving (not just software defined radios). Please comment. This control capability will not be available to the end-user and will be removed form the manual. Old manual had Chapter 9 for Country selection. This has been removed on the revised user manual. 6) Since the EUT transmits in the 5.15-5.25 MHz band, the EUT is required to meet the antenna requirement for 15.407(d). The FCC defines this as "An antenna that attaches with a connector inside of a case is acceptable, provided that there is no need for the user to ever open the case." The test report states that the EUT utilizes a non-standard reverse sex connector. This does not meet with the FCC's intended definition. Please comment. Please refer to “D-link letter” uploaded. 7) The EUT seems to have much less power (almost 10 dB) than the level output by the PA (specified in the theory of operation). Please comment. The PA is capable of much more power. At the higher power levels the band-edge and harmonics no longer meet the FCC’s rules. The power limitation is due, therefore, to the FCC’s requirements rather than the limitations of the PA. Taken out from the Revised Theory of Operation (Page 5 of 6): The PA has 29.5dB nominal gain and maximum output power of 22.5dBm.Due to the highly linearity restrict of the high level modulation scheme, The PA normally operating on a linearity region of 10 to17 dBm output power, This device draws about 180mA when enabled by the XPAA signal. 8) Given that the center channel (5250 MHz) is not limited to the 5150-5250 or 5250-5350 band, the grant will be listed as 5210 MHz - 5290 MHz @ 31 mW & 5180 MHz - 5320 MHz @ 17 mW. Please adjust the 731 form to match. 731 form has been change and uploaded. Hopefully this answers all of your questions. Please contact me via [email protected] if you require more information. Page 3 of 3 Regards, Juan Martinez Sr. EMC Engineer

Page 1 of 1 RE: D Link Corporation FCC ID: KA22001120010-1 1) Can you please explain the difference between the DW-590 & DWL-520. The advertising literature appears to show different antenna's and also the shielding appears to be different. Per customer decision they will ship PCI Card with cover shield. The literature will now display the correct antenna and cover shield for both models. 2) D-link's letter regarding the antenna discusses an Access Point. This application is not for an access point, but for the unit installed on a typical PCI type card. The references regarding the housing are therefore not applicable. The PCI Card will contain a permanent Cover Shield, so no need for the user to ever open the case. This was done to meet 15.407(d) requirement. Additional pictures showing the cover shield have been uploaded. 3) E-mial comment: These were sent out today.......The issue regarding the intended market and use of the device may affect application KA22001120010-1 as well. The integral antenna issue becomes more of a problem with this (PCI) application, especially since its on a PCI card and not in an access point as given in the modular application. Since not all aspects of the modular approval are being met (no longer in an access point, not matching any strict integration instructions, possible difference in antenna connections between PCI version and modular version, etc), I would suggest removing reference to the modular approval in the KA22001120010-1 application altogether since the whole product already has its own ID All references to modular have been removed on the user-manual and report (re- uploaded) Hopefully this answers all of your questions. Please contact me via [email protected] if you require more information. Regards, Juan Martinez Sr. EMC Engineer

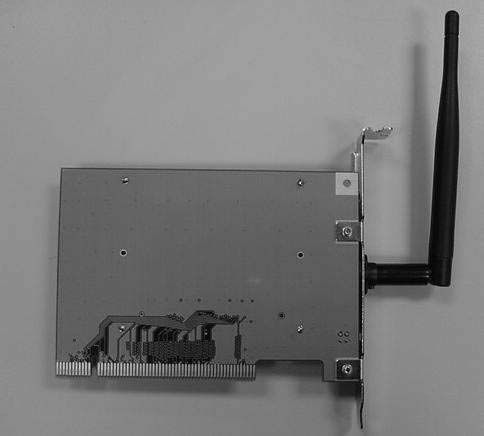

Cover Shield over the Mini PCI Card. Back side of card showing the solder points for cover shield

EXTERNAL PHOTOGRAPHS The following external photographs are detailed photographs showing the top and bottom of the PCI adapter card with the module installed. Detailed photographs of the module have been considered as “Internal Photographs”.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CE Te s t ed To Co m ply W i t h CC F S t a n da r ds Model: DW-590 802.11a PCI Adapter FCC ID: KA22001120010-1 S/N: MAC ID: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CE Te s t ed To Co m ply W i t h CC F S t a n da r ds Model: DWL-A520 802.11a PCI Adapter FCC ID: KA22001120010-1 S/N: MAC ID:

INTERNAL PHOTOGRAPHS The PCI card is comprised of a PCI adapter card and a Mini PCI card. The Mini PCI card contains all of the rf circuitry. Photographs of the top and bottom of the PCI adapter card with the module installed have been considered as “External Photographs”. The following internal photographs are detailed photographs showing the top and bottom of the mini PCI card. Included are photos with and without the shield installed.

DW-590 802.11a Features Specifications Wireless Wireless s PCI Adapter Compatible with IEEE 802.11a high rate standard to provide wireless 54Mbps data rate, and speeds up to the turbo mode of 72Mbps Operation at 5.2GHz Unlicensed National Information Infrastructure (U-NII) frequency band Maximum reliability, throughput and connectivity with automatic data rate switching Supports infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, 54 and 72Mbps Supports wireless data encryption with 64/128/152-bit WEP for security Single 3dBi high-gain dipole antenna) RadioTechnologyIEEE802.11aOrthogonal Frequency Division Multiplexing (OFDM) OperatingFrequency5170-5320MHz ModulationSchemesBPSK, QPSK, 16QAM, 64QAM ChannelAvailable DataRate72MbpswithfallbackRatesof54,48, 36, 24, 18, 12, 9 and 6 Mbps MediaAccessProtocolCSMA/CAwithACK TransmitterOutputPower12dBm at 48Mbps/ 14dBm at 24, 18, 12, 9 and 6Mbps ReceiverSensitivityTipical-71dBmFor72Mbps@10% P ER (Packet Error Rate) Tipical-85dBmfor6 Mbps@10% Antenna Type Single 3dBi high-gain dipole antenna OperatingVoltage3.3 VDC +/- 10% CurrentConsumption 1650mW at continuous transmit mode 1250mW at continuous receive mode 40mW at sleep mode InterfacePCI 32-bit Interface Distance LEDIndicator Power AndNetworkstatus Temperature0 - 55inOperating -20-65inStorage Humidity10%- 90%Non-condensing Dimensions133mmx 121m m x 18m m Office35M, OpenEnvironment120M DataSecurity64-bit, 128-bit and 152-bit WEP IEEE802.11a 5GHz Wireless LAN PCI Adapter DW-590 is a wireless LAN PCI adapter that complied with IEEE 802.11a standard, it can be used to provide up to 54Mbps and 72Mbps high-speed date network to connect your wireless LAN. DW-590 comes with user friendly installation and operating software therefore users won't waste time configuring the software manually. DW-590 Drivers support Windows 98SE, ME, 2000, and XP Support PCI Local Bus 2.2 standard Friendly user configuration and diagnostic utilities With seamless roaming, fully interoperability and advanced security with WEP standard. DW-590 offers absolute interoperability with any 802.11a Access Points through the wireless LAN. PER (Packet Error Rate) 8 4 Non-overlappong channels for US and Canada Non-overlappong channels for Japan

DWL-A520 802.11a Features Specifications Wireless Wireless s PCI Adapter Compatible with IEEE 802.11a high rate standard to provide wireless 54Mbps data rate, and speeds up to the turbo mode of 108Mbps Operation at 5.2GHz Unlicensed National Information Infrastructure (U-NII) frequency band Maximum reliability, throughput and connectivity with automatic data rate switching Supports infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, 54 and 108Mbps Supports wireless data encryption with 64/128/152-bit WEP for security Single 3dBi high-gain dipole antenna) RadioTechnologyIEEE802.11aOrthogonal Frequency Division Multiplexing (OFDM) OperatingFrequency5170-5320MHz ModulationSchemesBPSK, QPSK, 16QAM, 64QAM ChannelAvailable DataRate108MbpswithfallbackRatesof54,48, 36, 24, 18, 12, 9 and 6 Mbps MediaAccessProtocolCSMA/CAwithACK TransmitterOutputPower12dBm at 48Mbps/ 14dBm at 24, 18, 12, 9 and 6Mbps ReceiverSensitivityTipical-71dBmFor108Mbps@10%PER (Packet Error Rate) Tipical-85dBmfor6 Mbps@10% Antenna Type Single 3dBi high-gain dipole antenna OperatingVoltage3.3 VDC +/- 10% CurrentConsumption 1650mW at continuous transmit mode 1250mW at continuous receive mode 40mW at sleep mode InterfacePCI 32-bit Interface Distance LEDIndicator Power AndNetworkstatus Temperature0 - 55inOperating -20-65inStorage Humidity10%- 90%Non-condensing Dimensions133mmx 121m m x 18m m Office35M, OpenEnvironment120M DataSecurity64-bit, 128-bit and 152-bit WEP IEEE802.11a 5GHz Wireless LAN PCI Adapter DWL-A520 is a wireless LAN PCI adapter that complied with IEEE 802.11a standard, it can be used to provide up to 54Mbps and 108Mbps high-speed date network to connect your wireless LAN. DWL-A520 comes with user friendly installation and operating software therefore users won't waste time configuring the software manually. DWL-A520 Drivers support Windows 98SE, ME, 2000, and XP Support PCI Local Bus 2.2 standard Friendly user configuration and diagnostic utilities With seamless roaming, fully interoperability and advanced security with WEP standard. DWL-A520 offers absolute interoperability with any 802.11a Access Points through the wireless LAN. PER (Packet Error Rate) 8 4 Non-overlappong channels for US and Canada Non-overlappong channels for Japan

MPE Calculations FCC part 1.1310, Table 1 limits the power density for uncontrolled exposure to 1mW/ cm 2 for systems operating in the UNII bands. The distance, d(cm) from the antenna at which the power density, P d (mW/cm 2 ) is below this limit is calculated from the maximum EIRP, P t (mW) using the equation: P d = P t /(4 πd 2 ) Re-arranging for the distance at which the power density is 1mW/cm2 gives: d = √ (P t /(4 π)) The device under test is designed to use an integral antenna with a gain of 3 dBi. The maximum output power for the two modes and all channels is 14.9 dBm. The maximum EIRP is, therefore, 14.9 dBm + 3 dBi = 17.9 dBm (61.7mW): d = √ (61.7 / (4 π)) = 2.21 cm The distance from the antenna that the power density is 1mW/ cm 2 is, therefore, 2.21 cm. The users guide instructs the user to install the device such that it has a separation of at least 20cm from persons (see text below) to comply with the FCC’s requirements. This separation of 20cm more than meets the FCC’s and Industry Canada RF exposure requirements. Mode EIRP Pd at 20cm Calculated distance (in cm) where Pd < 1mW/ cm 2 Normal 17.9 dBm (61.7 mW) 0.0123 mW/ cm 2 2.21 RF Exposure Requirements To ensure compliance with FCC RF exposure requirements, the antenna used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or radio transmitter. Installers and end- users must follow the installation instructions provided in this user guide. Extract Of Text From The User’s Manual

File: R45825 December 28, 2001 American TCB Sandy Pickett 6731 Whittier Ave Suite C110 McLean, Va. 22101 Gentlemen: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart E of Part 15 of FCC Rules (CFR 47) regarding intentional radiators. Data within this report demonstrates that the equipment tested complies with the FCC limits for intentional radiators. Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, Juan Martinez Senior EMC Engineer JM/dmg Enclosures: Agent Authorization Letter Emissions Test Report with Appendixs File: R45825 Page 1 of 18 Electromagnetic Emissions Test Report and Application for Grant of Equipment Authorization pursuant to FCC Part 15, Subpart E (UNII Devices) and Industry Canada RSS 210 Issue 4 (LELEAN Devices) on the D-Link Corporation Model: DW-590 & DWL-A520 FCC ID: KA22001120010-1 GRANTEE: D-Link Corporation No.8, Li-shing Road VII Hsinchu, Taiwan TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Avenue Sunnyvale, CA 94086 REPORT DATE: December 28, 2001 FINAL TEST DATE: December 21, 2001 AUTHORIZED SIGNATORY: ______________________________ Juan Martinez Senior EMC Engineer This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: December 28, 2001 File: R45825 Page 2 of 18 Pages DECLARATIONS OF COMPLIANCE Equipment Name and Model: PCI Adapter, DW-590 & DWL-A520 Manufacturer: D-Link Corporation No.8, Li-shing Road VII Hsinchu, Taiwan Tested to applicable standards: RSS-210, Issue 4, December 2000 (Low Power License-Exempt Radiocommunication Devices) FCC Part 15 Subpart E (UNII Devices) Measurement Facility Description Filed With Department of Industry: Departmental Acknowledgement Number: IC2845 SV2 Dated August 12, 2001 Departmental Acknowledgement Number: IC2845 SV4 Dated July 19, 2001 I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above mentioned departmental standards (through the use of ANSI C63.4 as detailed in section 5.3 of RSS-210, Issue 4); and that the equipment performed in accordance with the data submitted in this report. Signature ______________________________ Name Juan Martinez Title Senior EMC Engineer Company Elliott Laboratories Inc. Address 684 W. Maude Ave Sunnyvale, CA 94086 USA Date: December 28, 2001 Maintenance of compliance with the above standards is the responsibility of the manufacturer. Any modification of the product, which may result in increased emissions should be checked to ensure compliance has been maintained (i.e., printed circuit board layout changes, different line filter, different power supply, harnessing or I/O cable changes, etc.). Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: December 28, 2001 File: R45825 Page 3 of 18 Pages TABLE OF CONTENTS COVER PAGE...................................................................................................................................................................................1 DECLARATIONS OF COMPLIANCE......................................................................................................................................2 TABLE OF CONTENTS..............................................................................................................................................................3 SCOPE............................................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................................4 SUMMARY OF RESULTS...........................................................................................................................................................5 MEASUREMENT UNCERTAINTIES....................................................................................................................................6 EQUIPMENT UNDER TEST (EUT) DETAILS..........................................................................................................................7 GENERAL...................................................................................................................................................................................7 ENCLOSURE..............................................................................................................................................................................7 MODIFICATIONS.....................................................................................................................................................................7 SUPPORT EQUIPMENT...........................................................................................................................................................7 EUT INTERFACE PORTS........................................................................................................................................................8 EUT OPERATION DURING TESTING...................................................................................................................................8 ANTENNA REQUIREMENTS.................................................................................................................................................8 TEST SITE..................................................................................................................................................................................…
