KA22001120013-1RF module

i DW-290 5GHz Wireless LAN mini PCI Card User’s Manual First Edition (December, 2001) 6DW290....01 Wichtige Sicherheitshinweise 1. Bitte lesen Sie sich diese Hinweise sorgfältig durch. 2. Heben Sie diese Anleitung für den spätern Gebrauch auf. 3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Vervenden Sie keine Flüssig- oder Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch zur Reinigung. 4. Um eine Beschädigung des Gerätes zu vermeiden sollten Sie nur Zubehörteile verwenden, die vom Hersteller zugelassen sind. 5. Das Gerät is vor Feuchtigkeit zu schützen. 6. Bei der Aufstellung des Gerätes ist auf sichern Stand zu achten. Ein Kippen oder Fallen könnte Verletzungen hervorrufen. Verwenden Sie nur sichere Standorte und beachten Sie die Aufstellhinweise des Herstellers. 7. Die Belüftungsöffnungen dienen zur Luftzirkulation die das Gerät vor Überhitzung schützt. Sorgen Sie dafür, daß diese Öffnungen nicht abgedeckt werden. 8. Beachten Sie beim Anschluß an das Stromnetz die Anschlußwerte. 9. Die Netzanschlußsteckdose muß aus Gründen der elektrischen Sicherheit einen Schutzleiterkontakt haben. 10. Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen kann. Es sollete auch nichts auf der Leitung abgestellt werden. 11. Alle Hinweise und Warnungen die sich am Geräten befinden sind zu beachten. 12. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom Stromnetz trennen. Somit wird im Falle einer Überspannung eine Beschädigung vermieden. 13. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten in das Gerät gelangen. Dies könnte einen Brand bzw. Elektrischen Schlag auslösen. 14. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit nur von authorisiertem Servicepersonal geöffnet werden. 15. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von einer qualifizierten Servicestelle zu überprüfen: a – Netzkabel oder Netzstecker sint beschädigt. b – Flüssigkeit ist in das Gerät eingedrungen. c – Das Gerät war Feuchtigkeit ausgesetzt. d – Wenn das Gerät nicht der Bedienungsanleitung ensprechend funktioniert oder Sie mit Hilfe dieser Anleitung keine Verbesserung erzielen. e – Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt. f – Wenn das Gerät deutliche Anzeichen eines Defektes aufweist. iii 16. Bei Reparaturen dürfen nur Orginalersatzteile bzw. den Orginalteilen entsprechende Teile verwendet werden. Der Einsatz von ungeeigneten Ersatzteilen kann eine weitere Beschädigung hervorrufen. 17. Wenden Sie sich mit allen Fragen die Service und Repartur betreffen an Ihren Servicepartner. Somit stellen Sie die Betriebssicherheit des Gerätes sicher. 18. Zum Netzanschluß dieses Gerätes ist eine geprüfte Leitung zu verwenden, Für einen Nennstrom bis 6A und einem Gerätegewicht großer 3kg ist eine Leitung nicht leichter als H05VV-F, 3G, 0.75mm2 einzusetzen Limited Warranty Hardware: D-LINK WARRANTS EACH OF ITS HARDWARE PRODUCTS TO BE FREE FROM DEFECTS IN WORKMANSHIP AND MATERIALS UNDER NORMAL USE AND SERVICE FOR A PERIOD COMMENCING ON THE DATE OF PURCHASE FROM D-LINK OR ITS AUTHORIZED RESELLER AND EXTENDING FOR THE LENGTH OF TIME STIPULATED BY THE AUTHORIZED RESELLER OR D-LINK BRANCH OFFICE NEAREST TO THE PLACE OF PURCHASE. THIS WARRANTY APPLIES ON THE CONDITION THAT THE PRODUCT REGISTRATION CARD IS FILLED OUT AND RETURNED TO A D-LINK OFFICE WITHIN NINETY (90) DAYS OF PURCHASE. A LIST OF D-LINK OFFICES IS PROVIDED AT THE BACK OF THIS MANUAL, TOGETHER WITH A COPY OF THE REGISTRATION CARD. IF THE PRODUCT PROVES DEFECTIVE WITHIN THE APPLICABLE WARRANTY PERIOD, D-LINK WILL PROVIDE REPAIR OR REPLACEMENT OF THE PRODUCT. D-LINK SHALL HAVE THE SOLE DISCRETION WHETHER TO REPAIR OR REPLACE, AND REPLACEMENT PRODUCT MAY BE NEW OR RECONDITIONED. REPLACEMENT PRODUCT SHALL BE OF EQUIVALENT OR BETTER SPECIFICATIONS, RELATIVE TO THE DEFECTIVE PRODUCT, BUT NEED NOT BE IDENTICAL. ANY PRODUCT OR PART REPAIRED BY D-LINK PURSUANT TO THIS WARRANTY SHALL HAVE A WARRANTY PERIOD OF NOT LESS THAN 90 DAYS, FROM DATE OF SUCH REPAIR, IRRESPECTIVE OF ANY EARLIER EXPIRATION OF ORIGINAL WARRANTY PERIOD. WHEN D-LINK PROVIDES REPLACEMENT, THEN THE DEFECTIVE PRODUCT BECOMES THE PROPERTY OF D-LINK. WARRANTY SERVICE MAY BE OBTAINED BY CONTACTING A D-LINK OFFICE WITHIN THE APPLICABLE WARRANTY PERIOD, AND REQUESTING A RETURN MATERIAL AUTHORIZATION (RMA) NUMBER. IF A REGISTRATION CARD FOR THE PRODUCT IN QUESTION HAS NOT BEEN RETURNED TO D-LINK, THEN A PROOF OF PURCHASE (SUCH AS A COPY OF THE DATED PURCHASE INVOICE) MUST BE PROVIDED. IF PURCHASER’S CIRCUMSTANCES REQUIRE SPECIAL HANDLING OF WARRANTY CORRECTION, THEN AT THE TIME OF REQUESTING RMA NUMBER, PURCHASER MAY ALSO PROPOSE SPECIAL PROCEDURE AS MAY BE SUITABLE TO THE CASE. AFTER AN RMA NUMBER IS ISSUED, THE DEFECTIVE PRODUCT MUST BE PACKAGED SECURELY IN THE ORIGINAL OR OTHER SUITABLE SHIPPING PACKAGE TO ENSURE THAT IT WILL NOT BE DAMAGED IN TRANSIT, AND THE RMA NUMBER MUST BE PROMINENTLY MARKED ON THE OUTSIDE OF THE PACKAGE. THE PACKAGE MUST BE MAILED OR OTHERWISE SHIPPED TO D-LINK WITH ALL COSTS OF MAILING/SHIPPING/INSURANCE PREPAID. D- LINK SHALL NEVER BE RESPONSIBLE FOR ANY SOFTWARE, FIRMWARE, INFORMATION, OR MEMORY DATA OF PURCHASER CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK PURSUANT TO THIS WARRANTY. ANY PACKAGE RETURNED TO D-LINK WITHOUT AN RMA NUMBER WILL BE REJECTED AND SHIPPED BACK TO PURCHASER AT PURCHASER’S EXPENSE, AND D-LINK RESERVES THE RIGHT IN SUCH A CASE TO LEVY A REASONABLE HANDLING CHARGE IN ADDITION MAILING OR SHIPPING COSTS. Software: WARRANTY SERVICE FOR SOFTWARE PRODUCTS MAY BE OBTAINED BY CONTACTING A D-LINK OFFICE WITHIN THE APPLICABLE WARRANTY PERIOD. A LIST OF D-LINK OFFICES IS PROVIDED AT THE BACK OF THIS MANUAL, TOGETHER WITH A COPY OF THE REGISTRATION CARD. IF A REGISTRATION CARD FOR THE PRODUCT IN QUESTION HAS NOT BEEN RETURNED TO A D-LINK OFFICE, THEN A PROOF OF PURCHASE (SUCH AS A COPY OF THE DATE…

Text truncated - open the document above for the full version.

Page 1 of 3 RE: D Link Corporation FCC ID: KA22001120013-1 1) Please provide photographs of both styles of antennas. Photographs have been uploaded. 2) Since the EUT transmits in the 5.15-5.25 MHz band, the EUT is required to meet the antenna requirement for 15.407(d). The FCC defines this as "An antenna that attaches with a connector inside of a case is acceptable, provided that there is no need for the user to ever open the case." The test report states that the EUT contains a non-standard reverse connector, which will be contained within the enclosure of a host device. Please provide a copy of the instructions that D- Link is proposing in regards to this issue. D-link has provided a written statement that they will provide instruction to the OEM integrator in regards to compliance with the unique connector requirement. Additional warning in the manual has been placed in regards to how the antenna must be secure on an enclosure to meet the 15.407(d). Refer to “D-link Letter” for customer statement. 3) Additional information should be added to the manual (page viii) that strongly advises that that module is approved only as a mobile device and clearly advise what the installation criteria must be to maintain compliance with MPE limitations. Statement has been included in the manual as requested. 4) It appears in the manual that the software allows a pull down menu to program the unit for use on different frequency sets for U.S., Canada, and Japan. This control capability should normally not be given to the end user if it will cause the radio to transmit on frequencies not authorized in the U.S. The FCC has recently stated in a Report and Order regarding software defined radios that the manufacturer will be held responsible for keeping the integrity of its programming intact. If the device could be hacked or programmed in an unauthorized manner, the responsibility for such action would rest with the manufacturer, and the FCC would go to the manufacturer for fines or forfeiture actions if either action were necessary. The FCC has further explained to TCBs to also apply the philosophy of the R&O with regard to protecting multiple-capable programming and existing devices that they are approving (not just software defined radios). Please comment. This control capability will not be available to the end-user and will be removed form the manual. Old manual had Chapter 9 for Country selection. This has been removed on the revised user manual. Page 2 of 3 5) The sales literature mentions a single + 1.5 dBi gain antenna, the RF exposure & test report states +3 dBi & 4 dBi. Please provide a thorough description of the antennas used and the type they are classified as. Brochure has been revised by D-Link to reflect the specified antennas tested with the Mini PCI card. 6) The EUT seems to have much less power (almost 8 dB) than the level output by the PA (specified in the theory of operation). Please comment. The PA is capable of much more power. At the higher power levels the band-edge and harmonics no longer meet the FCC’s rules. The power limitation is due, therefore, to the FCC’s requirements rather than the limitations of the PA. Taken out from the Revised Theory of Operation (Page 5 of 6): The PA has 29.5dB nominal gain and maximum output power of 22.5dBm.Due to the highly linearity restrict of the high level modulation scheme, The PA normally operating on a linearity region of 10 to17 dBm output power, This device draws about 180mA when enabled by the XPAA signal. 7) The test results mention AC conducted emissions, but test data or further information has not been provided in the test report. Also, the AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module. The photographs shown for radiated emissions show a power source with a ferrite. Please comment. AC conducted emission data included in the Revised Test Report. D-link will provide a power supply that has a permanent ferrite on the DC power input cable. Another power supply was used for the Radio Testing, which was not provided. Uploaded picture with the power supplied used during the Radio Testing. 8) The power spectral density result on page 4 of 56) for turbo does not match test results (is missing the negative sign). The calculations applied for the bandedge calculations on page 48 of 56 do not match the levels obtained on pages 46-47 of 56. Please correct these errors to ensure consistency in the report. Report has been correct and re-uploaded. 9) Given that the center channel (5250 MHz) is not limited to the 5150-5250 or 5250-5350 band, the grant will be listed as 5210 MHz - 5290 MHz @ 31 mW & 5180 MHz - 5320 MHz @ 14 mW. Please adjust the 731 form to match. 731 form has been change and uploaded. Page 3 of 3 10) Please provide the modular requirements as given on page 7 of 19 as a separate cover letter attachment. Modular requirements removed from report and placed on a separate cover letter. Cover letter has be uploaded. Hopefully this answers all of your questions. Please contact me via [email protected] if you require more information. Regards, Juan Martinez Sr. EMC Engineer

Page 1 of 1 RE: D Link Corporation FCC ID: KA22001120013-1 1) Please clarify the intended market for this device. Parts of the application discuss D-link using this product only integrated in their products, while other portions reference OEM integrators. Please clarify if the module will be used only on products internal to D-Link, be made available to integrators, or available to end users? Depending on the intended market, please explain what type of controls will ensure that it is only sold to these markets? Per D-link letter provided, they will not sell the product to OEM distributors or end-users. The Mini PCI will be used by D-link in their products only. This will also insure proper installation and control of the RF exposure in the final configuration. The manual has been revised to state only D-link will only use in their products (Revised manual has been uploaded). 2) The manufacturer stated that they will supply an AC adapter with a permanent ferrite installed. However, since the EUT is a module there is no guarantee that an integrator or end user will require the same type of adapter. D-link should also provide with the unit an appropriate ferrite with proper instructions for installation, or provide an alternative method for providing this ferrite as specified by 15.27(a). D-link will sell the device bundle with the standard AC adaptor (with ferrite) to all of these Mini PCI Base Products. Please refer to D-link Statement. 3) The conducted data on page 6 of 19 does not match the data given on page 6 of 59. Please explain. Report has been corrected and re-uploaded. Hopefully this answers all of your questions. Please contact me via [email protected] if you require more information. Regards, Juan Martinez Sr. EMC Engineer

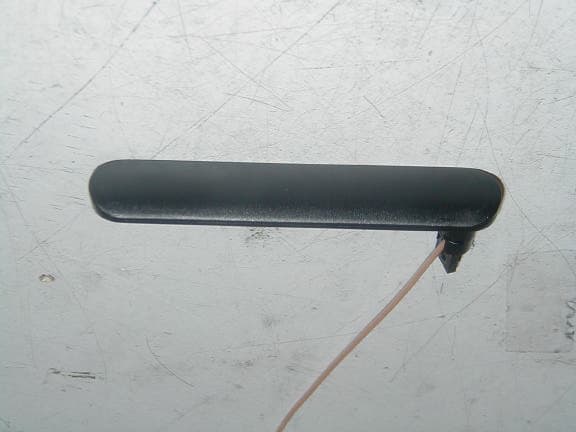

JOYMAX ANTENNA (3 dBi) ATHEROS ANTENNA (4 dBi) ATHEROS ANTENNA (4 dBi)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CE Te s t ed To Co m ply W i t h CC F S t a n da r ds Model: DW-290 802.11a Mini PCI FCC ID: KA22001120013-1 S/N: MAC ID: Photograph Showing Label Location On The Top Of The Shield:

INTERNAL PHOTOGRAPHS The following internal photographs are detailed photographs showing the top and bottom of the mini PCI card. Included are photos with and without the shield installed. Note that there are no external photographs of the device. The device is a module that will be installed into different host devices. The module was tested mounted on a circuit board with no enclosure.

DW-290 802.11a Features Specifications Wireless Wireless LAN Mini PCI Compatible with IEEE 802.11a high rate standard to provide wireless 54Mbps data rate, and speeds up to the turbo mode of 108Mbps Operation at 5.2GHz Unlicensed National Information Infrastructure (U-NII) frequency band Maximum reliability, throughput and connectivity with automatic data rate switching Supports infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, 54 and 108Mbps Supports wireless data encryption with 64/128/152-bit WEP for security Two high-gain dipole antenna 3 dBi and 4dBi RadioTechnologyIEEE802.11aOrthogonal Frequency Division Multiplexing (OFDM) OperatingFrequency5150-5350MHz ModulationSchemesBPSK, QPSK, 16QAM, 64QAM ChannelAvailable8 4Non-overlapping channels for Japan DataRate108MbpswithfallbackRatesof 54,48, 36, 24, 18, 12, 9 and 6 Mbps MediaAccessProtocolCSMA/CAwithACK TransmitterOutputPower12dBm at 48Mbps/ 14dBm at 24, 18, 12, 9 and 6Mbps ReceiverSensitivityTipical-71dBmFor72Mbps@10% P ER (Packet Error Rate) Tipical-85dBmfor6 Mbps@10% AntennaType OperatingVoltage3.3 VDC +/- 10% CurrentConsumption 1650mW at continuous transmit mode 1250mW at continuous receive mode 40mW at sleep mode InterfaceMini-PCI TypeIIIA Distance LEDIndicator Power AndNetworkstatus Temperature0 - 55inOperating -20-65inStorage Humidity10%- 90%Non-condensing Dimensions Office35M, OpenEnvironment120M DataSecurity64-bit, 128-bit and 152-bit WEP IEEE802.11a 5GHz Wireless LAN Mini PCI DW-290 is a wireless LAN Mini PCI Card that complied with IEEE 802.11a standard, it can be used to provide up to 54Mbps and 108Mbps high-speed date network to connect your wireless LAN. Drivers support Windows 98SE, ME, 2000, and XP Support PCI Local Bus 2.2 standard Friendly user configuration and diagnostic utilities With seamless roaming, fully interoperability and advanced security with WEP standard. DW-290 offers absolute interoperability with any 802.11a Access Points through the wireless LAN. PER (Packet Error Rate) 59.75 X 50.95 mmX 5.0m m mm mmmm Non-overlappong channels for US and Canada Two high-gain dipole antenna 3 dBi and 4dBi

MPE Calculations FCC part 1.1310, Table 1 limits the power density for uncontrolled exposure to 1mW/ cm 2 for systems operating in the UNII bands. The distance, d(cm) from the antenna at which the power density, P d (mW/cm 2 ) is below this limit is calculated from the maximum EIRP, P t (mW) using the equation: P d = P t /(4 pd 2 ) Re-arranging for the distance at which the power density is 1mW/cm2 gives: d = √ (P t /(4 p)) The device under test is designed to use one of two different antennas – Joy Max with a gain of 3dBi or Atheros with a gain of 4dBi. Both antennas are intended to be integral to the host device housing the module. The maximum output power for the two modes and all channels is 14.9 dBm. The maximum EIRP is, therefore, 14.9 dBm + 4 dBi = 18.9 dBm (77.6mW): d = √ (77.6 / (4 p)) = 2.49 cm The distance from the antenna that the power density is 1mW/ cm 2 is, therefore, 2.49 cm. The users guide instructs the user to install the device such that it has a separation of at least 20cm from persons (see text below) to comply with the FCC’s requirements. This separation of 20cm more than meets the FCC’s and Industry Canada RF exposure requirements. Mode EIRP Pd at 20cm Calculated distance (in cm) where Pd < 1mW/ cm 2 Normal 18.9 dBm (77.6 mW) 0.0154 mW/ cm 2 2.49 RF Exposure Requirements To ensure compliance with FCC RF exposure requirements, the antenna used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co- located or operating in conjunction with any other antenna or radio transmitter. Installers and end- users must follow the installation instructions provided in this user guide.

File: R45822 Page 1 of 19 Electromagnetic Emissions Test Report and Application for Grant of Equipment Authorization pursuant to FCC Part 15, Subpart E (UNII Devices) and Industry Canada RSS 210 Issue 4 (LELEAN Devices) on the D-Link Corporation Model: DW-290 FCC ID: KA22001120013-1 GRANTEE: D-Link Corporation No.8, Li-shing Road VII Hsinchu, Taiwan TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Avenue Sunnyvale, CA 94086 REPORT DATE: December 28, 2001 FINAL TEST DATE: December 19 and December 20, 2001 AUTHORIZED SIGNATORY: ______________________________ Juan Martinez Senior EMC Engineer This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: December 28, 2001 File: R45822 Page 2 of 19 Pages DECLARATIONS OF COMPLIANCE Equipment Name and Model: Mini-PCI module, DW-290 Manufacturer: D-Link Corporation No.8, Li-shing Road VII Hsinchu, Taiwan Tested to applicable standards: RSS-210, Issue 4, December 2000 (Low Power License-Exempt Radiocommunication Devices) FCC Part 15 Subpart E (UNII Devices) Measurement Facility Description Filed With Department of Industry: Departmental Acknowledgement Number: IC2845 SV3, Dated July 30, 2001 Departmental Acknowledgement Number: IC2845 SV4, Dated July 19, 2001 I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above mentioned departmental standards (through the use of ANSI C63.4 as detailed in section 5.3 of RSS-210, Issue 4); and that the equipment performed in accordance with the data submitted in this report. Signature ______________________________ Name Juan Martinez Title Senior EMC Engineer Company Elliott Laboratories Inc. Address 684 W. Maude Ave Sunnyvale, CA 94086 USA Date: December 28, 2001 Maintenance of compliance with the above standards is the responsibility of the manufacturer. Any modification of the product, which may result in increased emissions should be checked to ensure compliance has been maintained (i.e., printed circuit board layout changes, different line filter, different power supply, harnessing or I/O cable changes, etc.). Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: December 28, 2001 File: R45822 Page 3 of 19 Pages TABLE OF CONTENTS COVER PAGE..................................................................................................................................................................................1 DECLARATIONS OF COMPLIANCE......................................................................................................................................2 TABLE OF CONTENTS...............................................................................................................................................................3 SCOPE.............................................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................................4 SUMMARY OF RESULTS...........................................................................................................................................................5 MEASUREMENT UNCERTAINTIES.....................................................................................................................................6 EQUIPMENT UNDER TEST (EUT) DETAILS..........................................................................................................................7 GENERAL...................................................................................................................................................................................7 ANTENNA.................................................................................................................................................................................7 ENCLOSURE..............................................................................................................................................................................7 MODIFICATIONS.....................................................................................................................................................................7 SUPPORT EQUIPMENT..........................................................................................................................................................7 EUT INTERFACE PORTS........................................................................................................................................................8 EUT OPERATION DURING TESTING..................................................................................................................................8 ANTENNA REQUIREMENTS.................................................................................................................................................8 TEST SITE......................................................................................................................................................................................9 GENERAL INFORMATION....................................................................................................................................................9 CONDUCTED EMISSIONS CONSIDERATIONS..................................................................................................................9 RADIATED EMISSIONS CONSIDERATIONS......................................................................................................................9 MEASUREMENT INSTRUMENTATION........................................................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission with JoyMax antennas Radiated Emission with Atheros antennas
