- 1 - D-Link WCB-B11 IEEE802.11b WLAN CARDBUS CARD User’s Guide - 2 - Introduction This User Guide is to guide you to install a Wireless LAN designed for both large and small business and SOHO environments and let you share a local printer and files, access internet, and roam about different working places. The attached drivers and utilities support for Windows 95 (OSR2), Windows 98, and Windows 2000, NT4.0 and Windows Millennium. Package Contents y D-Link WCB-B11 IEEE 802.11b WLAN Cardbus Card y D-Link Wireless LAN CD-ROM with drivers and utilities y User’s Guide y Quick Start Guide y Warranty Card Planning your Wireless LAN There are two usage modes for Wireless LAN, Ad-hoc mode and Infrastructure mode. Please review your need and build your Wireless LAN. Ad-hoc Networking Ad-hoc network also is called Peer-to-Peer network. Without Access Point, notebook users with D-Link WCB-B11 IEEE 802.11b WLAN Cardbus Card can build Ad-hoc Peer-to-Peer wireless networks to share files with each other, share a public office printer and other peripheral resources, even access the Internet via a modem. Infrastructure Networking 802.11b-compatible Access Point is a bridge or routers connecting to the wired Ethernet network and wireless network. Through the deployment of Access Point, wireless LAN can be extended to the reach of a wired network. Therefore, a notebook user with D-Link WCB- B11 IEEE 802.11b WLAN Cardbus Card can access to fixed local network resources. - 3 - Installation Installation for Windows 95, Windows 98 and Windows 2000 Before installing the driver, you will need a copy of the operating system installation media, usually a CD supplied with your computer or operating system. On Windows 98 systems, the installation files are sometimes archived on the hard disk in C:\WINDOWS\OPTIONS\CABS. On Windows 2000 systems, the system may prompt you to load operating system files from the Windows 2000 installation disk. Installation under Windows 95 is identical to the procedure given above for Windows 98 and Windows 2000. Only Windows 95 OSR2 or higher is supported. The Setup program also installs Configuration Utility in the D-Link WCB-B11 IEEE 802.11b WLAN Cardbus Card in the Program directory. This configuration utility can help you to understand and maintain your Wireless LAN. Install Driver Step 1: Turn on your computer. Step 2: Insert the D-Link WCB-B11 IEEE 802.11b WLAN Cardbus Card into the Cardbus Card slot. Align the card properly before putting it in the slot. Insert the card firmly without forcing until it seats snugly. CAUTION: Forcing a misaligned card into the slot can damage the computer or the card. Step 3: Windows finds a new hardware shown D-Link WCB-B11 and asks for the driver of D-Link WCB-B11 IEEE 802.11b WLAN Cardbus Card. The driver installation wizard guides you through the steps standard for your operating system. Step 4: You will be asked to supply CDs or directory path information for the driver. This driver shall be located in the following directory. D:\ WCB-B11\ (if D:\ is your CD-ROM drive) Step 5: Windows finds the driver described as D-Link WCB-B11 IEEE 802.11b WLAN Cardbus Card. Follow the directions of Windows dialog boxes to complete the driver installation. After completing the installation, Windows dialog will display Systems Setting Change and ask to restart the notebook. Click “Yes” to reboot the computer. - 4 - Install Configuration Utility 1. Restart the computer and ensure D-Link Wireless LAN Configuration Utility CD in the CD-ROM drive. You can run the program manually by selecting Run from the Start menu and running SETUP.EXE from the CD-ROM drive. D:\ WCB-B11\SETUP.EXE (if D:\ is your CD-ROM drive) 2. On the D-Link WCB-B11 IEEE 802.11b WLAN Cardbus Card– Installation screen, click next to start software installation. Read the information in the Welcome dialog box and click “Next”. Then, click ““Yes”” if you accept the Software License Agreement. 3. Enter the name of the Wireless LAN Service Set of the wireless network (SSID) to which your computer will connect. The name you enter here must match exactly the name assigned to the access point. Characters, capitalization, and spacing must be identical. NOTE: If the access point you wish to associate with has encryption active, you must also enable encryption on the wireless client. Click Encryption in the Configuration Utilities after reboot to go to screens where you can enable and configure encryption. You must set the wireless client for the same Encryption algorithm and Key values as the access point it will associate. Refer to the Advanced Configuration section for more details about configuring encryption 4. Select which network mode is suitable for your Wireless LAN. Infrastructure Mode is default selection. This setting can be changed at any time after installation completion. 5. Accept the default program folder or select where the SETUP.exe stores the Configuration Utility. 6. Select ““Yes”, I want to restart my computer now”. Reboot your computer by clicking Finish. Operation Orienting the Antenna The PC Card antenna is attached to the end of the PC Card. For best use of the antenna: z Keep the area around the antenna clear from materials that could block or obstruct - 5 - radio transmission, such as metal objects, electronic devices, cordless telephones, and microwave oven. z If necessary, move your notebook computer a few inches to find a better signal. Environmental condition varies with users’ location, a difference of one or two inches can mean the difference between a strong and a weak signal. Even a slight change in PC orientation can improve a wireless connection. z If you have installed the Configuration Utility, you may use the Signal Strength display in the Link Info to determine the best location and orientation for a wireless network connection. LED Indication The yellow LED of Wireless LAN PC Card performs identical functions when indicating the operational status of the card.…

Text truncated - open the document above for the full version.

D-Link Corporation No.8, Li Hsing Rd VII, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C Tel: +886 3-577-9110 Fax: +886 3-578-1861 Inform Letter Dear Customer, According to FCC’s regulation, the following Declaration of Conformity has to be made by a company located in USA. They are: This device has been confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF910521R01. And this compliance is subject to the following two conditions: This device may not cause harmful interference and, This device must accept any interference received, including interference that may cause undesired operation. This declaration can be a separate sheet and be sure that the following message will be also included in this declaration: Product name, model name and trade name. Company name, and address of the one who is responsible for this declaration. Name, title, telephone and fax number as well as the signature of the contact person. Thanks for your attention.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 10, 2002 RE: D-Link Corporation FCC ID: KA22002020016-1 I have a few comments on this Application. 1. The Manual quotes 20cm as the minimum RF Exposure distance. This is inappropriate for a product such as this with an integral antenna. Please review RF Exposure information in manual on pp.7 of 9. 2. Operational Description quotes 20cm safe MPE distance. This is incorrect. Please revise. Thsnk you in advance for your timely response. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CE Te s t ed To Co m ply W i t h CC F S t a n da r ds Model: WCB-B11 WLAN CardBus Card FCC ID: KA22002020016-1 S/N: MAC ID: Made in Taiwan Input Voltage: 3.3V IEEE 802.11b

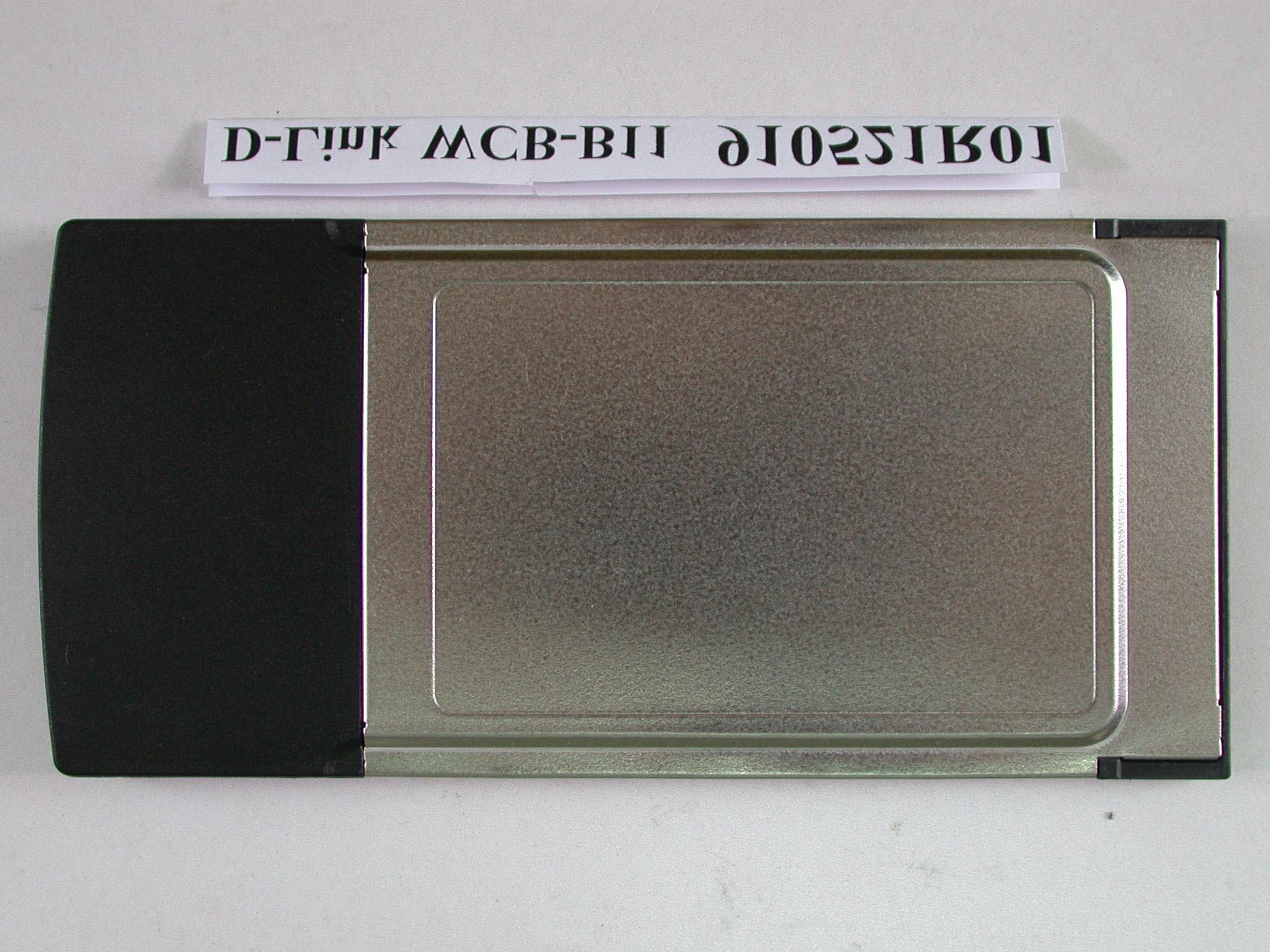

Page 4 Page 5 Page 6

FCC ID: KA22002020016-1 ADT No.910521R01 Operational Description The transmitter of the EUT (IEEE802.11b WLAN CardBus Card) is powered by notebook and connected with notebook. The antenna is printed antenna without connector. Under normal use condition, the user has to keep at least 2.5cm separation distance away from the radiator. For more detailed instruction, please take a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although the bit rate is higher, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: KA22002020016-1 ADT No.: 910521R01 FCC TEST REPORT REPORT NO.: RF910521R01 MODEL NO.: WCB-B11 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:D-LINK CORPORATION ADDRESS: No. 8, Li Hsing Rd VII, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA22002020016-1 ADT No.: 910521R01 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: KA22002020016-1 ADT No.: 910521R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: KA22002020016-1 ADT No.: 910521R01 5. Test Results 5.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is -2 dBi or 0.63 (numeric). 5.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241238.021.38 6243736.481.35 11246235.401.33 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: KA22002020016-1 Report No.: RF910521R01 1 Issued: June 7, 2002 FCC TEST REPORT REPORT NO.: RF910521R01 MODEL NO.: WCB-B11 RECEIVED: May 21, 2002 TESTED: May 29 ~ May 31, 2002 APPLICANT:D-LINK CORPORATION ADDRESS: No. 8, Li Hsing Rd VII, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA22002020016-1 Report No.: RF910521R01 2 Issued: June 7, 2002 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ............................................................. 6 3.2DESCRIPTION OF TEST MODES ............................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 4TEST TYPES AND RESULTS ...................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................... 9 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS.......................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT .......................................................... 26 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 26 4.3.2TEST INSTRUMENTS ................................................................................ 26 4.3.3TEST PROCEDURE ................................................................................... 27 4.3.4TEST SETUP .............................................................................................. 27 4.3.5EUT OPERATING CONDITIONS................................................................ 27 4.3.6TEST RESULTS.......................................................................................... 28 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 32 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 32 4.4.2TEST INSTRUMENTS ................................................................................ 32 4.4.3TEST PROCEDURES................................................................................. 33 4.4.4TEST SETUP .............................................................................................. 33 4.4.5EUT OPERATING CONDITIONS................................................................ 33 FCC ID: KA22002020016-1 Report No.: RF910521R01 3 Issued: June 7, 2002 4.4.6TEST RESULTS.......................................................................................... 34 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 35 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 35 4.5.2TEST INSTRUMENTS ................................................................................ 35 4.5.3TEST PROCEDURE ................................................................................... 36 4.5.4TEST SETUP .............................................................................................. 36 4.5.5EUT OPERATING CONDITIONS................................................................ 36 4.5.6TEST RESULTS.......................................................................................... 37 4.6BAND EDGES MEASUREMENT ................................................................ 41 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 41 4.6.2TEST INSTRUMENTS ................................................................................ 41 4.6.3TEST PROCEDURE ................................................................................... 41 4.6.4EUT OPERATING CONDITION .................................................................. 42 4.6.5TEST RESULTS.......................................................................................... 42 4.7ANTENNA REQUIREMENT........................................................................ 45 4.7.1STANDARD APPLICABLE................................…
