KA22002060010-22.4GHz Wireless PCI Adapter

Manual D-Link Air DWL-520 2.4GHz Building Networks for People TM Wireless PCI Adapter version D2 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics .................................................................................... 6 Getting Started...................................................................................... 8 Using the Configuration Utility.............................................................. 11 Networking Basics.............................................................................. 18 Troubleshooting................................................................................... 31 Technical Specifications...................................................................... 36 Contacting Technical Support.............................................................. 38 Warranty and Registration................................................................... 39 3 Package Contents This manual applies specifically to the DWL-520 revision E1. Please refer to earlier versions of this manual if you have a previous version of the DWL-520. Contents of Package: D-Link Air DWL-520 2.4 GHz Wireless PCI Adapter Manual and Drivers on CD Quick Installation Guide If any of the above items are missing, please contact your reseller. ! ! ! System Requirements: Windows XP/2000/Me/98SE ! A computer or laptop with an available 32-bit PCI slot ! At least 32 MB of memory and a 300 MHz processor ! An 802.11b Access Point (e.g., DWL-900AP+) for Infrastructure mode, or an 802.11b wireless adapter for Ad-Hoc mode (e.g., DWL-650.) ! 4 Introduction The D-Link Air DWL-520 Wireless PCI Adapter is an 802.11b wireless adapter that supports high-speed wireless networking when used with a desktop com- puter. The DWL-520 is compatible with existing 802.11b devices such as the D-Link Air and AirPlus family of products including the DWL-650 and DWL-650+ Wire- less Cardbus Adapters, the DI-614+ Wireless Router, DWL-900AP+ Wireless Access Point and the DWL-122 Wireless USB Adapter. The DWL-520 is an ideal way to connect your desktop computer to a Wireless Local Area Network (WLAN). After completing the steps outlined in the Quick Installation Guide (included in the package) you will have the ability to share information and resources, such as files and printers, and enjoy the freedom that wireless networking delivers. The DWL-520 comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Windows XP, Windows 2000, Windows Me, or Windows 98SE in either Ad Hoc mode (without an Access Point or Router) or Infrastructure mode (with an Access Point or Router). The IEEE 802.11b Ethernet standard allows you to connect computers and 802.11b compatible devices at speeds up to 11Mbps, dependent upon the distance between wireless adapters, the configuration of your working environment, or the capabilities or limitations of your computer systems. 5 Power: Solid green light indicates connection to the network Activity: Blinking green light indicates activity on the network LEDS Features & Benefits ! Provides a simple and inexpensive way to connect your desktop computer to a wireless network at home, at the office, or in public places ! Fully compliant with the 802.11b standard and interoperable with all existing 802.11b-compliant devices ! Operates in the 2.4GHz frequency range ! Maximum reliability, throughput and connectivity with automatic data rate switching Provides a measure of security for the information transmitted over a wireless network with high data encryption at 64 or 128-bit WEP. ! Supports infrastructure networks via an access point and peer-to-peer commu- nication in ad-hoc mode ! ! High Performance 32-bit PCI - The high capacity PCI interface utilized by the DWL-520 ensures optimal performance in transmitting a wireless signal within the desktop computer. By utilizing a standard PCI 2.2 interface, the DWL-520 ensures a wide range of compatibility with motherboards used by PC manufac- turers ! Quick and Easy Installation- The DWL-520 installs quickly and easily into a standard PCI 2.2 slot in a desktop computer. By following the simple steps outlined in the Quick Installation Guide, you can connect to an available wire- less network in a matter of seconds ! Provides high-speed wireless connection up to 11Mbps ! User-friendly configuration and diagnostic utilities LED stands for Light-Emitting Diode. 6 Wireless Basics D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings. A Wireless Local Area Network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. WLANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial for many users. Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. People use WLAN technology for many different purposes: Mobility - Productivity increases when people have access to data in any location within the operating range of the WLAN. Management decisions based on real-time information can significantly improve worker efficiency. Low Implem…

Text truncated - open the document above for the full version.

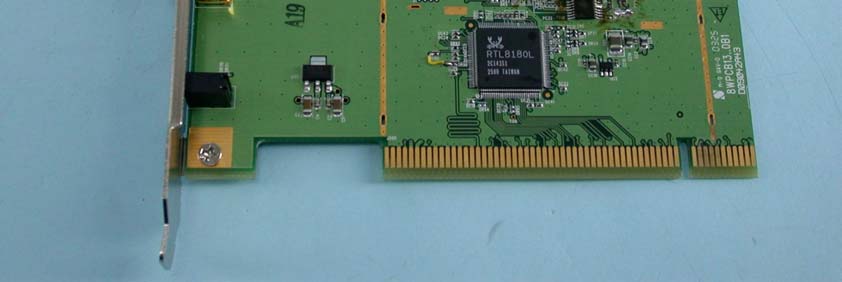

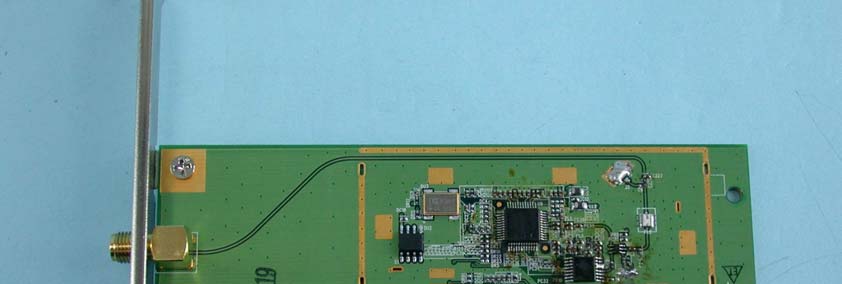

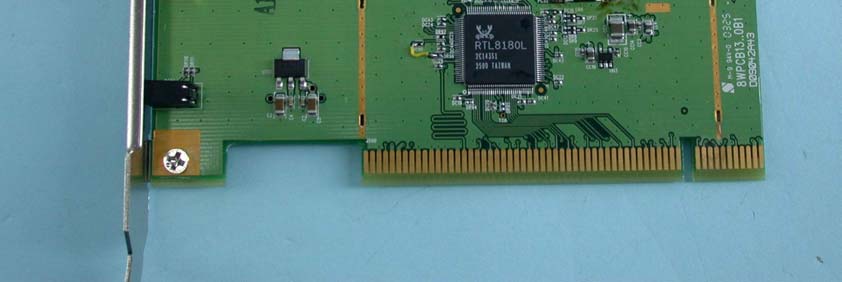

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID Label Location

DWL-520 FCC ID:KA22002060010-2 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. S/N:

Page 11

FCC ID: KA22002060010-2 ADT No.921106R03 Operational Description The transmitter of the EUT is powered by host equipment. The antenna type is Dipole antenna with R-SMA connector. Under normal use condition. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: KA22002060010-2 Report No: RF921106R03 1 RF EXPOSURE REPORT REPORT NO.: RF921106R03 MODEL NO.: DWL-520 v.D2, WPC-B13 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-LINK CORPORATION. ADDRESS: NO.8, Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: KA22002060010-2 Report No: RF921106R03 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA22002060010-2 Report No: RF921106R03 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: KA22002060010-2 Report No: RF921106R03 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.8dBi or 1.514(numeric). 6.2 Output Power Into Antenna & MPE value at distance 20cm : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241220.4170.0061.0 6243720.8930.0061.0 11246220.4170.0061.0

FCC ID: KA22002060010-2 Report No.: RF921106R031Issued: Nov. 12, 2003 FCC TEST REPORT REPORT NO.: RF921106R03 MODEL NO.: DWL-520 v.D2, WPC-B13 RECEIVED: November 05, 2003 TESTED: November 05 ~ 11, 2003 APPLICANT: D-LINK CORPORATION ADDRESS: NO. 8, Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA22002060010-2 Report No.: RF921106R032Issued: Nov. 12, 2003 Table of Contents 1CERTIFICATION ........................................................................................ 4 2SUMMARY OF TEST RESULTS................................................................ 5 3GENERAL INFORMATION ........................................................................ 6 3.1GENERAL DESCRIPTION OF EUT........................................................... 6 3.2DESCRIPTION OF TEST MODES............................................................. 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................ 7 3.4DESCRIPTION OF SUPPORT UNITS ....................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST........................................ 8 4TEST TYPES AND RESULTS.................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ............................................. 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................... 9 4.1.2TEST INSTRUMENTS ............................................................................... 9 4.1.3TEST PROCEDURES.............................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD .................................................... 10 4.1.5TEST SETUP ........................................................................................... 11 4.1.6EUT OPERATING CONDITIONS............................................................. 11 4.1.7TEST RESULTS....................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................ 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................. 18 4.2.2TEST INSTRUMENTS ............................................................................. 19 4.2.3TEST PROCEDURES.............................................................................. 20 4.2.4DEVIATION FROM TEST STANDARD .................................................... 20 4.2.5TEST SETUP ........................................................................................... 21 4.2.6EUT OPERATING CONDITIONS............................................................. 21 4.2.7TEST RESULTS....................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT ....................................................... 26 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ..................................... 26 4.3.2TEST INSTRUMENTS ............................................................................. 26 4.3.3TEST PROCEDURE ................................................................................ 27 4.3.4DEVIATION FROM TEST STANDARD .................................................... 27 4.3.5TEST SETUP ........................................................................................... 27 4.3.6EUT OPERATING CONDITIONS............................................................. 27 4.3.7TEST RESULTS....................................................................................... 28 4.4MAXIMUM PEAK OUTPUT POWER ....................................................... 32 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........ 32 4.4.2TEST INSTRUMENTS ............................................................................. 32 4.4.3TEST PROCEDURES.............................................................................. 33 FCC ID: KA22002060010-2 Report No.: RF921106R033Issued: Nov. 12, 2003 4.4.4DEVIATION FROM TEST STANDARD .................................................... 33 4.4.5TEST SETUP ........................................................................................... 33 4.4.6EUT OPERATING CONDITIONS............................................................. 33 4.4.7TEST RESULTS....................................................................................... 34 4.5POWER SPECTRAL DENSITY MEASUREMENT................................... 35 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................ 35 4.5.2TEST INSTRUMENTS ............................................................................. 35 4.5.3TEST PROCEDURE ................................................................................ 36 4.5.4DEVIATION FROM TEST STANDARD .................................................... 36 4.5.5TEST SETUP ........................................................................................... 36 4.5.6EUT OPERATING CONDITIONS............................................................. 36 4.5.7TEST RESULTS....................................................................................... 37 4.6BAND EDGES MEASUREMENT ............................................................. 41 4.6.1LIMITS OF BAND EDGES MEASUREMENT.......................................... 41 4.6.2TEST INSTRUMENTS ............................................................................. 41 4.6.3TEST PROCEDURE ......................................…

Text truncated - open the document above for the full version.

FCC ID: KA22002060010-2 Report No.: RF921106R0346Issued: Nov. 12, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: KA22002060010-2 Report No.: RF921106R0347Issued: Nov. 12, 2003 RADIATED EMISSION TEST
