KA22002080002-2802.11 a/b/g PCI Adapter

D-Link Corporation

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Apr 29, 2003
Application Purpose: Original Equipment
Date of Application: Apr 29, 2003
Equipment Note: 802.11 a/b/g PCI Adapter
Frequency Range: 5260.00000000 - 5320.00000000
Company: D-Link Corporation
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

D-Link DWL-AG520 2.4/5GHz Wireless PCI Adapter Manual Rev. 0200402 Building Networks for People 2 Contents Package Contents .................................................... 3 Introduction ............................................................... 4 Wireless Basics ........................................................ 6 Getting Started.......................................................... 8 Using the Configuration Utility ................................ 13 Networking Basics .................................................. 18 Technical Specifications.......................................... 31 Limited Warranty and Registration ......................... 33 Package Contents Contents of Package: • D-Link DWL-AG520 2.4/5GHz Wireless PCI Adapter • Manual and Drivers on CD • Quick Installation Guide (printed) If any of the above items are missing, please contact your reseller. System Requirements: • A desktop computer with an available 32-bit PCI Card slot • Windows XP, Windows 2000, Windows ME, or Windows 98 SE • At least 32 MB of memory and a 300 MHz processor or higher 4 Introduction The D-Link DWL-AG520 Wireless PCI Adapter is an advanced IEEE 802.11a/b/g compatible, high performance, wireless adapter that supports data transfer speeds of up to 108 Mbps in Turbo Mode. It is an ideal way to connect your laptop computer to a Wireless Local Area Network (WLAN.) After completing the steps outlined in the Quick Install Guide (included in your package) you will have the ability to share information and resources, such as files and printers, and take full advantage of a “connected” environment for work or play! Please take a look at our Getting Started section in this manual. You will see several options for setting up a network using the DWL-AG520. The DWL-AG520 comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Windows XP, Windows 2000, Windows ME, Windows 98SE, in either Ad Hoc mode (without an Access Point) or Infrastructure mode (with an Access Point.) This manual provides a quick introduction to wireless technology and its application as it relates to networking. Take a moment to read through this manual and get acquainted with wireless technology. Product Features • Adheres to 802.11a/b/g standard in providing high data wireless transfer rates of up to 54 Mbps. Capable of providing data rates of up to 108 Mbps in Turbo Mode. • Orthogonal Frequency Division Multiplexing (OFDM) – a new technique for transmitting high-speed data over a radio wave. • Supports Wired Equivalent Privacy (WEP) data encryption at 64/128/152-bit encryption with dynamic key exchange for security. • Supports infrastructure networks via Access Point and Ad-Hoc networks via peer-to-peer communication. • Requires an available 32-bit PCI Card slot that is PCI 2.2 compliant. • User-friendly configuration and diagnostic utilities. LED LED stands for light-emitting diode. The DWL-AG520 Wireless PCI Adapter has two LEDs, as shown below. When the computer is ON, the adapter is inserted properly, and there is activity on the network, both LEDs flash in unison. The BOTTOM LED (POWER) flashes to indicate that the adapter is inserted properly into a computer that is ON. The TOP LED (Network) flashes to indicate network activity. TOP BOTTOM 6 Wireless Basics D-Link wireless products are based on industry standards to provide easy- to-use and compatible high-speed wireless connectivity within your home or business. Strictly adhering to IEEE 802.11a/b/g the D-Link wireless family of products will allow you to access the data you want, when and where you want it. No longer will you be limited to one location or forced to run new wiring through your home or office. You will be able to enjoy the freedom that wireless networking delivers. A wireless LAN (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless LANs are used increasingly in both home and office environments. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure has proven to be beneficial for many users. Wireless users can use the same network applications they use on an Ethernet LAN. Wireless adapter cards used on laptop and desktop systems, support the same protocols as Ethernet adapter cards. For most users, there is no noticeable functional difference between a wired Ethernet desktop computer and a wireless computer equipped with a wireless adapter other than the added benefit of the ability to roam within the wireless-cell. Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Access Point (AP) is a device used to provide this link. People use wireless LAN technology for many different purposes. Mobility - Productivity increases when people have access to data in any location within the operating range of the WLAN. Ad-hoc management decisions based on real-time information can significantly improve worker efficiency. Low Implementation Costs - WLANs are easy to set up, manage, change and relocate. Networks that frequently change, both physically and logically, can benefit from WLANs ease of implementation. WLANs can operate in locations where installation of wiring may be impractical. Furthermore, IEEE standardization mandates interoperability of all WLAN devices that conform to the 802.11a/b/g set of standards. Installation Flexibility - Wireless technology allows the network to go where wires cannot go. Installation Considerations Designed to go up to 1650 feet (~500 meters), D-Link DWL-AG520 lets you access your network with your computer from virtually anywhere you want. Keep in mind, however, that the number and thickn…

Text truncated - open the document above for the full version.

Users Manual

1 DWL-AG520 ©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifications subject to change without notice. DWL-G520 03072003 If any of the above items are missing, please contact your reseller. CD-ROM (containing Drivers, Manual and Warranty) This product works with the following operating system software: Windows XP, Windows 2000, Windows Me, Windows 98SE Before You Begin DWL-AG520 Air Xpert Tri-Mode Dualband Wireless PCI Adapter Check Your Package Contents These are the items included with your DWL-AG520 purchase: Turn on the computer and Insert the D- Link Air Xpert DWL-AG520 Driver CD in the CD-ROM drive. The step-by-step instructions that follow are shown in Windows XP. The steps and screens are similar for the other Windows operating systems Insert the D-Link CD Into Your Desktop PC Do NOT install the DWL-AG520 Wireless PCI Adapter into your computer before installing the driver software from the D-Link CD! You must have at least the following: •A desktop computer with an available PCI 2.2, 32-bit, 3.3 volt PCI slot •At least a 500 MHz processor and 128MB of memory • An 802.11a, 802.11b or 802.11g Access Point (for Infrastructure Mode) or another 802.11a, 802.11b, or 802.11g wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode.) Part No. IG-BDWLAG520 Air Xpert Tri-Mode Dualband Wireless PCI Adapter TM 2 The Install Screen will appear. If the CD Autorun function does not automatically start on your computer , go to Start > Run and type “D:\Setup.exe.” If it does start, proceed to the next screen. The letter “D” represents the letter of the CD-ROM drive. Your CD-ROM drive may be a different drive letter. Type “D:\Setup.exe.” Click OK Click Next Continued... Click Next Click Install Drivers 3 Shut down your computer Click Next Click Next Click Finish 4 Installing the DWL-AG520 Wireless PCI Adapter in Your Computer A. Make sure to turn off your computer and unplug the power cord before you begin. Remove the back or side cover of the com- puter. B.Carefully guide the DWL-AG520’s antenna through the PCI bracket opening adjacent to the PCI slot you intend to use for the DWL-AB520. C.Install the DWL-AG520 carefully, and firmly set it into the available PCI slot (which is typically white or cream-colored). D.Secure the DWL-AG520’s back panel bracket with its mounting screw. E.Replace the computer’s cover. To avoid damage caused by static electricity, make sure to properly ground yourself by first touching a metal part of your computer to discharge any static electricity before working with the DWL-AG520. 5 Antenna Cable — connects the DWL-AB520 PCI board to the external antenna Screw Mount The screw that secures the adapter to the back of your computer fits into this slot. Link/Activity LEDs Indicates that the card is properly installed when the computer is on and blinks when data is being transmitted. Desk or Wall-mountable Antenna to wirelessly connect to 802.11a and 802.11b networks Installing the DWL-AG520 Wireless PCI Adapter in Your Computer (cont.) F.Gently connect the antenna to the antenna stand. G. Finished! 6 Restart Your Computer When you restart your computer this Found New Hardware Wizard (Windows XP) screen will appear: Click Next For Windows XP: This Hardware Installation alert screen may appear after the desktop computer restarts. Select Install the software automatically (Recommended) Click Continue Anyway to finalize the installation Click Finish to finalize the installation. 7 For Windows 2000, this Digital Signature Not Found screen may appear after your computer restarts. The D-Link driver software for this device is undergoing Windows Logo testing. Microsoft certification is pending. Click Yes to finalize the installation. Your Installation is Complete! Continued... After you’ve continued in Windows 2000, Me, or 98SE, the D-Link Air Xpert DWL- AG520 Configuration Utility will automatically start and the utility icon will appear in the bottom right hand corner of the desktop screen (systray). If this icon appears GREEN, then you have successfully installed the DWL-AG520, are connected to a wireless network and are ready to communicate! Double-click the utility icon to use the configuration utility. If the utility icon does not appear, double-click the shortcut icon that has appeared on your desktop. 8 Appendix Click the XP Networking icon to use the Zero Configuration Wireless Settings. Click Advanced Uncheck “Use Windows to configure my wireless net- work settings. Click OK For Windows XP, if you wish to use the AirXpert utility, please do the following steps. 9 Appendix (Continued) Using the Configuration Utility A. Status: Displays the MAC Address of the Access Point that is associated with the DWL-AG520. B. SSID: The Service Set Identifier is the name assigned to the wireless network. The factory SSID setting is set to default. F. TxRate: The default setting is Auto; meaning, TxRate settings are automatically determined by the DWL-AG520 depending on the distance from the access point. H. Signal Strength: Displays the Link Quality for the DWL-AG520 wireless connection to the access point. The Signal Strength represents the wireless signal between the access point and the DWL-AG520. The percentage coincides with the graphical bar. G. Channel: Displays the channel information. By default, the channel is set to 6. Please note that the DWL- AG520 will automatically adjust channel depending on the Access Point. E C D F B A G H I C. Frequency : Displays the current fre- quency used by the adapter. D. Wireless Mode: The factory setting is set to Infrastructure. Ad-Hoc mode is used for peer-to-peer networking. E. Encryption: Displays the current encryption status of the wireless connection. I. Packet Count: Graphi- cally displays the statistics of data transmitted and received. 10 J. SSID: The Service Set Identifier is the name as- signed to the wireless network. The facto…

Text truncated - open the document above for the full version.

Block Diagram

Block Diagram of DWL-AG520 and WPC-D11 PCI Interfac e U7 MAC+BBP AR52 12 U9 EE PROM LPFLPF U6 SWITCH D3,D5 SWITCH F10 BPF Q8 LNA F2 COU P L E R U1 PA F1 BPF F9 BPF Q7 LNA F7 COU P L E R U3 PA F5 BPF S1 SWITCH U1 XCVR AR5111 U4 XCVR AR2111 R e con- Struction LPF F4 BA LUN Y1 X’Tal 32 MHz F3 BA LUN D4 SWITCH HPFHPF LPFLPF

Cover Letter(s)

April 7, 2003 Federal Communications Commission Authorization and Evaluation Division FCC ID: KA22002080002-2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application.

Cover Letter(s)

From: Mike Kuo Sent: Monday, April 28, 2003 3:47 PM To: 'Lucy'; Mike Kuo Cc: [email protected]; ? ??; [email protected]; Shirley Kang; Scott Wang; Harris Subject: RE: D-Link Corporation, FCC ID:KA22002080002-2, AN03T2808 ( UNII)-reply (1) Hi Lucy: Question #16: Per 15.407(d) integral antenna requirements for UNII in 5.15- 5.25GHz band, the internal antenna can not be sold to end user and allow end user to perform installation. Please address the following issues : a. Internal antenna can only be installed by the OEM or authorized OEM installer, end user installation is prohibited. Please have the applicant to issue a cover letter to state that the PCI card with internal antenna will not be sold to the end user and only will be installed by the OEM or authorized OEM installer. b. Will Internal and external antennas to be co-exist on one PCI card ? c. The internal antenna installation instruction should not be part of user manual since the end user installation is prohibited. Please confirm that internal antenna installation instruction will not be provided to the end user. Question #17: Page 27 of revised UNII test report: both tabular data are for Antenna B. Please make necessary correction. Question #18: The revised UNII test report did not address Question #10. Please indicate which method was used and justify the relation between Sweep time and T: transmission pulse duration. Question #19: The revised UNII test report did not address Question #11, please refer to FCC public notice DA 02-2139 on the measurement procedures. The second trace shall use same instrument setting used in peak conducted transmit output power tests based upon the test method used. The second trace was created with RBW=1MHz and VBW=30kHz which does not agree with Peal conducted transmit output power measurements. Please redo the tests and submit the test data. Question #20: Please provide justification to use the peak limits of 88.2dBuV/m and average limits of 68.2dBuV/m for non-restricted band. Best Regards Mike Kuo -----Original Message----- From: Lucy [mailto:[email protected]] Sent: Monday, April 28, 2003 8:13 AM To: Mike Kuo Cc: [email protected]; ? ??; [email protected]; Shirley Kang; ScottWang; Harris Subject: Re: D-Link Corporation, FCC ID:KA22002080002-2, AN03T2808 ( UNII)-reply (1) Dear Mike, Below are the makeup documents for D-Link, FCC ID:KA22002080002-2 submission. Q#1, Please check attached antenna spec. Q#2, Please find attached "Quick install guide" for details. Q#3, Please refer to attached "users manual-revised" for "Internal antenna installation guide" at page 37-38. Q#4, Please refer to attached "antenna attestation statement as stated in 15-405d" for details. Q#13 about addressing 15.407(c) requirement, please refer to attached "DWL-AG520&WPC-D11 Theory of Operation and Block Diagram updated on 28 April 2003" page 5 for details -- As for Q#12 about photo of internal antenna mounted during the test, please refer to the DTS test report, page 141 for details. Other questions regard the UNII and DTS portions of test reports for details. Thank you and Best Regards, Lucy AN03T2808 ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "Mike Kuo" <[email protected]>; "Shirley Kang" <[email protected]>; <[email protected]>; <[email protected]>; <[email protected]> Cc: "'Lucy (E-mail)'" <[email protected]> Sent: Thursday, April 24, 2003 8:23 AM Subject: RE: D-Link Corporation, FCC ID:KA22002080002-2, AN03T2808 ( UNII) Question #14: Please provide a photo to show where the internal antenna is mounted during the tests. Question #15: Please provide antenna connector specification to address integral antenna requirement. Best Regards Mike Kuo > -----Original Message----- > From: Mike Kuo > Sent: Wednesday, April 23, 2003 2:17 PM > To: Shirley Kang; '[email protected]'; '[email protected]'; > '[email protected]' > Cc: Lucy (E-mail) > Subject: D-Link Corporation, FCC ID:KA22002080002-2, AN03T2808 ( > UNII) > > Question #1: Antenna specification PDF file is damaged and can not be > opened. Please submit antenna specification file again. > > Question #2: In the user manual, it refer to " Quick Install Guide " for > installation instruction. Please provide Quick Install Guide. > > Question #3: The user manual only indicate the device is using with > external antenna. There is no place mentioned internal antenna as shown > in the internal photos. Please provide a complete user manual to include > all functions of the device. > > Question #4: Please provide detail information on how the external antenna > and internal antenna will be connected to the PCI card and address the > internal antenna requirement as stated in 15.407(d) of FCC rules. > > Question #5: Since this PCI is operating in two different rule parts. > 2.4GHz band and 5.8GHz will be operated in the 15.247 as digital > transmission system ( DTS ) and 5.15-5.35GHz band as UNII device under > 15.407 of FCC rules. A composite device filing is required. The test > report will be written in such way to address DTS and UNII requirement > separately. Do not combine 15.247 and 15.407 test report into one test > report. All required attachments will be submitted individually under > each rule part. For this application, assessment no:AN03T2809 is used for > DTS application and AN03T2808 is used for UNII application. > > Question #6: The cover page of test report indicates Industry Canada > RSS210 as technical standard. The report is submitted for FCC > certification. Please make necessary changes. > > Question #7: The antenna connector shown in the user manual does not match > the antenna connector shown in the internal photos. Please explain. > > UNII portion of Test report: > > Question #8:Per FCC public notice DA 02-2138 ( Measurement procedure for > UNII device ), the emission bandwidth "B" MHz shall be measured with > RBW=1% of 26dB and the VBW shall be greater than RBW. The emission > bandwidth measured in this…

Text truncated - open the document above for the full version.

Cover Letter(s)

D-Link D-Link CORPORATION Hsinchu Office: No. 8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Tel: 886-3-563-6666 Fax:886-3-567-8124 Taipei Office: 2F, No. 233-2, Pao-Chiao Rd., Hsin-Tien, Taipei, Taiwan, R.O.C. Tel:886-2-916-1600 Fax: 886-2-914-6299 Telex: 35523 DLINK 24 April 2003 Hsinchu Telecommunications Certification Body 561 F Monterey Road Morgan Hill CA 95037-9001 U.S.A. Attn.: Application Examiner/Review Engineer Ref.: Integral Antenna Attestation Statement per requirement stated in Section 15.407(d) of FCC rules Dear Sirs, Hereby we D-Link confirm to utilize Epoxy (Loctite P/N 401) on the external antenna connectors for facilitating the external antenna to be connected permanently to the PCI card. This Epoxy is intended to be used at our manufacturing factory. In terms of the internal antenna we employ Radiall UMP One Time Mate (OTM) antenna connectors. Due to her unique design OTM is unremovable and is permanently fixed to the PCI card. Thus, we meet the requirement stated in 15.407(d) of FCC rules. Attached with this letter are: 1) Photo to show the usage of Epoxy at our manufacturing facility 2) Radiall UMP One Time Mate briefing 3) Radiall UMP One Time Mate connector specification Thank you for your kind attention. D-Link Authorized Representative Shinglin Chung Project Manage D-Link D-Link CORPORATION Hsinchu Office: No. 8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Tel: 886-3-563-6666 Fax:886-3-567-8124 Taipei Office: 2F, No. 233-2, Pao-Chiao Rd., Hsin-Tien, Taipei, Taiwan, R.O.C. Tel:886-2-916-1600 Fax: 886-2-914-6299 Telex: 35523 DLINK The photo to show the usage of Epoxy at our manufacturing facility Radiall U MP One Time Mate Design to conform FCC rules 15.407D Radiall U MP OTM (*) 1- receptacle pick-and-place 2- protection cover pick-and-place 3- oven r eflow-soldering 4- antenna connection the antenna is now unremovable ! the antenna is now u nremovable ! (*) One Ti me Mate Locking system How does it work ? Standard UMP receptacle Locking active part OTM receptacle When the plug is mated, the receptacle active part goes down and locks the cable connector in place. The protection cover placed upon the receptacle before mating avoid any access to the plug and to the receptacle. After mating, the plug cannot be removed.Antennas are definitively connected. OTM receptacle Radiall I nc. A R adiall SA company based at Stratford (Connecticut) We develop RF Connectors, Antennas, Microwave devices & Fiber optic connectors. For any further information please fell free to contact us. Ph : +1 203 380 9800 Fax : +1 888 387 0001 E-mail : [email protected] Web-site : www.radiall.com

External Photos

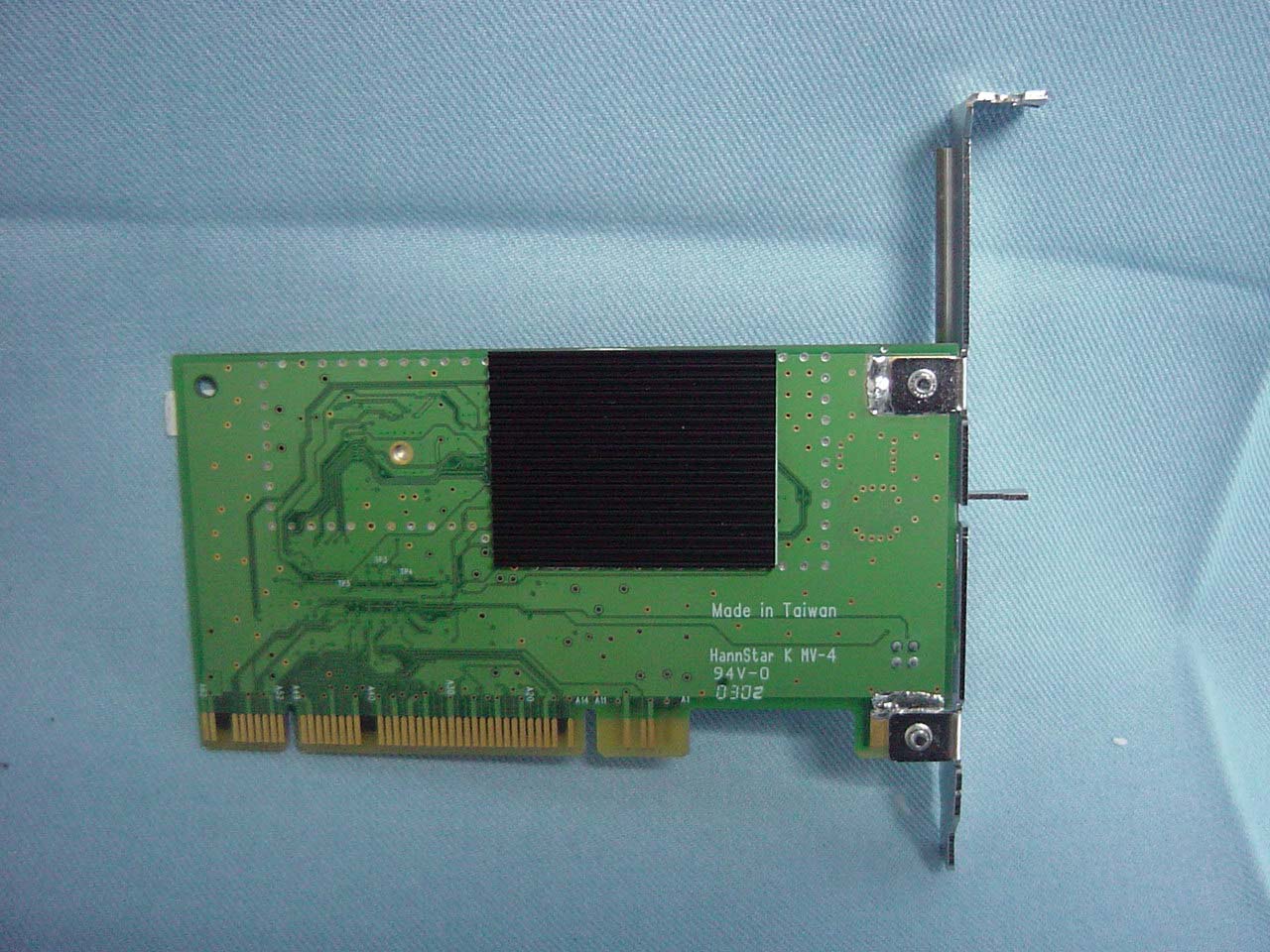

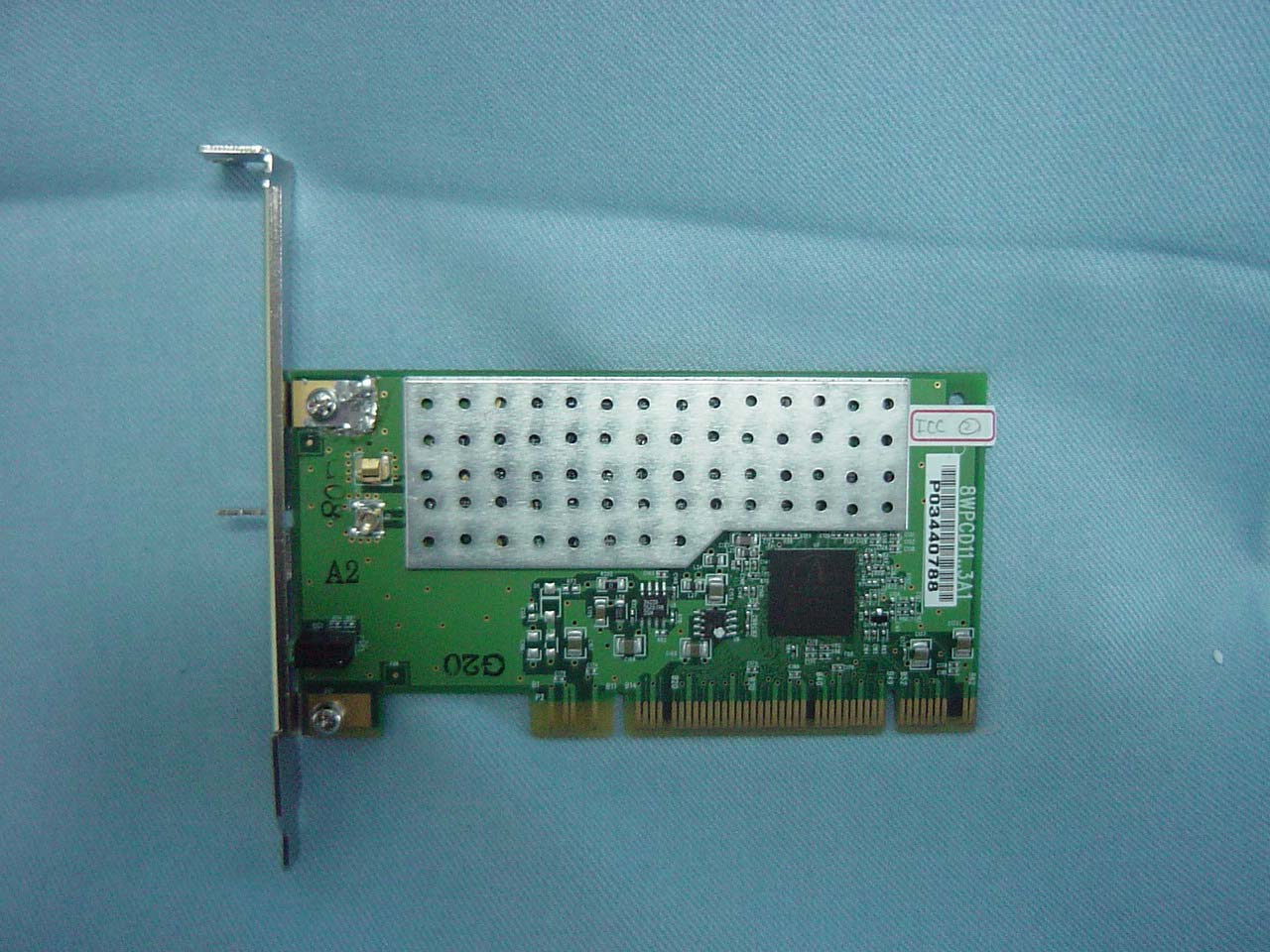

C&C Laboratory Co. Ltd. REPORT NO: 030041-RF-ID ID: KA22002080002-2 DATE: April 07, 2003 Page 280 Rev. 00 APPENDIX 2 PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 030041-RF-ID ID: KA22002080002-2 DATE: April 07, 2003 Page 281 Rev. 00 Front View of EUT Back View of EUT C&C Laboratory Co. Ltd. REPORT NO: 030041-RF-ID ID: KA22002080002-2 DATE: April 07, 2003 Page 282 Rev. 00 Dissolution View of EUT C&C Laboratory Co. Ltd. REPORT NO: 030041-RF-ID ID: KA22002080002-2 DATE: April 07, 2003 Page 283 Rev. 00 Front View of EUT with Antenna Back View of EUT with Antenna

ID Label/Location Info

FCC ID / IC LABEL FORMAT AND LOCATION Applicant: D-Link Corporation FCC ID: KA22002080002-2 IC: 4216A2002080002-2 FCC ID: KA22002080002-2 IC: 4216A2002080002-2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “Complies with Canada RSS-210” LABEL AREA

Internal Photos

Parts List/Tune Up Info

1 † Electrical performance as measured when mounted onto a 48 x19 cm desktop chassis with a MMCX connector on a 60 cm RG178 test cable. -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5.155.25.255.35.355.45.455.55.555.65.655.75.755.85.85 Frequency (GHz) Return Loss (dB) Antenna Products WLAN Tri Band Antenna for 802.11b and 802.11a/HiperLAN2 Embedded Wireless Applications Features •Very Efficient MLA Technology •Covers all Three WLAN Bands: - 802.11b (2.44 GHz) - 802.11a (5.25 GHz) - HiperLAN2 (5.8 GHz) •Very Low Profile for Embedded Applications •Optimized for Remote Cable Mounting in Desktop/Laptop Applications This tri band WLAN antenna provides exceptional performance in a compact package for embedded wireless applications implementing multiple frequencies. This Meander Line Antenna provides superior efficiency and gain directivity and is the best performance so- lution for developers implementing a multiple frequency WLAN system in both the lower and upper WLAN bands. Electrical Specifications † Frequency Ranges 2400—2500 MHz 5150—5850 MHz Gain 3.0 dBi Peak at 2440 MHz 3.25 dBi Peak at 5250 MHz 2.0 dBi Peak at 5800 MHz VSWR < 1.8:1 in the lower band < 2.0:1 in the upper band Polarization Linear Patterns 2440 MHz Uni directional 5250 MHz Uni directional 5800 MHz Uni directional Feed Impedance 50 Ohms Unbalanced Mechanical Specifications Size 0.87 x 0.59 x 0.24 inches 22.3 x 14.9 x 6.2 mm Weight* 3.9 g *weight with out cable Cable/ Connectors Customer to specify cable type, cable length and connector type Typical Return Loss (Low Band) Typical Return Loss (High Bands) -20 -18 -16 -14 -12 -10 -8 -6 -4 -2 0 2.42.412.422.432.442.452.462.472.482.492.5 Frequency (GHz) Return Loss (dB ) CBL-2450U-5250U-5800U Element CBL-2450U-5250U-5800U-A Cable Assembly 2 Swept Gain for Low Band † 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 2.42.412.422.432.442.452.462.472.482.492.5 Frequency (GHz) Gain (dBi) 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.155.25.255.35.355.45.455.55.555.65.655.75.755.85.85 Frequency (GHz) Gain (dBi) Swept Gain for High Band † CBL-2450U-5250U-5800U Element CBL-2450U-5250U-5800U-A Cable Assembly † Electrical performance as measured when mounted onto a 48 x19 cm desktop chassis with a MMCX connector on a 60 cm RG178 test cable. 3 5.25 GHz 2.44 GHz 5.8 GHz Spherical Gain Contour Maps † † Electrical performance as measured when mounted onto a 48 x19 cm desktop chassis with a MMCX connector on a 60 cm RG178 test cable. CBL-2450U-5250U-5800U Element CBL-2450U-5250U-5800U-A Cable Assembly 4 Gain Pattern at 5.25 Phi = 0 degrees Phi= 90 degrees Theta = 90 degrees Gain Pattern at 2.45 Phi = 0 degrees Phi= 90 degrees Theta = 90 degrees Updated 8/12/2002 CBL-2450U-5250U-5800U Element CBL-2450U-5250U-5800U-A Cable Assembly 5 Gain Pattern at 5.8 Phi = 0 degrees Phi= 90 degrees Theta = 90 degrees Updated 8/12/2002 For information regarding SkyCross Inc. and its products, see website at www.skycross.com, email [email protected] or call 321-308- 6600 © 2002 SkyCross, Inc. SkyCross is a trademark of SkyCross, Inc. All rights reserved. Protected by one or more US Patents, including No. 5,790,080. Additional US and Foreign patents pending. Specification subject to change without notice. CBL-2450U-5250U-5800U Element CBL-2450U-5250U-5800U-A Cable Assembly

RF Exposure Info

C&C Laboratory Co. Ltd. REPORT NO: 030046-RF-ID ID: KA22002080002-2 DATE: April 07, 2003 Page 114 Rev. 00 16. RF Exposure 16.1 Standard Applicable According to 15.247(b)(4) and 1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. The device is class as a Mobile device. According to 1.1310 and 2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density C&C Laboratory Co. Ltd. REPORT NO: 030046-RF-ID ID: KA22002080002-2 DATE: April 07, 2003 Page 115 Rev. 00 (A-antenna Port ) Maximum peak output power at antenna input terminal: 14.80 (dBm) Maximum peak output power at antenna input terminal: 30.1995 (mW) Antenna gain (typical): 5 (dBi) Maximum antenna gain: 3.162 (numeric) Prediction distance: 20 (cm) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm 2 ) Power density at predication frequency at 20 (cm) distance 0.0190086 (mW/cm^2) Result The predicted power density level at 20 cm is 0.0190086 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 5180 MHz. SPPGGR mW/cm^2mWdBmdBi(numeric)cm 0.0190086130.199517214.853.16227820 C&C Laboratory Co. Ltd. REPORT NO: 030046-RF-ID ID: KA22002080002-2 DATE: April 07, 2003 Page 116 Rev. 00 (B-antenna port) Maximum peak output power at antenna input terminal: 20.12 (dBm) Maximum peak output power at antenna input terminal: 102.80 (mW) Antenna gain (typical): 3.25 (dBi) Maximum antenna gain: 2.1134 (numeric) Prediction distance: 20 (cm) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm 2 ) Power density at predication frequency at 20 (cm) distance 0.04324 (mW/cm^2) Result The predicted power density level at 20 cm is 0.04324 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 5260 M…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Brett Adair(General Counsel)

[email protected]714-885-6000Fax: 866-743-4589

Test Firm

Compliance Certification Services Inc.Kurt Chen

[email protected]886-2-86422071Fax: 886-2-86422256

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15E	5.26 GHz - 5.32 GHz	103.00 mW

Confidentiality

Long Term

Grant Notes

Ouput power listed is conducted. This device must be marketed for indoor use only. When internal antenna is installed in the typical desktop computer, the internal antenna must be installed by D-Link or authorized OEM facilities-user installation is prohibited. The external and internal antennas must be constructed to comply with integral antenna requirements as documented in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance.
