KA22002090029-1High Speed 2.4GHz WLAN Mini PCI Card

Manual Building Networks for People 2.4GHz up to 54Mbps D-Link WMP-G01 Wireless Mini PCI Card 2 Contents Introduction ......................................................................................................3 Wireless Basics ...............................................................................................66 Getting Started .............................................................................................. 10 Using the Configuration Utility .................................................................... 13 Networking Basics ....................................................................................... 19 Warranty and Registration............................................................................. 32 3 Introduction The D-Link WMP-G01 Wireless Mini PCI Card is an enhanced 802.11g high- performance, wireless adapter that supports high-speed wireless networking at home, at work or in public places. Unlike most network cards, the WMP-G01 provides speeds of up to 54 Mbps (compared to the standard 11 Mbps) when used with other D-Link AirXtremeG products. This means that you do not need to change your entire network to maintain connectivity. You may sacrifice some of 802.11g’s speed when you mix 802.11b and 802.11g devices, but you will not lose the ability to communicate when you incorporate the 802.11g standard into your 802.11b network. You may choose to slowly change your network by replacing the 802.11b devices with 802.11g devices gradually. In addition to offering faster data transfer speeds when used with other 802.11g products, the WMP-G01 has the newest, strongest, most advanced security features available today. For home users that will not incorporate a radius server in their network, the security for the WMP-G01, used in conjunction with other 802.11g products, will be much stronger than ever before. No longer will you have to manually input a new WEP key frequently to ensure security, with the WMP-G01, you will automatically receive a new key every time you connect, vastly increasing the safety of your communications. TM 4 The WMP-G01 is compatible with existing 802.11b devices such as the D-Link Air, AirPlus and AirPro family of products including the DWL-520, DWL-520+ and the DWL-AB520 Wireless PCI Adapter, the DI-714 Wireless Router/Access Point and the DWL-120 Wireless USB Adapter. (When used with 802.11b devices, the WMP-G01 will reach speeds at up to 11Mbps.) It is an ideal way to connect one laptop computer to a Wireless Local Area Network (WLAN.) After completing the steps outlined in the Quick Installation Guide (included in the package) you will have the ability to share information and resources, such as files and printers, and take full advantage of a “connected” environment for work or play! The WMP-G01 includes software drivers for the most popular Microsoft Windows operating systems (Windows XP, Windows 2000, Windows Me, Windows 98) and can be integrated into a larger network, running, in either Peer-to-Peer mode (without an Access Point) or mode (with an Access Point.) Please take a look at our Getting Started section in this manual to see examples of typical network setups using the WMP-G01 in both Access Point and Peer-to-Peer modes. This manual provides a quick introduction to wireless technology and its application as it relates to networking. Take a moment to read through this manual and get acquainted with wireless technology. Access Point 6 D-Link wireless products are based on industry standards to provide easy-to- use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers. A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless LANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial for many users. Wireless Basics Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide this link. 7 The WMP-G01 is also compatible with 802.11b wireless products, which include: 2.4GHz Wireless Cardbus Adapters used with laptop computers (D-Link Air DWL-650, D-Link AirPlus DWL-650+) 2.4GHz Wireless PCI cards used with desktop computers (D-Link Air DWL-520, D-Link AirPlus DWL-520+) Enhanced 2.4GHz Wireless Access Point (D-Link AirPlus DWL-900AP+) Enhanced 2.4GHz Wireless Broadband Router (D-Link AirPlus DI-614+) Wireless Basics (continued) People use wireless LAN technology for many different purposes: Mobility - Productivity increases when people have access to data in any location within the operating range of the WLAN. Management decisions based on real-time information can significantly improve worker efficiency. Low Implementation Costs – WLANs (Wireless Local Area Networks) are easy to set up, manage, change and relocate. Networks that frequently change, both physically and logically, can benefit from WLANs ease of implementation. WLANs can operate in locations where installation of wiring may be impractical. Installation Speed and Simplicity - Installing a wireless LAN system can be fast a…

Text truncated - open the document above for the full version.

26 n Networking Basics Naming your Computer To name your computer, please follow these directions:In Windows XP: Click Start (in the lower left corner of the screen) Right-click on My Computer Select Properties and click n n n n n Select the Computer Name Tab in the System Properties window. You may enter a Com- puter Description if you wish; this field is optional. To rename the computer and join a domain, Click Change. 27 Networking Basics Naming your Computer Checking the IP Address in Windows XP The wireless adapter-equipped computers in your network must be in the same IP Ad- dress range (see Getting Started in this manual for a definition of IP Address Range.) To check on the IP Address of the adapter, please do the following: Right-click on the Local Area Connection icon in the task bar Click on Status n n n Click OK All computers on your network must have the same Workgroup name. n Select Workgroup and enter the name of the Workgroup n nIn this window, enter the Computer name 28 Networking Basics Checking the IP Address in Windows XP This window will appear. Click the Support tab Click Close n n Assigning a Static IP Address in Windows XP/2000 Note: Residential Gateways/Broadband Routers will automatically assign IP Ad- dresses to the computers on the network, using DHCP (Dynamic Host Configura- tion Protocol) technology. If you are using a DHCP-capable Gateway/Router you will not need to assign Static IP Addresses. If you are not using a DHCP capable Gateway/Router, or you need to assign a Static IP Address, please follow these instructions: n n Go to Start Double-click on Control Panel 29 Networking Basics Assigning a Static IP Address in Windows XP/2000 nDouble-click on Network Connections n n Double-click on Properties Right-click on Local Area Connections 30 Networking Basics Assigning a Static IP Address in Windows XP/2000 You have completed the assignment of a Static IP Address. (You do not need to assign a Static IP Address if you have a DHCP-capable Gateway/Router.) Click on Internet Protocol (TCP/IP) Click Properties n n IP Address: e.g., 192.168.0.2 Subnet Mask: 255.255.255.0 Default Gateway: Enter the LAN IP address of the wireless router. (D-Link wireless routers have a LAN IP address of 192.168.0.1) In the window below, select Use the following IP address. Input your IP address and subnet mask. (The IP Addresses on your network must be within the same range. For example, if one computer has an IP Address of 192.168.0.2, the other computers should have IP Addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the same for all the computers on the network.) n Click OK Select Use the following DNS server address. Enter the LAN IP address of the Wireless Router. (D-Link wireless routers have a LAN IP address of 192.168.0.1) n n 31 Networking Basics Checking the Wireless Connection by Pinging in Windows XP and 2000 Checking the Wireless Connection by Pinging in Windows ME and 98SE Go to Start > Run > type cmd. A window similar to this one will appear. Type ping xxx.xxx.xxx.xxx, where xxx is the IP Address of the Wireless Router or Access Point. A good wireless connection will show four replies from the Wireless Router or access point, as shown. Go to Start > Run > type command. A window similar to this will appear. Type ping xxx.xxx.xxx.xxx where xxx is the IP Address of the Wireless Router or Access Point. A good wireless connection will show four replies from the wireless router or access point, as shown. n n 32 Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited warranty for its product only to the person or entity that originally purchased the product from: D-Link or its authorized reseller or distributor and Products purchased and delivered within the fifty states of the United States, the District of Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, addresses with an APO or FPO. Limited Warranty: D-Link warrants that the hardware portion of the D-Link products described below will be free from material defects in workmanship and materials from the date of original retail purchase of the product, for the period set forth below applicable to the product type (“Warranty Period”), except as otherwise stated herein. 3-Year Limited Warranty for the Product(s) is defined as follows: Hardware (excluding power supplies and fans) Three (3) Years Power Supplies and Fans One (1) Year Spare parts and spare kits Ninety (90) days D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be new or have an identical make, model or part. D-Link may in its sole discretion replace the defective Hardware (or any part thereof) with any reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or replacement Hardware will be warranted for the remainder of the original Warranty Period from the date of original retail purchase. If a material defect is incapable of correction, or if D-Link determines in its sole discretion that it is not practical to repair or replace the defective Hardware, the price paid by the original purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective Hardware. All Hardware (or part thereof) that is replaced by D-Link, or for which the purchase price is refunded, shall become the property of D-Link upon replacement or refund. Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”) will substantially conform to D-Link’s then current functional specifications for the Software, as set forth in the applicable documentation, …

Text truncated - open the document above for the full version.

FCC ID: KA22002090029-1 ADT No.911230R01 Modular Approval Request Letter Advance Data Technology Apr. 10, 2003 Dear Application Examiner, D-Link Corporation’s High-Speed 2.4GHz WLAN Mini PCI Card, FCC ID: KA22002090029-1, would like to have your authorization as a limited modular approval specific to the mobile device such as access point and router. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR5212. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 2.5V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is TK71725SCL. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: KA22002090029-1 ADT No.911230R01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Dr. Alan Lane J. VP Advance Data Technology

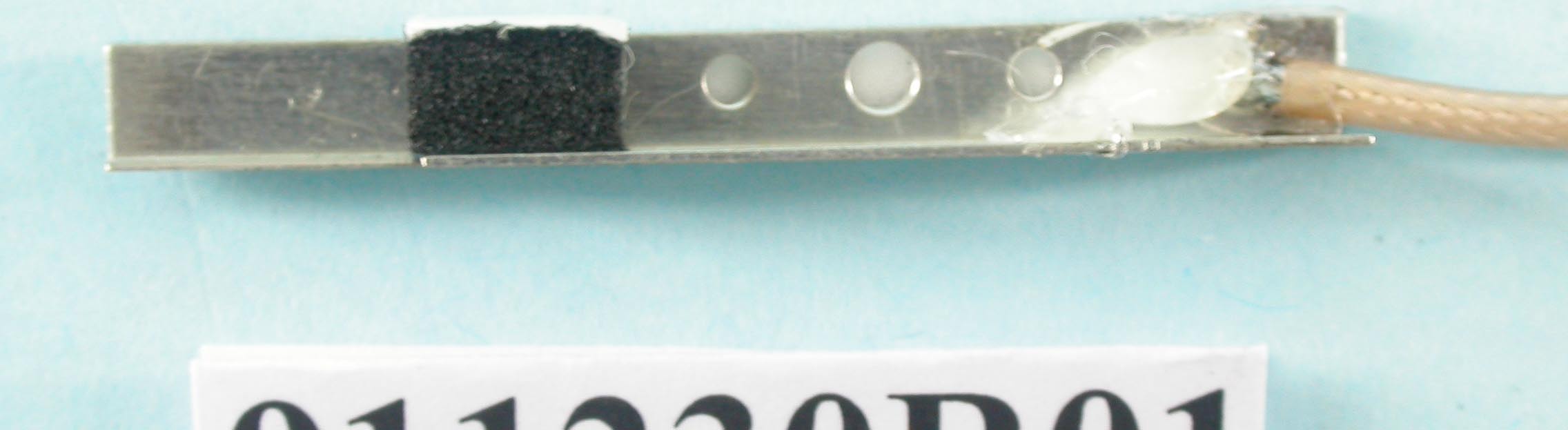

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

Page 4 Page 5 Page 6

Page 7 Page 8 Page 9

FCC ID LABEL LOCATION

FCC ID LABEL LOCATION

Page 10 Page 11

FCC ID: KA22002090029-1 ADT No.911230R01 Operational Description This device is a High-Speed 2.4GHz WLAN Mini PCI Card which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. This project is seeking the authorization of limited module approval specific to the mobile device such as access point and router. The transmitter of the EUT is powered by host equipment via a mini-PCI interface. The antenna types used in this product are Inverted F and Dipole with internal connector type MMCX or external connector Reversed SMA, please also refer to the following table: Connector No.Antenna ModelAntenna Type Antenna Gain (dBi) InternalExternal 1IFF-811D-120-1Inverted-F2.0MMCXNA 2IWF-613D-120-1Dipole2.0MMCXNA 3IWF-114F-120-1Dipole1.8MMCXNA 4IDF-RODER-120-1Dipole2.0MMCXNA 5IW-151RS-120-1Dipole5.0MMCXReversed SMA 6IW-241RS-120-1Dipole2.0MMCXReversed SMA 7IW-144RS-120-1Dipole2.5MMCXReversed SMA 8IWF-242-120-1Dipole2.0MMCXNA 9IWF-152-120-1Dipole4.0MMCXNA The other instruction, please have a look at the users manual.

FCC ID: KA22002090029-1 ADT No.: 911230R01 FCC TEST REPORT REPORT NO.: RF911230R01 MODEL NO.: WMP-G01 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:D-Link Corporation ADDRESS:No.8, Li-Hsin VII Road Science Based Industrial Park, Hsin-Chu, Taiwan ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA22002090029-1 ADT No.: 911230R01 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: KA22002090029-1 ADT No.: 911230R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: KA22002090029-1 ADT No.: 911230R01 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5Bi or 3.16 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : For 802.11b: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( R ) FROM SKIN (Centi-Meter) 1241240.933.21 6243750.703.57 11246246.563.42 For 802.11g: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( R ) FROM SKIN (Centi-Meter) 1241276.914.40 62437119.675.49 6 (Turbo Mode)2437147.236.09 11246273.964.31 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: KA22002090029-1 Report No.: RF911230R01 1 Issued: April 9, 2003 FCC TEST REPORT REPORT NO.: RF911230R01 MODEL NO.: WMP-G01 RECEIVED: Dec. 30, 2002 TESTED: Jan. 2, 2003 ~ Apr. 7, 2003 APPLICANT:D-Link Corporation ADDRESS:No.8, Li-Hsin VII Road Science Based Industrial Park, Hsin-Chu, Taiwan ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 84 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA22002090029-1 Report No.: RF911230R01 2 Issued: April 9, 2003 Table of Contents 1CERTIFICATION ........................................................................................ 4 2SUMMARY OF TEST RESULTS................................................................ 5 3GENERAL INFORMATION ........................................................................ 6 3.1GENERAL DESCRIPTION OF EUT .......................................................... 6 3.2DESCRIPTION OF TEST MODES ............................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................ 7 3.4DESCRIPTION OF SUPPORT UNITS....................................................... 8 4TEST TYPES AND RESULTS ................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ............................................. 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................... 9 4.1.2TEST INSTRUMENTS ............................................................................... 9 4.1.3TEST PROCEDURES.............................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD .................................................... 10 4.1.5TEST SETUP ........................................................................................... 11 4.1.6EUT OPERATING CONDITIONS............................................................. 11 4.1.7TEST RESULTS....................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................ 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ............................. 18 4.2.2TEST INSTRUMENTS ............................................................................. 19 4.2.3TEST PROCEDURES.............................................................................. 20 4.2.4DEVIATION FROM TEST STANDARD .................................................... 20 4.2.5TEST SETUP ........................................................................................... 21 4.2.6EUT OPERATING CONDITIONS............................................................. 21 4.2.7TEST RESULTS (A) ................................................................................. 22 4.2.8TEST RESULTS (B) ................................................................................. 30 4.2.9TEST RESULTS (C)................................................................................. 38 4.36dB BANDWIDTH MEASUREMENT ....................................................... 46 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................... 46 4.3.2TEST INSTRUMENTS ............................................................................. 46 4.3.3TEST PROCEDURE ................................................................................ 47 4.3.4DEVIATION FROM TEST STANDARD .................................................... 47 4.3.5TEST SETUP ........................................................................................... 47 4.3.6EUT OPERATING CONDITIONS............................................................. 47 4.3.7TEST RESULTS....................................................................................... 48 4.4MAXIMUM PEAK OUTPUT POWER ....................................................... 57 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........ 57 4.4.2TEST INSTRUMENTS ............................................................................. 57 FCC ID: KA22002090029-1 Report No.: RF911230R01 3 Issued: April 9, 2003 4.4.3TEST PROCEDURES.............................................................................. 58 4.4.4DEVIATION FROM TEST STANDARD .................................................... 58 4.4.5TEST SETUP ........................................................................................... 58 4.4.6EUT OPERATING CONDITIONS............................................................. 58 4.4.7TEST RESULTS....................................................................................... 59 4.5POWER SPECTRAL DENSITY MEASUREMENT .................................. 60 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................ 60 4.5.2TEST INSTRUMENTS ............................................................................. 60 4.5.3TEST PROCEDURE ................................................................................ 61 4.5.4DEVIATION FROM TEST STANDARD .................................................... 61 4.5.5TEST SETUP ........................................................................................... 61 4.5.6EUT OPERATING CONDITIONS............................................................. 61 4.5.7TEST RESULTS....................................................................................... 62 4.6BAND EDGES MEASUREMENT ............................................................. 71 4.6.1LIMITS OF BAND EDGES MEASUREMENT .......................................... 71 4.6.2TEST INSTRUMENTS ............................…

Text truncated - open the document above for the full version.

FCC ID: KA22002090029-1 Report No.: RF911230R01 61 Issued: April 9, 2003 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITIONS Same as 4.3.6 EUT SPECTRUM ANALYZER FCC ID: KA22002090029-1 Report No.: RF911230R01 62 Issued: April 9, 2003 4.5.7 TEST RESULTS MODEL WMP-G01 EUT High-Speed 2.4GHz WLAN Mini PCI Card MODE CCK INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 21deg. C, 67%RH, 991hPa TESTED BY: Ansen Lei CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-8.608PASS 62437-7.368PASS 112462-6.258PASS FCC ID: KA22002090029-1 Report No.: RF911230R01 63 Issued: April 9, 2003 CH1 FCC ID: KA22002090029-1 Report No.: RF911230R01 64 Issued: April 9, 2003 CH6 FCC ID: KA22002090029-1 Report No.: RF911230R01 65 Issued: April 9, 2003 CH11 FCC ID: KA22002090029-1 Report No.: RF911230R01 66 Issued: April 9, 2003 MODEL WMP-G01 EUT High-Speed 2.4GHz WLAN Mini PCI Card MODE OFDM INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 21deg. C, 67%RH, 991hPa TESTED BY: Ansen Lei CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN3 kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-11.138PASS 62437-8.818PASS 6 (Turbo Mode)2437-13.928PASS 112462-13.048PASS FCC ID: KA22002090029-1 Report No.: RF911230R01 67 Issued: April 9, 2003 CH1 FCC ID: KA22002090029-1 Report No.: RF911230R01 68 Issued: April 9, 2003 CH6 FCC ID: KA22002090029-1 Report No.: RF911230R01 69 Issued: April 9, 2003 CH11 FCC ID: KA22002090029-1 Report No.: RF911230R01 70 Issued: April 9, 2003 CH6 (Turbo Mode) FCC ID: KA22002090029-1 Report No.: RF911230R01 71 Issued: April 9, 2003 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 1MHz and 300Hz with suitable frequency span including 100kHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: KA22002090029-1 Report No.: RF911230R01 72 Issued: April 9, 2003 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 4.6.6 TEST RESULTS The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE 1: The band edge emission plot on the following 1-2 pages shows 51.02dB / 49.74dB delta between carrier maximum power and local maximum emission in restrict band (2.3861GHz / 2.4913GHz). The emission of carrier strength list in the test result of channel 11 of CCK technique at the item 4.2.8 is 102.8dBuV/m, so the maximum field strength in restrict band is 102.8-49.74=53.06dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot on the following 3-4 pages shows 44.42dB / 42.8dB delta between carrier maximum power and local maximum emission in restrict band (2.3898GHz / 2.4835GHz). The emission of carrier strength list in the test result of channel 11 of OFDM technique at the item 4.2.8 is 96.5dBuV/m, so the maximum field strength in restrict band is 96.5-42.8=53.7dBuV/m which is under 54dBuV/m limit. NOTE 3: The band edge emission plot on the following 5-6 pages shows 41.43dB / 41.96dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz / 2.4835GHz). The emission of carrier strength list in the test result of channel 6 of OFDM …
