KA220030603014-1IEEE 802.11g Wireless Access Point

Dlink IEEE802.11g 2.4GHz WIRELESS LAN ACCESS POINT DWL-2100AP Manual 2 Contents Package Contents ................................................................................3 Introduction............................................................................................4 Wireless Basics ....................................................................................7 Getting Started .................................................................................... 10 Using the Configuration Menu..............................................................12 Troubleshooting....................................................................................26 Technical Specifications .......................................................................31 3 Package Contents Contents of Package: n IEEE 802.11g 2.4GHz Wireless LAN Access Point n Power Adapter – 5.0V DC, 2A n Quick Installation Guide on CD n Ethernet Cable Note: Using a power supply with a different voltage rating than the one included with the 11G WIRELESS LAN ACCESS POINT will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller. System Requirements For Configuration: n Computer with Windows, Macintosh, or Linux-based operating system with an installed Ethernet adapter n Internet Explorer or Netscape Navigator version 6.0 or above, with JavaScript enabled n At least 128 MB of memory and a 500 MHz processor 4 Introduction The 11g WIRELESS LAN ACCESS POINT provides the most expanded user bandwidth available in an AP. Wireless clients can connect to this AP using any of its channels to transfer data at speeds never achievable before in a wireless device. The 11g WIRELESS LAN ACCESS POINT operates seamlessly and simultaneously in the 2.4GHz frequency spectrums supporting the 802.11b and the newer, faster 802.11g wireless standards. For offices, schools or public hotspots that already use 802.11b devices, the 11g WIRELESS LAN ACCESS POINT is a great way to expand an existing network and enable even more users to communicate with one another, access data and the Internet. Now, you can have an AP that will compliment your existing network and protect the investment you made when you provided the convenience of wireless networking. The 11g WIRELESS LAN ACCESS POINT offers transfer rates up to 54Mbps in the 2.4GHz band, large data packets travel from the router to a remote desktop or roaming laptop PC at up to five times the speed of previous wireless devices. Everyone can work faster and more efficiently or watch a streaming video smoothly. Network administrators can partition the usage of the 11g WIRELESS LAN ACCESS POINT by segmenting the users on the wireless network by frequency band. Users who require special networking privileges — access to sensitive information, specific departments or videoconferencing — may use just the 802.11b and 802.11g channels. This type of user segmentation optimizes the AP’s performance and delivers the best network experience to each set of users. The 11g WIRELESS LAN ACCESS POINT is ideal for network administrators who require additional management, firewall, and other network security features. All of the AP’s settings are easily accessible in the operating system independent, Web-based software user interface that also features a step-by-step Setup Wizard to get your router up and running in just a matter of minutes. The 11g WIRELESS LAN ACCESS POINT incorporates the WPA* (Wi-Fi Protected Access) which dynamically encrypts data as it’s being sent. 5 Connections n Straight-Through cable is required when connecting to a router or switch n Cross-Over cable is required when connecting directly to an Ethernet adapter on a computer Features & Benefits n Up to 54 Mbps - Means you can transfer large files up to 5 times more quickly than was previously possible without signal interference n 802.11b and 802.11g Compliant - Means you can mix devices from different standards without sacrificing connectivity n Better Security with WPA - Other 802.11g devices can connect securely using WPA (Wi-Fi Protected Access) 6 LED stands for Light-Emitting Diode. The 11g WIRELESS LAN ACCESS POINT has 3 Green LEDs as shown below: LED LED Activity Power A steady light indicates a connection to a power source LAN (10/100) A steady light indicates a connection to the Ethernet port; a blinking light indicates activity WLAN (802.11b or 802.11g) A blinking light indicates activity in the respective wireless mode: 802.11b or 802.11g 7 Wireless Basics 11g WIRELESS LAN ACCESS POINT is based on industry standards to provide easy-to use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the 11g WIRELESS LAN ACCESS POINT will allow you to securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers. A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless LANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial for many users. Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Access Point (AP) is a device used to provide this link. People use wireless LAN technol…

Text truncated - open the document above for the full version.

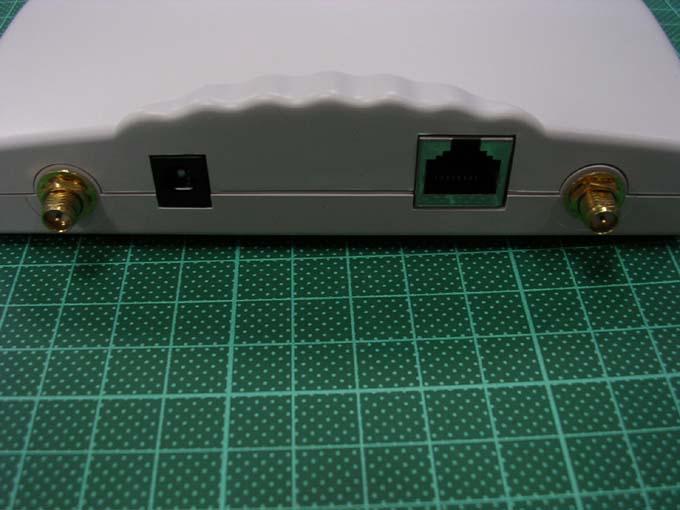

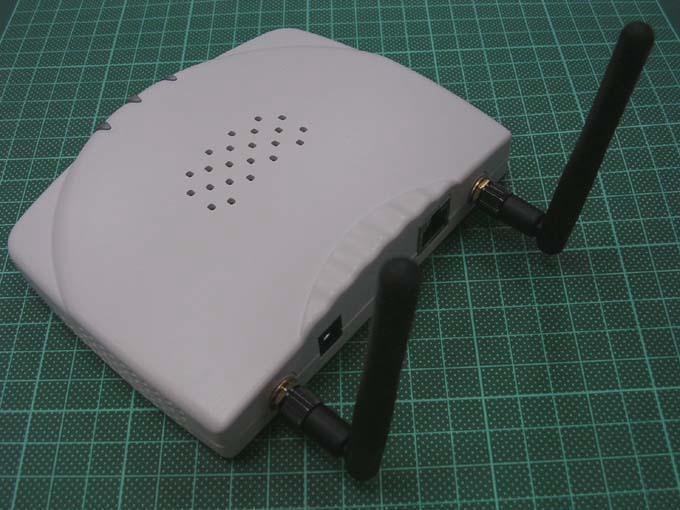

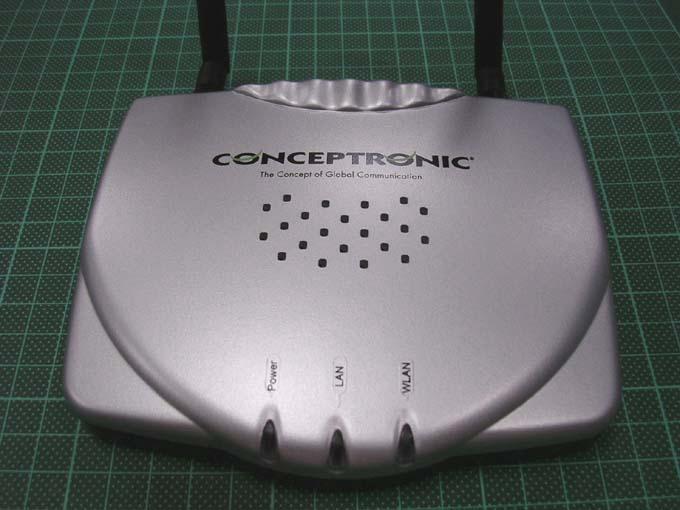

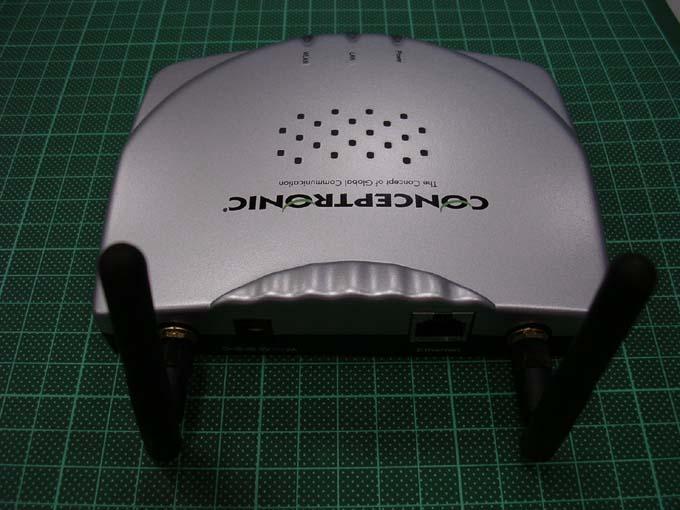

Photo 1: Exterior photo of EUT DWL-2100AP Photo 2: Exterior photo of EUT DWL-2100AP Photo 3: Exterior photo of antenna Photo 4: Exterior photo of antenna Photo 5: Exterior photo of WAP-G02 WAP-G02 Photo 6: Exterior photo of WAP-G02 WAP-G02 Photo 7: Exterior photo of WAP-G02 WAP-G02 Photo 8: Exterior photo of C54APT C54APT Photo 9: Exterior photo of C54APT C54APT Photo 10: Exterior photo of C54APT C54APT

69mm 54mm FCC ID Label location

Photo 1: Interior photo of EUT DWL-2100AP Photo 2: Interior photo of EUT DWL-2100AP Photo 3: Interior photo of EUT DWL-2100AP Photo 4: Interior photo of EUT DWL-2100AP Photo 5: Interior photo of EUT DWL-2100AP Photo 6: Interior photo of WAP-G02 WAP-G02

FCC ID. : KA220030603014-1 Report No.: EME-031201 Page 1 of 6 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-031201 Model No. : DWL-2100AP Issued Date : Nov. 4, 2003 Applicant : D-Link Corporation No. 8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 6 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Clay Chen Project Engineer Reviewed By Elton Chen FCC ID. : KA220030603014-1 Report No.: EME-031201 Page 2 of 6 Table of Contents Summary of Tests.........................................................................................................3 1. Introduction..............................................................................................................4 2. RF Exposure Limit...................................................................................................4 3. RF Exposure calculations..........................................................................................5 4. Test results................................................................................................................5 FCC ID. : KA220030603014-1 Report No.: EME-031201 Page 3 of 6 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 IEEE 802.11g Wireless Access Point -Model: DWL-2100AP FCC ID : KA220030603014-1 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Complies FCC ID. : KA220030603014-1 Report No.: EME-031201 Page 4 of 6 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : KA220030603014-1 Report No.: EME-031201 Page 5 of 6 3. RF Exposure calculations From § FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4* π *20 2 = 0.00995 (mW/cm 2 ) 4. Test results Test Condition: 802.11b operation (DSSS modulation) Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 2412 1.51 76.38 0.02300 1.0 6 2437 1.51 79.98 0.02408 1.0 11 2462 1.51 83.75 0.02522 1.0 Test Condition: 802.11g operation (OFDM modulation) Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 2412 1.51 183.23 0.05517 1.0 6 2437 1.51 174.98 0.05269 1.0 11 2462 1.51 191.87 0.05777 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time. FCC ID. : KA220030603014-1 Report No.: EME-031201 Page 6 of 6 Test Condition: 802.11g operation (OFDM modulation) turbo mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 6 2437 1.51 297.167 0.08948 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

FCC ID. : KA220030603014-1 Report No.: EME-031201 Page 1 of 111 EMC TEST REPORT Report No. : EME-031201 Model No. : DWL-2100AP Issued Date : Dec. 4, 2003 Applicant : D-Link Corporation No. 8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 111 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result in this report only applies to the tested sample. Project Engineer Reviewed By Clay Chen Elton Chen FCC ID. : KA220030603014-1 Report No.: EME-031201 Page 2 of 111 Table of Contents Summary of Tests..........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT.....................................................................................4 1.2 Additional information about the EUT.................................................................4 1.3 Antenna description.............................................................................................6 1.4 Peripherals equipment.........................................................................................6 2. Test specifications.....................................................................................................7 2.1 Test standard........................................................................................................7 2.2 Operation mode...................................................................................................7 2.3 Test equipment....................................................................................................8 3. Minimum 6dB Bandwidth test...................................................................................9 3.1 Operating environment........................................................................................9 3.2 Test setup & procedure........................................................................................9 3.3 Measured data of Minimum 6dB Bandwidth test results......................................9 4. Maximum Output Power test...................................................................................17 4.1 Operating environment......................................................................................17 4.2 Test setup & procedure......................................................................................17 4.3 Measured data of Maximum Output Power test results.......................................17 5. Radiated Emission test............................................................................................19 5.1 Operating environment......................................................................................19 5.2 Test setup & procedure......................................................................................19 5.3 Emission limits..................................................................................................20 5.4 Radiated spurious emission test data..................................................................21 5.4.1 Measurement results: frequencies equal to or less than 1 GHz.........................21 5.4.2 Measurement results: frequency above 1GHz.................................................24 6. Power Spectrum Density test...................................................................................38 6.1 Operating environment......................................................................................38 6.2 Test setup & procedure......................................................................................38 6.3 Measured data of Power Spectrum Density test results.......................................38 7. Emission on the band edge §FCC 15.247(C)...........................................................46 7.1 Band-edge (Conducted method).........................................................................47 7.2 Band-edge (Radiated method)............................................................................51 8. Power Line Conducted Emission test §FCC 15.207.................................................83 8.1 Operating environment......................................................................................83 8.2 Test setup & procedure......................................................................................83 8.3 Power Line Conducted Emission test data..........................................................85 FCC ID. : KA220030603014-1 Report No.: EME-031201 Page 3 of 111 Summary of Tests IEEE 802.11g Wireless Access Point -Model: DWL-2100AP FCC ID : KA220030603014-1 Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Complies Maximum Output Power test 15.247(b) Complies Radiated Spurious Emission test 15.205, 15.209 Complies Power Spectrum Density test 15.247(d) Complies Power Line Conducted Emission test 15.207 Complies FCC ID. : KA220030603014-1 Report No.: EME-031201 Page 4 of 111 1. General information 1.1 Identification of the EUT Applicant : D-Link Corporation Product : IEEE 802.11g Wireless Access Point Model No. : DWL-2100AP FCC ID. : KA220030603014-1 Frequency Range : 2412~2462MHz Channel Number : 11 channels Frequency of Each Channel : 2412MHz, 2417MHz, 2422MHz, 2427MHz, 2432MHz, 2437MHz, 2442MHz, 2447MHz, 2452MHz, 2457MHz, 2462MHz Type of Modulation : DSSS, OFDM Rated Power : 100-120Vac, 60Hz with Adapter (SMP-T1378, JTA0302A, TC10A-050) Power Cord : N/A Sample Received : Oct. 1, 2003 Test Date(s) : Oct. 3, 2003 ~ Dec. 4, 2003 A FCC DoC report has been generated for the client. 1.2 Additional informat…
