KA22003070024-1802.11a/b/g Wireless PCI Adapter

Manual Building Networks for People Tri-mode Dualband DWL-AG520 D-Link Air Xpert TM Wireless PCI Adapter 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics .................................................................................... 6 Getting Started.................................................................................... 10 Using the Configuration Utility.............................................................. 13 Networking Basics.............................................................................. 20 Troubleshooting................................................................................... 33 Mobile of end product..........................................................................38 3 Package Contents Contents of Package: ■ D-Link Air Xpert DWL-AG520 Tri-mode Dualband Wireless PCI Adapter ■ Manual, Warranty and Driver on CD ■ Printed Quick Installation Guide If any of the above items are missing, please contact your reseller. System Requirements of Configuration: ■ A desktop computer with an available 32-bit PCI 2.2 solt , with an operating voltage of 5V. ■ Windows XP, Windows 2000, Windows ME, or Windows 98SE ■ At least 128 MB of memory and a 500MHz processor ■ An 802.11a, 802.11b or 802.11g Access Point (for infrastructure Mode) or another 802.11a, 802.11b, or 802.11g wireless adapter (for Ad-Hoc; peer-to-peer networking mode). TM 4 The versatile 802.11a/b/g compatible DWL-AG520 gives you an immediate way to expand to your existing 802.11b network and protect your overall wireless network investment. When you add an 802.11a/b/g access point (D-Link Air Xpert DWL-7000AP) or router (D- Link Air Xpert DI-774), your network will be capable of handling up to four times the user load of your current 802.11b network. Introduction The D-Link Air Xpert DWL-AG520 Tri-Mode Dualband Wireless PCI Adapter, when installed into your desktop PC, provides you a versatile way to wirelessly connect to any one of three available wireless networks - 802.11b and the newer, faster 802.11g and 802.11a that operate in two discrete, non-interfering frequency bands, 2.4GHz and 5GHz. Along with compatibility to earlier 802.11b networks, the DWL-AG520 also offers the robust speed (up to 54Mbps) of the newer 802.11g and 802.11a standards, so that everyone can work faster and more efficiently. Additionally, the 802.11a 5GHz band offers a way to quickly transfer data in a frequency range that does not experience interference or interruptions from cordless phones, microwave ovens and other devices that use the 2.4GHz frequency band. In addition to offering faster data transfer speeds when used with other 802.11a or 802.11g products, the DWL-AG520 has the newest, most advanced security features available today, using the draft 802.11i security standard. These additional security features are optional. You may choose to continue using the familiar WEP security, or you may not wish to utilize security features at all. However, if you do choose to use the DWL-AG520ís powerful security features with other WPA (WiFi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features will include: WPA*:A new security feature, Wi-Fi Protected Access authorizes and identifies users based on a secret key that changes automatically at a regular interval. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network). This ensures much greater security than the standard WEP security. (By contrast, the older WEP encryption required the keys to be changed manually). 802.1x:Authentication is a first line of defense against intrusion. In the Authentication process the server verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. *WPA will be available Q3 2003 as a driver download TM Users that choose not to incorporate a RADIUS server in their network may also use the optional enhanced security features, or they may wish to continue using the standard WEP security, or they may choose to use no security at all. However, if you do wish to experience the enhanced security of the DWL-AG520 in conjunction with other draft 802.11i compatible products, without a RADIUS server, the Pre Shared Key mode of WPA will assign a new security key every time the DWL-AG520 connects to the draft 802.11i Access Point. If you choose to enable the enhanced security features of the DWL-AG520, you need only to input your encryption information once in the configuration menu. No longer will you have to manually change the WEP key to ensure security - with the DWL-AG520, you will automatically receive a new key every time you connect, vastly increasing the safety of your communications. 5 Features *WPA will be available Q3 2003 as a driver download LEDs LED stands for Light-Emitting Diode. The DWL-AG520 has the following LEDs: LED LED Activity A blinking light indicates data is being transmitted A steady light indicates a connection to an Access Point Activity Power ! User-friendly configuration and diagnostic utilities 32-bit PCI Performance/Plug & Play Connectivity -The DWL-AG520 is a powerful 32-bit PCI adapter that installs quickly and easily into desktop PCs, and when used with other D-LinkAirXpert ABG products will automatically connect to the network out of the box. ! Compatible with 802.11a, 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11a, 802.11b and 802.11g standards, the DWL-AG520 can connect with existing 802.11b routers, access points and cards. That means you can still communicate with colleagues and friends while you have the ability to link to even more wireless networks. ! Dualband versatility - With the DW…

Text truncated - open the document above for the full version.

22 Enter a Computer description and a Computer name (optional.) Networking Basics Click Next Enter a Workgroup name. All computers on your network should have the same Workgroup name. Click Next 23 Please wait while the Network Setup Wizard applies the changes. Networking Basics When the changes are complete, click Next. Please wait while the Network Setup Wizard configures the computer. This may take a few minutes. 24 Networking Basics In the window below, select the option that fits your needs. In this example, Create a Network Setup Disk has been selected. You will run this disk on each of the computers on your network. Click Next. Insert a disk into the Floppy Disk Drive, in this case drive A. Click Next 25 Networking Basics Please read the information under Hereís how in the screen below. After you complete the Network Setup Wizard you will use the Network Setup Disk to run the Network Setup Wizard once on each of the computers on your network. To continue click Next. 26 Networking Basics Please read the information on this screen, then click Finish to complete the Network Setup Wizard. The new settings will take effect when you restart the computer. Click Yes to restart the computer. You have completed configuring this computer. Next, you will need to run the Network Setup Disk on all the other computers on your network. After run- ning the Network Setup Disk on all your computers, your new wireless net- work will be ready to use. 27 ! Networking Basics Naming your Computer To name your computer, please follow these directions:In Windows XP: Click Start (in the lower left corner of the screen) Right-click on My Computer Select Properties and click ! ! ! ! ! Select the Computer Name Tab in the System Properties window. You may enter a Com- puter Description if you wish; this field is optional. To rename the computer and join a domain, Click Change. 28 Networking Basics Naming your Computer Checking the IP Address in Windows XP The wireless adapter-equipped computers in your network must be in the same IP Ad- dress range (see Getting Started in this manual for a definition of IP Address Range). To check on the IP Address of the adapter, please do the following: Right-click on the Local Area Connection icon in the task bar Click on Status ! ! ! Click OK All computers on your network must have the same Workgroup name. ! Select Workgroup and enter the name of the Workgroup ! ! In this window, enter the Computer name 29 Networking Basics Checking the IP Address in Windows XP This window will appear. Click the Support tab Click Close ! ! Assigning a Static IP Address in Windows XP/2000 Note: Residential Gateways/Broadband Routers will automatically assign IP Ad- dresses to the computers on the network, using DHCP (Dynamic Host Configura- tion Protocol) technology. If you are using a DHCP-capable Gateway/Router you will not need to assign Static IP Addresses. If you are not using a DHCP capable Gateway/Router, or you need to assign a Static IP Address, please follow these instructions: ! ! Go to Start Double-click on Control Panel 30 Networking Basics Assigning a Static IP Address in Windows XP/2000 ! Double-click on Network Connections ! ! Double-click on Properties Right-click on Local Area Connections 31 Networking Basics Assigning a Static IP Address in Windows XP/2000 You have completed the assignment of a Static IP Address. (You do not need to assign a Static IP Address if you have a DHCP-capable Gateway/Router). Click on Internet Protocol (TCP/IP) Click Properties ! ! IP Address: e.g., 192.168.0.2 Subnet Mask: 255.255.255.0 Default Gateway: Enter the LAN IP address of the wireless router. (D-Link wireless routers have a LAN IP address of 192.168.0.1) In the window below, select Use the following IP address. Input your IP address and subnet mask. (The IP Addresses on your network must be within the same range. For example, if one computer has an IP Address of 192.168.0.2, the other computers should have IP Addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the same for all the computers on the network). ! Click OK Select Use the following DNS server addresses. Enter the LAN IP address of the Wireless Router. (D-Link wireless routers have a LAN IP address of 192.168.0.1) ! ! AG-520 32 Networking Basics Checking the Wireless Connection by Pinging in Windows XP and 2000 Checking the Wireless Connection by Pinging in Windows Me and 98SE Go to Start > Run > type cmd. A window similar to this one will appear. Type ping xxx.xxx.xxx.xxx, where xxx is the IP Address of the Wireless Router or Access Point. A good wireless connection will show four replies from the Wireless Router or Access Point, as shown. Go to Start > Run > type command. A window similar to this will appear. Type ping xxx.xxx.xxx.xxx where xxx is the IP Address of the Wireless Router or Access Point. A good wireless connection will show four replies from the wireless router or Access Point, as shown. ! ! 33 1. Check that the drivers for the DWL-AG520 are installed properly. Click Device Manager ! Select the Hardware Tab ! Troubleshooting This chapter provides solutions to problems that can occur during the installation and operation of the DWL-AG520. Read the following descriptions if you are having problems. (The examples below are illustrated in Windows XP. If you have a different operating system, the screenshots on your computer will look similar to the following examples). ! Go to Start > My Computer > Properties 34 Troubleshooting ! ! ! ! Double-click on Network Adapters Right-click on D-Link DWL-AG520 Wireless PCI Adapter Select Properties to check that the drivers are in- stalled properly Click OK D-Link AirPro DWL-AB650 Wireless Cardbus Adapter ! Look under Device Status to check that the device is working properly D-Link Air Xpert DWL-AG520 D-Link Air Xpert DWL-AG520 D-Link AirXpert DWL-AG520 Tri-mode Dualband Wireless PCI Adapter TM Cardbus 35 2. I cannot connect to the Access…

Text truncated - open the document above for the full version.

D-Link Corporation NO.8,Li Hsing Rd VII ,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU,TAIWAN,R.O.C. TEL: ++886 3-577-9110 FAX: +886 3-578-1861 FCC ID: KA22003070024-1 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------------- Shinglin Chung / Project Manager D-Link Corporation Tel: +886 3-577-9110 Fax:+886 3-578-1861

P O WE R O F A T T O R NE Y To whom it may concern: We, the undersigned, D-Link Corporation , hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don¡ƒt hesit at e t o cont act us. Thank you! Sincerely yours, ------------------------------------------------------------------- Shinglin Chung / Project Manager D-Link Corporation Tel: +886 3-563 6666 ext. 3212 Fax:+886 3-563 6666 ext. 8021 D-Link Corporation NO.8,Li Hsing Rd VII ,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU,TAIWAN,R.O.C. TEL: ++886 3-563 6666 ext. 3212 FAX: +886 3-563 6666 ext. 8021

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 29, 2003 RE: FCC ID: KA22003070024-1 Attention: Ellis Wu I have a few comments on this Application. 1. Please note that the antenna cable appears to go through a hole in the card holder flange that does not provide any strain relief or other protection to the cable. Is this is the normal manner in which this card will be sold? Or does the antenna cable have a more secure path through the holder flange? Please explain. x 2. Please note that the location and size of the label area on the card appears more than sufficiently large to accommodate the 2-condition statement as required by 15.19. Please provide a sample of the 2-condition statement on the device itself. Alternately, please explain how placing this statement in the manual meets the exceptions listed in 15.19(a)(5). x 3. Please note that since 5.25 is a frequency that is the upper limit for the 5.15 to 5.25 indoor band and since the device when operating in the 5.25 to 5.35 band also uses 6.25GHz both the 5.15 to 5.25 and the 5.25 to 5.35 band must be indoor use only. Also please note that it is not typical to use exactly 5.25GHz as a transmit frequency as this severely restricts the 5.25 to 5.35 band to indoor use. It is also not clear on how the FCC will see this frequency as an operating frequency as it is a band edge frequency. Please correct your manual to state that because of the use of 5.25GHz in both bands both the 5.15-5.25 and the 5.25 to 5.35 band are restricted to indoor use. Alternately, you may want to change the use of 5.25 as a transmit frequency. x 4. FYI – I am going to ask the FCC about the use of 5.25 as a transmit frequency. I do not think this is appropriate as it is a band edge frequency. x Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

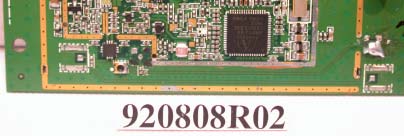

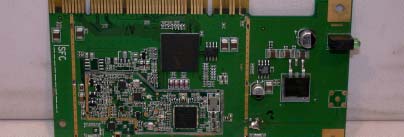

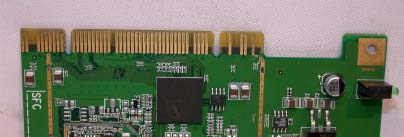

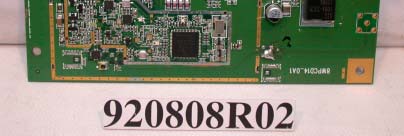

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 9

FCCID:KA22003070024-1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 9

FCC ID: KA22003070024-1 ADT No.920808R02 Operational Description The transmitter of the EUT is powered by host equipment. The antenna is Dipole antenna without antenna connector. This device is 802.11a/b/g Wireless PCI Adapter operates in both the 5GHz and 2.4GHz bands and can’t transmitting simultaneously, the maximum data rate could be 54Mbps. (turbo mode :108 Mbps) For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: KA22003070024-1 Report No: 920808R02 1 RF EXPOSURE REPORT REPORT NO.: RF920808R02 MODEL NO.: DWL-AG520 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No.8, Li-Hsin VII Road Science Based Industrial Park Hsin-Chu, Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA22003070024-1 Report No: 920808R02 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA22003070024-1 Report No: 920808R02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: KA22003070024-1 Report No: 920808R02 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 5dBi or 3.162(numeric). 6.2 Output Power Into Antenna & MPE value at distance 20cm : For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241264.5650.0401 6243766.6800.0411 11246266.3740.0421 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241264.7140.0411 6243767.7640.0431 11246268.5490.0431 Turbo Mode 6243764.4170.0411 For Part 802.11a (Normal Mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518039.3550.0251 4524038.8150.0241 5526051.2860.0321 8532057.8100.0361 9574564.4170.0401 12580564.2690.0401 FCC ID: KA22003070024-1 Report No: 920808R02 5 For Part 802.11a (Turbo Mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1521039.8110.0251 2525039.1740.0251 3529050.4660.0321 4576065.0130.0411 5580064.8630.0411

FCC ID: KA22003070024-1 Report No.: RF920808R021Issued: September 15, 2003 FCC TEST REPORT REPORT NO.: RF920808R02 MODEL NO.: DWL-AG520 RECEIVED: Aug. 08, 2003 TESTED: Aug. 08 ~ Sep. 13, 2003 APPLICANT: D-LINK CORPORATION ADDRESS: NO.8, Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 158 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA22003070024-1 Report No.: RF920808R022Issued: September 15, 2003 Table of Contents 1.CERTIFICATION........................................................................................... 6 2.SUMMARY OF TEST RESULTS .................................................................. 8 3.GENERAL INFORMATION ......................................................................... 10 3.1GENERAL DESCRIPTION OF EUT..................................................................................... 10 3.2DESCRIPTION OF TEST MODES....................................................................................... 11 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................................... 12 3.4DESCRIPTION OF SUPPORT UNITS................................................................................. 13 4.TEST TYPES AND RESULTS (FOR PART 802.11B & 802.11G)................ 14 4.1CONDUCTED EMISSION MEASUREMENT....................................................................... 14 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 14 4.1.2TEST INSTRUMENTS ......................................................................................................... 14 4.1.3TEST PROCEDURES .......................................................................................................... 15 4.1.4DEVIATION FROM TEST STANDARD ................................................................................ 15 4.1.5TEST SETUP ....................................................................................................................... 16 4.1.6EUT OPERATING CONDITIONS......................................................................................... 16 4.1.7TEST RESULTS ................................................................................................................... 17 4.2RADIATED EMISSION MEASUREMENT............................................................................ 23 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 23 4.2.2TEST INSTRUMENTS ......................................................................................................... 24 4.2.3TEST PROCEDURES .......................................................................................................... 25 4.2.4DEVIATION FROM TEST STANDARD ................................................................................ 25 4.2.5TEST SETUP ....................................................................................................................... 26 4.2.6EUT OPERATING CONDITIONS......................................................................................... 26 4.2.7TEST RESULTS ................................................................................................................... 27 4.2.8TEST RESULTS (A) ............................................................................................................. 28 4.2.9TEST RESULTS (B) ............................................................................................................. 31 4.2.10 TEST RESULTS (C) ............................................................................................................. 34 4.36dB BANDWIDTH MEASUREMENT ................................................................................... 35 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 35 4.3.2TEST INSTRUMENTS ......................................................................................................... 35 4.3.3TEST PROCEDURE ............................................................................................................36 4.3.4DEVIATION FROM TEST STANDARD ................................................................................ 36 4.3.5TEST SETUP ....................................................................................................................... 36 4.3.6EUT OPERATING CONDITIONS......................................................................................... 36 4.3.7TEST RESULTS (A) ............................................................................................................. 37 4.3.8TEST RESULTS (B) ............................................................................................................. 41 4.3.9TEST RESULTS (C) ............................................................................................................. 45 4.4MAXIMUM PEAK OUTPUT POWER ................................................................................... 47 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 47 FCC ID: KA22003070024-1 Report No.: RF920808R023Issued: September 15, 2003 4.4.2INSTRUMENTS.................................................................................................................... 47 4.4.1TEST PROCEDURES .......................................................................................................... 48 4.4.2DEVIATION F…
