Manual Building Networks for People 11a/11g Dualband DWL-AG530 D-Link AirPremier AG TM Wireless 108Mbps PCI Adapter 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Features............................................................................................... 5 Wireless Basics.................................................................................... 6 Getting Started .................................................................................... 10 Using the Configuration Utility.............................................................. 13 Networking Basics.............................................................................. 22 Troubleshooting................................................................................... 35 Technical Specifications...................................................................... 40 Contacting Technical Support.............................................................. 42 Warranty and Registration................................................................... 43 Appendix............................................................................................ 46 EAP Types Definitions of Configuration Terms 3 Package Contents Contents of Package: D-Link AirPremier AG DWL-AG530 11a/11g Dualband (2.4GHz/5GHz) Wireless 108Mbps PCI Adapter Manual, Warranty and Drivers on CD Printed Quick Installation Guide If any of the above items are missing, please contact your reseller. System Requirements for Configuration:


An 802.11a, 802.11b or 802.11g access point (for Infrastruc- ture mode) or another 802.11a, 802.11b, or 802.11g wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode).
At least 128MB of memory and a 500MHz processor
Windows XP/2000/Me/98SE
A desktop computer with an available 32-bit PCI 2.2 slot
TM 4 Introduction *Not all servers can provide Authentication The DWL-AG530 has the newest, strongest and most advanced security features available today. When used with other 802.11 WPA (Wi-Fi Protected Access) and 802.1X compatible products in a network with a RADIUS server, the security features include: WPA: Wi-Fi Protected Access which authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This ensures much greater security than the standard WEP security. (By contrast, the previous WEP encryption implementations required the keys to be changed manually.) 802.1X: Authentication which is a first line of defense against intrusion. In the authentication process, the Authentication Server* verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. For home users that will not incorporate a RADIUS server in their network, the security for the DWL-AG530, used in conjunction with other WPA-compatible 802.11 products, will still be much stronger than ever before. Utilizing the Pre- Shared Key mode of WPA, the DWL-AG530 will obtain a new security key every time it connects to the 802.11 network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security. With the DWL- AG530, you will automatically receive a new key every time you connect, vastly increasing the safety of your communication. At up to fifteen times the speed of previous wireless devices (up to 108Mbps in Super AG mode), you can work faster and more efficiently, increasing productivity. With the DWL-AG530, bandwidth-intensive applications like graphics or multimedia will benefit significantly because large files are able to move across the network quickly. Inclusion of all three standards (802.11g; 802.11a; 802.11b) means that the DWL-AG530 is versatile enough to allow connection to almost any 802.11 network or device, and the removable antenna allows for easy installation of the DWL-AG530 into the PCI slot. 5 Features LEDs LED stands for Light-Emitting Diode. The DWL-AG530 has the following LEDs:
Removable antenna allows for easy installation. Versatility - The DWL-AG530 is fully compatible with IEEE 802.11a and 802.11b standards, making it interoperable with 802.11a and 802.11b wireless routers and access points in your office, home or at public wireless hotspots.
32-bit PCI Performance/Plug & Play Connectivity -The DWL-AG530 is a powerful 32-bit PCI adapter that installs quickly and easily into desktop PCs, and when used with other D-Link Air Premier AG prod- ucts will automatically connect to the network out of the box.
Compatible with 802.11a, 802.11b and 802.11g Devices - Fully com- patible with the IEEE 802.11a, 802.11b and 802.11g standards, the DWL- AG530 can connect with existing 802.11b, 802.11g- or 802.11a- com- pliant routers, access points and cards. That means you can still com- municate with colleagues and friends while you have the ability to link to even more wireless networks.
Better Security with 802.1X and WPA -With the DWL-AG530 in your desktop PC you can securely connect to a wireless network using 802.1x for wireless authentication, as well as WPA (Wi-Fi Protected Access) providing you a much higher level of security for your data and commu- nication than has previously been available.
TM A steady light indicates a connection to an access point Link A blinking light indicates data is being transmitted Activity Faster Wireless Networking with speeds up to 108Mbps in Turbo mode - Faster data transfers mean increased productivity. With the DWL-AG530 in your PC, you will have the flexibility of wireless net- working speeds that save you time and money.
6 D-Link wireless…

Text truncated - open the document above for the full version.

confidential request of dwlag520 disable 5.15-5.jpg (2450 x 3462 x 8)

P O WE R O F A T T O R NE Y To whom it may concern: We, the undersigned, D-Link Corporation , hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don¡ƒt hesit at e t o cont act us. Thank you! Sincerely yours, ------------------------------------------------------------------- Shinglin Chung / Project Manager D-Link Corporation Tel: +886 3-563 6666 ext. 3212 Fax:+886 3-563 6666 ext. 8021 D-Link Corporation NO.8,Li Hsing Rd VII ,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU,TAIWAN,R.O.C. TEL: ++886 3-563 6666 ext. 3212 FAX: +886 3-563 6666 ext. 8021

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 23, 2003 RE: D-Link Corporation FCC ID: KA22003070024-2 I have a few comments on the above referenced Application. Basic Information 1) The device contains an antenna connector (see external photographs, users manual photographs, and description of removable antenna given in the users manual). This does not meet the requirements of 15.407(d). Your email suggested that the device will not operate in the 5.15-5.25 GHz band. However the product is capable of transmission in this band since it is shown in the test report (pages 10, 11, and several pages of test data throughout the report, RF exposure, 731 Form, etc.). Note that information shows that the device is capable of TX in both normal and Turbo modes in the 5.15-5.25 GHz band. If the manufacturer chooses to proceed forth by eliminating the channels in 5150-5250 MHz band for use in the United States, then we will require an attestation from the manufacturer (on D-Link letterhead) that states: "This device will not allow the end user to select channels in the 5150-5250 MHz band. Software and/or drivers will not be provided to allow operation in these bands." Additionally, all exhibits referencing the 5.15 - 5.25 GHz band will need to be modified. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 26, 2003 RE: D-Link Corporation FCC ID: KA22003070024-2 I have a few comments on the above referenced Application. Basic Information 1) From information in this application, transmission will not be allowed in the 5.15-5.25 GHz band. However, the RF exposure exhibit shows transmissions at channel 5250 MHz for the Turbo mode (50% of the emission falls in the 5.15-5.25 GHz band), which would not be allowed. Additionally, the new reports provided still show 4 channels for Turbo mode (only 3 channels would be allowed). Transmission at 5250 would not be allowed. See: For example, RF Exposure, page 10 - Number of channels, page 11 - Turbo Channels, page 87, etc., throughout the report. 2) From information in this application, transmission will not be allowed in the 5.15-5.25 GHz band. However, the 26 dB bandwidth of the normal channel at 5260 MHz is 30.69 dB. About 5 MHz of this fundamental will fall in the 5.15- 5.25 MHz band. In many cases, all of the fundamental waveform falling within the 26 dB bandwidth may be considered part of the fundamental. Therefore the edge of the 5260 MHz channels is falling in the 5.15-5.25 band. The 5260 Channel should be removed from all information as well. 3) Due to the concerns with channels being removed, etc. Please have the manufacturer updated their attestation to list the actual frequencies (i.e. 5280-5320, 5745-5805 MHz Normal mode; 5290, 5760, 5800 MHz Turbo Mode). Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

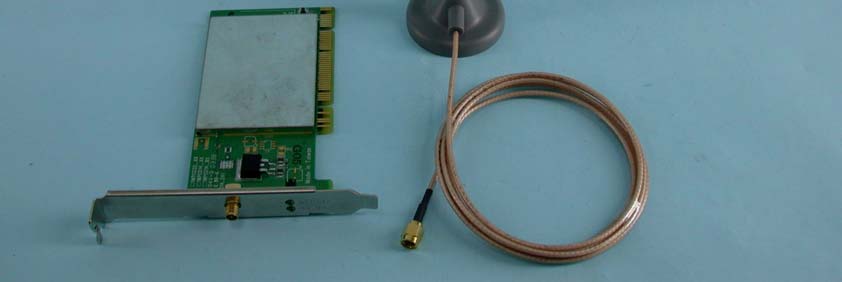

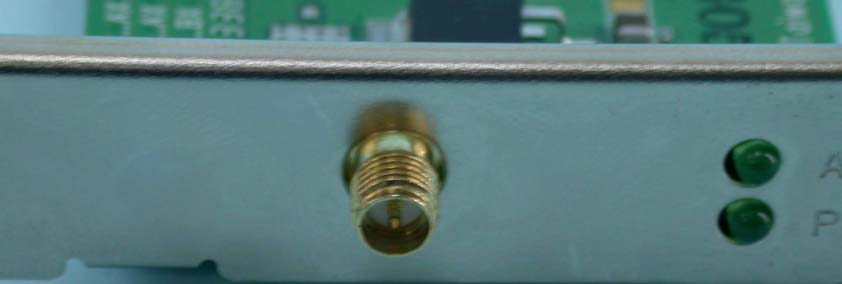

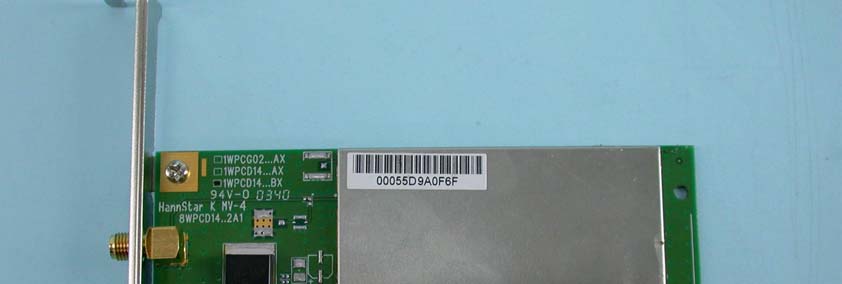

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Label Location


Page 3 Page 4 Page 5 Page 6

FCC ID: KA22003070024-2 Report No: 920808R02A 1 RF EXPOSURE REPORT REPORT NO.: RF920808R02A MODEL NO.: DWL-AG520, DWL-AG530 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No.8, Li-Hsin VII Road Science Based Industrial Park Hsin-Chu, Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA22003070024-2 Report No: 920808R02A 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA22003070024-2 Report No: 920808R02A 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: KA22003070024-2 Report No: 920808R02A 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 5dBi or 3.162(numeric). 6.2 Output Power Into Antenna & MPE value at distance 20cm : For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241264.5650.0401 6243766.6800.0411 11246266.3740.0421 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241264.7140.0411 6243767.7640.0431 11246268.5490.0431 Turbo Mode 6243764.4170.0411 For Part 802.11a (Normal Mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1528050.2340.0321 4532057.8100.0361 5574564.4170.0401 8580564.2690.0401 FCC ID: KA22003070024-2 Report No: 920808R02A 5 For Part 802.11a (Turbo Mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1529050.4660.0321 2576065.0130.0411 3580064.8630.0411

FCC ID: KA22003070024-2 Report No.: RF920808R02A1Issued: January 13, 2004 Reference No.: RF920808R02 FCC TEST REPORT REPORT NO.: RF920808R02A MODEL NO.: DWL-AG520, DWL-AG530 RECEIVED: October 22, 2003 TESTED: Aug. 08 ~ Sep. 13, 2003 for original report Nov. 04 ~ Dec. 10, 2003 for testing spurious emission APPLICANT: D-LINK CORPORATION ADDRESS: NO.8, Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 140 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: KA22003070024-2 Report No.: RF920808R02A2Issued: January 13, 2004 Reference No.: RF920808R02 Table of Contents 1.CERTIFICATION ......................................................................................................7 2.SUMMARY OF TEST RESULTS ..............................................................................8 3.GENERAL INFORMATION.....................................................................................10 3.1GENERAL DESCRIPTION OF EUT.......................................................................10 3.2DESCRIPTION OF TEST MODES......................................................................... 11 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................12 3.4DESCRIPTION OF SUPPORT UNITS ...................................................................13 4.TEST TYPES AND RESULTS (FOR PART 802.11b & 802.11g) ............................14 4.1CONDUCTED EMISSION MEASUREMENT .........................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 14 4.1.2 TEST INSTRUMENTS............................................................................................ 14 4.1.3 TEST PROCEDURES ............................................................................................ 15 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 15 4.1.5 TEST SETUP ......................................................................................................... 16 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 16 4.1.7 TEST RESULTS ..................................................................................................... 17 4.2RADIATED EMISSION MEASUREMENT ..............................................................23 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 23 4.2.2 TEST INSTRUMENTS............................................................................................ 24 4.2.3 TEST PROCEDURES ............................................................................................ 25 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 25 4.2.5 TEST SETUP ......................................................................................................... 26 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 26 4.2.7 TEST RESULTS ..................................................................................................... 27 4.2.8 TEST RESULTS (A) ............................................................................................... 28 4.2.9 TEST RESULTS (B) ............................................................................................... 31 4.2.10 TEST RESULTS (C) ............................................................................................... 34 4.36dB BANDWIDTH MEASUREMENT .....................................................................35 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 35 FCC ID: KA22003070024-2 Report No.: RF920808R02A3Issued: January 13, 2004 Reference No.: RF920808R02 4.3.2 TEST INSTRUMENTS............................................................................................ 35 4.3.3 TEST PROCEDURE............................................................................................... 36 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 36 4.3.5 TEST SETUP ......................................................................................................... 36 4.3.6 EUT OPERATING CONDITIONS ........................................................................... 36 4.3.7 TEST RESULTS (A) ............................................................................................... 37 4.3.8 TEST RESULTS (B) ............................................................................................... 41 4.3.9 TEST RESULTS (C) ............................................................................................... 45 4.4MAXIMUM PEAK OUTPUT POWER .....................................................................47 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...................... 47 4.4.2 INSTRUMENTS...................................................................................................... 47 4.4.1 TEST PROCEDURES ............................................................................................ 48 4.4.2 DEVIATION FROM TEST STANDARD .................................................................. 48 4.4.3 TEST SETUP ......................................................................................................... 48 4.4.4 EUT OPERATING CONDITIONS .........................................................…

Text truncated - open the document above for the full version.

FCC ID: KA22003070024-2 Report No.: RF920808R02A91Issued: January 13, 2004 Reference No.: RF920808R02 5.3.3 TEST PROCEDURE 1. The transmitter output was connected to the spectrum analyzer. 2. Set span to encompass the entire emission bandwidth of the signal. 3. Set RBW to 1MHz, VBW to 300kHz. 4. Using the spectrum analyzer’s channel power measurement function to measure the output power. 5.3.4 DEVIATION FROM TEST STANDARD No deviation 5.3.5 TEST SETUP 5.3.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. EUT SPECTRUM FCC ID: KA22003070024-2 Report No.: RF920808R02A92Issued: January 13, 2004 Reference No.: RF920808R02 5.3.7 TEST RESULTS EUT D-Link Air Premier AG 11a/11g Dualband Wireless 108Mbps PCI Adapter MODEL DWL-AG520 MODE Normal INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg. C, 56%RH, 991hPa TESTED BY Hang Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) 26dBc Occupied Bandwidth (MHz) PASS/FAIL 1528017.0124.0030.08PASS 3532017.6224.0030.78PASS 4574518.0930.0028.35PASS 7580518.0830.0031.23PASS NOTE: The 26dBc Occupied Bandwidth plot, please refer to the following pages. FCC ID: KA22003070024-2 Report No.: RF920808R02A93Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 1 FCC ID: KA22003070024-2 Report No.: RF920808R02A94Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 3 FCC ID: KA22003070024-2 Report No.: RF920808R02A95Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 4 FCC ID: KA22003070024-2 Report No.: RF920808R02A96Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 7 FCC ID: KA22003070024-2 Report No.: RF920808R02A97Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 1 FCC ID: KA22003070024-2 Report No.: RF920808R02A98Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 3 FCC ID: KA22003070024-2 Report No.: RF920808R02A99Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 4 FCC ID: KA22003070024-2 Report No.: RF920808R02A100Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 7 FCC ID: KA22003070024-2 Report No.: RF920808R02A101Issued: January 13, 2004 Reference No.: RF920808R02 EUT D-Link Air Premier AG 11a/11g Dualband Wireless 108Mbps PCI Adapter MODEL DWL-AG520 MODE Turbo INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg. C, 64%RH, 991hPa TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) 26dBc Occupied Bandwidth (MHz) PASS/FAIL 1529017.0324.0061.18PASS 2576018.1330.0054.60PASS 3580018.1230.0059.50PASS NOTE: The 26dBc Occupied Bandwidth plot, please refer to the following pages. FCC ID: KA22003070024-2 Report No.: RF920808R02A102Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 1 FCC ID: KA22003070024-2 Report No.: RF920808R02A103Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 2 FCC ID: KA22003070024-2 Report No.: RF920808R02A104Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 3 FCC ID: KA22003070024-2 Report No.: RF920808R02A105Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 1 FCC ID: KA22003070024-2 Report No.: RF920808R02A106Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 2 FCC ID: KA22003070024-2 Report No.: RF920808R02A107Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 3 FCC ID: KA22003070024-2 Report No.: RF920808R02A108Issued: January 13, 2004 Reference No.: RF920808R02 5.4 PEAK POWER EXCURSION MEASUREMENT 5.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHz13dB 5.25 – 5.35 GHz13dB 5.725 – 5.825 GHz13dB 5.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049August 12, 2004 SPECTRUM ANALYZER8564EC4208A00660Nov. 19, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: KA22003070024-2 Report No.: RF920808R02A109Issued: January 13, 2004 Reference No.: RF920808R02 5.4.3 TEST PROCEDURE 1. The transmitter output was connected to the spectrum analyzer. 2. Set the spectrum bandwidth span to view the entire spectrum. 3. Using peak detector and Max-hold function for Trace 1 (RB=1MHz, VB=3MHz) and 2 (RB=1MHz, VB=300KHz). 4. The largest difference between Trace 1 and Trace 2 in any 1MHz band on any frequency was recorded. 5.4.4 DEVIATION FROM TEST STANDARD No deviation 5.4.5 TEST SETUP 5.4.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. EUT SPECTRUM FCC ID: KA22003070024-2 Report No.: RF920808R02A110Issued: January 13, 2004 Reference No.: RF920808R02 5.4.7 TEST RESULTS EUT D-Link Air Premier AG 11a/11g Dualband Wireless 108Mbps PCI Adapter MODEL DWL-AG520 MODE Normal INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg. C, 64%RH, 991hPa TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 152806.6613PASS 353206.8713PASS 457454.7713PASS 758057.5213PASS FCC ID: KA22003070024-2 Report No.: RF920808R02A111Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 1 FCC ID: KA22003070024-2 Report No.: RF920808R02A112Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 3 FCC ID: KA22003070024-2 Report No.: RF920808R02A113Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 4 FCC ID: KA22003070024-2 Report No.: RF920808R02A114Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 7 FCC ID: KA22003070024-2 Report No.: RF920808R02A115Issued: January 13, 2004 Reference No.: RF920808R02 EUT D-Link Air Premier AG 11a/11g Dualband Wireless 108Mbps PCI Adapter MODEL DWL-AG520 MODE Turbo INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg. C, 64%RH, 991hPa TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK PO…

Text truncated - open the document above for the full version.

FCC ID: KA22003070024-2 Report No.: RF920808R02A121Issued: January 13, 2004 Reference No.: RF920808R02 5.5.7 TEST RESULTS EUT D-Link Air Premier AG 11a/11g Dualband Wireless 108Mbps PCI Adapter MODEL DWL-AG520 MODE Normal INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg. C, 64%RH, 991hPa TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 1MHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 15280-0.311PASS 353201.5411PASS 457452.1917PASS 758052.3417PASS FCC ID: KA22003070024-2 Report No.: RF920808R02A122Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 1 FCC ID: KA22003070024-2 Report No.: RF920808R02A123Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 3 FCC ID: KA22003070024-2 Report No.: RF920808R02A124Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 4 FCC ID: KA22003070024-2 Report No.: RF920808R02A125Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 7 FCC ID: KA22003070024-2 Report No.: RF920808R02A126Issued: January 13, 2004 Reference No.: RF920808R02 EUT D-Link Air Premier AG 11a/11g Dualband Wireless 108Mbps PCI Adapter MODEL DWL-AG520 MODE Turbo INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg. C, 64%RH, 991hPa TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 1 MHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 15290-1.7411PASS 25760-0.7817PASS 35800-1.1417PASS FCC ID: KA22003070024-2 Report No.: RF920808R02A127Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 1 FCC ID: KA22003070024-2 Report No.: RF920808R02A128Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 2 FCC ID: KA22003070024-2 Report No.: RF920808R02A129Issued: January 13, 2004 Reference No.: RF920808R02 CHANNEL 3 FCC ID: KA22003070024-2 Report No.: RF920808R02A130Issued: January 13, 2004 Reference No.: RF920808R02 5.6 FREQUENCY STABILITY 5.6.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT The frequency tolerance of the carrier signal shall be maintained within +/- 0.02% of the operating frequency over a temperature variation of –30 degrees to 50 degrees C at normal supply voltage, and for a variation in the primary supply voltage from 85% to 115% of the rated supply voltage at a temperature of 20 degrees C. 5.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ANRITSU…
