KA22003090016-2AirPlus Xtreme G High-Speed 802.11g Cardbus Card

Manual Building Networks for People High-Speed 2.4GHz/802.11g DWL-G650 D-Link AirPlus XTREME G TM Wireless Cardbus Adapter version c1 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics .................................................................................... 6 Getting Started...................................................................................... 9 Using the Configuration Utility.............................................................. 12 Networking Basics.............................................................................. 24 Troubleshooting................................................................................... 37 Technical Specifications...................................................................... 42 Contacting Technical Support.............................................................. 44 Warranty and Registration................................................................... 45 3 Contents of Package: D-Link AirPlus Xtreme G DWL-G650 High-Speed 2.4GHz/802.11g Wireless Cardbus Adapter Manual, Warranty and Drivers on CD Printed Quick Installation Guide Package Contents If any of the above items are missing, please contact your reseller. System Requirements for Configuration: ! ! ! An 802.11g or 802.11b access point (for Infrastructure mode), or another 802.11g or 802.11b wireless adapter (for Ad-Hoc, Peer-to-Peer networking mode.) ! At least 32 MB of memory and a 300 MHz processor ! Windows XP/2000/Me/98SE ! A laptop or notebook computer with an available 32-bit cardbus slot ! TM 4 Introduction The DWL-G650 has the newest, strongest and most advanced security features available today. When used with other 802.11 WPA (Wi-Fi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features include: WPA: Wi-Fi Protected Access which authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This ensures much greater security than the standard WEP security. (By contrast, the previous WEP encryption implementations required the keys to be changed manually.) 802.1x: Authentication which is a first line of defense against intrusion. In the authentication process, the Authentication Server* verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. For home users that will not incorporate a RADIUS server in their network, the security for the DWL-G650, used in conjunction with other WPA-compatible 802.11 products, will still be much stronger than ever before. Utilizing the Pre-Shared Key mode of WPA, the DWL-G650 will obtain a new security key every time it connects to the 802.11 network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security. With the DWL-G650, you will automatically receive a new key every time you connect, vastly increasing the safety of your communication. *Not all servers can provide Authentication The D-Link AirPlus Xtreme G DWL-G650 Wireless Cardbus Adapter is an 802.11b/ 802.11g high-performance, wireless adapter that supports high-speed wireless networking at home, at work or in public places. Unlike most network cards, the DWL-G650 provides data transfers at up to 54 Mbps (compared to the standard 11 Mbps) when used with other D-Link AirPlus Xtreme G products. The 802.11g standard is backwards compatible with 802.11b products. TM TM 5 Features LEDs LED stands for Light-Emitting Diode. The DWL-G650 has the following LEDs: TM A blinking light indicates data is being transmitted. Activity A steady light indicates a connection to an access point. Link Compatible with 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11b and 802.11g standards, the DWL-G650 can connect with existing 802.11b- or 802.11g- compliant routers, access points and cards. That means you can still communicate with colleagues and friends while you have the ability to link to even more wireless networks. ! Faster Wireless Networking - Faster data transfers mean increased productivity. With the DWL-G650 in your laptop PC, you will have the flexibility of wireless net- working speeds that save you time and money. ! Better Security with 802.1x and WPA -With the DWL-G650 in your laptop PC you can securely connect to a wireless network using 802.1x for wireless authentication, as well as WPA (Wi-Fi Protected Access) providing you a much higher level of secu- rity for your data and communication than has previously been available. ! 32-bit Cardbus Performance/Plug & Play Connectivity -The DWL-G650 is a pow- erful 32-bit Cardbus Adapter that installs quickly and easily into laptop PCs, and when used with other D-Link Air Plus Xtreme G products will automatically connect to the network out of the box. ! ! User-friendly configuration and diagnostic utilities. 6 Wireless Basics Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings. A Wireless Local Area Network (WLAN) is a computer network that transmits and receives data with radio signals instead of wires. WLANs are …

Text truncated - open the document above for the full version.

FEDERAL COMMUNICATIONS COMMISSION Laboratory Div i sion 7435 Oakland Mills Road Columbia, MD 21046 OET 65 Supplement C EAB Part 22/24 SAR Review Reminder Sheet 01/2002 (enhanced 5-2003) Date Dec. 18, 2003 Engr. Init. CRH Product Name: Product Descrip tion D-Link PCMCIA 802.11b/g EA # Applicant Name: D-Link FCC ID : KA22003090016-2 Battery options (standar d, extended, other): n/a Quantity and type accessories supplied with device: belt clip/holster options - any metal?; body-worn spacing; headset/earphone options Transmits with flip cover closed (Y/N)?n/a An tenna type, location, fi xed/retractable: embedded Max ERP 800 (SAR report & EM C report)n/a Max EIRP 1900 ( SAR report & EMC report)n/a Max ERP/EIRP CDMA-800 or OTHE R (SAR report & EMC report) n/a Max P conducted (SAR report & EMC report) 19.69 in EMC , 19.75dBm in SAR OK OK REVIEW ITEM COMMENTS Y Y Y Y 1) Output power a) Powers in SAR report must agr ee with EMC report and tune-up procedure b) Conducted power in SAR report should be greater than or equal to what’s in EMC report, but not exceeding tune-up/tolerance c) Scaling up or down 5% is allowed d) Maximum output power (conducted) or SAR drift measured at same position in liquid before and after each SAR test? Y 2) Users Manual a ) Check for accessories and batter y o p tions – should test an y accessories containin g metal, and with OK 1 FEDERAL COMMUNICATIONS COMMISSION Laboratory Div i sion 7435 Oakland Mills Road Columbia, MD 21046 OK REVIEW ITEM COMMENTS OK Y Y n/a y all possible combinations; need justification if lim ited or “worst-case” combinations only tested b) To comply with RF safety requirements use t he specific belt clip. All other belt clips should be avoided and may not comply with RF safety requi rements (for fair-trade do not exclude 3rd party accessories) c) Check for RF Safety statements. Users must be clearly informed of the compliance requirements for device use, especially regardi ng body-worn configurations. d) Check that FCC ID and SAR numbers in manual are correct e) Do not allow any unsupported compliance claims Y Y Y Y Y 3) GENERAL REPORT INFORMATION a) FCC ID listed (see 47 CFR §2.909)? b) statement of compliance with FCC RF exposure included (§2.1093)? c) mobile or portable transmi tter device category identified? d) testing for Occupational/Controlled OR General Population/Uncontrolled limits? e) test device is production unit or identical prototype (47 CFR §2.908)? Y Y Y Y Y n/a y y y y 4) DEVICE OPERATING CONFIGURATIONS AND TEST CONDITIONS a) brief description of the test device operat ing configurations included? For example: i) operating modes and operating frequency range(s) ii) maximum device rating for each operating mode and frequency range, both test sample and production units iii) antenna type and operating positions iv) applicable body-worn configurations v) battery options that could affect the SAR results vi) test positions for other accessories, e.g., earphones b) procedures to establish the test signals descri bed (put phone on a call, e.g., base-station simulator vs internal test codes)? This may include a test equipment list or test codes c) Multiple modes – CDMA, TDMA , GPRS, GSM, Bluetooth, etc? d) applicable source-based time-averaging duty factor and tested duty factor listed? 5) SAR Measurem ent system and site description 2 FEDERAL COMMUNICATIONS COMMISSION Laboratory Div i sion 7435 Oakland Mills Road Columbia, MD 21046 OK REVIEW ITEM COMMENTS OK Y Y a) Brief description of the SAR scanning measurement system included? b) Brief description of the test setup included: handset holders, phantom orientation, surroundings, absorber, noise floor, etc. Y Y Y Y Y Y 6) Electric field probe calibration a) description of the probe – including tip diamet er, internal sensor o ffset from tip, etc b) description of the probe measurement errors included? c) Description of probe calibration errors/uncertainties? d) most recent calibration date and calibration ce rtificate showing all factors used in report? e) Check for consistency of probe factor and correspondent tissue parameters thru report f) crest factor (peak-to-average voltage) par ameters shown or needed, and/or addressed in calibration? Y Y Y Y Y Y Y Y Y Y 7) SAR system verification with flat phantom and reference source a) brief description of the reference source (e .g., 900, 1800 MHz dipoles) used to verify the SAR system performance – prefer center frequency wi thin the operating frequency range of the handset, dipole/source return loss, etc. b) verification frequency(s) must be within ± 100 MHz of device center frequency(s) c) manufacturer/calibration reference dipole data d) list of measured tissue dielec tric parameters, ambient and tissue temperatures – check for consistency with values used in syst em manufacturer’s reference test ( ε , σ within 5% of those used in reference data) e) forward power input to the reference source/dipole f) target and measured peak and 1-g SAR (target usua lly given by SAR system supplier, or IEEE Std 1528) – agree within 10% g) at least one dipole test for each device frequency band h) dipole test results for each date of device testing i) dipole SAR plots included – check for reasonable symmetry j) system validation with head liqui d OK for device testing in muscle Y 8) Phantom description a) include description of head (SAM) and body phantoms used in the tests, including shell thickness and other tolerances 3 FEDERAL COMMUNICATIONS COMMISSION Laboratory Div i sion 7435 Oakland Mills Road Columbia, MD 21046 OK REVIEW ITEM COMMENTS OK Y Y Y b) thickness 2 ± 0.2 mm for head and body pantoms c) photos or z-axis scans to show 15 cm LIQUID DEPTH included? d) Phantom supporting structures and stands – phantom support struct ures should be spaced at least one device width away and non-metallic in transverse directions Y Y Y Y 9) Tissue liquid dielectric properties a) Composition, ingredients, and amounts for tissue liquid listed b) liquid die…

Text truncated - open the document above for the full version.

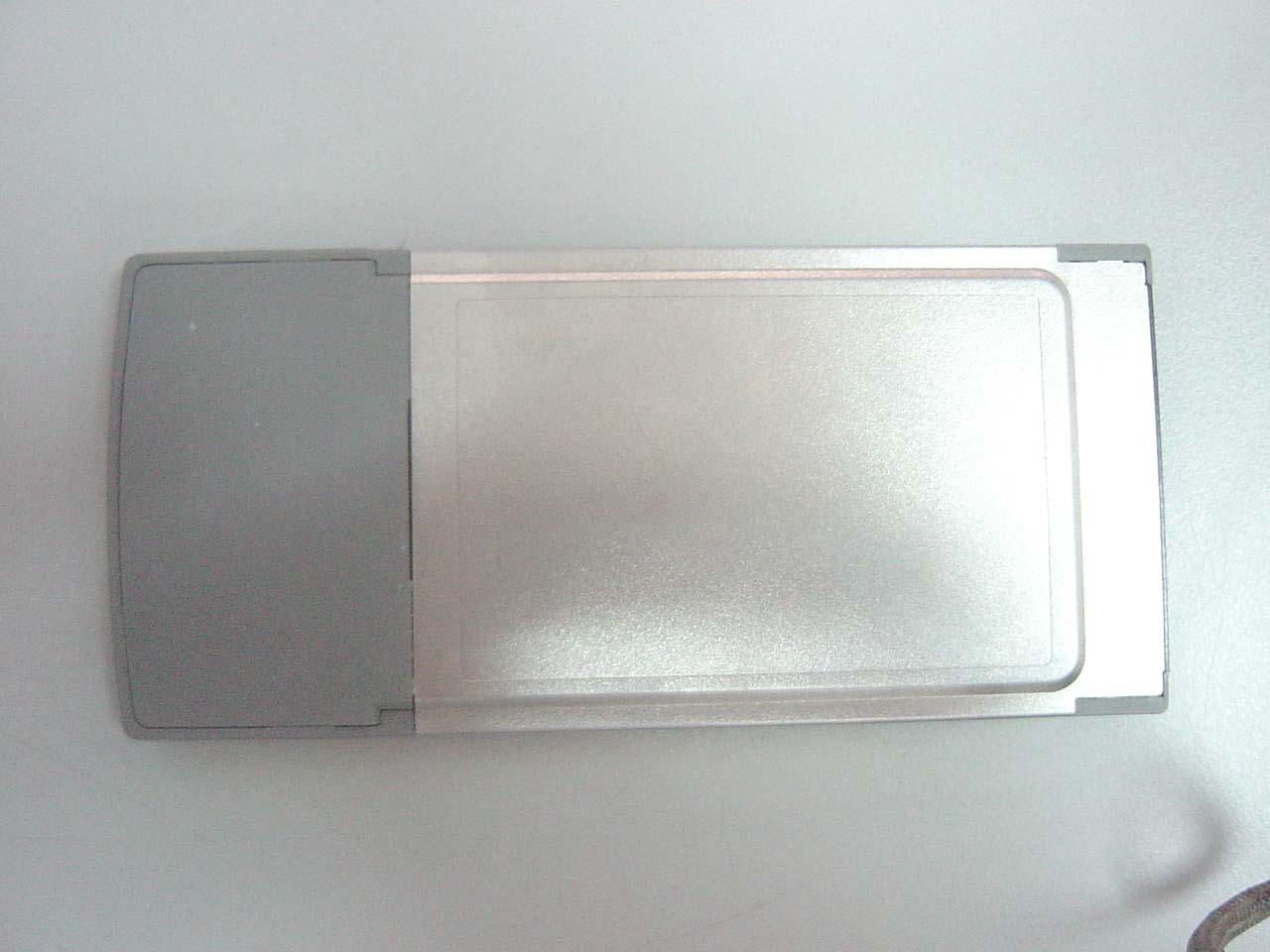

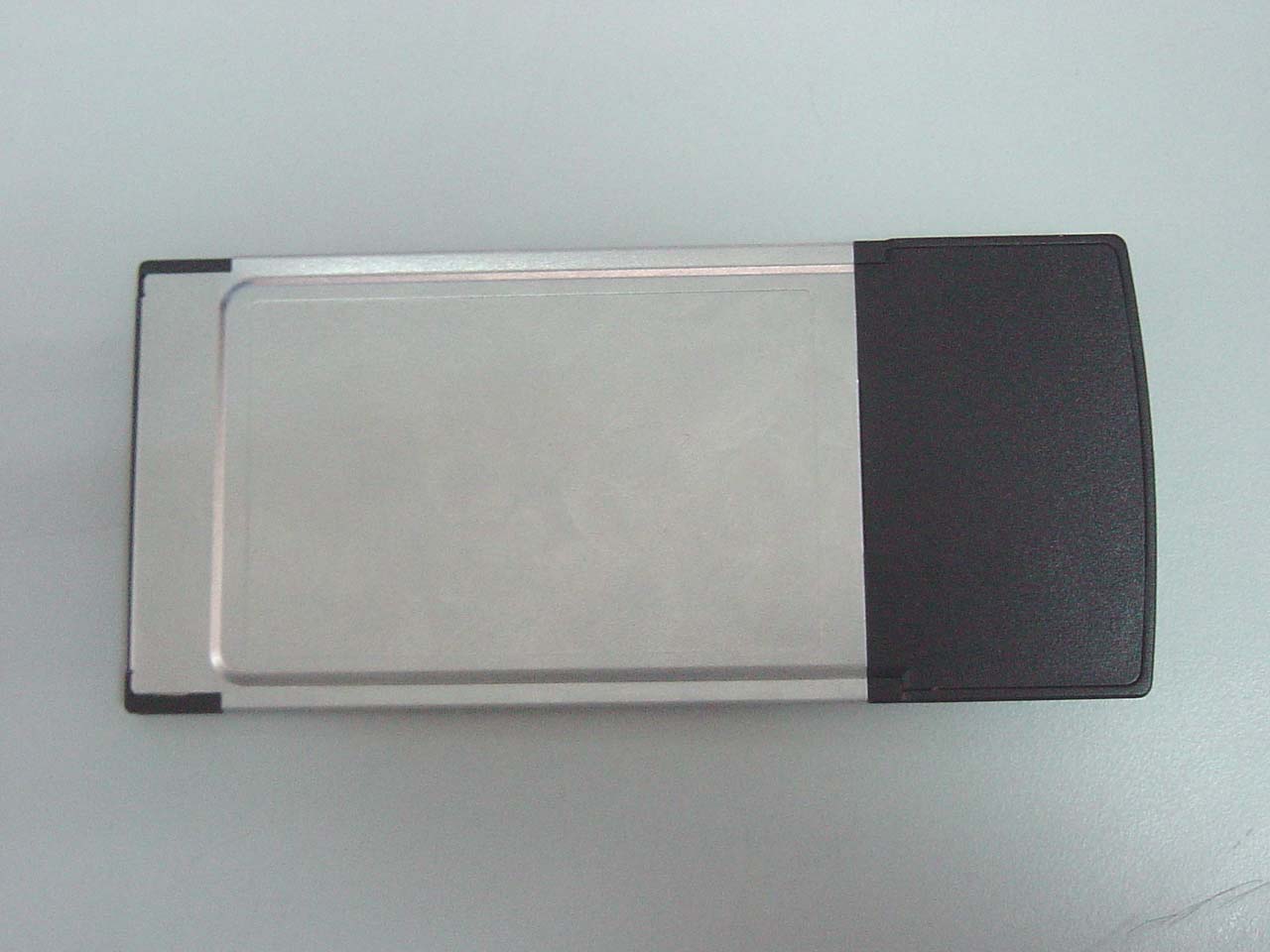

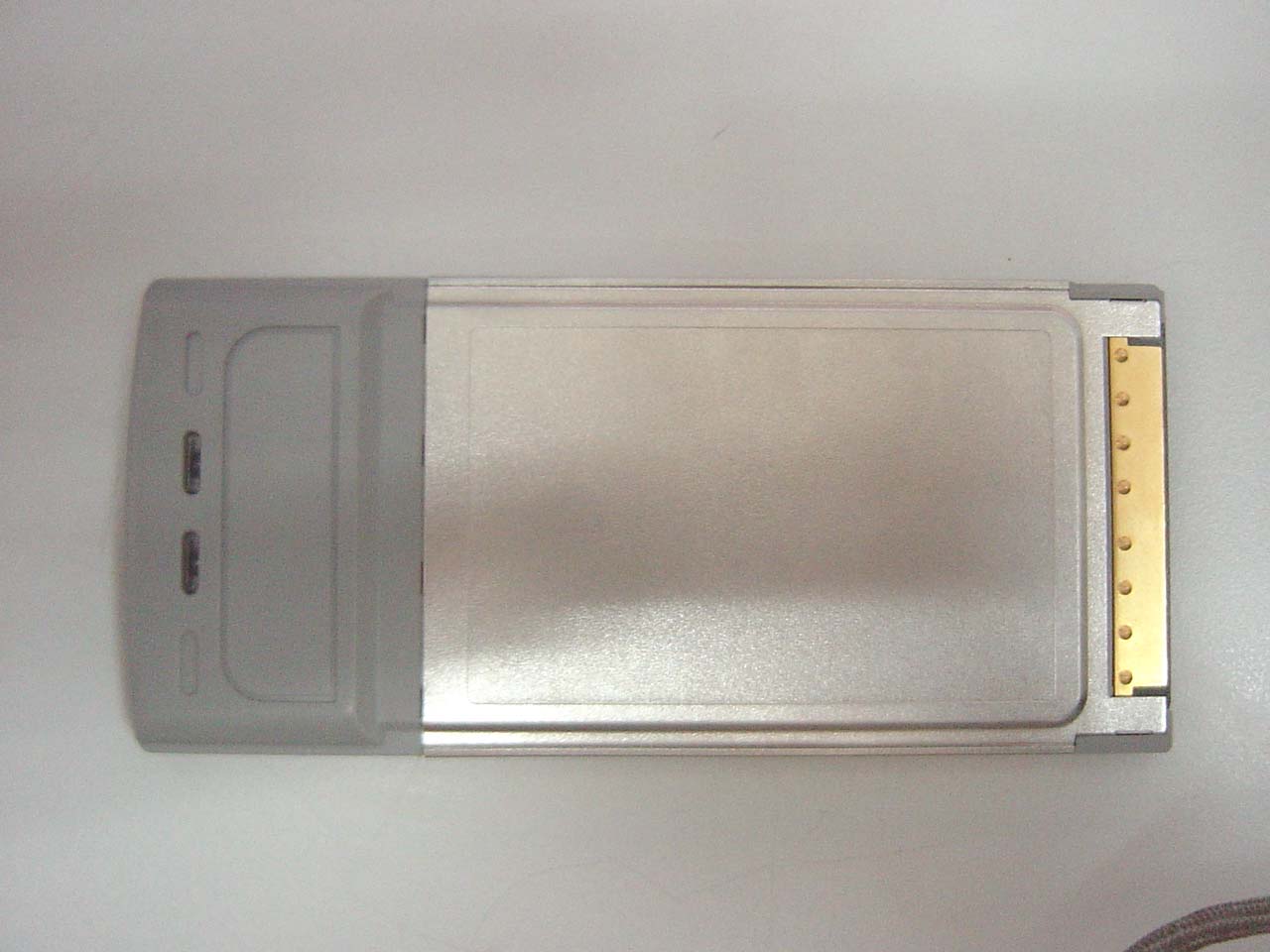

Compliance Certification Services Inc. Report No: B31111206 Date of Issue: December 3, 2003 Page 1 of 4 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B31111206 Date of Issue: December 3, 2003 Page 2

Compliance Certification Services Inc. Report No: B31111206 Date of Issue: December 3, 2003 Page 3 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B31111206 Date of Issue: December 3, 2003 Page 4

Compliance Certification Services Inc. Report No: B31111206-RP FCC ID: KA22003090016-2 Date of Issue: December 3, 2003 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 73 FCC 47 CFR PART 15 SUBPART C TEST REPORT For D-Link Corporation D-Link AirPlus Xtreme G High-Speed 2.4GHz/802.11g Wireless Cardbus Adapter Model: DWL-G650 / WCB-G02 Trade Name: D-Link Prepared for D-Link Corporation No. 20, Park Ave, II, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B31111206-RP FCC ID: KA22003090016-2 Date of Issue: December 3, 2003 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION...............................................................................................3 2. EUT DESCRIPTION ......................................................................................................................4 3. TEST METHODOLOGY ...............................................................................................................5 3.1 EUT CONFIGURATION...................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS...................................................6 3.5 DESCRIPTION OF TEST MODES......................................................................................................6 4. INSTRUMENT CALIBRATION...................................................................................................7 5. FACILITIES AND ACCREDITATIONS .....................................................................................8 5.1 FACILITIES.. ................................................................................................8 5.2 EQUIPMENT...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST ..................................................................................10 6.1 SUPPORT EQUIPMENT.................................................................................................................10 7. FCC PART 15.247 REQUIREMENTS........................................................................................11 7.1 6DB BANDWIDTH........................................................................................................................11 7.2 PEAK POWER...............................................................................................................................17 7.3 BAND EDGES MEASUREMENT ...........................................................................................23 7.4 PEAK POWER SPECTRAL DENSITY...............................................................................................36 7.5 RADIO FREQUENCY EXPOSURE...................................................................................................42 7.6 SPURIOUS EMISSIONS ...........................................................................................................43 7.7 POWERLINE CONDUCTED EMISSIONS..........................................................................................68 Compliance Certification Services Inc. Report No: B31111206-RP FCC ID: KA22003090016-2 Date of Issue: December 3, 2003 Page 3 1. TEST RESULT CERTIFICATION Applicant: D-Link Corporation No. 20, Park Ave, II, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Equipment Under Test: D-Link AirPlus Xtreme G High-Speed 2.4GHz/802.11g Wireless Cardbus Adapter Tr a d e N a m e : D-Link Model: DWL-G650 / WCB-G02 Model Difference All the above models are identical except the model designation Report Number: B31111206-RP Date of Test: November 29 ~ December 2, 2003 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2001 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jonson Lee Eric Wong Director of Linkou Laboratory Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B31111206-RP FCC ID: KA22003090016-2 Date of Issue: December 3, 2003 Page 4 2. EUT DESCRIPTION Product D-Link AirPlus Xtreme G High-Speed 2.4GHz/802.11g Wireless Cardbus Adapter Trade Name D-Link Model Number DWL-G650 / WCB-G02 Model Discrepancy All the above models are identical except the model designation Power Supply Powered by the host Frequency Range IEEE 802.11b: 2412 ~ 2462 MHz IEEE 802.11g: 2412 ~ 2462 MHz (Base Mode) IEEE 802.11g: 2437 MHz (Turbo Mode) Transmit …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B31111206-SAR-FCC FCC ID: KA22003090016-2 Date of Issue: December 05, 2003 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 23 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for D-Link AirPlus Xtreme G High-Speed 2.4GHz/ 802.11g Wireless Cardbus Adapter Model: DWL-G650 / WCB-G02 Trade Name: D-Link Prepared for D-Link Corporation No. 20, Park Ave. II, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B31111206-SAR-FCC FCC ID: KA22003090016-2 Date of Issue: December 05, 2003 Page 2 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: December 04, 2003 Applicant: D-Link Corporation No. 20, Park Ave. II, Science-based Industrial, Hsinchu, Taiwan, R.O.C. Model Number: DWL-G650 FCC ID: KA22003090016-2 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum 802.11g Orthogonal Frequency Division Multiplexing (OFDM) Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 19.75 dBm Max. SAR (1g): 1.41 W/kg Application Type: Certification FCC Rule Part(s): 15C Note: This Report is only applicable for 802.11b/g. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Approved by: Reviewed by: Jonson Lee / Director Miro Chueh / Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B31111206-SAR-FCC FCC ID: KA22003090016-2 Date of Issue: December 05, 2003 Page 3 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .... 5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................... 5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 4. EVALUATION PROCEDURES .................................................................................. 9 5. MEASUREMENT UNCERTAINTY ......................................................................... 12 6. EXPOSURE LIMIT ..................................................................................................... 13 7. MEASUREMENT RESULTS ..................................................................................... 14 7.1 SYSTEM PERFORMANCE CHECK..............................................................................14 7.2 TEST LIQUID CONFIRMATION ..................................................................................15 7.3 EUT TUNE-UP PROCEDURES......................................................................................16 7.4 SAR MEASUREMENTS RESULTS...............................................................................17 8. EUT PHOTOS .............................................................................................................. 20 9. EQUIPMENT LIST & CALIBRATION STATUS................................................... 21 10. REFERENCES ............................................................................................................. 22 11. ATTACHMENTS......................................................................................................... 23 Compliance Certification Services Inc. Report No: B31111206-SAR-FCC FCC ID: KA22003090016-2 Date of Issue: December 05, 2003 Page 4 1. EUT DESCRIPTION Applicant: D-Link Corporation No. 20, Park Ave. II, Science-based Industrial, Hsinchu, Taiwan, R.O.C. Model Number: DWL-G650 / WCB-G02 Trade Name: D-Link FCC ID: KA22003090016-2 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum 802.11g Orthogonal Frequency Division Multiplexing (OFDM) Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 19.75 dBm Max. SAR (1g): 1.41 W/kg Application Type: Certification FCC Rule Part(s): 15C Antennas: Manufactured by D-Link, Dipole (Mount on PCB) type. Host Type Laptop PC Brand Name COMPAQ P/N P1525APC160X42 0DC25E S/N 1V31LDLZ20PG Compliance Certification Services Inc. Report No: B31111206-SAR-FCC FCC ID: KA22003090016-2 Date of Issue: December 05, 2003 Page 5 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. Fo…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B31111206-RP FCC ID: KA22003090016-2 Date of Issue: December 3, 2003 Page 72 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B31111206-RP FCC ID: KA22003090016-2 Date of Issue: December 3, 2003 Page 73 Conducted Emission Set Up Photos
