KA2AP1155A1Wireless N 150 Bridge/Access Point

DAP-1155 ENGLISH Technical Support Having trouble installing your new product? D-Link’s website contains the latest user documentation and software updates for D-Link products. U.S. and Canadian customers can contact D-Link Technical Support through our website or by phone. United States Telephone: (877) 453-5465 Internet: http://support.dlink.com Canada Telephone: (800) 361-5265 Internet: http://support.dlink.ca ©2010 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and/or other countries. Other trademarks or registered trademarks are the property of their respective owners. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package. Visit dlink.com (US) or dlink.ca (Canada) for more details. Version 1.0 | October 5, 2010 290726001155A10 Quick Install Guide Wireless N 150 Bridge/Access Point Thank you for purchasing the DAP-1155. Follow the easy steps in this guide to properly set up your device. Please verify that all the package contents listed below are available. Package Contents If any of the above items are missing, please contact your reseller. DAP-1155 Wireless N 150 Bridge/Access Point Ethernet Cable Power Adapter Power LED - A solid light indicates a proper connection to the power supply. Wireless LED - A blinking green light indicates the wireless function is working. The light will blink fast during data transmission. WPS LED - Located on the right side, a solid light indicates a successful WPS connection. A blinking light indicates the device is trying to establish a connection. LEDs Device Placement To get the best wireless coverage, place your device in an open area away from your computer, monitor, and speakers. Try to position the device so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal. Wireless Modes Access Point Mode - The DAP-1155 acts as a central connection point for any wireless client that has an 802.11n or backward-compatible 802.11g wireless network interface and is within range of the AP. Multiple clients can connect to the AP at the same time. Bridge Mode - The DAP-1155 acts as a wireless network adapter for your Ethernet enabled devices (such as a game console or a TV set-top box) and will connect wirelessly to an existing wireless router or access point. Step 1 - Connect the DAP-1155 to your computer using the supplied Ethernet cable. Once you configure the device, you can place it into your network. Note: To login to your DAP-1155, you must statically assign an IP address (192.168.0.x where x is between 2 and 254, and not 50) on your computer. Step 2 - To access the configuration utility, open a web browser such as Internet Explorer, enter http://192.168.0.50 in the address field and press Enter. Step 3 - Select the wireless mode from the drop-down menu and then follow the on-screen instructions to configure your DAP-1155. Step 4 - Once you are finished configuring your DAP-1155, you may disconnect the Ethernet cable and place it in your network. Also, change your IP settings on your computer back to the original settings. First Time Configuration Step 1 - Insert the power adapter into the power receptacle located on the rear panel of the DAP-1155 and plug the adapter into a suitable nearby power source. (This unit is to be used only with the power supply provided by the manufacturer.) Step 2 - Check the status of the DAP-1155 by checking the green LED. Push the button on the back of the DAP-1155 to initiate a secured wireless connection. Step 3 - Within 120 seconds, push the WPS button on your WPS-enabled router or access point (if the DAP-1155 is in Bridge Mode) or your wireless clients (AP Mode) to link them together. Step 4 - Once the WPS button stops blinking, you can move the DAP-1155 to the desired location. Step 5 - Plug the Ethernet cable between the device you wish to use and the DAP-1155. WPS - Push Button Setup DAP-1155 ENGLISH Technical Specifications Standards • IEEE 802.11g • IEEE 802.3 • IEEE 802.3u Security • Wi-Fi Protected Access (WPA, WPA2) ® • Wi-Fi Protected Setup ™ (WPS) - WPS Push Button - PIN Interface Type • 2 10/100 LAN/WAN Port • 1 Push-Button (for Wi-Fi Protected Setup ™ ) Antenna Type • 2dBi Dipole Antenna Maximum Operating Voltage • 5V 1A Modulation • DQPSK • DBPSK • CCK • OFDM Frequency Range 2 • 2.4GHz to 2.483GHz LEDs • Power • WLAN • WPS Operating Temperature • 32°F to 131°F ( 0°C to 55°C) Humidity • 90% maximum (non-condensing) Safety & Emissions • FCC Class B • CE • C-Tick • IC • Wi-Fi ® Dimensions • W82 x D27 x L102 mm Weight • 79g 1 Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. 2 Range varies depending on country’s regulation. DAP-1155 ENGLISH CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are d…

Text truncated - open the document above for the full version.

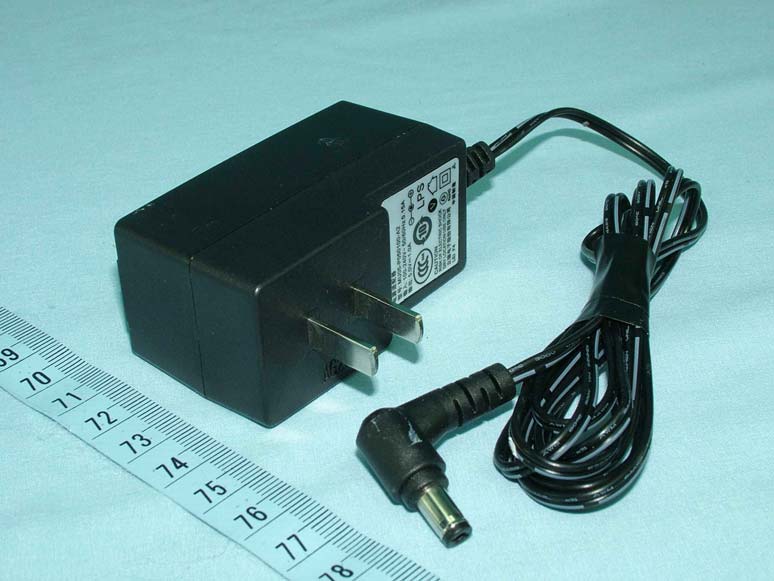

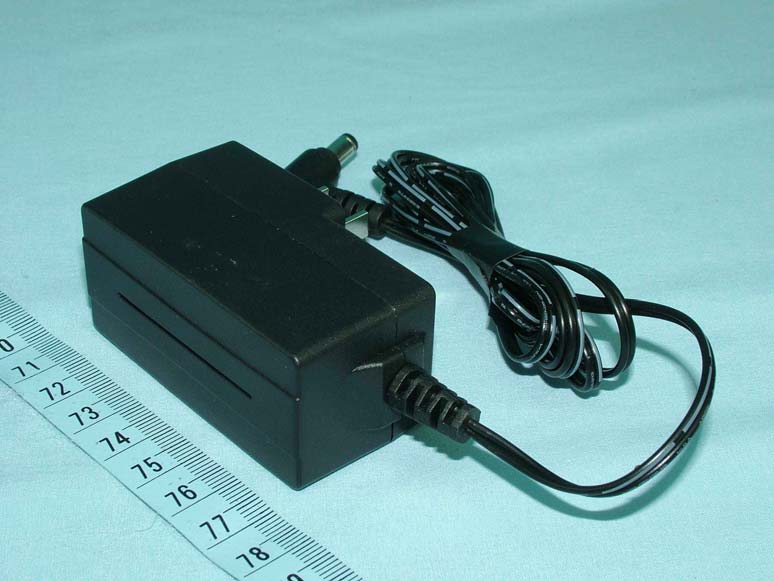

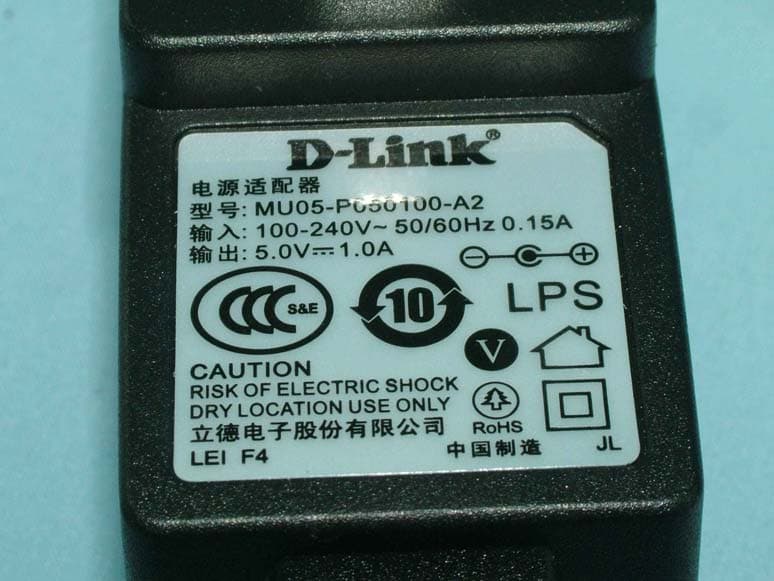

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

P/N: BAP1155ANA...A1 S/N: QB7A1XXXXXXXX MAC ID:XXXXXXXXXXXX WPS PIN:XXXXXXXX H/W Ver.:A1 F/W Ver.:1.00 DAP-1155 Designed by D-Link in California. Assembled in China. 40 x 30 mm Default Access Point setting: http://dlinkap or http://192.168.0.50 Username= “admin” Password= “” (leave the field blank) FCC ID: KA2AP1155A1 IC: 4216A-AP1155A1 DAP-1155A1

Label Location

Page 4 Page 5 Page 6

FCC ID: KA2AP1155A1 Report No.: RF990928C11 Operational Description This device is Wireless N 150 Bridge/Access Point, which operates in 2.4GHz band; the maximum data rate could be up to 150Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: SA990921C09A Report Format Version 3.0.1 Reference No.: 990928C11 1 RF EXPOSURE REPORT REPORT NO.: SA990921C09A MODEL NO.: DAP-1155 FCC ID: KA2AP1155A1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. Report No.: SA990921C09A Report Format Version 3.0.1 Reference No.: 990928C11 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 26.2 2 20 0.131 1.00

Report No.: RF990921C09A 1 Report Format Version 3.0.1 Reference No.: 990928C11 FCC TEST REPORT REPORT NO.: RF990921C09A MODEL NO.: DAP-1155 FCC ID: KA2AP1155A1 RECEIVED: Sep. 08, 2010 TESTED: Sep. 30 ~ Nov. 03, 2010 ISSUED: Nov. 09, 2010 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 67 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF990921C09A 2 Report Format Version 3.0.1 Reference No.: 990928C11 TABLE OF CONTENTS 1. CERTIFICATION..........................................................................................................4 2. SUMMARY OF TEST RESULTS .................................................................................5 2.1 MEASUREMENT UNCERTAINTY...............................................................................5 3. GENERAL INFORMATION ..........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................6 3.2 DESCRIPTION OF TEST MODES ..............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................10 3.4 DESCRIPTION OF SUPPORT UNITS ......................................................................10 4. TEST TYPES AND RESULTS ................................................................................... 11 4.1 RADIATED EMISSION MEASUREMENT ................................................................. 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT ............................................... 11 4.1.2 TEST INSTRUMENTS...............................................................................................12 4.1.3 TEST PROCEDURES ...............................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD......................................................................13 4.1.5 TEST SETUP.............................................................................................................14 4.1.6 EUT OPERATING CONDITIONS ..............................................................................14 4.1.7 TEST RESULTS ........................................................................................................15 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................28 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................28 4.2.2 TEST INSTRUMENTS...............................................................................................28 4.2.3 TEST PROCEDURES ...............................................................................................29 4.2.4 DEVIATION FROM TEST STANDARD......................................................................29 4.2.5 TEST SETUP.............................................................................................................30 4.2.6 EUT OPERATING CONDITIONS ..............................................................................30 4.2.7 TEST RESULTS ........................................................................................................31 4.3 6dB BANDWIDTH MEASUREMENT.........................................................................33 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ......................................................33 4.3.2 TEST INSTRUMENTS...............................................................................................33 4.3.3 TEST PROCEDURE..................................................................................................33 4.3.4 DEVIATION FROM TEST STANDARD......................................................................33 4.3.5 TEST SETUP.............................................................................................................34 4.3.6 EUT OPERATING CONDITIONS ..............................................................................34 4.3.7 TEST RESULTS ........................................................................................................35 4.4 MAXIMUM OUTPUT POWER ...................................................................................39 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT....................................39 4.4.2 INSTRUMENTS .........................................................................................................39 4.4.3 TEST PROCEDURE..................................................................................................39 4.4.4 DEVIATION FROM TEST STANDARD......................................................................40 4.4.5 TEST SETUP.............................................................................................................40 4.4.6 EUT OPERATING CONDITIONS ..............................................................................40 Report No.: RF990921C09A 3 Report Format Version 3.0.1 Reference No.: 990928C11 4.4.7 TEST RESULTS ....................................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
