KA2AP1360B1Wireless N Access Point/Wireless N Range Extender

2D-Link DAP-1360 User Manual Table of Contents Product Overview ........................................................4 Package Contents ...................................................4 System Requirements .............................................4 Introduction ..............................................................5 Features ..................................................................6 Hardware Overview .................................................7 Connections .......................................................7 LEDs ..................................................................8 Wireless Installation Considerations.......................10 Seven Configuration Operation Modes ...................11 Access Point Mode ................................................11 Wireless Client Mode .............................................12 Repeater Mode ......................................................13 Bridge Mode ..........................................................14 Bridge with AP Mode .............................................15 WISP Client Router mode .....................................16 WISP Repeater mode ............................................17 Configuration .............................................................18 Web-based Configuration Utility ............................18 Setup Wizard .........................................................19 Setup Wizard for AP Mode ....................................20 Setup Wizard for Repeater Mode ..........................27 Setup Wizard for Wireless Client Mode .................35 Add Wireless Device With WPS ............................43 Wireless Setup .....................................................45 Access Point ....................................................45 Repeater ..........................................................47 Wireless Client .................................................48 Bridge .............................................................49 Bridge with AP .................................................50 WISP Client Router and WISP Repeater .........51 WAN Settings ........................................................52 Dynamic IP (DHCP) .........................................52 Static IP ...........................................................53 PPPoE .............................................................54 PPTP ...............................................................55 LAN Setup .......................................................56 LAN Settings ....................................................57 Advanced ...............................................................58 Advanced Wireless ..........................................58 Access Control .................................................59 User Limit .........................................................60 Port Forwarding ...............................................61 Port Filter .........................................................62 DMZ .................................................................63 Parental Control ...............................................64 Advanced Network ...........................................65 Maintenance ..........................................................66 Device Administration .....................................66 Save and Restore ...........................................66 Table of Contents 3D-Link DAP-1360 User Manual Table of Contents Firmware .........................................................67 Watchdog (Ping of Life) ...................................68 Time .................................................................69 Schedules ........................................................70 Status ....................................................................71 Device Info .......................................................71 Log ...................................................................72 Statistics ..........................................................73 Wireless ...........................................................73 Help .............................................................................74 Wireless Security.......................................................75 What is WEP? ......................................................75 Configure WEP ......................................................76 What is WPA? .......................................................77 Configure WPA-PSK, WPA2-PSK, and WPA2-Auto- PSK (Personal) .....................................................78 Configure WPA-EAP, WPA2-EAP, and WPA2-Auto- EAP (Enterprise) ....................................................79 Connect to a Wireless Network ...........................................80 Using Windows® XP .............................................80 Using Windows® Vista (Secured Network) ...........82 Using Windows® Vista (Unsecured Network) ......85 Troubleshooting ..............................................................88 Wireless Basics ........................................................90 Wireless Modes .........................................................94 Networking Basics ....................................................95 Technical Specifications...........................................97 Warranty .....................................................................99 4D-Link DAP-1360 User Manual Section 1 - Product Overview • D-Link DAP-1360 Wireless N Access Point • Power Supply • Manual on CD • Quick Installation Guide • Ethernet Cable System Requirements To configure this device, you will need the following: • A computer equipped with an Ethernet interface and operating under Windows Vista, XP or 2000, Mac OS 10.X or above, or Linux • Internet Explorer or Netscape Navigator version 6.0 or above, with JavaScript enabled Product Overview Package Contents WARNING: Using a power supply with a different voltage …

Text truncated - open the document above for the full version.

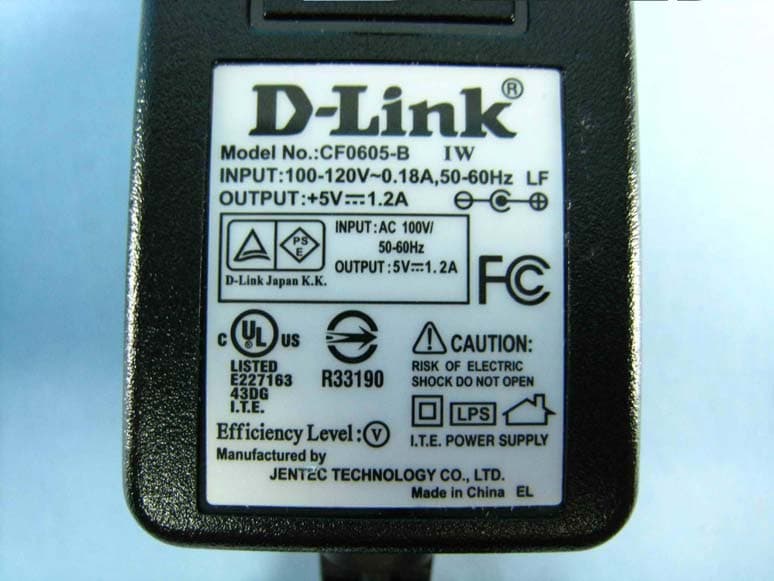

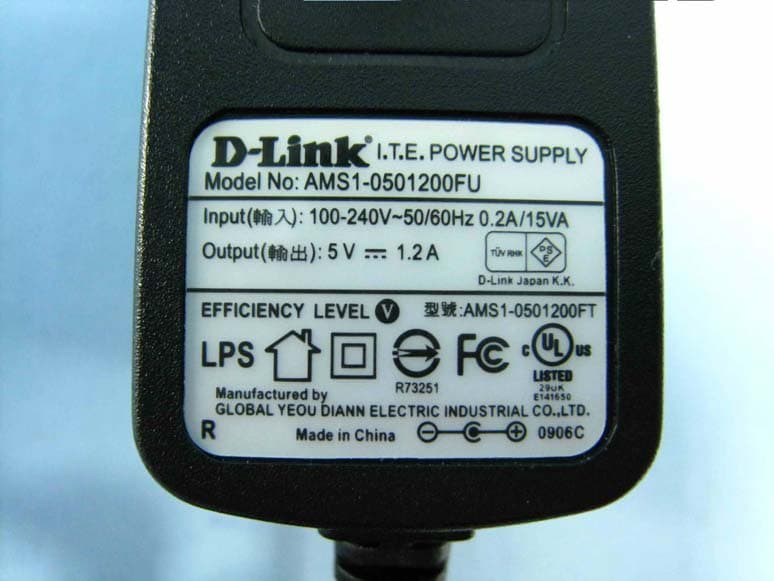

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

78.5mm 48.5mm Model: DAP-1360, H/W: B1

FCC ID .: KA2AP1360B1 Label Location

Page 4 Page 5 Page 6 Page 7

FCC ID: KA2AP1360B1 Report No.: RF981111L18 Operational Description This device is a Wireless N Access Point/Wireless N Range Extender, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with R-SMA antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA981111L18 Report Format Version 3.0.0. 1 RF EXPOSURE REPORT REPORT NO.: SA981111L18 MODEL NO.: DAP-1360, H/W: B1 FCC ID: KA2AP1360B1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA981111L18 Report Format Version 3.0.0. 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 26.5 2 20 0.141 1.00

Report No.: RF981111L18 1 Report Format Version 3.0.0 FCC TEST REPORT REPORT NO.: RF981111L18 MODEL NO.: DAP-1360, H/W: B1 RECEIVED: Nov. 06, 2009 TESTED: Nov. 12 ~ Dec. 08, 2009 ISSUED: Dec. 11, 2009 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 91 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981111L18 2 Report Format Version 3.0.0 TABLE OF CONTENTS 1. CERTIFICATION......................................................................................... 4 2. SUMMARY OF TEST RESULTS ................................................................ 5 2.1 MEASUREMENT UNCERTAINTY.............................................................. 5 3. GENERAL INFORMATION ......................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................... 6 3.2 DESCRIPTION OF TEST MODES ............................................................. 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST......................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.............. 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS........................... 11 3.4 DESCRIPTION OF SUPPORT UNITS ..................................................... 11 4. TEST TYPES AND RESULTS .................................................................. 12 4.1 RADIATED EMISSION MEASUREMENT................................................. 12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.............................. 12 4.1.2 TEST INSTRUMENTS.............................................................................. 13 4.1.3 TEST PROCEDURES .............................................................................. 14 4.1.4 DEVIATION FROM TEST STANDARD..................................................... 14 4.1.5 TEST SETUP............................................................................................ 15 4.1.6 EUT OPERATING CONDITIONS ............................................................. 15 4.1.7 TEST RESULTS ....................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT............................................ 36 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ......................... 36 4.2.2 TEST INSTRUMENTS.............................................................................. 36 4.2.3 TEST PROCEDURES .............................................................................. 37 4.2.4 DEVIATION FROM TEST STANDARD..................................................... 37 4.2.5 TEST SETUP............................................................................................ 38 4.2.6 EUT OPERATING CONDITIONS ............................................................. 38 4.2.7 TEST RESULTS ....................................................................................... 39 4.3 6dB BANDWIDTH MEASUREMENT ........................................................ 43 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ..................................... 43 4.3.2 TEST INSTRUMENTS.............................................................................. 43 4.3.3 TEST PROCEDURE................................................................................. 43 4.3.4 DEVIATION FROM TEST STANDARD..................................................... 43 4.3.5 TEST SETUP............................................................................................ 44 4.3.6 EUT OPERATING CONDITIONS ............................................................. 44 4.3.7 TEST RESULTS ....................................................................................... 45 4.4 MAXIMUM OUTPUT POWER .................................................................. 51 Report No.: RF981111L18 3 Report Format Version 3.0.0 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT ................... 51 4.4.2 INSTRUMENTS........................................................................................ 51 4.4.3 TEST PROCEDURES .............................................................................. 51 4.4.4 DEVIATION FROM TEST STANDARD..................................................... 51 4.4.5 TEST SETUP............................................................................................ 52 4.4.6 EUT OPERATING CONDITIONS ............................................................. 52 4.4.7 TEST RESULTS ....................................................................................... 53 4.5 POWER SPECTRAL DENSITY MEASUREMENT ................................... 55 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT................. 55 4.5.2 TEST INSTRUMENTS.............................................................................. 55 4.5.3 TEST PROCEDURE................................................................................. 55 4.5.4 DEVIATION FROM TEST STANDARD..................................................... 55 4.5.5 TEST SETUP............................................................................................ 56 4.5.6 EUT OPERATING CONDITION................................................................ 56 4.5.7 TEST RESULTS ....................................................................................... 57 4.6 BAND EDGES M…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (TEST MODE A) 2 CONDUCTED EMISSION TEST (TEST MODE B) 3 RADIATED EMISSION TEST (TEST MODE A) 4 RADIATED EMISSION TEST (TEST MODE B)
