KA2AP1520A1Wireless AC750 Dual Band Range Extender

DAP-1520 User Manual Wireless AC750 Dual Band Range Extender Version 1.0 | 10/30/2013 iD-Link DAP-1520 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2013 by D-Link Corporation. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. This purpose of this product is to create a constant network connection for your devices. As such, it does not have a standby mode or use a power management mode. If you wish to power down this product, please simply unplug it from the power outlet. RevisionDateDescription 1.0 October 2, 2013 • Initial release Preface iiD-Link DAP-1520 User Manual Table of Contents Preface .................................................................................i Manual Revisions ...........................................................................i Trademarks ......................................................................................i Introduction .......................................................................1 Package Contents .........................................................................1 System Requirements .................................................................2 Introduction ...................................................................................3 Features ....................................................................................3 What is a Wireless Extender? ............................................4 Hardware Overview .....................................................................5 Front/Top .................................................................................5 Side and Bottom ...................................................................6 Wireless Installation Factors .....................................................7 Setting Up Your DAP-1520 ................................................8 QRS Mobile App Setup ...............................................................9 Web-based Configuration .......................................................13 Setup Wizard ....................................................................14 Using the WPS Method ....................................................16 Using the Manual Method ..............................................17 Home Screen ........................................................................20 Wi-Fi Settings .......................................................................22 Extended Wi-Fi Settings ...................................................23 Network Settings ................................................................24 Advanced Settings ........................................................24 Maintenance ................................................................................27 Admin .....................................................................................27 System ....................................................................................28 Upgrade .................................................................................29 Statistics .................................................................................30 Connecting a Wireless Client ..........................................31 WPS Button ...................................................................................31 Connect to a Wireless Network .............................................32 Windows® 8 ...........................................................................32 WPA/WPA2 .......................................................................32 Windows® 7 ...........................................................................34 WPA/WPA2 .......................................................................34 Windows Vista® ....................................................................37 WPA/WPA2 .......................................................................38 Windows® XP ........................................................................40 WPA/WPA2 .......................................................................41 Troubleshooting ..............................................................43 Wireless Basics .................................................................45 Tips ...................................................................................................46 Technical Specifications ..................................................47 GPL Code Statement........................................................48 Safety Statements ...........................................................63 Table of Contents 1D-Link DAP-1520 User Manual Section 1 - Product Overview Introduction Package Contents DAP-1520 Wireless AC750 Dual Band Range Extender Wi-Fi Configuration Card If any of the above items are missing from your package, please contact your reseller. 2D-Link DAP-1520 User Manual Section 1 - Product Overview Network Requirements • A wireless router with an active Internet connection. • IEEE 802.11ac draft, 802.11n, 802.11g, 802.11b or 802.11a wireless clients/devices Web-based Configuration Utility Requirements Computer or Mobile Device with the following: • A Windows®, Macintosh, Android, or Linux-based operating system • Wireless adapter or Wi-Fi functionality Browser Requirements: • Internet Explorer 7 or later • Firefox 12.0 or later • Safari 4 or later • Google Chrome 20.0 or later System Requirements 3D-Link DAP-1520 User Manual Section 1 - P…

Text truncated - open the document above for the full version.

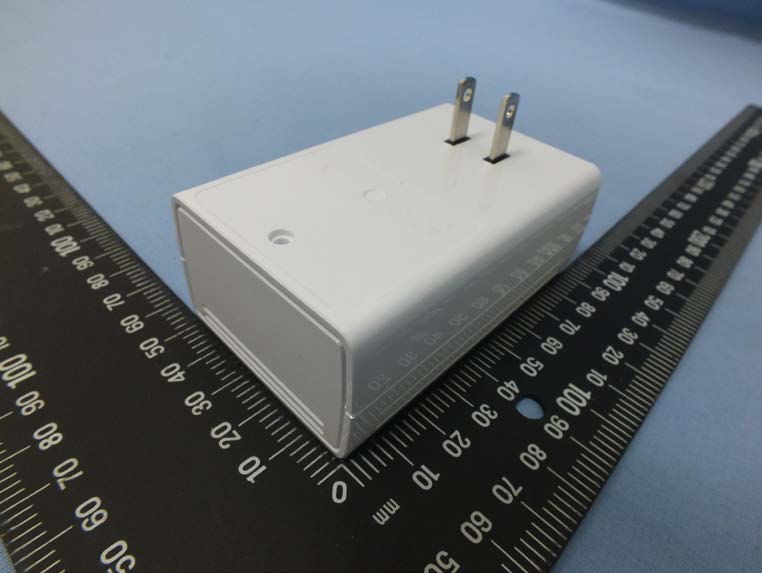

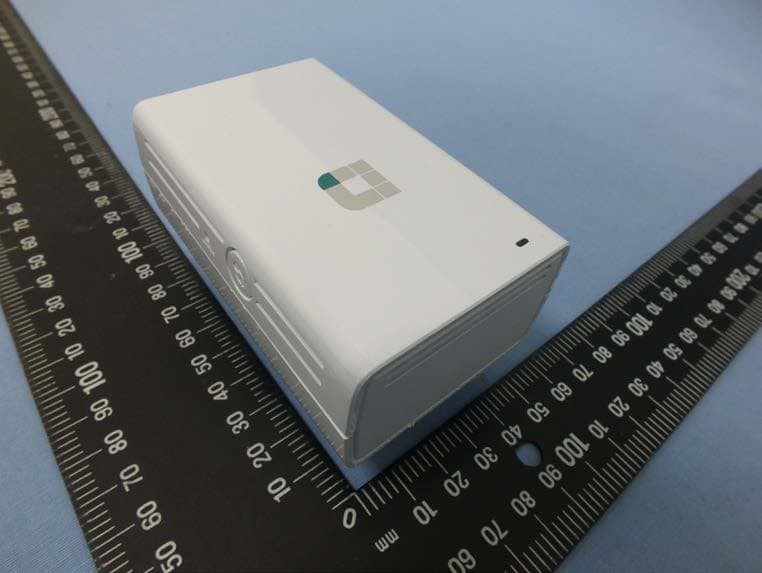

Report No. : EP392541 Photographs of EUT SPORTON International Inc. Page No. : 1 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973

Wi-Fi Name(SSID):dlink-XXXX2.4GHz Wi-Fi Password:XXXXXXXXXX Wi-Fi Name(SSID):dlink-XXXX-5GHz5GHz P/N: BAP1520LNA...A1 S/N: S31Q1ymXXXXXX H/W Ver.:A1 F/W Ver.:1.00 Label location

Report No. : EP392541 SPORTON International Inc. Page No. : 2 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP392541 SPORTON International Inc. Page No. : 3 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP392541 SPORTON International Inc. Page No. : 4 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP392541 SPORTON International Inc. Page No. : 5 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP392541 SPORTON International Inc. Page No. : 6 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP392541 SPORTON International Inc. Page No. : 7 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP392541 SPORTON International Inc. Page No. : 8 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP392541 SPORTON International Inc. Page No. : 9 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP392541 SPORTON International Inc. Page No. : 10 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973

FCC ID: IC: Channel frequency ModeChannelModeChannel 136 240 344 448 5149 6153 7157 8161 9165 1038 1146 3151 4159 542 6155 7 8 9 5210 5775 VHT80 HT40 24225755 24275795 2432 2437 2442 2447 2452 24475805 24525825 2457 HT40 VHT40 5190 24625230 24325745 24375765 24425785 11b 11g HT20 2412 11a HT20 VHT20 5180 24175200 24225220 24275240 Antenna typePIFA Frequency(MHz)Frequency(MHz) Frequency range (MHz)2412~2462 / 5180~5240 / 5745~5825 Modulation type DBPSK, DQPSK, CCK BPSK, QPSK, 16QAM, 64QAM,256QAM Oscillating frequency (MHz)20 / 40 KA2AP1520A1 4216A-AP1520A1 Operational Description The device is a Wireless AC750 Dual band range extender which operates at 2.4 and 5GHz band and supports 802.11 a / b / g / n / ac mode. This device can let you extend a secure wireless network throughout your home. Connect the device to a router and share your high-speed internet access in more places throughout your home or small office. RF main chipMT7610E / MT7620A

RF Exposure Report Report No. : FA392541 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 RF Exposure Report Report No. : FA392541 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. : FA392541 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure MPE Evaluation of Single Transmission Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Frequency Range (MHz) RF Output Power (dBm) Antenna Gain (dBi) EIRP Power (dBm) PD (S) (mW/cm²) Limit (mW/cm²) 2400-2483.5 20.35 4.52 21.88 0.061 1 5150-5250 16.72 1 17.72 0.012 1 5725-5850 20.72 1 21.72 0.030 1 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) MPE Evaluation of Simultaneous Transmission 2.4 and 5GHz can transmit at the same time, MPE evaluation is as below formula PD1 / Limit1 + PD2 / Limit 2 + ..... < 1 PD = Power density 1) 2.4 + 5.2GHz = 0.061 / 1 + 0.012 / 1 = 0.073 < 1 2) 2.4 + 5.8GHz = 0.061 / 1 + 0.030 / 1 = 0.091 < 1 Conclusion MPE evaluations of single and simultaneous transmission meet the requirement of standard

FCC Test Report Report No. : FR392541AN SPORTON INTERNATIONAL INC. Page No. : 1 of 55 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : Wireless AC750 Dual Band Range Extender Brand Name : D-Link Model No. : DAP-1520 FCC ID : KA2AP1520A1 Standard : 47 CFR FCC Part 15.407 Operating Band : 5150 MHz – 5250 MHz FCC Classification : NII Applicant Manufacturer : D-Link Corporation 17595 Mt. Herrmann, Fountain Valley, CA 92708 U.S.A The product sample received on Sep. 24, 2013 and completely tested on Oct. 14, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: James Fan / Assistant Manager FCC Test Report Report No. : FR392541AN SPORTON INTERNATIONAL INC. Page No. : 2 of 55 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 Emission Bandwidth ............................................................................................................................. 16 3.3 RF Output Power .................................................................................................................................. 19 3.4 Peak Power Spectral Density ............................................................................................................... 23 3.5 Peak Excursion..................................................................................................................................... 27 3.6 Transmitter Radiated Unwanted Emissions and Band Edge ............................................................... 29 3.7 Frequency Stability ............................................................................................................................... 52 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 54 APPENDIX A. TEST PHOTOS ................................................................................................................. A1-A4 FCC Test Report Report No. : FR392541AN SPORTON INTERNATIONAL INC. Page No. : 3 of 55 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 28.686MHz 42.48 (Margin 17.52dB) - QP 39.52 (Margin 10.48dB) - AV FCC 15.207 Complied 3.2 15.407(a) Emission Bandwidth Bandwidth [MHz] 20M:22.55 / 40M:46.84 80M:82.09 Information only Complied 3.3 15.407(a) RF Output Power (Maximum Conducted (Average) Output Power) Power [dBm] 5150-5250MHz:16.72 Power [dBm] 5150-5250MHz:17 Complied 3.4 15.407(a) Peak Power Spectral Density PPSD [dBm/MHz] 5150-5250MHz: 3.78 PPSD [dBm/MHz] 5150-5250MHz:4 Complied 3.5 15.407(a) Peak Excursion 9.12 dB 13 dB Complied 3.6 15.407(b) Transmitter Unwanted Emissions and Band Edge Restricted Bands [dBuV/m at 3m]: 5150.00MHz 52.85 (Margin 1.15dB) – AV Non-Restricted Bands: ≤ -27dBm (68.3dBuV/m@3m) Restricted Bands: FCC 15.209 Complied 3.7 15.407(g) Frequency Stability 5.1904 ppm Signal shall remain in-band Complied FCC Test Report Report No. : FR392541AN SPORTON INTERNATIONAL INC. Page No. : 4 of 55 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR392541AN Rev. 01 Initial issue of report Nov. 13, 2013 FCC Test Report Report No. : FR392541AN SPORTON INTERNATIONAL INC. Page No. : 5 of 55 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chain…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR392541 SPORTON INTERNATIONAL INC. Page No. : 1 of 9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Unwanted Emissions 1.1.1 Transmitter Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m) Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR392541 SPORTON INTERNATIONAL INC. Page No. : 2 of 9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). For the transmitter unwanted emissions shall be measured using following options below: Refer as ANSI C63.10, clause 4.2.3.2.3 (Reduced VBW). VBW ≥ 1/T, where T is pulse time. Refer as KDB 558074, clause 12.2.3 measurement procedure peak limit. For radiated measurement, refer as ANSI C63.10, Refer as ANSI C63.10, clause 6.4 for radiated emissions from below 30 MHz. Refer as ANSI C63.10, clause 6.5 for radiated emissions from 30 MHz to 1000 MHz. Refer as ANSI C63.10, clause 6.6 for radiated emissions from above 1 GHz. FCC Test Report Report No. : FR392541 SPORTON INTERNATIONAL INC. Page No. : 3 of 9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Test Setup Transmitter Radiated Unwanted Emissions Magnetic field tests shall be performed in the frequency range of 9 kHz to 30 MHz using a calibrated loop antenna. Electric field tests shall be performed in the frequency range of 30 MHz to 1000 MHz using a calibrated bi-log antenna and the frequency range of 1 GHz to 40 GHz using a calibrated horn antenna. Note: Test distance is 3m. Transmitter Conducted Unwanted Emissions . 1.1.5 Transmitter Radiated Unwanted Emissions (Below 30MHz) All amplitude of spurious emissions that are attenuated by more than 20 dB below the permissible value has no need to be reported. FCC Test Report Report No. : FR392541 SPORTON INTERNATIONAL INC. Page No. : 4 of 9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.6 Results of Radiated Emissions (30MHz~1GHz) Transmitter Radiated Unwanted Emissions Operating Mode Radio link (WLAN) Polarization H Operating Function 2.4GHz HT20 CH06 + 5GHz VHT80 CH155 Note 1: “>20dB” means spurious emission levels that exceed the level of 20 dB below the applicable limit. Note 2: “N/F” means Nothing Found spurious emissions (No spurious emissions were detected.) Note 3: Measurement receive antenna polarization: H (Horizontal), V (Vertical) FCC Test Report Report No. : FR392541 SPORTON INTERNATIONAL INC. Page No. : 5 of 9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Transmitter Radiated Unwanted Emissions Operating Mode Radio link (WLAN) Polarization V Operating Function 2.4GHz HT20 CH06 + 5GHz VHT80 CH155 Note 1: “>20dB” means spurious emission levels that exceed the level of 20 dB below the applicable limit. Note 2: “N/F” means Nothing Found spurious emissions (No spurious emissions were detected.) Note 3: Measurement receive antenna polarization: H (Horizontal), V (Vertical) FCC Test Report Report No. : FR392541 SPORTON INTERNATIONAL INC. Page No. : 6 of 9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.7 …

Text truncated - open the document above for the full version.

Test Photos Report No. : FR392541 SPORTON INTERNATIONAL INC. Page No. : A1 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. TEST PHOTOS 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Test Photos Report No. : FR392541 SPORTON INTERNATIONAL INC. Page No. : A2 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW Test Photos Report No. : FR392541 SPORTON INTERNATIONAL INC. Page No. : A3 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration- 2.4G FRONT VIEW REAR VIEW Test Photos Report No. : FR392541 SPORTON INTERNATIONAL INC. Page No. : A4 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 5G FRONT VIEW REAR VIEW
