iD-Link DAP-1525 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2011 by D-Link Systems, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. Preface iiD-Link DAP-1525 User Manual Table of Contents Preface...........................................................................i Trademarks .... ..........................................................i Product Overview ........................................................1 Package Contents .... ...............................................1 System Requirements .... .........................................1 Introduction ..............................................................2 Features .... ..............................................................3 Hardware Overview .... .............................................4 Back View .... ......................................................4 Front View ..........................................................5 Hardware Overview .... .............................................6 Bottom View .......................................................6 Installation ....................................................................7 Wireless Installation considerations .... ....................7 Connection - AP Mode .... ........................................8 Connection - Bridge Mode .......................................9 One Touch AP Configuration .................................10 Configuration .............................................................11 Web-based Configuration Utility for AP Mode .... ...11 Setup Wizard .... ...............................................12 Wireless Settings .... .........................................16 LAN Setup .... ...................................................18 LAN Setup .... ...................................................19 Static IPv6 ....................................................19 LAN Setup .... ...................................................20 Auto-configuration ........................................20 MAC Address Filter ..........................................21 Advanced Network ...........................................22 Guest Zone .... ..................................................23 Schedule ........ ..................................................24 Admin ...............................................................25 Time ........ .........................................................26 System ........ .....................................................27 Firmware ........ ..................................................28 System Check ..................................................29 Device Info ........ ...............................................30 Wireless .... .......................................................31 Logs .... .............................................................32 Statistics .... ......................................................33 IPv6 ..................................................................34 Support .... ........................................................35 Configuration .............................................................36 Web-based Configuration Utility for Bridge Mode .36 Setup Wizard .... ...............................................37 Wireless Settings .... .........................................41 Wireless Mac Cloning ..................................41 LAN Setup .... ...................................................42 LAN Setup .... ...................................................43 Static IPv6 ....................................................43 LAN Setup .... ...................................................44 Auto-configuration ........................................44 Table of Contents iiiD-Link DAP-1525 User Manual Table of Contents Schedule ........ ..................................................45 Admin ...............................................................46 Time ........ .........................................................47 System ........ .....................................................48 Firmware ........ ..................................................49 System Check ..................................................50 Device Info ........ ...............................................51 Logs .... .............................................................52 IPv6 ..................................................................53 Support .... ........................................................54 Wireless Security.......................................................55 What is WEP? .... ...................................................55 What is WPA? .... ...................................................56 Configure WEP (AP Mode) ....................................57 Configure WPA-Personal (AP Mode) .... ................58 Configure WPA-Enterprise (AP Mode) .... ..............59 Configure WEP (Bridge Mode) .... ..........................60 Configure WPA-Personal (Bridge Mode) ...............61 Connect to a Wireless Network ................................62 Using Windows Vista ® ..............................................................................62 Configure WPA/WPA2 ........ .............................63 Connect Using WCN 2.0 ..................................65 Using Windows ® XP ..... ..........................................66 Configure WPA2-PSK ......................................67…

Text truncated - open the document above for the full version.

Tdifnbujdt0!Cmpdl!Ejbhsbn! Pqfsbujpobm!eftdsjqujpo!

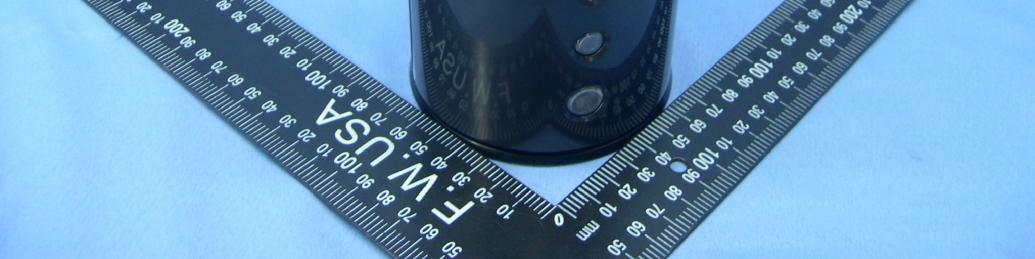

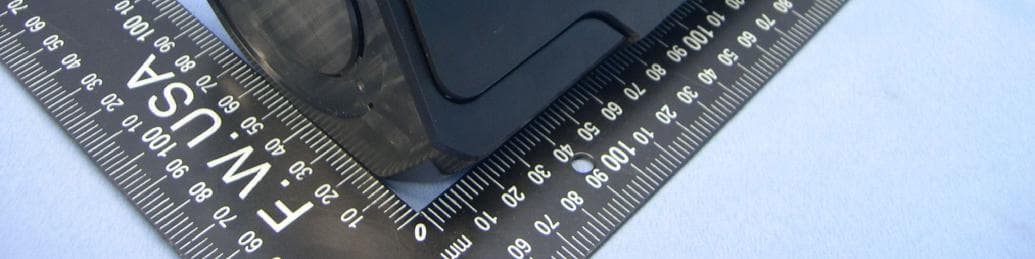

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID ： KA2AP1525A1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

65 . 22 ` 0 . 10 68.76`0.10 52 . 52 82.04 31.18`0.10 25.25 * n 90 . 44 ` 0 . 20 24 . 10 ` 0 . 10 4.40`0.10 R4 . 16 R1 . 00 R8 . 36 22 . 38 1 2 3 4 5 X Y Joan Huang 2011/03/10 Alice Chiu 2011/03/10 Alice Chiu 2011/03/10 DAP-1525 Device Label 970000011407G 5V 2.5A

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Model No.: CF1505-B Page 8

Report No.: SA110131E05 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110131E05 MODEL NO.: DAP-1525 FCC ID: KA2AP1525A1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA110131E05 Report Format Version 4.0.0 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110131E05 Report Format Version 4.0.0 3 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For NON-BEAM FORMING OPERATION For 15.247(2.4GHz): FREQUENCY BAND (MHz) CONDUCTED POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 28.0 7.1 20 0.645 1.00 For 15.247(5GHz): FREQUENCY BAND (MHz) CONDUCTED POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745-5825 26.2 4.2 20 0.219 1.00 For 15.407(5GHz): FREQUENCY BAND (MHz) CONDUCTED POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-5240 15.8 4.1 20 0.019 1.00 Report No.: SA110131E05 Report Format Version 4.0.0 4 For BEAM FORMING OPERATION For 15.247(2.4GHz): FREQUENCY BAND (MHz) CONDUCTED POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 28.0 7.1 20 0.645 1.00 For 15.247(5GHz): FREQUENCY BAND (MHz) CONDUCTED POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745-5825 26.2 7.1 20 0.427 1.00 For 15.407(5GHz): FREQUENCY BAND (MHz) CONDUCTED POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-5240 15.8 7.1 20 0.038 1.00 --- END ---

Report No.: RF110131E05 1 Report Format Version 4.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF110131E05 MODEL NO.: DAP-1525 FCC ID: KA2AP1525A1 RECEIVED: Jan. 31, 2011 TESTED: Feb. 17 to Mar. 21, 2011 ISSUED: Apr. 18, 2011 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 119 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110131E05 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................5 1. CERTIFICATION....................................................................................................6 2. SUMMARY OF TEST RESULTS............................................................................7 2.1 MEASUREMENT UNCERTAINTY..........................................................................9 3. GENERAL INFORMATION...................................................................................10 3.1 GENERAL DESCRIPTION OF EUT.....................................................................10 3.2 DESCRIPTION OF TEST MODES.......................................................................14 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................15 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................19 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................20 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................21 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band)...............23 4.1 CONDUCTED EMISSION MEASUREMENT........................................................23 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................23 4.1.2 TEST INSTRUMENTS..........................................................................................23 4.1.3 TEST PROCEDURES..........................................................................................24 4.1.4 DEVIATION FROM TEST STANDARD.................................................................24 4.1.5 TEST SETUP.......................................................................................................25 4.1.6 EUT OPERATING CONDITIONS.........................................................................25 4.1.7 TEST RESULTS...................................................................................................26 4.2 RADIATED EMISSION MEASUREMENT.............................................................28 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................28 4.2.2 TEST INSTRUMENTS..........................................................................................29 4.2.3 TEST PROCEDURES..........................................................................................30 4.2.4 DEVIATION FROM TEST STANDARD.................................................................30 4.2.5 TEST SETUP.......................................................................................................31 4.2.6 EUT OPERATING CONDITIONS.........................................................................31 4.2.7 TEST RESULTS...................................................................................................32 4.3 6dB BANDWIDTH MEASUREMENT....................................................................61 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................61 4.3.2 TEST INSTRUMENTS..........................................................................................61 4.3.3 TEST PROCEDURE.............................................................................................61 4.3.4 DEVIATION FROM TEST STANDARD.................................................................61 4.3.5 TEST SETUP.......................................................................................................61 4.3.6 EUT OPERATING CONDITIONS.........................................................................61 4.3.7 TEST RESULTS...................................................................................................62 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................66 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................66 4.4.2 INSTRUMENTS....................................................................................................66 4.4.3 TEST PROCEDURES..........................................................................................66 Report No.: RF110131E05 3 Report Format Version 4.0.0 4.4.4 DEVIATION FROM TEST STANDARD.................................................................66 4.4.5 TEST SETUP.......................................................................................................66 4.4.6 EUT OPERATING CONDITIONS.........................................................................66 4.4.7 TEST RESULTS...................................................................................................67 4.5 POWER SPECTRAL DENSITY MEASUREMENT...........…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
