KA2AP2310B1AirPremier N Access Point/Wireless N Access Point

D-Link Corporation
AirPremier N Access Point/Wireless N Access Point - FCC ID KA2AP2310B1 - D-Link Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
May 18, 2014
Application Purpose
Original Equipment
Date of Application
May 18, 2014
Equipment Note
AirPremier N Access Point/Wireless N Access Point
Frequency Range
2422.00000000 - 2452.00000000
Company
D-Link Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

DAP-2310 ( P ) DAP-2310 無線基地台 2D-Link DAP-2310 User Manual Table of Contents Product Overview ..............................................................4 Package Contents .........................................................................4 S ystem Requirements .................................................................4 I ntroduction ...................................................................................5 Features ............................................................................................7 Wireless Basics ...................................................................8 S tandards-Based Technology ...................................................9 Wireless Installation Considerations ....................................10 Hardware Overview ...................................................................11 LEDs .........................................................................................11 Har dware Overview ...................................................................12 C onnections ............................................ .............................12 Five Operational Modes ..................................................13 G etting Started ................................................................14 C onfiguration ...................................................................15 Save and Activate Settings ......................................................16 Basic S ettings ...............................................................................17 W ireless ............................................ .....................................17 Access Point mode ........................................................17 WDS with AP mode ......................................................19 WDS mode .......................................................................21 W ireless Client mode ....................................................23 AP Repeater mode.........................................................25 Open System/Shared Key Authentication ...........26 WPA/WPA2-Personal Authentication ......................27 WP A/WPA2-Enterprise Authentication ..................28 802.1x A uthentication ..................................................29 LAN .........................................................................................30 IPv6 ..........................................................................................31 Advanced Settings .....................................................................32 P erformance .........................................................................32 Multi-SSID ..............................................................................34 VLAN ............................................ ............................................36 VLAN List ...........................................................................36 Port List ..............................................................................37 Add/Edit VLAN ................................................................38 PVID S etting .....................................................................39 I ntrusion ............................................ .....................................40 Schedule ............................................ ....................................41 Internal RADIUS Server .....................................................42 ARP Spoofing Prevention Settings ...............................43 Bandwidth Optimiza tion ............................................ .....44 AP Array ............................................. .....................................46 AP Array Scan ..................................................................47 C onfiguration Settings .................................................48 Auto-RF ..............................................................................49 L oad Balance ...................................................................50 C aptive Portal ............................................. .........................51 Authentication Settings - Ticket ...............................51 Authentication Settings - User/Password .............52 Table of Contents 3D-Link DAP-2310 User Manual Table of Contents Authentication Settings - Remote RADIUS ...........53 Authentication Settings - LDAP ................................54 Authentication Settings - POP3 ................................55 L ogin Page Upload .............................................................56 Web Redirection ..................................................................57 DHCP Server ........................................................................58 Dynamic Pool Settings .................................................58 Static Pool Setting .........................................................60 Current IP Mapping List ...............................................62 Filters .......................................................................................63 W ireless MAC ACL ..........................................................63 WLAN P artition ...............................................................64 Traffic Control .......................................................................65 Uplink/Downlink Settings ..........................................65 QoS ......................................................................................66 Traffic Manager ...............................................................67 Status .............................................................................................68 Device Information ............................................ ................68 Client Information ..............................................................69 WDS I nformation ............................................ ....................70 Stats .....................................................…

Text truncated - open the document above for the full version.

External Photos

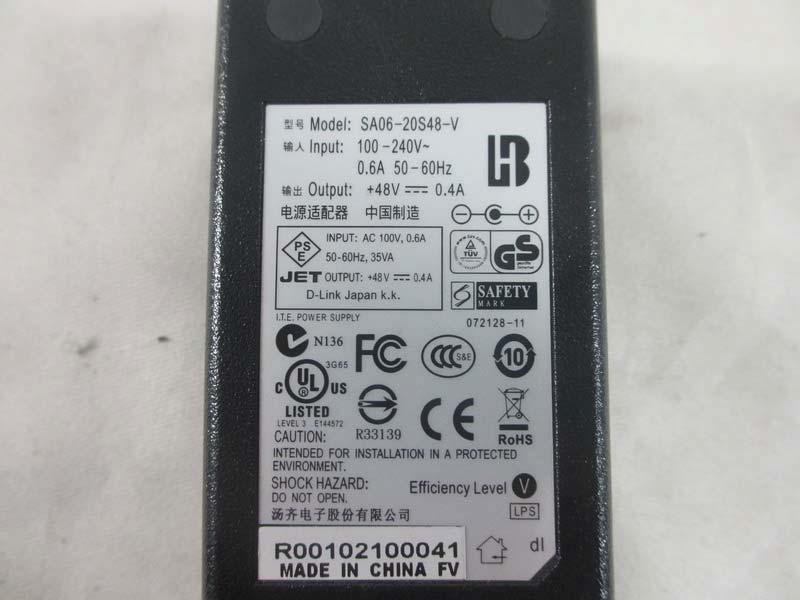

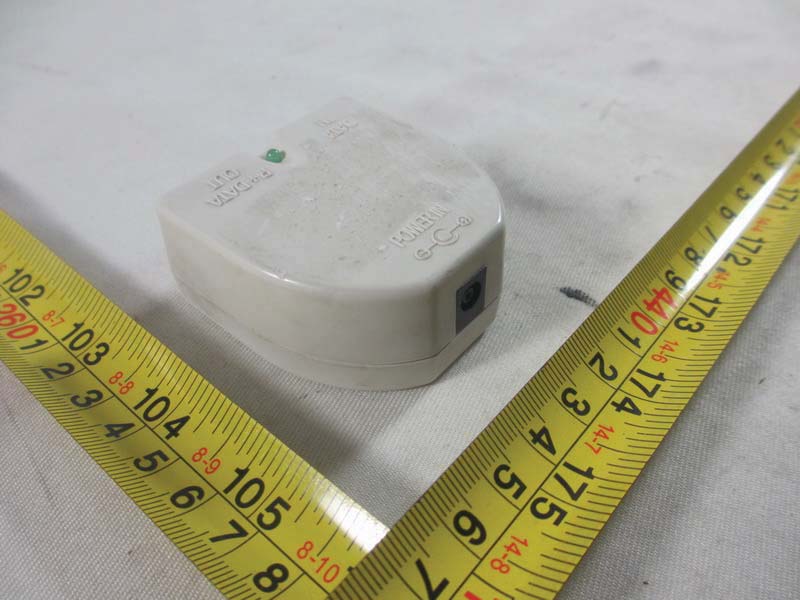

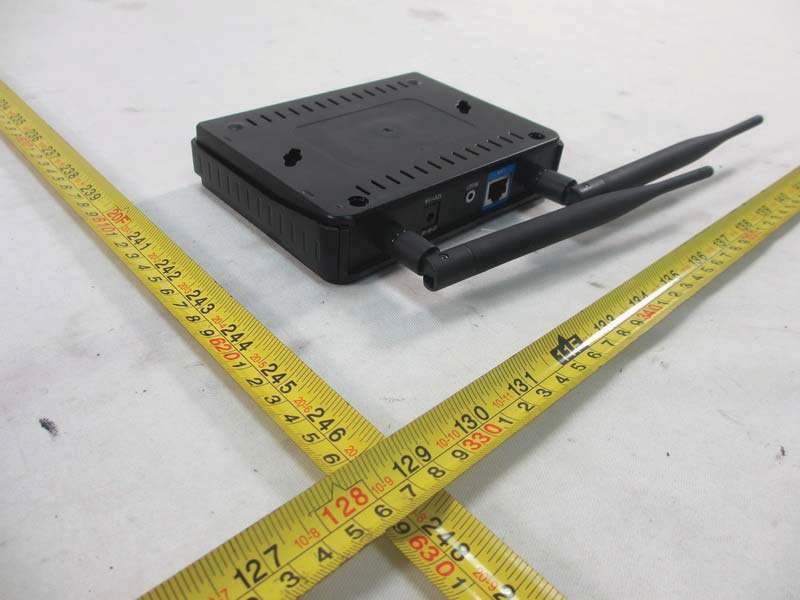

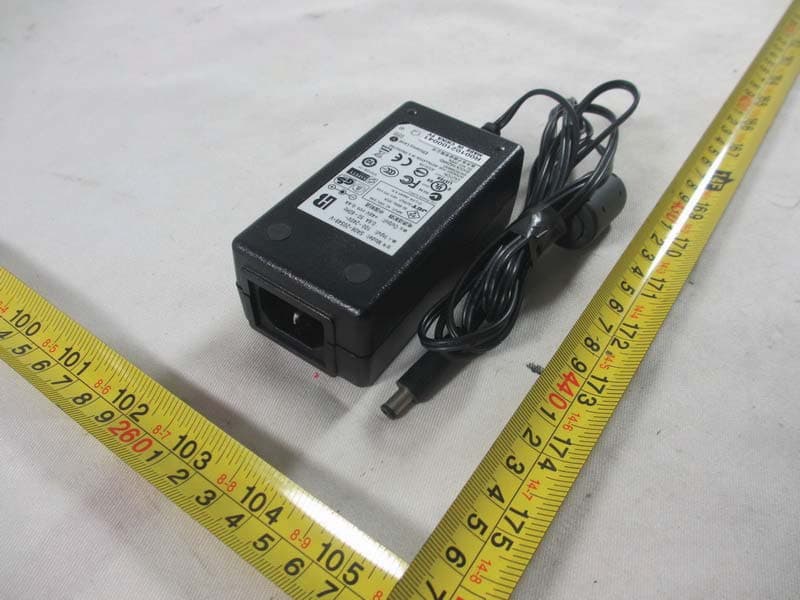

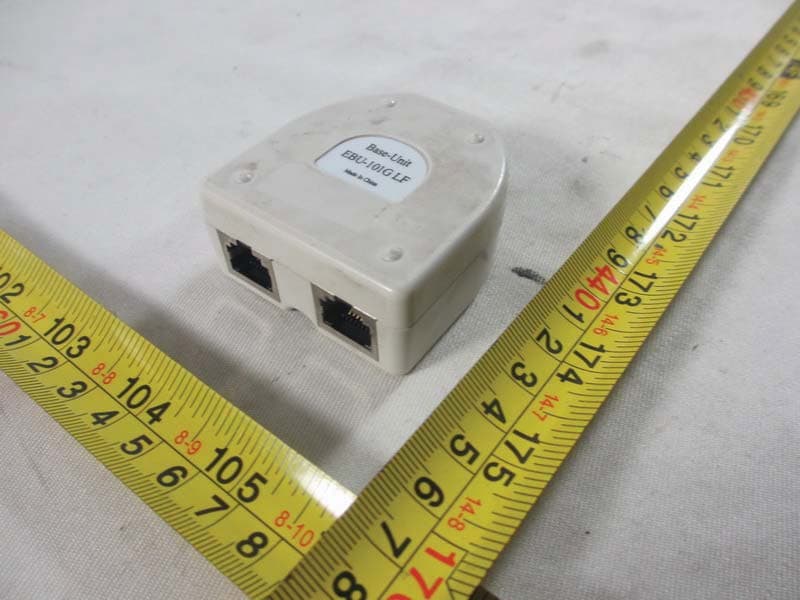

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 133 of 140 . EUT PHOTOS Antenna: 5dBi Dipole Antenna Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 134 of 140 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 135 of 140 Antenna:2dBi Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 136 of 140 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 137 of 140 Adapter: YEOU DIANN/AMS9-1201000FU2 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 138 of 140 Adapter: FRECOM/F12W3-120100SPAU Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 139 of 140 POE: METOUCH/SA06-20S48-V Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 140 of 140 POE: METOUCH/SA06-20S48-V

ID Label/Location Info

Label location

Internal Photos

Neutron Engineering Inc. Project No.: 1404C049 Page 2 of 5 Neutron Engineering Inc. Project No.: 1404C049 Page 3 of 5 Neutron Engineering Inc. Project No.: 1404C049 Page 4 of 5 Neutron Engineering Inc. Project No.: 1404C049 Page 5 of 5

RF Exposure Info

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: KA2AP2310B1 Project No. : 1404C049 Equipment : 1) AirPremier N Access Point; 2 ) Wireless N Access Point Model : DAP-2310 Applicant : D-LINK Corporation Address : 17595 Mt. Herrmann, Fountain Valle y California , United States According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Group 1 Ant. Manufacturer Model Name Antenna Type Connector Gain (dBi) Note 1 C037-510982-ADipole SMA Straight Plug Revers 2 TX/RX 2 C037-510982-ADipole SMA Straight Plug Revers 2 TX/RX Group 2 Ant. Manufacturer Model Name Antenna Type Connector Gain (dBi) Note 1 WANSHIH ELECTRONIC CO., LTD. WSS007 Dipole RP-SMA 5 TX/RX 2 WANSHIH ELECTRONIC CO., LTD. WSS007 Dipole RP-SMA 5 TX/RX Neutron Engineering Inc. TEST RESULTS EUT: 1) AirPremier N Access Point; 2) Wireless N Access Point Model Name : DAP-2310 Temperature: 25°C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX B Mode/CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 24.13 258.8213 0.162910981 Complies 5 3.1623 27.12 515.2286 0.324302551 Complies 5 3.1623 27.21 526.0173 0.331093281 Complies EUT: 1) AirPremier N Access Point; 2) Wireless N Access Point Model Name : DAP-2310 Temperature: 25°C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX G Mode/CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 24.14 259.4179 0.163286531 Complies 5 3.1623 29.71 935.4057 0.588776371 Complies 5 3.1623 26.82 480.8393 0.302656751 Complies Neutron Engineering Inc. EUT: 1) AirPremier N Access Point; 2) Wireless N Access Point Model Name : DAP-2310 Temperature: 25°C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M Mode_Total/CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 26.03 400.8667 0.252319241 Complies 5 3.1623 29.91 979.4900 0.616524541 Complies 5 3.1623 27.51 563.6377 0.354772841 Complies EUT: 1) AirPremier N Access Point; 2) Wireless N Access Point Model Name : DAP-2310 Temperature: 25°C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M Mode_Total/CH03/CH06/CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 22.88 194.0886 0.122166001 Complies 5 3.1623 29.65 922.5714 0.580698051 Complies 5 3.1623 26.93 493.1738 0.310420481 Complies Note: the calculation distance is 20cm.

Test Report

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 1 of 140 FCC Radio Test Report FCC ID: KA2AP2310B1 This report concerns (check one): Original Grant Class II Change Issued Date : May 06, 2014 Project No. : 1404C049 Equipment : 1) AirPremier N Access Point; 2) Wireless N Access Point Model Name : DAP-2310 Applicant : D-LINK Corporation Address : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Apr. ,08, 2014 Date of Test: Apr. 08, 2014 ~ May 05, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 2 of 140 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 3 of 140 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.1.8 EUT TEST PHOTO 19 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 TEST PROCEDURE 21 4.2.3 DEVIATION FROM TEST STANDARD 21 4.2.4 TEST SETUP 22 4.2.5 EUT OPERATING CONDITIONS 23 4.2.6 EUT TEST CONDITIONS 23 4.2.7 TEST RESULTS (9K~ 30MHZ) 24 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 25 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 32 4.2.10 EUT TEST PHOTO 61 5 . BANDWIDTH TEST 64 5.1 APPLIED PROCEDURES 64 5.1.1 TEST PROCEDURE 64 5.1.2 DEVIATION FROM STANDARD 64 5.1.3 TEST SETUP 64 5.1.4 EUT OPERATION CONDITIONS 64 5.1.5 EUT TEST CONDITIONS 64 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 4 of 140 Table of Contents Page 5.1.6 TEST RESULTS 65 5.1.7 EUT TEST PHOTO 77 6 . MAXIMUM OUTPUT POWER TEST 78 6.1 APPLIED PROCEDURES / LIMIT 78 6.1.1 TEST PROCEDURE 78 6.1.2 DEVIATION FROM STANDARD 78 6.1.3 TEST SETUP 78 6.1.4 EUT OPERATION CONDITIONS 78 6.1.5 EUT TEST CONDITIONS 78 6.1.6 TEST RESULTS 79 6.1.7 EUT TEST PHOTO 82 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 83 7.1 APPLIED PROCEDURES / LIMIT 83 7.1.1 TEST PROCEDURE 83 7.1.2 DEVIATION FROM STANDARD 83 7.1.3 TEST SETUP 83 7.1.4 EUT OPERATION CONDITIONS 83 7.1.5 EUT TEST CONDITIONS 83 7.1.6 TEST RESULTS 84 7.1.7 EUT TEST PHOTO 114 8 . POWER SPECTRAL DENSITY TEST 115 8.1 APPLIED PROCEDURES / LIMIT 115 8.1.1 TEST PROCEDURE 115 8.1.2 DEVIATION FROM STANDARD 115 8.1.3 TEST SETUP 115 8.1.4 EUT OPERATION CONDITIONS 115 8.1.5 EUT TEST CONDITIONS 115 8.1.6 TEST RESULTS 116 8.1.7 EUT TEST PHOTO 130 9 . MEASUREMENT INSTRUMENTS LIST 131 11. EUT PHOTOS 133 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 5 of 140 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1404C049 Original Issue. May 06, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 6 of 140 1. CERTIFICATION Equipment : 1) AirPremier N Access Point; 2) Wireless N Access Point Brand Name : D-Link Model Name : DAP-2310 Applicant : D-LINK Corporation Date of Test : Apr. 08, 2014 ~ May 05, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1404C049) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 7 of 140 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious Emission PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Outp…

Text truncated - open the document above for the full version.

Test Setup Photos

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 19 of 140 4.1.8 EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C049 Page 63 of 140 Radiated Measurement Photos Above 1000MHz

Contact Information

Applicant

Brett Adair(General Counsel)
[email protected]714-885-6000Fax: 866-743-4589

Test Firm

BTL Inc.Daisy Dai
[email protected]008676983183000Fax: 0086 769 83196000

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz923.00 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined conducted peak output power as indicated in the filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration as described in this filing. This device supports 802.11n, 20MHz and 40 MHz mode.
