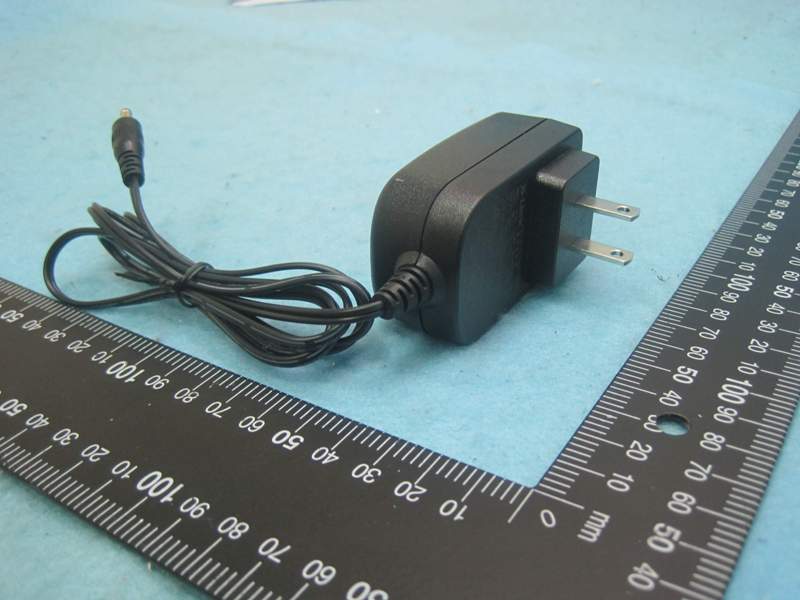

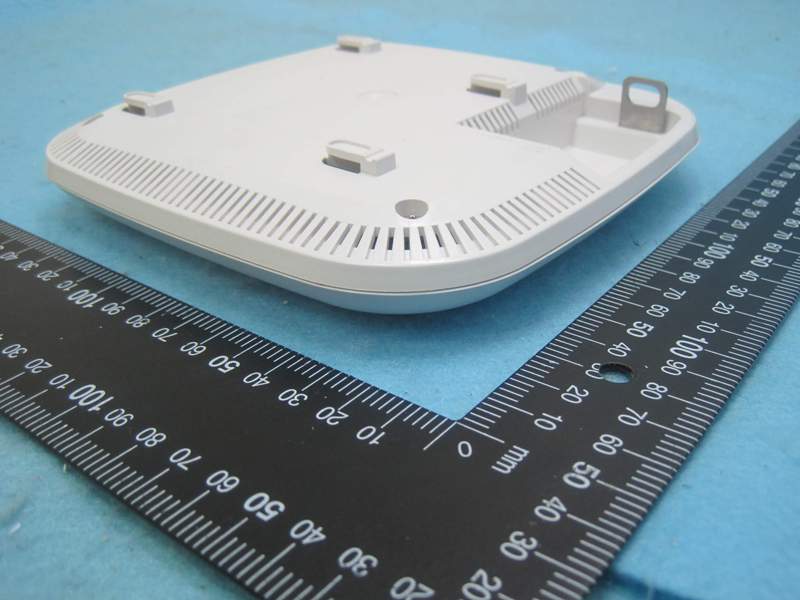

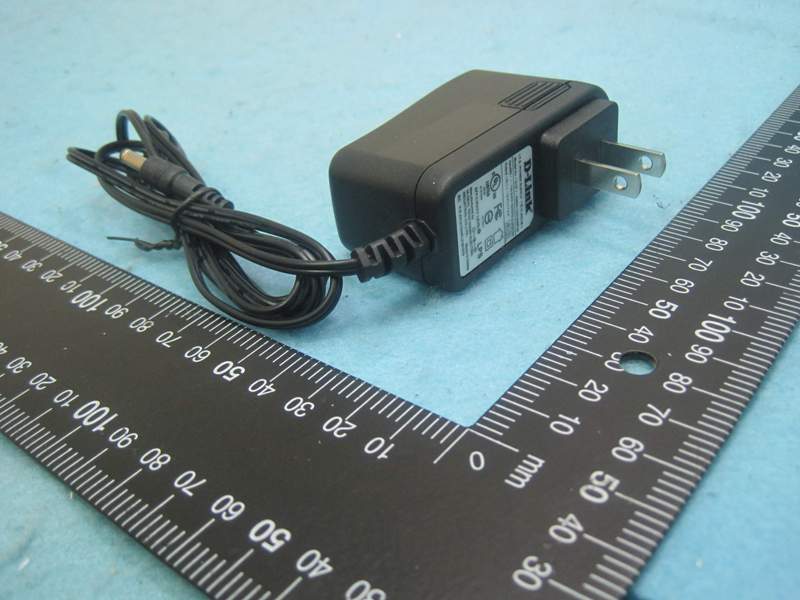

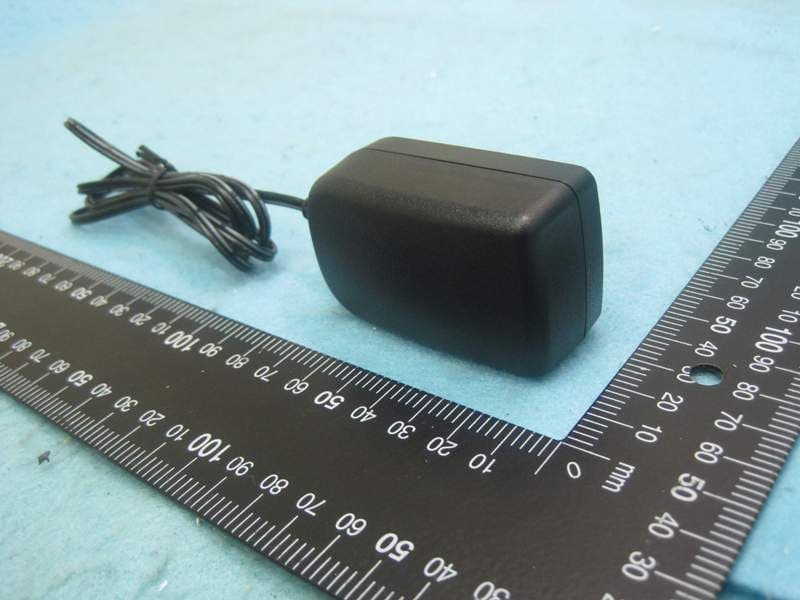

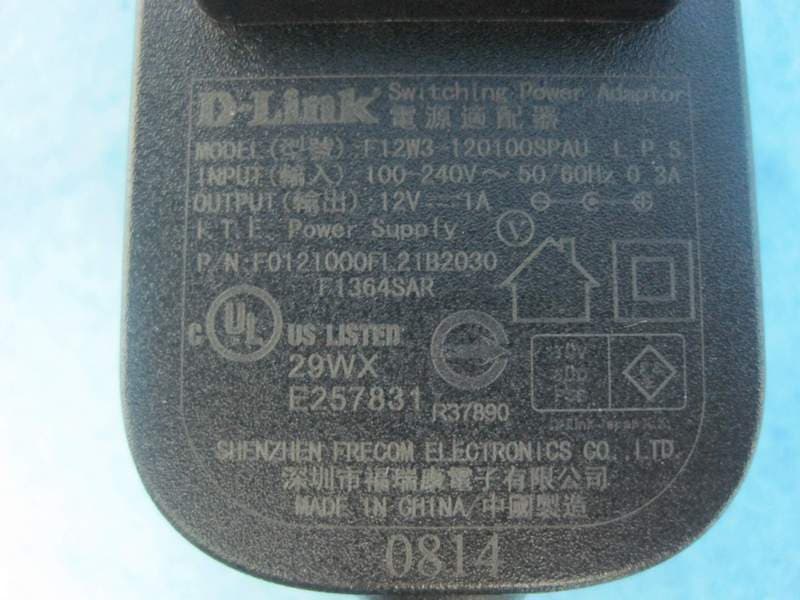

Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 1 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 2 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 3 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Wall-mounted rack Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 4 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Adapter 1 Model No.: AMS9-1201000FU2 Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 5 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 6 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Adapter 2 Model No.: F12W3-120100SPAU Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 7 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973

Label location Colors: White Black Background Texts and logos Date: 2014/4/3 Date: 2014/4/3 Date: 2014/4/3 Title: DAP-2660 Device Label Material: 50μ白特多(PET) Glossy White Polyester Film  Modified drawing Drawn by: Joan Huang Checked by: Jill Chen Approved by: Jill Chen Coated: 25μ霧面特多(PET) Matte Clear Polyester Film Unit: mm Cutting and Printing Tolerance: ±0.3mm Contents Tolerance: ±0.25mm Adhesive: 克力 Acrylic Scale: 1:1 Part No.: 9700000344DLG Rev.: 1.0 Task ID: 3770  Original drawing 廠內碳打參考 for additional printing 外印印刷稿 for printing 尺寸圖 outline dimension FCC ID: KA2AP2660A1 IC: 4216A-AP2660A1 CAN ICES-3 (B)/NMB-3(B) Model: DAP-2660A1 Made In China 4R 2.0 I.T.E. E164374 2 0 m m 35 mm Wireless AC1200 Concurrent Dual Band PoE Access Point DAP-2660 12V 1A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 8mm 4mm 1mm ERAC000113 5.2mm RXX-XXXXXX FCC ID: KA2AP2660A1 IC: 4216A-AP2660A1 CAN ICES-3 (B)/NMB-3(B) Model: DAP-2660A1 Made In China I.T.E. E164374 Wireless AC1200 Concurrent Dual Band PoE Access Point DAP-2660 12V 1A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RXX-XXXXXX 5.2mm RXX-XXXXXX

Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 1 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 2 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 3 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 4 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 5 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 6 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 7 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 8 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 9 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 10 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973 Report No.: 432156 SPORTON International Inc. PAGE NUMBER : 11 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 23, 2014 FAX : 886-3-327-0973

Report No.: FR432156 FCC ID: KA2AP2660A1 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR432156 FCC ID: KA2AP2660A1 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR432156 FCC ID: KA2AP2660A1 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PIFA Antenna Conducted Power for IEEE 802.11ac VHT40 : 16.99 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.66 2.3227 16.9910 50.0154 0.023124 1 Complies For 5GHz ISM Band: Antenna Type : PIFA Antenna Conducted Power for IEEE 802.11a : 28.46 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.64 2.9107 28.4587 701.2445 0.406275 1 Complies For 2.4GHz Band: Antenna Type : PIFA Antenna Conducted Power for IEEE 802.11b: 28.23 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.88 2.4434 28.2256 664.6069 0.323233 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.323233 / 1 + 0.406275 / 1 = 0.729508, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company D-Link Corporation Applicant Address No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. FCC ID KA2AP2660A1 Product Name Wireless AC1200 Concurrent Dual Band PoE Access Point Brand Name D-Link Model No. DAP-2660 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Mar. 03, 2014 Final Test Date Mar. 24, 2014 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a/ac (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r01, KDB 662911 D01 v02r01, KDB644545 D01v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR432156AA Report Format Version: 01 Page No. : i of ii FCC ID: KA2AP2660A1 Issued Date : Apr. 23, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................8 3.5. Table for Test Modes ...........................................................................................................................................................................9 3.6. Table for Testing Locations................................................................................................................................................................11 3.7. Table for Supporting Units .................................................................................................................................................................12 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................13 3.9. EUT Operation during Test .................................................................................................................................................................14 3.10. Duty Cycle ........................................................................................................................................................................................15 3.11. Test Configurations ...........................................................................................................................................................................19 4. TEST RESULT ................................................................................................................................................... 22 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................22 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................26 4.3. Power Spectral Density Measurement ..............................................................................................................................................29 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................41 4.5. Radiated Emissions Measurement ....................................................................................................................................................50 4.6. Emissions Measurement ....................................................................................................................................................................78 4.7. Antenna Requirements ...................................................................................................................................................................107 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 108 6. MEASUREMENT UNCERTAINTY........................................................................................................................ 110 APPENDIX A. TEST PHOTOS ....................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR432156 FCC ID: KA2AP2660A1 Page No. : C1 of C3 Appendix C. Radiated Emission Co-location Report Report No.: FR432156 FCC ID: KA2AP2660A1 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 25.1°C Humidity 50% Test Engineer YC Chen Configurations 2.4G + 5G Horizontal Report No.: FR432156 FCC ID: KA2AP2660A1 Page No. : C3 of C3 Vertial

Report No.: FR432156 FCC ID: KA2AP2660A1 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR432156 FCC ID: KA2AP2660A1 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR432156 FCC ID: KA2AP2660A1 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 4 FRONT VIEW REAR VIEW Report No.: FR432156 FCC ID: KA2AP2660A1 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Test Mode: Mode 4 FRONT VIEW REAR VIEW Report No.: FR432156 FCC ID: KA2AP2660A1 Page No. : A5 of A5 Test Configuration: Above 1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW
