KA2CHZ110A1Z-Wave Door/Window Sensor

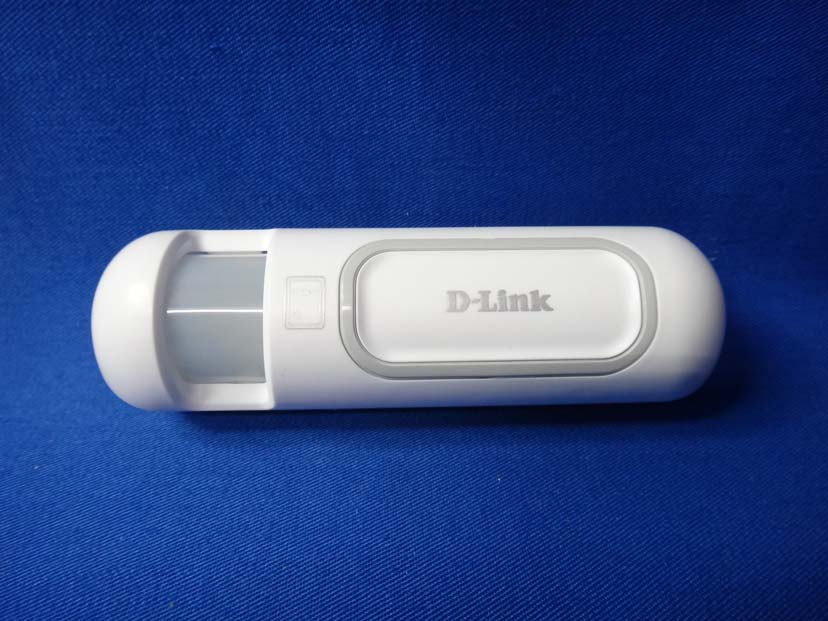

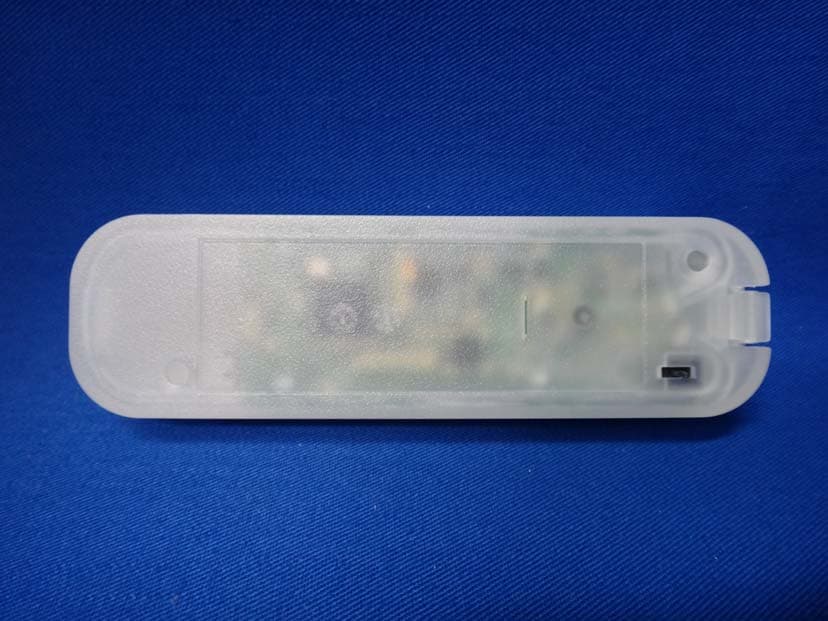

DCH-Z110/Z120 The sensor DCH-Z110/Z120 have PIR or door/window integrated with, temperature and illumination, which are 3 sensors function in one, based on Z-Wave TM technology. It is the Z-Wave TM plus product, it supports the security, OTA... Those newest features of the Z-Wave TM technology. Z-Wave TM is a wireless communication protocol designed for home automation, specifically to remotely control applications in residential and light commercial environments. The technology uses a low-power RF radio embedded or retrofitted into home electronics devices and systems, such as lighting, home access control, entertainment systems and household appliances. This product can be included and operated in any Z-Wave TM network with other Z-Wave TM certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. The device adopt the Z-Wave TM 500 series chip, when your Z-Wave TM network system is all made by Z-Wave TM 500 series devices. The network system will have the advantages as below. •Concurrent multi-channel support reduces external interference. •Better RF range, improve about 10 meters in indoor. •Support 100 Kbps transmit speed, speed up communication. Function Compare DCH-Z110/DCH-Z120 PIRDoor/WindowTemperatureIllumination DCH-Z110VVV DCH-Z120VVV Add to/Remove from Z-Wave TM Network There are two tamper keys in the device, one is in the back side, another is in the front side. Both of them can add, remove, reset or association from Z-Wave TM network. In the first time, add the device into the Z-Wave TM network. First, make sure the primary controller is in the add mode. And then power on the device, just take out the insulation Mylar in the back side of the device. The device will auto start the NWI (Network Wide Inclusion) mode. And it should be included in 5 seconds. You will see the LED light ON one second. 1 Notice: Including a node ID allocated by Z-Wave TM Controller means “Add” or “Inclusion”. Excluding a node ID allocated by Z-Wave TM Controller means “Remove” or “Exclusion”. Function Description Add 1.Have Z-Wave TM Controller entered inclusion mode. 2.Pressing tamper key three times within 1.5 seconds to enter the inclusion mode. 3.After add successful, the device will wake to receive the setting command from Z-Wave TM Controller about 20 seconds. Remove 1.Have Z-Wave TM Controller entered exclusion mode. 2.Pressing tamper key three times within 1.5 seconds to enter the exclusion mode. Node ID has been excluded. Reset Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable. 1.Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4 th pressed, and the LED will light ON. 2.After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once. 3.IDs are excluded and all settings will reset to factory default. Association 1.Have Z-Wave TM Controller entered association mode. 2.Pressing tamper key three times within 1.5 seconds to enter the association mode. Note: The device support 2 groups. The group 1 is for receiving the report message, like triggered event, temperature, illumination etc. The group 2 is for light control, the device will send the “Basic Set” command to this group. And each group support 8 nodes maximum. •Failed or success in add/remove the node ID can be viewed from Z- Wave TM Controller. Notice 1: Always RESET a Z-Wave TM device before trying to add it to a Z-Wave TM network Notice 2: When the device into NWI mode, the sensor functionality will useless. The NWI mode will timeout after 30 seconds. You can press the tamper key 3 times to abort the NWI mode. Z-Wave TM Notification After the device adding to the network, it will wake-up once per day in default. When it wake-up it will broadcast the “Wake Up Notification” message to the network, and wake-up 10 seconds for receive the setting commands. The wake-up interval minimum setting is 30 minutes, and maximum setting is 120 hours. And the interval step is 30 minutes. If the user want to wake-up the device immediately, please remove the front cover, and press the tamper key once. The device will wake-up 10 seconds. Z-Wave TM Message Report When the PIR motion triggered or the door/windows triggered, the device will report the trigger event and also report the battery status, temperature and illumination level. In default the device will using Notification Report to represent the trigger event, it can be changed to Sensor Binary Report by setting the configuration NO. 7 Bit4 to 1. 2 * Motion Report: When the PIR motion detected, the device will unsolicited to send the report to the nodes in the group 1. Notification Report (V4) Notification Type: Home Security (0x07) Event: Motion Detection, Unknown Location (0x08) Sensor Binary Report (V2) Sensor Type: Motion (0x0C) Sensor Value: 0xFF * Door/Window Report: When the door/window state changed, the device will unsolicited to send the report to the nodes in the group 1. Notification Report (V4) Notification Type: Access Control (0x06) Event: Door/Window is open (0x16) Door/Window is closed (0x17) Sensor Binary Report (V2) Sensor Type: Door/Window (0x0A) Sensor Value: 0x00 is closed, 0xFF is opened. * Tamper Report: Both the 2 tamper keys are pressed over 5 seconds. The device will into the alarm state. In that state, if any one of the tamper keys be released, the device will unsolicited to send the report to the nodes in the group 1. Notification Report (V4) Notification Type: Home Security (0x07) Event: Tampering. Product covering removed (0x03) Sensor Binary Report (V2) Sensor Type: Tamper (0x08) Sensor Value: 0xFF * Temperature Report: When the PIR motion detected or the door/window state changed, the device will unsolicited to send t…
