KA2COVRX1860A1AX1800 Dual-Band Mesh Wi-Fi 6 Router, AX1800 Dual-Band Whole Home Mesh Wi-Fi 6 System

COVR-X1863 AX1800 Dual Band Whole Home Mesh Wi-Fi 6 System Covr your Whole Home in Seamless Mesh Wi-Fi 2-Pack Coverage up to 420 sqm / 4500 sq. ft. AX1800 COVR-X1862COVR-X1860 AX1800 Dual Band Mesh Wi-Fi 6 Router Single Pack Coverage up to 230 sqm / 2500 sq. ft. 3-Pack Coverage up to 600 sqm / 6500 sq. ft. 4-Pack Coverage up to 790 sqm / 8500 sq. ft. COVR-X1864 i D-Link COVR-X1860 || COVR-X1862 || COVR-X1863 || COVR-X1864 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description 1.00 December 08, 2020 Initial release Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United Stat es or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.Apple®, Apple logo®, Safari®, iPhone®, and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App Store SM is a service mark of Apple Inc.Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.Copyright © 2020 by D-Link Corporation, Inc.All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission fr om D-Link Corporation, Inc. Power Usage ErP Power UsageThis device is an Energy Related Product (ErP) that automatically switches to a power-saving Network Standby mode within 1 minu te of no packets being transmitted. If it is not needed during certain periods of time, it can be unplugged to save energy.Network Standby: 7.07 watts Preface ii D-Link COVR-X1860 || COVR-X1862 || COVR-X1863 || COVR-X1864 User Manual Table of Contents Table of Contents Package Contents ......................................................................... 1System Requirements ................................................................. 3Introduction ................................................................................... 4Features ............................................................................................ 4Hardware Overview ..................................................................... 5 COVR-X1860 LED Indicator ................................................ 5COVR-X1860 Rear .................................................................. 6 Hardware Setup ............................................................................ 7 Using The D-Link Wi-Fi App .............................................. 7 Web Based Installation ............................................................10 Configuration ................................................................... 11 Accessing the Web User Interface ........................................11Home ..............................................................................................12 Internet ...................................................................................13COVR-X1860..........................................................................14Connected Clients ..............................................................15Extenders ...............................................................................16Mesh Network ......................................................................17 Settings ..........................................................................................18 Wizard .....................................................................................18Internet ...................................................................................19 IPv4 .....................................................................................19IPv6 .....................................................................................29 Wireless ..................................................................................40 Wi-Fi ....................................................................................40Guest Zone .......................................................................42 Network ..................................................................................43D-Link Cloud .........................................................................45Operation Mode ..................................................................46 Features ..........................................................................................47 Parental Control ..................................................................47QoS Engine............................................................................49Firewall ...................................................................................51 IPv4/IPv6 Rules ...............................................................53 Port Forwarding ..................................................................54 Port Forwarding .............................................................54Virtual Server ...................................................................55 Static Routes .........................................................................56 IPv4 .....................................................................................56IPv6 .....................................................................................57 Dynamic DNS .......................................................................58Quick VPN ..............................................................................60 Management ................................................................................61 Time & Schedule .................................................................61 Time ....................................................................................61Schedule .................…

Text truncated - open the document above for the full version.

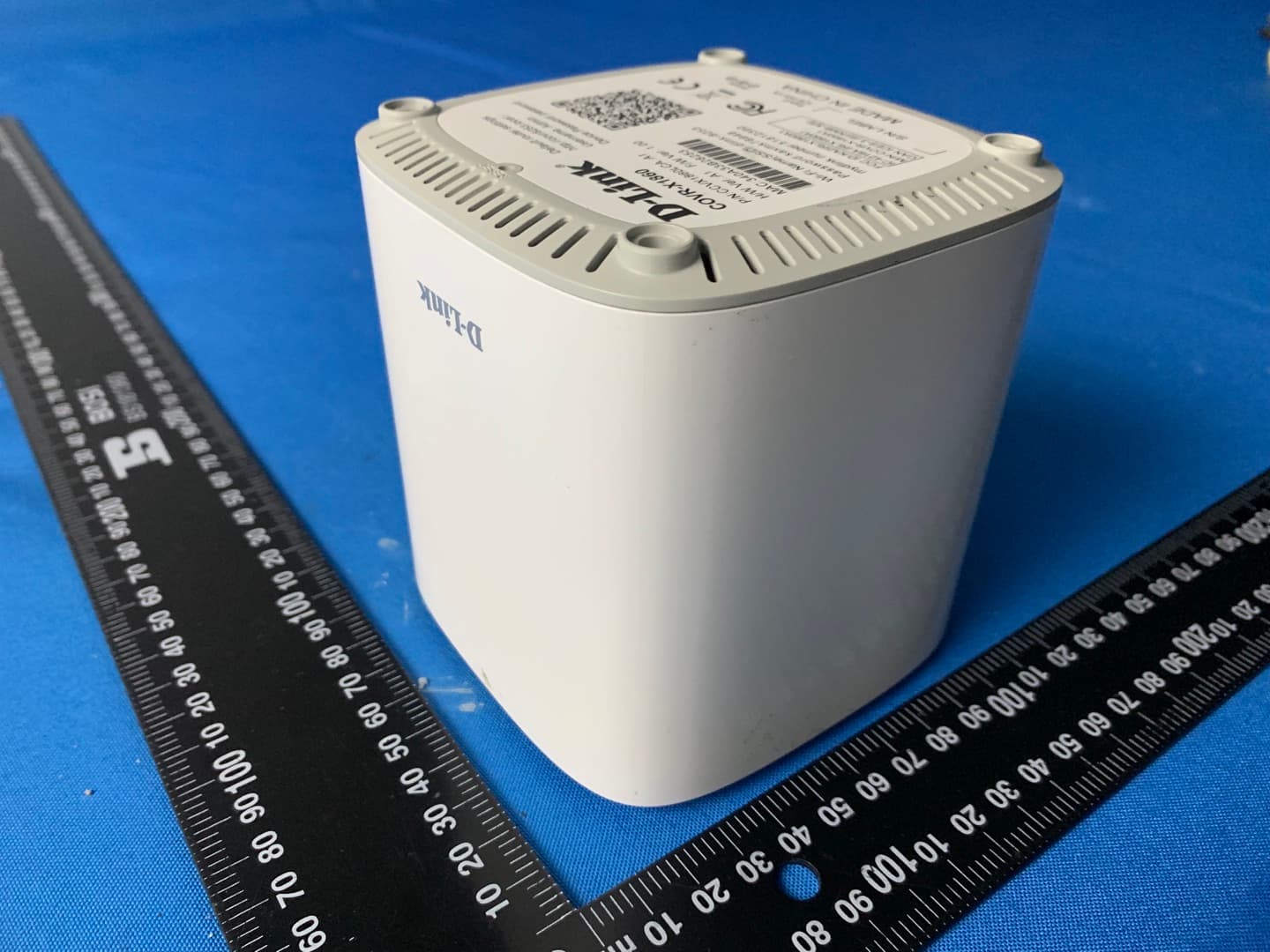

Project No.: 2011H026 Page 1 of 15 ATTACHMENT PHOTOGRAPHS OF EUT Project No.: 2011H026 Page 2 of 15 Project No.: 2011H026 Page 3 of 15

1. 黑色印刷，无边框 (Black printing,no frame) 2.材料: 50#亮白PET, 过哑面打印膜,背胶； (Material: 5 0# Bright white PET with matte printing film,adhesive) 3. 原材料及后处理工艺均能满足我司《环保技术标准》要求. (Raw materials and the corresponding post processing should meet requirements defined in the T&W Environmental Protection Technical Standards) DATE: 20-12-17 N/A V01 于辉 印刷 盒底标贴 6110000xxxx D-LINK COVR-X1860 被贴物表面(在对应的方格填充黑色)： 塑料面 塑料弧面铁机壳面/金属面 光油\覆膜彩盒 牛皮彩盒90度折角封口电源线180度对折角 电源/PLC产品高温其它() 牛皮盒\外箱光油彩盒90度折角封口 王强 N/A F/W Ver.:具体版本信息由产品经理提供(详见生产信息发布流程) MAC：由客户提供，详见生产信息发布流程 Wi-Fi Name(SSID):dlink-XXXX ——XXXX指LAN MAC地址后4位（大写） Password:XXXXXXXXXX ——共10位，由装备软件生成 mydlink number:XXXXXXXX——XXXXXXXX为数字， 见生产信息发布流程（共8码），范例：12345678 BARCODE:CODE 39 MAC，由客户提供 Wi-Fi Name，指LAN MAC地址后4位（大写） Password，共10位，由装备软件生成 二维码类型： QR CODE， 维码尺寸大于20*20mm， 维码扫描内容：(要求所有内容一行显示） 二 二 {COVR-X1860:[COVR-X1860,A1,XXXXXXXXXXXX,dlink-XXXX,XXXXXXXXXX,password]} 固定，password 打印内容字体:Arial MAC条码高度≥4mm 扫描内容不带“MAC:” 77.3mm 77.3mm 0/-0.2mm 0/-0.2mm MAC:XXXXXXXXXXXX P/N:XXXXXXXXXXXX H/W Ver.:A1 F/W Ver.:XXXXX Wi-Fi Name(SSID):dlink-XXXX Password:XXXXXXXXXX mydlink number:XXXXXXXX Default router settings: http://covrXXXX.local./ Username: Admin Device Password: password COVR-X1860 6pt 7pt http://covrXXXX.local./ XXXX指LAN MAC地址后4位（大写） 77.3mm 77.3mm 0/-0.2mm 0/-0.2mm COVR-X1860 1.以下内容作为标识标贴由供应商印刷2.以下内容工厂在供应商印刷基础上打印 1. 黑色印刷，无边框 (Black printing,no frame) 2.材料: 50#亮白PET, 过哑面打印膜,背胶； (Material: 5 0# Bright white PET with matte printing film,adhesive) 3. 原材料及后处理工艺均能满足我司《环保技术标准》要求. (Raw materials and the corresponding post processing should meet requirements defined in the T&W Environmental Protection Technical Standards) DATE: 20-12-18 N/A V01 于辉 印刷 盒底标贴 6110000xxxx D-LINK COVR-X1862 被贴物表面(在对应的方格填充黑色)： 塑料面 塑料弧面铁机壳面/金属面 光油\覆膜彩盒 牛皮彩盒90度折角封口电源线180度对折角 电源/PLC产品高温其它() 牛皮盒\外箱光油彩盒90度折角封口 王强 N/A F/W Ver.:具体版本信息由产品经理提供(详见生产信息发布流程) MAC：由客户提供，详见生产信息发布流程 Wi-Fi Name(SSID): dlink-XXXX：XXXX指套件中（如2包，3包，4包）最小的LAN MAC地址后4位（大写） Password:XXXXXXXXXX ——共10位，由装备软件生成 mydlink number:XXXXXXXX——XXXXXXXX为数字， 见生产信息发布流程（共8码），范例：12345678 BARCODE:CODE 39 打印内容字体:Arial MAC条码高度≥4mm 扫描内容不带“MAC:” 77.3mm 77.3mm 0/-0.2mm 0/-0.2mm 77.3mm 77.3mm 0/-0.2mm 0/-0.2mm MAC:XXXXXXXXXXXX P/N:XXXXXXXXXXXX H/W Ver.:A1 F/W Ver.:XXXXX Wi-Fi Name(SSID):dlink-XXXX Password:XXXXXXXXXX mydlink number:XXXXXXXX Default router settings: http://covrXXXX.local./ Username: Admin Device Password: password S/N:TR651YMXXXXXX COVR-X1862 6pt 7pt {COVR-X1862:[COVR-X1860,A1,XXXXXXXXXXXX,dlink-XXXX,XXXXXXXXXX,password];[COVR-X1860,A1,XXXXXXXXXXXX,dlink-XXXX,XXXXXXXXXX,password]} 二维码类型：QR CODE，二维码尺寸大于20*20mm， 二维码扫描内容：(要求所有内容一行显示） 产品MAC①，由客户提供，详见生产信息发布流程 Wi-Fi Name，指两套件中最小的LAN MAC地址后4位（大写） Password，共10位，由装备软件生成 产品MAC②，由客户提供，详见生产信息发布流程 Wi-Fi Name，指两套件中最小的LAN MAC地址后4位（大写） Password，共10位，由装备软件生成 注：①，②为双包套装中的两台产品的MAC 编码规则：TR651YMXXXXXX TR651:前5位固定(“1”为数字） M:1位,代表月份,取值1-9,A,B,C分别代表10,11,12 XXXXXX:6位,取值由000001-999999(参照生产流水号) 参照下表 Y:1位,代表年份 如2020-0,2021-1,...,2029-9， 从2030年开始由英文字母A,B,C...J分别代表2030,2031,2032...2039 注意2040年重新由0开始取值,如2040-0,2041-1...2050-A,2051-B... 卷装来料 1.以下内容作为标识标贴由供应商印刷 2.以下内容工厂在供应商印刷基础上打印 http://covrXXXX.local./ XXXX指LAN MAC地址后4位（大写） 1. 黑色印刷，无边框 (Black printing,no frame) 2.材料: 50#亮白PET, 过哑面打印膜,背胶； (Material: 5 0# Bright white PET with matte printing film,adhesive) 3. 原材料及后处理工艺均能满足我司《环保技术标准》要求. (Raw materials and the corresponding post processing should meet requirements defined in the T&W Environmental Protection Technical Standards) DATE: 20-12-18 N/A V01 于辉 印刷 盒底标贴 6110000xxxx D-LINK COVR-X1863 被贴物表面(在对应的方格填充黑色)： 塑料面 塑料弧面铁机壳面/金属面 光油\覆膜彩盒 牛皮彩盒90度折角封口电源线180度对折角 电源/PLC产品高温其它() 牛皮盒\外箱光油彩盒90度折角封口 王强 N/A F/W Ver.:具体版本信息由产品经理提供(详见生产信息发布流程) MAC：由客户提供，详见生产信息发布流程 Wi-Fi Name(SSID): dlink-XXXX：XXXX指套件中（如2包，3包，4包）最小的LAN MAC地址后4位（大写） Password:XXXXXXXXXX ——共10位，由装备软件生成 mydlink number:XXXXXXXX——XXXXXXXX为数字， 见生产信息发布流程（共8码），范例：12345678 BARCODE:CODE 39 打印内容字体:Arial MAC条码高度≥4mm 扫描内容不带“MAC:” 77.3mm 77.3mm 0/-0.2mm 0/-0.2mm MAC:XXXXXXXXXXXX P/N:XXXXXXXXXXXX H/W Ver.:A1 F/W Ver.:XXXXX Wi-Fi Name(SSID):dlink-XXXX Password:XXXXXXXXXX mydlink number:XXXXXXXX Default router settings: http://covrXXXX.local./ Username: Admin Device Password: password S/N:TR651YMXXXXXX COVR-X1863 77.3mm 77.3mm 0/-0.2mm 0/-0.2mm 6pt 7pt 编码规则：TR651YMXXXXXX TR651:前5位固定(“1”为数字） M:1位,代表月份,取值1-9,A,B,C分别代表10,11,12 XXXXXX:6位,取值由000001-999999(参照生产流水号) 参照下表 Y:1位,代表年份 如2020-0,2021-1,...,2029-9， 从2030年开始由英文字母A,B,C...J分别代表2030,2031,2032...2039 注意2040年重新由0开始取值,如2040-0,2041-1...2050-A,2051-B... 卷装来料 {COVR-X1863:[COVR-X1860,A1,XXXXXXXXXXXX,dlink-XXXX,XXXXXXXXXX,password];[COVR-X1860,A1,XXXXXXXXXXXX,dlink-XXXX,XXXXXXXXXX,password];[COVR-X1860,A1,XXXXXXXXXXXX,dlink-XXXX,XXXXXXXXXX,password]} 二维码类型：QR CODE，二维码尺寸大于20*20mm， 二维码扫描内容：(要求所有内容一行显示） 产品MAC①，由客户提供，详见生产信息发布流程 Wi-Fi Name，指三套件中最小的LAN MAC地址后4位（大写） Password，共10位，由装备软件生成 产品MAC②，由客户提供，详见生产信息发布流程 Wi-Fi Name，指三套件中最小的LAN MAC地址后4位（大写） Password，共10位，由装备软件生成 产品MAC③，由客户提供，详见生产信息发布流程 Wi-Fi Name，指三套件中最小的LAN MAC地址后4位（大写） Password，共10位，由装备软件生成 注：①，②，③为三包套装中的三台产品的MAC 1.以下内容作为标识标贴由供应商印刷 2.以下内容工厂在供应商印刷基础上打印 http://covrXXXX.local./ XXXX指LAN MAC地址后4位（大写） 1. 黑色印刷，无边框 (Black printing,no frame) 2.材料: 50#亮白PET, 过哑面打印膜,背胶； (Material: 5 0# Bright white PET with matte printing film,adhesive) 3. 原材料及后处理工艺均能满足我司《环保技术标准》要求. (Raw materials and the corresponding post processing should meet requirements defined in the T&W Environmental Protection Technical Standards) DATE: 20-12-18 N/A V01 于辉 印刷 盒底标贴 6110000xxxx D-LINK COVR-X1864 被贴物表面(在对应的方格填充黑色)： 塑料面 塑料弧面铁机壳面/金属面 光油\覆膜彩盒 牛皮彩盒90度折角封口电源线180度对折角 电源/PLC产品高温其它() 牛皮盒\外箱光油彩盒90度折角封口 王强 N/A F/W Ver.:具体版本信息由产品经理提供(详见生产信息发布流程) MAC：由客户提供，详见生产信息发布流程 Wi-Fi Name(SSID): dlink-XXXX：XXXX指套件中（如2包，3包，4包）最小的LAN MAC地址后4位（大写） Password:XXXXXXXXXX ——共10位，由装备软件生成 mydlink number:XXXXXXXX——XXXXXXXX为数字， 见生产信息发布流程（共8码），范例：12345678 BARCODE:CODE 39 打印内容字体:Arial MAC条码高度≥4mm 扫描内容不带“MAC:” 77.3mm 77.3mm 0/-0.2mm 0/-0.2mm MAC:XXXXXXXXXXXX P/N:XXXXXXXXXXXX H/W Ver.:A1 F/W Ver.:XXXXX Wi-Fi Name(SSID):dlink-XXXX Password:XXXXXXXXXX mydlink number:XXXXXXXX Default router setting…

Text truncated - open the document above for the full version.

Project No.: 2011H026 Page 4 of 15 2.4G Ant. 1 2.4G Ant. 2 5G Ant. 1 5G Ant. 2 Project No.: 2011H026 Page 5 of 15 Project No.: 2011H026 Page 6 of 15 Project No.: 2011H026 Page 7 of 15 Project No.: 2011H026 Page 8 of 15 Project No.: 2011H026 Page 9 of 15 Project No.: 2011H026 Page 10 of 15 Project No.: 2011H026 Page 11 of 15 Project No.: 2011H026 Page 12 of 15 Adapter: MAUS-1201001202 Project No.: 2011H026 Page 13 of 15 Project No.: 2011H026 Page 14 of 15 Adapter: S12A12-120A100-CJ Project No.: 2011H026 Page 15 of 15

Report No.: BTL-FCCP-4-2011H026 Page 1 of 5 FCC RF EXPOSURE REPORT FCC ID: KA2COVRX1860A1 Project No. : 2011H026 Equipment : 1) AX1800 Dual-Band Mesh Wi-Fi 6 Router 2) AX1800 Dual-Band Whole Home Mesh Wi-Fi 6 System Brand Name : D-Link Test Model : COVR-X1860 Series Model : COVR-X1862, COVR-X1863, COVR-X1864 Applicant : D-Link Corporation Address : 17595 Mt. Herrmann, Fountain Valley, California United State 92708 Manufacturer : D-Link Corporation Address : 17595 Mt. Herrmann, Fountain Valley, California United State 92708 Date of Receipt : Nov. 12, 2020 Date of Test : Nov. 12, 2020 ~ Jan. 03, 2021 Issued Date : Jan. 07, 2021 Report Version : R01 Test Sample : Engineering Sample No.: DG20201109112 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-4-2011H026 Page 2 of 5 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Jan. 06, 2021 R01 Modified the comments of TCB. Jan. 07, 2021 Report No.: BTL-FCCP-4-2011H026 Page 3 of 5 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: For WLAN 2.4GHz: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 RFlink RF11C00405A Internal N/A 2 2 RFlink RF11C00406A Internal N/A 2 Note: 1) This EUT supports MIMO 2X2, any transmit signals are correlated with each other, so Directional gain=G ANT +10log(N)dBi, that is Directional gain=2+10log(2)dBi=5.01. 2) Beamforming Gain: 3 dB. So Directional gain=3+2=5. 3) The antenna gain is provided by the manufacturer. For 5GHz: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 RFlink RF11C00466A Internal N/A 2 2 RFlink RF11C00467A Internal N/A 2 Note: 1) This EUT supports MIMO 2X2, any transmit signals are correlated with each other, so Directional gain=G ANT +10log(N)dBi, that is Directional gain=2+10log(2)dBi=5.01. 2) Beamforming Gain: 3 dB. So Directional gain=3+2=5. 3) The antenna gain is provided by the manufacturer. Report No.: BTL-FCCP-4-2011H026 Page 4 of 5 3. TEST RESULTS For 2.4GHz Non Beamforming: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.01 3.1696 24.64 291.0717 0.18363 1 Complies For 2.4GHz Beamforming: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5 3.1623 24.33 271.0192 0.17059 1 Complies For 5GHz UNII-1 Non Beamforming: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.01 3.1696 26.92 492.0395 0.31042 1 Complies For 5GHz UNII-2A Non Beamforming: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.01 3.1696 23.78 238.7811 0.15064 1 Complies For 5GHz UNII-2C Non Beamforming: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.01 3.1696 23.61 229.6149 0.14486 1 Complies For 5GHz UNII-3 Non Beamforming: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.01 3.1696 27.35 543.2503 0.34273 1 Complies Report No.: BTL-FCCP-4-2011H026 Page 5 of 5 For 5GHz UNII-1 Beamforming: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5 3.1623 26.55 451.8559 0.28441 1 Complies For 5GHz UNII-2A Beamforming: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5 3.1623 23.68 233.3458 0.14688 1 Complies For 5GHz UNII-2C Beamforming: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5 3.1623 23.39 218.2730 0.13739 1 Complies For 5GHz UNII-3 Beamforming: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5 3.1623 27.03 504.6613 0.31765 1 Complies For the max simultaneous transmission MPE: Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) Total Limit of Power Density (S) (mW/cm 2 ) Test Result 2.4GHz 5GHz 0.18363 0.34273 0.52636 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-3-2011H026 Page 1 of 204 FCC Radio Test Report FCC ID: KA2COVRX1860A1 This report concerns: Original Grant Project No. : 2011H026 Equipment : 1) AX1800 Dual-Band Mesh Wi-Fi 6 Router 2) AX1800 Dual-Band Whole Home Mesh Wi-Fi 6 System Brand Name : D-Link Test Model : COVR-X1860 Series Model : COVR-X1862, COVR-X1863, COVR-X1864 Applicant : D-Link Corporation Address : 17595 Mt. Herrmann, Fountain Valley, California United State 92708 Manufacturer : D-Link Corporation Address : 17595 Mt. Herrmann, Fountain Valley, California United State 92708 Date of Receipt : Nov. 12, 2020 Date of Test : Nov. 12, 2020 ~ Jan. 03, 2021 Issued Date : Jan. 07, 2021 Report Version : R01 Test Sample : Engineering Sample No.: DG20201109112 Standard(s) : FCC Part 15, Subpart E (Section 15.407) FCC KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 FCC KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2011H026 Page 2 of 204 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL’s reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority’s logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-3-2011H026 Page 3 of 204 Table of Contents Page REPORT ISSUED HISTORY 4 1 . EUT INFORMATION 5 1.1 EUT SPECIFICATION TABLE 5 1.2 OUTPUT POWER AND EIRP 9 1.3 TRANSMIT POWER CONTROL (TPC) 10 2 . U-NII DFS RULE REQUIREMENTS 11 2.1 WORKING MODES AND REQUIRED TEST ITEMS 11 2.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS 12 3 . TEST INSTRUMENTS 14 4 . DYNAMIC FREQUENCY SELECTION (DFS) TEST 15 4.1 DFS MEASUREMENT SYSTEM 15 4.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL 20 4.3 DEVIATION FROM TEST STANDARD 20 5 . TEST RESULTS 21 5.1 SUMMARY OF TEST RESULT 21 5.2 TEST MODE 22 5.3 DFS DETECTION THRESHOLD 22 5.4 CHANNEL AVAILABILITY CHECK TIME 162 5.5 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME WLAN TRAFFIC 174 5.6 NON- OCCUPANCY PERIOD 195 5.7 U-NII DETECTION BANDWIDTH 197 6 . EUT TEST PHOTO 204 Report No.: BTL-FCCP-3-2011H026 Page 4 of 204 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jan. 06, 2021 R01 Modified the comments of TCB. Jan. 07, 2021 Report No.: BTL-FCCP-3-2011H026 Page 5 of 204 1. EUT INFORMATION 1.1 EUT SPECIFICATION TABLE Table 1: Specification of EUT Equipment 1) AX1800 Dual-Band Mesh Wi-Fi 6 Router 2) AX1800 Dual-Band Whole Home Mesh Wi-Fi 6 System Brand Name D-Link Test Model COVR-X1860 Series Model COVR-X1862, COVR-X1863, COVR-X1864 Model Difference(s) All versions of the Models are electrically equal except for model name and number of packages. COVR-X1860: Single Pack COVR-X1862: Double Pack COVR-X1863: Three Pack COVR-X1864: Four Pack Power Source DC voltage supplied from AC adapter. 1# Manufacturer / Model: MNC / MAUS-1201001202 2# Manufacturer / Model: Gongjin / S12A12-120A100-CJ Power Rating 1# I/P: 100-240V~ 50/60Hz 0.35A O/P: 12V −−− 1.0A 2# I/P: 100-240V~ 50/60Hz 0.5A max O/P: 12V −−− 1A Operational Mode Master Operation Frequency Bands UNII-2A: 5250 MHz ~ 5350 MHz UNII-2C: 5470 MHz ~ 5725 MHz Modulation Type IEEE 802.11a/n/ac: OFDM IEEE 802.11ax: OFDMA Bit Rate of Transmitter IEEE 802.11a: 54/48/36/24/18/12/9/6 Mbps IEEE 802.11n: up to 300 Mbps IEEE 802.11ac: up to 866.7 Mbps IEEE 802.11ax: up to 1201 Mbps Note: This device was functioned as a Master Slave device without radar detection Slave device with radar detection Report No.: BTL-FCCP-3-2011H026 Page 6 of 204 Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the user's manual. 2. Channel List: IEEE 802.11a IEEE 802.11n(HT20) IEEE 802.11ac(VHT20) IEEE 802.11ax(HE20) IEEE 802.11n(HT40) IEEE 802.11ac(VHT40) IEEE 802.11ax(HE40) IEEE 802.11ac(VHT80) IEEE 802.11ax(HE80) UNII-2A UNII-2A UNII-2A Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 52 5260 54 5270 58 5290 56 5280 62 5310 60 5300 64 5320 IEEE 802.11a IEEE 802.11n(HT20) IEEE 802.11ac…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-3-2011H026 Page 173 of 204 IEEE 802.11ax(HE20) Mode Radar Burst at the End of the Channel Availability Check Time Note: T1 denotes the end of power up time period is 9 second. T3 denotes 63 second and radar burst was commenced within 54 second to 60 second indow starting from the end of power-up sequence. T4 denotes the 69 second. Report No.: BTL-FCCP-3-2011H026 Page 174 of 204 5.5 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME WLAN TRAFFIC TX (IEEE 802.11a Mode) Radar signal 0 Note: T0 denotes the Radar Injection Start. T1 denotes the start of Channel Move Time upon the end of the last Radar burst. T2 denotes the data transmission time of 200ms from T1. T3 denotes the end of Channel Move Time. Note: An expanded plot for the device vacates the channel in the required 500ms Report No.: BTL-FCCP-3-2011H026 Page 175 of 204 TX (IEEE 802.11n(HT40) Mode) Radar signal 0 Note: T0 denotes the Radar Injection Start. T1 denotes the start of Channel Move Time upon the end of the last Radar burst. T2 denotes the data transmission time of 200ms from T1. T3 denotes the end of Channel Move Time. Note: An expanded plot for the device vacates the channel in the required 500ms Report No.: BTL-FCCP-3-2011H026 Page 176 of 204 TX (IEEE 802.11ac(VHT80) Mode) Radar signal 0 Note: T0 denotes the Radar Injection Start. T1 denotes the start of Channel Move Time upon the end of the last Radar burst. T2 denotes the data transmission time of 200ms from T1. T3 denotes the end of Channel Move Time. Note: An expanded plot for the device vacates the channel in the required 500ms Report No.: BTL-FCCP-3-2011H026 Page 177 of 204 TX (IEEE 802.11ax(HE20) Mode) Radar signal 0 Note: T0 denotes the Radar Injection Start. T1 denotes the start of Channel Move Time upon the end of the last Radar burst. T2 denotes the data transmission time of 200ms from T1. T3 denotes the end of Channel Move Time. Note: An expanded plot for the device vacates the channel in the required 500ms Report No.: BTL-FCCP-3-2011H026 Page 178 of 204 IEEE 802.11a Mode Item Measured Value(s) Limit(s) Channel Move Time 1.1169721 10 Channel Close Time 0.0129997 200 milliseconds + an aggregate of 60 milliseconds over remaining 10 second period. IEEE 802.11n(HT40) Mode Item Measured Value(s) Limit(s) Channel Move Time 0.9769756 10 Channel Close Time 0.0114997 200 milliseconds + an aggregate of 60 milliseconds over remaining 10 second period. IEEE 802.11ac(VHT80) Mode Item Measured Value(s) Limit(s) Channel Move Time 0.2379941 10 Channel Close Time 0.0 200 milliseconds + an aggregate of 60 milliseconds over remaining 10 second period. IEEE 802.11ax(HE20) Mode Item Measured Value(s) Limit(s) Channel Move Time 0.9819755 10 Channel Close Time 0.0124997 200 milliseconds + an aggregate of 60 milliseconds over remaining 10 second period. Report No.: BTL-FCCP-3-2011H026 Page 179 of 204 TX (IEEE 802.11a Mode) Table 1: Short Pulse Radar Test Waveforms. Radar Type Pulse Width (μsec) PRI (μsec) Number of Pulses Pass times Fail times Percentage of Successful Detection (%) 1 1 26 4 87 2 1-5 150-230 23-29 26 4 87 3 6-10 200-500 16-18 24 6 80 4 11-20 200-500 12-16 24 6 80 Aggregate (Radar Types 1-4) - 100 20 83 Table 2: Long Pulse Radar Test Waveform Radar Type Pulse Width (μsec) Chirp Width (MHz) PRI (μsec) Number of Pulses Per Burst Number of Bursts Pass times Fail times Percentage of Successful Detection (%) 5 50-100 5-20 1000-2000 1-3 8-20 29 1 97 Table 3: Frequency Hopping Radar Test Waveform Radar Type Pulse Width (μsec) PRI (μsec) Pulses per Hop Hopping Rate (kHz) Hopping Sequence Length (msec) Pass times Fail times Percentage of Successful Detection (%) 6 1 333 9 0.333 300 28 2 93 Report No.: BTL-FCCP-3-2011H026 Page 180 of 204 Radar Type Trial # Detection Trial # Detection YES / NO YES / NO Type1 1 YES 16 YES 2 YES 17 YES 3 YES 18 YES 4 NO 19 YES 5 YES 20 YES 6 YES 21 YES 7 YES 22 YES 8 YES 23 YES 9 YES 24 YES 10 YES 25 YES 11 YES 26 YES 12 YES 27 YES 13 NO 28 YES 14 NO 29 YES 15 NO 30 YES Type2 1 YES 16 NO 2 YES 17 YES 3 NO 18 YES 4 YES 19 YES 5 YES 20 YES 6 YES 21 YES 7 YES 22 NO 8 YES 23 YES 9 YES 24 NO 10 YES 25 YES 11 YES 26 YES 12 YES 27 YES 13 YES 28 YES 14 YES 29 YES 15 YES 30 YES Report No.: BTL-FCCP-3-2011H026 Page 181 of 204 Radar Type Trial # Detection Trial # Detection YES / NO YES / NO Type3 1 YES 16 YES 2 YES 17 YES 3 YES 18 YES 4 YES 19 YES 5 NO 20 YES 6 YES 21 NO 7 NO 22 YES 8 YES 23 YES 9 YES 24 YES 10 NO 25 YES 11 NO 26 YES 12 YES 27 NO 13 YES 28 YES 14 YES 29 YES 15 YES 30 YES Type4 1 YES 16 YES 2 NO 17 YES 3 YES 18 YES 4 YES 19 YES 5 NO 20 YES 6 YES 21 YES 7 NO 22 NO 8 YES 23 YES 9 YES 24 YES 10 NO 25 YES 11 NO 26 YES 12 YES 27 YES 13 YES 28 YES 14 YES 29 YES 15 YES 30 YES Report No.: BTL-FCCP-3-2011H026 Page 182 of 204 Radar Type Trial # Detection Trial # Detection YES / NO YES / NO Type5 1 YES 16 YES 2 YES 17 YES 3 YES 18 YES 4 YES 19 YES 5 YES 20 NO 6 YES 21 YES 7 YES 22 YES 8 YES 23 YES 9 YES 24 YES 10 YES 25 YES 11 YES 26 YES 12 YES 27 YES 13 YES 28 YES 14 YES 29 YES 15 YES 30 YES Radar Type Trial # Detection Trial # Detection YES / NO YES / NO Type6 1 YES 16 YES 2 YES 17 YES 3 YES 18 YES 4 YES 19 YES 5 NO 20 YES 6 YES 21 YES 7 YES 22 NO 8 YES 23 YES 9 YES 24 YES 10 YES 25 YES 11 YES 26 YES 12 YES 27 YES 13 YES 28 YES 14 YES 29 YES 15 YES 30 YES Report No.: BTL-FCCP-3-2011H026 Page 183 of 204 TX (IEEE 802.11n(HT40) Mode) Table 1: Short Pulse Radar Test Waveforms. Radar Type Pulse Width (μsec) PRI (μsec) Number of Pulses Pass times Fail times Percentage of Successful Detection (%) 1 1 29 1 97 2 1-5 150-230 23-29 26 4 87 3 6-10 200-500 16-18 27 3 90 4 11-20 200-500 12-16 25 5 83 Aggregate (Radar Types 1-4) - 107 13 89 Table 2: Long Pulse Radar Test Waveform Radar Type Pulse Width (μsec) Chirp Width (MHz) PRI (μsec)…
