KA2CS2132LA1HD Wirless N Cube Network Camera

If any of the items are missing, please contact your reseller. Before You Install In order to successfully install your camera, make sure you have the following: • An Internet connection • A router connected to your broadband modem • A PC running Windows ® XP or Vista ® (32/64-bit) with Internet Explorer ® 7 or higher and ActiveX ® controls enabled DCS-2132L Network Camera Power Adapter CAT5 UTP Ethernet Cable CD-ROM with Manual and Software Package Contents 3 ENGLISH Do not mount or connect your camera yet! 1. Remove the installation CD from your package. 2. Put the CD into your PC’s CD-ROM drive, and make sure your computer has an Internet connection. The Installation Wizard will start automatically. If the Installation Wizard does not start, open the CD from My Computer, and double-click the autorun.exe file. Vista ® Users: You need to be logged in to an account with administrative access to use the D-Link Installation Wizard. If you see the following screen appear, select a user account with administrative access, enter the password if needed, then click OK. Start the Installation Wizard If you see this screen appear, click Allow to continue. 4 ENGLISH 4. Getting started with mydlink: A. Open Internet Explorer and go to http://www.mydlink.com B. Click on the Sign In link at the top-right of the home page, then sign in to your mydlink account. C. Select your camera from the device list, and your camera’s Live View will appear 3. Click on the Start button to start the wizard, and follow the instructions from the Installation Wizard to finish setting up your camera. 5 ENGLISH NOTE: If using non-IE browsers to view the camera web manager, in order to have all functions working properly, make sure VLC Mozilla plug-in and Java JRE are both installed in your computer. 1. Download the VLC file from WEB site. 2. Execute the program and setup the configurations of the software. 3. Enable the “Mozilla plug-in” to install the components. 4. Finished the installation, then you can see the live video in the browser. 6 ENGLISH Troubleshooting FAQs 1. What can mydlink.com do for me? mydlink.com provides users with a quick and easy way to view or manage multiple cameras over the Internet. You can add your camera to your mydlink.com account after running the Installation Wizard. Users can sign in to mydlink and access their devices under their account from a PC connected to the Internet anytime, anywhere. 2. What is mydlink No.? What is it used for? Each camera has a unique 8-digit mydlink No. which will be shown on the label on the back of your camera. This 8-digit number identifies your device, and is required to add your device to your mydlink.com account. 3. What can I do if my DCS-2132L is not working correctly? • Try using the wizard on the included CD. • To make sure your hardware is installed correctly, make sure that: - the back LED is lit solid green - your Internet connection is working - your router’s LAN & WAN connections are ok - your router supports UPnP ® - your camera is on the same network as your PC - both your PC and camera have a working Internet connection • If your camera is still not working, check your router and make sure it is using the latest firmware. 4. I cannot run the CD wizard. How do I install my DCS-2132L? You can install your camera by using the online wizard: • Go to mydlink portal 2. Click into the Support page 3. Support page for selecting camera to download the online wizard 1. Select the language 7 ENGLISH TECHNICAL SUPPORT Australia: Tel: 1300-766-868 24/7 Technical Support Web: http://www.dlink.com.au E-mail: [email protected] India: Tel: +91-22-27626600 Toll Free 1800-22-8998 Web: www.dlink.co.in E-Mail: [email protected] Singapore, Thailand, Indonesia, Malaysia, Philippines, Vietnam: Singapore - www.dlink.com.sg Thailand - www.dlink.co.th Indonesia - www.dlink.co.id Malaysia - www.dlink.com.my Philippines - www.dlink.com.ph Vietnam - www.dlink.com.vn Korea: Tel : +82-2-2028-1810 Monday to Friday 9:00am to 6:00pm Web : http://d-link.co.kr E-mail : [email protected] New Zealand: Tel: 0800-900-900 24/7 Technical Support Web: http://www.dlink.co.nz E-mail: [email protected] South Africa and Sub Sahara Region: Tel: +27 12 661 2025 08600 DLINK (for South Africa only) Monday to Friday 8:30am to 9:00pm South Africa Time Web: http://www.d-link.co.za E-mail: [email protected] Saudi Arabia (KSA): Tel: +966 01 217 0008 Fax: +966 01 217 0009 Saturday to Wednesday 9.30AM to 6.30PM Thursdays 9.30AM to 2.00 PM E-mail: [email protected] D-Link Middle East - Dubai, U.A.E. Plot No. S31102, Jebel Ali Free Zone South, P.O.Box 18224, Dubai, U.A.E. Tel: +971-4-8809022 Fax: +971-4-8809066 / 8809069 Technical Support: +971-4-8809033 General Inquiries: [email protected] Tech Support: [email protected] Egypt 1, Makram Ebeid Street - City Lights Building Nasrcity - Cairo, Egypt Floor 6, office C2 Tel.: +2 02 26718375 - +2 02 26717280 Technical Support: +2 02 26738470 General Inquiries: [email protected] Tech Support: [email protected] Kingdom of Saudi Arabia Office # 84 , Al Khaleej Building ( Mujamathu Al-Khaleej) Opp. King Fahd Road, Olaya Riyadh - Saudi Arabia Tel: +966 1 217 0008 Technical Support: +966 1 2170009 / +966 2 6522951 General Inquiries: [email protected] Tech Support: [email protected] Pakistan Islamabad Office: 61-A, Jinnah Avenue, Blue Area, Suite # 11, EBC, Saudi Pak Tower, Islamabad - Pakistan Tel.: +92-51-2800397, 2800398 Fax: +92-51-2800399 Karachi Office: D-147/1, KDA Scheme # 1, Opposite Mudassir Park, Karsaz Road, Karachi – Pakistan Phone: +92-21-34548158, 34326649 Fax: +92-21-4375727 Technical Support: +92-21-34548310, 34305069 General Inquiries: [email protected] Tech Support: [email protected] You can find software updates and user documentation on the D-Link website. Tech Support for customers in 8 ENGLISH TECHNICAL SUPPORT Iran Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest St. , Argentine Sq. , Tehra…

Text truncated - open the document above for the full version.

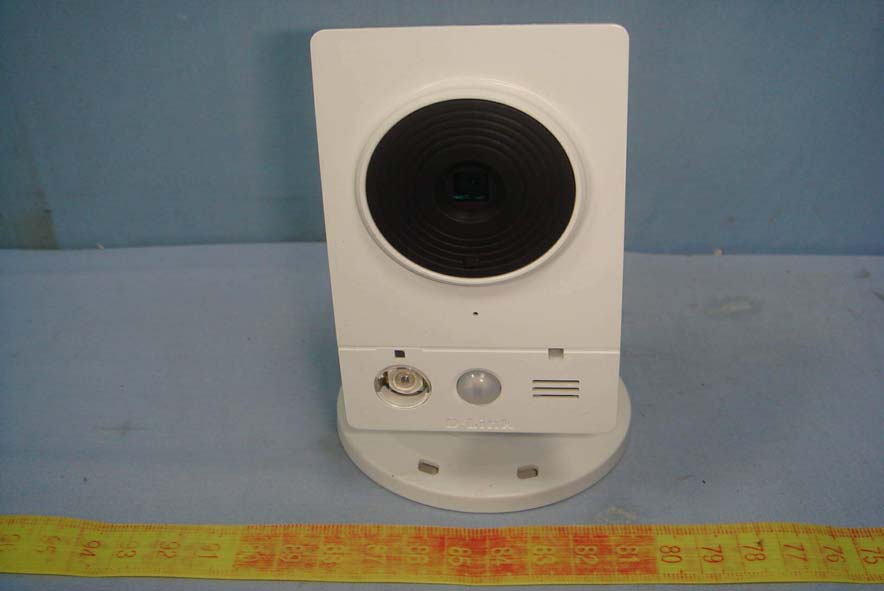

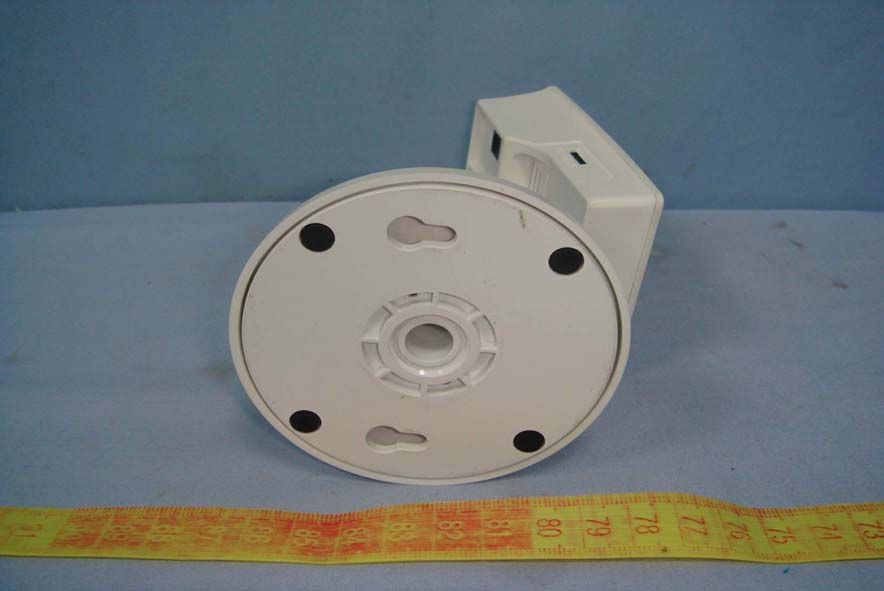

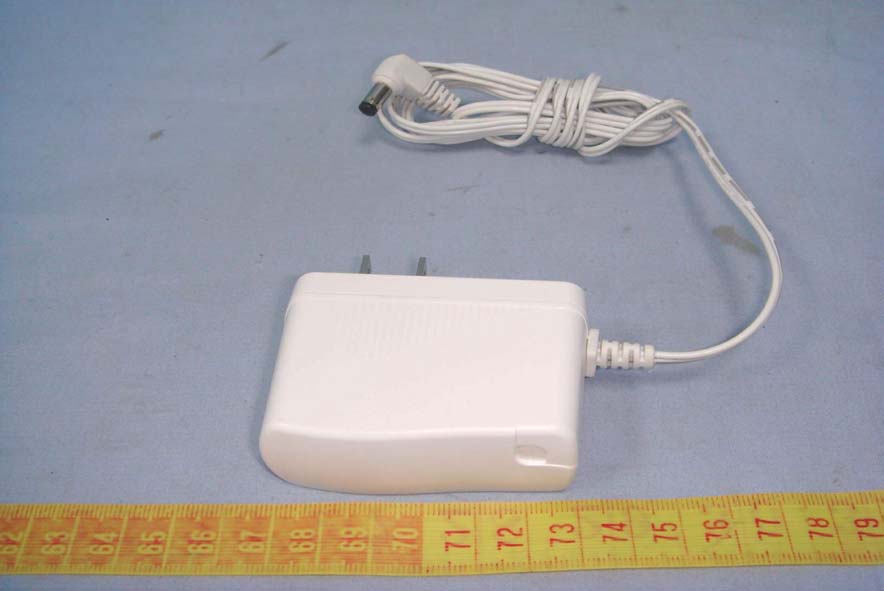

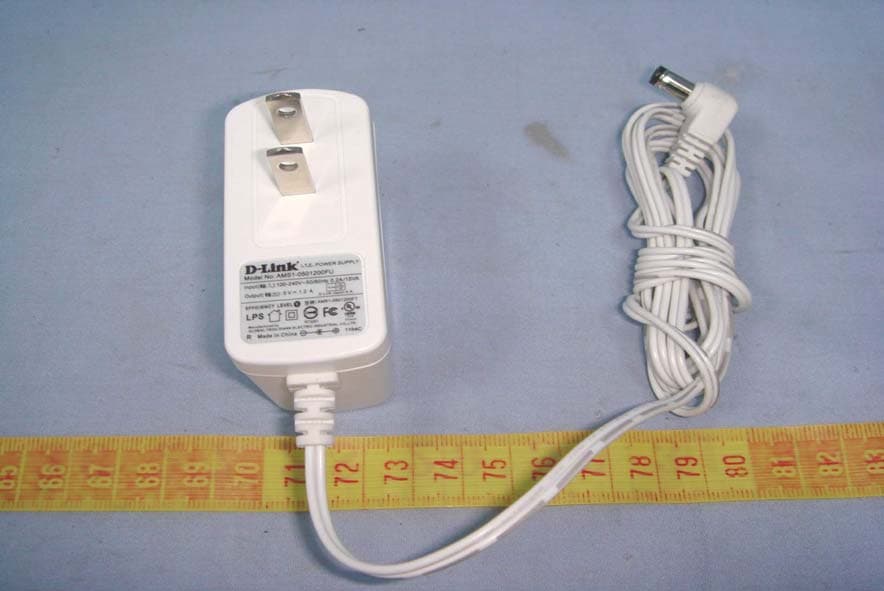

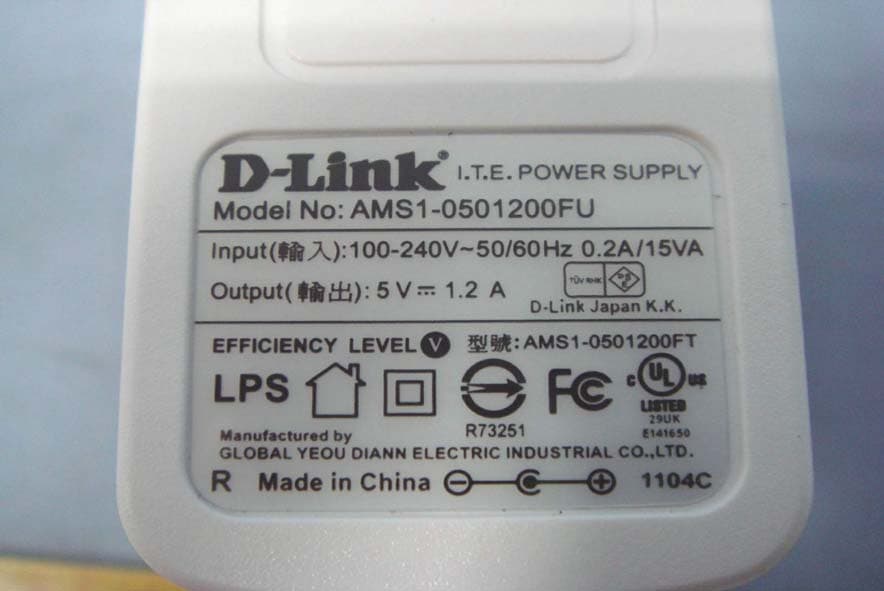

Report No: T120306J02 Page 1 / 9 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT DCS-2132L Report No: T120306J02 Page 2 Rev.00 Report No: T120306J02 Page 3 Rev.00 Report No: T120306J02 Page 4 Rev.00 AMS1-0501200FU Report No: T120306J02 Page 5 Rev.00

Label Here S/N: QEXXXXXXXXXXX H/W Ver.:XX F/W Ver.:X.XX (NTSC) DCS-2132L FCC ID: KA2CS2132LA1 IC: 4216A-CS2132LA1 Model: DCS-2132LA1 MAC: XXXXXXXXXXXXX mydlink: XXXXXXXX P/N: XXXXXXXXXXXXXXX

Report No: T120306J02 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T120306J02 Page 7 Rev.00 Report No: T120306J02 Page 8 Rev.00 RF Module Antenna Report No: T120306J02 Page 9 Rev.00

Intended use:H.264 Wire/Wireless Cube Network Camera for remote control site. Operation theory：CMOS sensor captures the video single and Digital Media processor will deal with the video image and decode the video image to the date. NAND flash recorder the video image. Transmitting the video image to remote control site by Wi-Fi module or 10/100Mbps Ethernet. Antenna type: Multilayer Chip Antenna Antenna gain: Peak gain is 0.5 dBi typ. and average gain is -0.5 dBi typ. Operating frequency:802.11b/g for 2412-2462MHz and 11CHs. 802.11n(HT-20 )1x1 SISO device for 2412-2462MHz and 11CHs. 802.11n(HT-40) 1x1 SISO device for 2422-2452MHz and 7CHs.

G G a a i i n n F F o o r r c c e e T T e e c c h h n n o o l l o o g g y y C C o o . . , , L L t t d d 嘉光科技股份有限公司 R&D / PE / QC /PURCHASE / VENDOR 承認書 A A P P P P R R O O V V A A L L S S H H E E E E T T 品 名： Multilayer Chip Antenna MODEL NAME 料 號： AT3216-B2R7HAAT/LF PAT NUMBER 3.2*1.6mm Multilayer Chip Antenna 客戶名稱： 晶訊科技股份有限公司 CUSTOMER 供 應 商： 嘉光科技股份有限公司 VENDOR 承認料號： Approve P/N 使用機種： MODEL 聯 絡 人： 許志遠 DENNIS 聯絡電話： +886-915-296-557 附 件： ACCESSORIES ■規格書 □樣品 SPECIFICATION SAMPLE □圖樣 ■檢驗報告 DRAWING TEST REPORT 認可狀況： （APPROVED STATUS） ACX Advanced Ceramic X AT3216 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™Bluetooth/Wireless LAN/Home RF ™ISM band 2.4GHz applications Specifications Part Number Frequency Range (MHz) Peak Gain XZ-V Average Gain XZ-V VSWR Impedance AT3216 -B2R7HAA_ 2400 ~ 2500 0.5 dBi typ. -0.5 dBi typ. 2 max. 50 Ω Q’ty/Reel (pcs) : 3,000pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number AT 3216 - B 2R7 HAA ‡ /LF c d e f g h i c Type AT : Antenna d Dimensions ( L × W ) 3.2× 1.6 mm e Material Code B f Frequency Range 2R7=2700MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk i Soldering =lead-containing /LF=lead-free Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm a W T L Mark L W T a Dimensions 3.20.2 1.60.2 1.3+ 0.1/-0.2 0.50.3 (a) Without Matching Circuits (b) With Matching Circuits 1.2pF 3.3nH 2.6 4.2 1.6 1.9 2.7nH 0.4 * *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. ACX Advanced Ceramic X Typical Electrical Characteristics (T=25 o C) ™Test Board Ground 13.5mm 6.5mm 39.5mm 4mm No Ground Matching Circuit 50Ω Feed Line 19mm Antenna 6.5mm ™Return Loss (a) Without Matching Circuits (b) With Matching Circuits SGS Taiwan Ltd. Chemical-Taipei 33 WuChyuan Road, Wuku Industrial Zone, Taipei County, Taiwan /33 t + 886 (02)2299 3279 f + 886 (02)2299 3237 www.sgs.com Member of the SGS Group (SGS SA) Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This test report cannot be reproduced, except in full, without prior written permission of the Company. This Test Report is issued by the Company under its General Conditions of Service printed overleaf or available on request and accessible at http://www.sgs.com/terms_and_conditions.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this Test Report is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Sample Description : Style/Item No. : Buyer/Order No. : Sample Receiving Date : Testing Period : ============================================================================================ Test Requested : Test Method: (1) (2) (3) (4) (5) Test Result(s) : The following sample(s) was/were submitted and identified by/on behalf of the client as : Test Report 2010/02/25 MULTILAYER LTCC-A COMPONENTS (CERAMIC BODY) *CE/2010/25138* No. : CE/2010/25138Date : 2010/03/04Page : 1 of 5 ADVANCED CERAMIC X (ACX) CORPORATION 16 TZU CHIANG ROAD, HSINCHU INDUSTRIAL DISTRICT, HSINCHU HSIEN, TAIWAN 303 2010/02/25 TO 2010/03/04 AD SERIES, AM SERIES, AT SERIES, AW SERIES, BD SERIES, BF SERIES, BL SERIES, BM SERIES, CD SERIES, CF SERIES, CP SERIES, DM SERIES, DP SERIES, DS SERIES, FA SERIES, FB SERIES, FD SERIES, HI SERIES, HF SERIES, HM SERIES, HS SERIES, LF SERIES, PD SERIES, NF SERIES, QS SERIES, SF SERIES, TS SERIES, LTCC SUBSTRATES, BCM2037 LOCAL COMPANY OR USA COMPANY In accordance with the RoHS Directive 2002/95/EC, and its amendment directives. With reference to IEC 62321: 2008 Procedures for the Determination of Levels of Regulated Substances in Electrotechnical Products. Determination of Cadmium by ICP-AES. Please refer to next page(s). Determination of Lead by ICP-AES. Determination of Mercury by ICP-AES. Determination of Hexavalent Chromium by UV/Vis Spectrometry. Determination of PBB and PBDE by GC/MS. SGS Taiwan Ltd. Chemical-Taipei 33 WuChyuan Road, Wuku Industrial Zone, Taipei County, Taiwan /33 t + 886 (02)2299 3279 f + 886 (02)2299 3237 www.sgs.com Member of the SGS Group (SGS SA) Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This test report cannot be reproduced, except in full, without prior written permission of the Company. This Test Report is issued by the Company under its General Conditions of Service printed overleaf or available on request and accessible at http://www.sgs.com/terms_and_conditions.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this Test Report is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Result No.1 n.d.2 382 n.d.2 n.d.2 n.d.- n.d.5 n.d.5 n.d.5 n.d.5 n.d…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T120306J02-RP1 FCC ID: KA2CS2132LA1 Date of Issue: Jun. 5, 2012 Page 1 / 94 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For HD Wirless N Cube Network Camera Model: DCS-2132L Trade Name: D-Link Issued to D Link Corporation 17595 Mt. Herrmann, Fountain Valley, California 92708, United States Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T120306J02-RP1 FCC ID: KA2CS2132LA1 Date of Issue: Jun. 5, 2012 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 June 4, 2012 Initial Issue ALL Jill Shiau Compliance Certification Services Inc. Report No.: T120306J02-RP1 FCC ID: KA2CS2132LA1 Date of Issue: Jun. 5, 2012 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ...........................................................................................4 2. EUT DESCRIPTION................................................................................................................5 3. TEST METHODOLOGY..........................................................................................................6 3.1 EUT CONFIGURATION.....................................................................................................6 3.2 EUT EXERCISE.................................................................................................................6 3.3 GENERAL TEST PROCEDURES .....................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .........................................7 3.5 DESCRIPTION OF TEST MODES ....................................................................................8 4. INSTRUMENT CALIBRATION ...............................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION ....................................................................9 4.2 MEASUREMENT EQUIPMENT USED ..............................................................................9 4.3 MEASUREMENT UNCERTAINTY...................................................................................10 5. FACILITIES AND ACCREDITATIONS .................................................................................11 5.1 FACILTIES .......................................................................................................................11 5.2 EQUIPMENT....................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS .............................................................12 6. SETUP OF EQUIPMENT UNDER TEST ..............................................................................13 6.1 SETUP CONFIGURATION OF EUT ................................................................................13 6.2 SUPPORT EQUIPMENT..................................................................................................13 7. FCC PART 15.247 REQUIREMENTS ..................................................................................14 7.1 6 DB BANDWIDTH ............................................................................................................14 7.2 PEAK POWER .................................................................................................................22 7.3 AVERAGE POWER .........................................................................................................24 7.4 BAND EDGES MEASUREMENT.....................................................................................32 7.5 PEAK POWER SPECTRAL DENSITY ............................................................................55 7.6 SPURIOUS EMISSIONS .................................................................................................63 7.7 POWERLINE CONDUCTED EMISSIONS.......................................................................86 8. APPENDIX I RADIO FREQUENCY EXPOSURE .................................................................89 9. APPENDIX II PHOTOGRAPHS OF TEST SETUP...............................................................91 Compliance Certification Services Inc. Report No.: T120306J02-RP1 FCC ID: KA2CS2132LA1 Date of Issue: Jun. 5, 2012 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Applicant: D Link Corporation 17595 Mt. Herrmann, Fountain Valley, California 92708, United States Manufacturer: Appro Technology Inc. 13F, No. 66, Zhongzheng Rd., Xinzhuang District, New Taipei City, Taiwan, R.O.C. Equipment Under Test: HD Wirless N Cube Network Camera Trade Name: D-Link Model: DCS-2132L Date of Test: March 10 ~ June 4, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accord…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T120306J02-RP1 FCC ID: KA2CS2132LA1 Date of Issue: April 24, 2012 Page 79 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 9. APPENDIX II PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 1GHz Data Link Compliance Certification Services Inc. Report No.: T120306J02-RP1 FCC ID: KA2CS2132LA1 Date of Issue: April 24, 2012 Page 80 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Transmitting Mode Compliance Certification Services Inc. Report No.: T120306J02-RP1 FCC ID: KA2CS2132LA1 Date of Issue: April 24, 2012 Page 81 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Setup Photos Compliance Certification Services Inc. Report No.: T120306J02-RP1 FCC ID: KA2CS2132LA1 Date of Issue: April 24, 2012 Page 82 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Powerline Conducted Emissions Setup Photos Data Link
