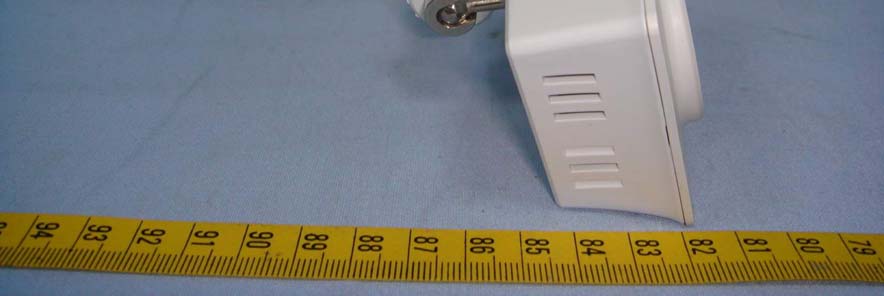

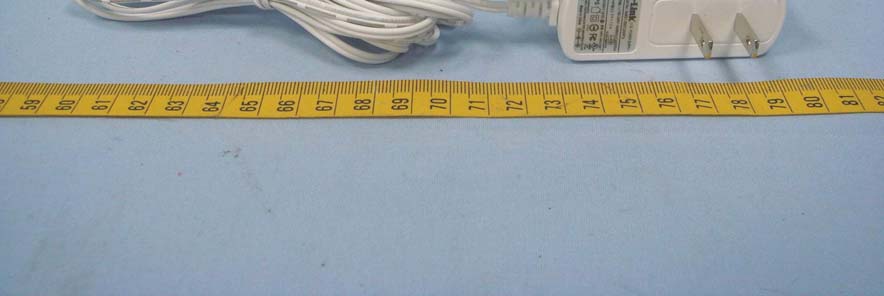

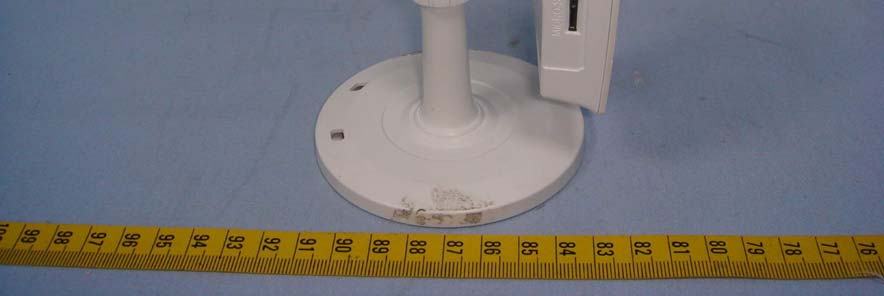

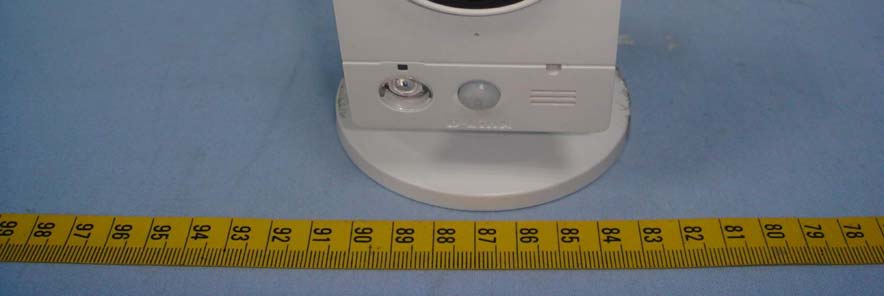

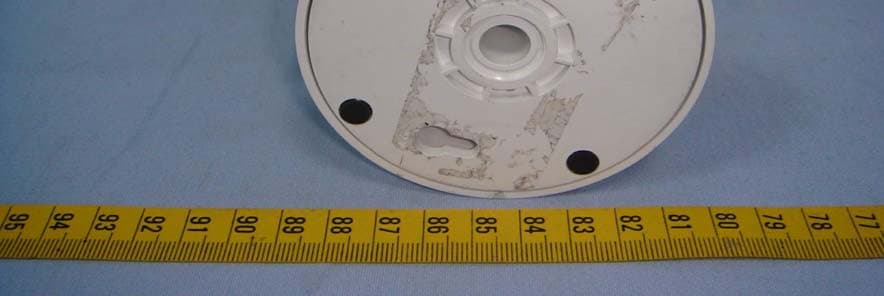

Report No: T131206J03 Page 1 / 9 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T131206J03 Page 2 Rev.00 Report No: T131206J03 Page 3 Rev.00 Report No: T131206J03 Page 4 Rev.00 Report No: T131206J03 Page 5 Rev.00 AMS1-0501200FU

Label Location Figure 1. 美加地區 Figure 2. 國際 / .歐洲地區 S/N: QEXXXXXXXXXXX H/W Ver.:XX F/W Ver.:X.XX (NTSC) DCS-2132L FCC ID: KA2CS2132LB1 IC: 4216A-CS2132LB1 Model: DCS-2132L MAC: XXXXXXXXXXXXX mydlink: XXXXXXXX H/W Ver.:XX F/W Ver.:X.XX (PAL) Model No.: DCS-2132L P/N: XXXXXXXXXXXXXXX S/N: QEXXXXXXXXXXX mydlink: XXXXXXXX P/N: XXXXXXXXXXXXXXX MAC: XXXXXXXXXXXXX CAN ICES-3 (B)/NMB-3(B)

Compliance Certification Services Inc. Report No.: T131206J03-MF Date of Issue: December 27, 2013 Page 1 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT HD Wireless N Cube Network Camera Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Dipole Antenna / Gain: 2.2 dBi(Numeric gain: 1.66) Max. output power IEEE 802.11b 18.00 dBm(63.096 mW) IEEE 802.11g 15.00 dBm(31.623 mW) IEEE 802.11n HT20 14.00 dBm(25.119 mW) IEEE 802.11n HT40 14.00 dBm(25.119 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T131206J03-MF Date of Issue: December 27, 2013 Page 2 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T131206J03-MF Date of Issue: December 27, 2013 Page 3 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243763.0961.66200.02081 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246231.6231.66200.01041 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241225.1191.66200.00831 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243725.1191.66200.00831

Report No: T131206J03 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T131206J03 Page 7 Rev.00 Report No: T131206J03 Page 8 Rev.00 Report No: T131206J03 Page 9 Rev.00 Antenna

Compliance Certification Services Inc. Report No.: T131206J03-RP FCC ID: KA2CS2132LB1 Date of Issue: December 27, 2013 Page 1 / 94 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For HD Wireless N Cube Network Camera Model: DCS-2132L Trade Name: D-Link Issued to D-Link Corporation 17595 Mt. Herrmann, Fountain Valley, California 92708, United States Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T131206J03-RP FCC ID: KA2CS2132LB1 Date of Issue: December 27, 2013 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 December 27, 2013 Initial Issue All Iren Wang Compliance Certification Services Inc. Report No.: T131206J03-RP FCC ID: KA2CS2132LB1 Date of Issue: December 27, 2013 Page 3 Rev.00 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION......................................................................................... 4 2 EUT DESCRIPTION............................................................................................................. 5 3 TEST METHODOLOGY....................................................................................................... 6 3.1 EUT CONFIGURATION ..................................................................................................... 6 3.2 EUT EXERCISE ................................................................................................................. 6 3.3 GENERAL TEST PROCEDURES ...................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................... 7 3.5 DESCRIPTION OF TEST MODES..................................................................................... 8 4 INSTRUMENT CALIBRATION ............................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION..................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 9 4.3 MEASUREMENT UNCERTAINTY ................................................................................... 10 5 FACILITIES AND ACCREDITATIONS ................................................................................11 5.1 FACILITIES........................................................................................................................11 5.2 LABORATORY ACCREDITATIONS AND LISTING ...........................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................... 12 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................... 13 6.1 SETUP CONFIGURATION OF EUT................................................................................. 13 6.2 SUPPORT EQUIPMENT .................................................................................................. 13 7 FCC PART 15 REQUIREMENTS....................................................................................... 14 7.1 6DB BANDWIDTH............................................................................................................ 14 7.2 PEAK POWER .................................................................................................................22 7.3 AVERAGE POWER .......................................................................................................... 24 7.4 BAND EDGES MEASUREMENT ..................................................................................... 26 7.5 PEAK POWER SPECTRAL DENSITY ............................................................................. 50 7.6 SPURIOUS EMISSIONS.................................................................................................. 58 7.7 POWERLINE CONDUCTED EMISSIONS ....................................................................... 83 8 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................. 88 9 APPENDIX II: PHOTOGRAPHS OF EUT.......................................................................... 94 Compliance Certification Services Inc. Report No.: T131206J03-RP FCC ID: KA2CS2132LB1 Date of Issue: December 27, 2013 Page 4 Rev.00 1 TEST RESULT CERTIFICATION Applicant: D-Link Corporation 17595 Mt. Herrmann, Fountain Valley, California 92708, United States Manufacturer: APPRO Technology Inc. 13F, No. 66, Zhongzheng Rd., Xinzhuang Dist., New Taipei City, Taiwan. Equipment Under Test: HD Wireless N Cube Network Camera Trade Name: D-Link Model: DCS-2132L Date of Test: December 13 ~ 26, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Stan Lin Section Manager Angel Hu Section Manager Compliance Certification Services Inc. Report No.: T131206J03-RP FCC ID: KA2CS2132LB1 Date of Issue: December 2…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T131206J03-RP FCC ID: KA2CS2132LB1 Date of Issue: December 27, 2013 Page 88 Rev.00 8 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emissions Setup Photos Below 1GHz LAN Mode Compliance Certification Services Inc. Report No.: T131206J03-RP FCC ID: KA2CS2132LB1 Date of Issue: December 27, 2013 Page 89 Rev.00 Wifi Mode Compliance Certification Services Inc. Report No.: T131206J03-RP FCC ID: KA2CS2132LB1 Date of Issue: December 27, 2013 Page 90 Rev.00 Above 1GHz Compliance Certification Services Inc. Report No.: T131206J03-RP FCC ID: KA2CS2132LB1 Date of Issue: December 27, 2013 Page 91 Rev.00 Conducted Emissions Setup Photo Compliance Certification Services Inc. Report No.: T131206J03-RP FCC ID: KA2CS2132LB1 Date of Issue: December 27, 2013 Page 92 Rev.00 Powerline Conducted Emissions Setup Photos LAN Mode Compliance Certification Services Inc. Report No.: T131206J03-RP FCC ID: KA2CS2132LB1 Date of Issue: December 27, 2013 Page 93 Rev.00 Wifi Mode
